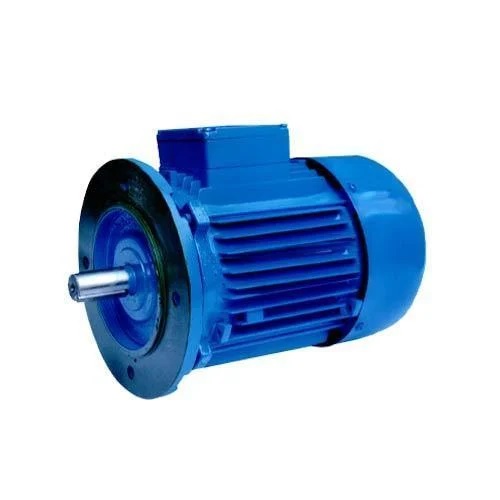

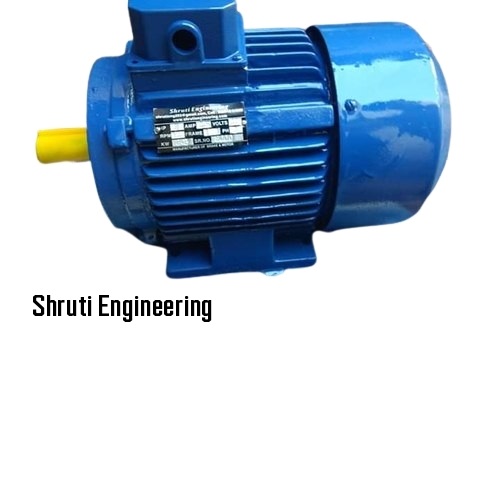

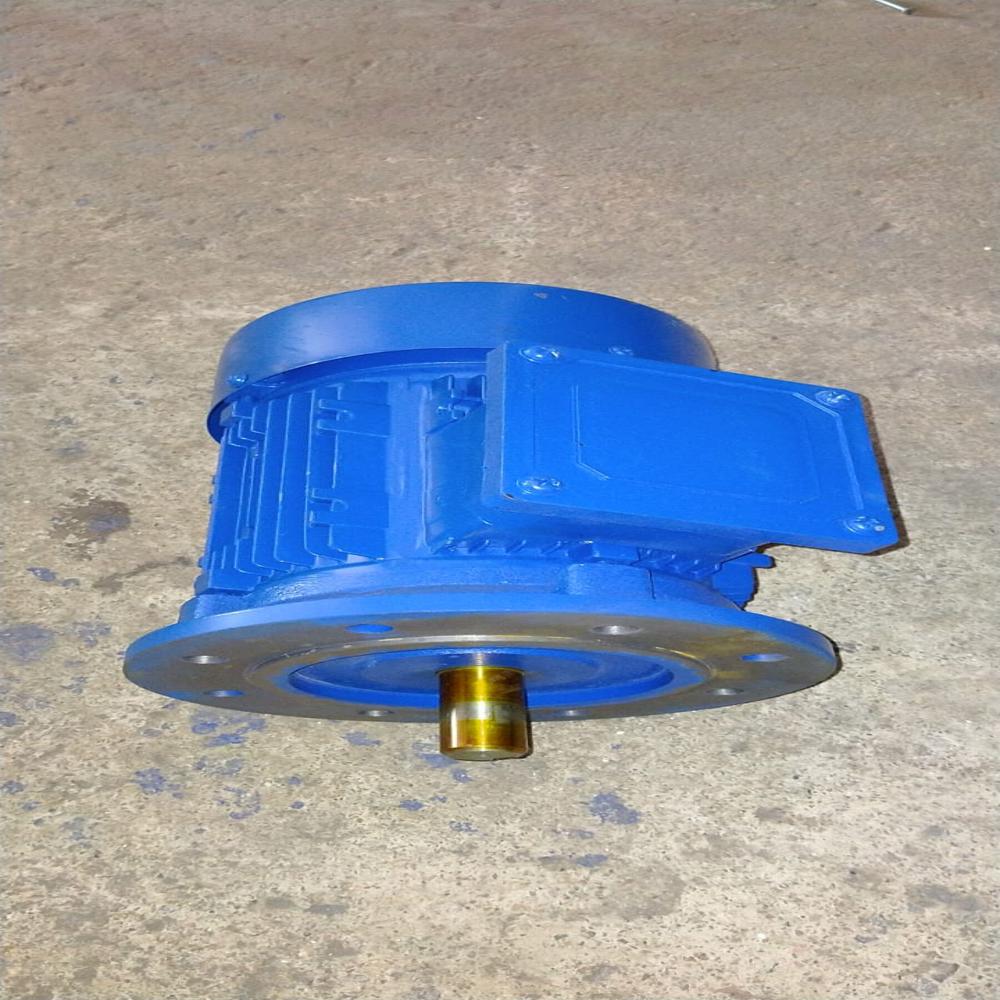

1.5 HP 10-100 KW Cast Iron Body Motor , 1440 rpm

1.5 HP 10-100 KW Cast Iron Body Motor , 1440 rpm Specification

Ambient Temperature
-20C to +50C

Cooling Method
Fan Cooled

Power Rating
10-100 KW

Noise Level
70 dB

Poles Number
4 Pole

Current Type
AC

Rated Frequency
50 Hz

Pressure
Atmospheric

Standard
IS 325, IEC 60034

Features
Heavy Duty, Corrosion Resistant, High Starting Torque

Bearing Type
Ball Bearing

Motor Type
Squirrel Cage Induction Motor

Efficacy
IE2 Standard

Rated Voltage
415 V

Torque
Max 14 Nm (at 1.5 HP, varies with model)

Sealed Type
Totally Enclosed Fan Cooled (TEFC)

Horse Power
1.5 HP

Starting Type
DOL

Voltage
415 V

Product Type
Industrial Electric Motor

Output Power
1.5 HP (10-100 KW range)

Frequency (MHz)
50 Hz

Protect Feature
IP55 protection

Phase
Three Phase

Speed
1440 RPM

Power
1.5 HP (varies up to 100 KW)

Color
Blue

Dimension (L*W*H)
Standard as per manufacturer

Weight
Approx. 70-250 kg (depends on model)

Shaft Diameter
24 mm (1.5 HP, varies by size)

Mounting Type
Foot Mounted

IP Rating
IP55

Body Material
Cast Iron

Vibration Level
Complies with IS standards

Efficiency Class
IE2/IE3 available

Insulation Class
Class F

Humidity Tolerance
95% RH

Service Factor
1.0

Thermal Protection
Optional

Application
Pumps, Compressors, Conveyors, Fans

Frame Size
80 to 315 (varies with rating)

Rotation Direction
Bidirectional

Duty Cycle
S1 Continuous

1.5 HP 10-100 KW Cast Iron Body Motor , 1440 rpm Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
3 Days

About 1.5 HP 10-100 KW Cast Iron Body Motor , 1440 rpm

1.5 HP 10100 kW Cast Iron Body Motor, 1440 RPM Description

Overview

The Cast Iron Body Electric Motor is a heavy-duty, high-efficiency induction motor designed for continuous industrial operation. Built with a rugged cast iron housing, it ensures maximum durability, excellent heat dissipation, and long service life even in harsh working conditions.
This motor delivers steady performance at 1440 RPM, making it ideal for machinery, pumps, compressors, conveyors, and industrial automation systems.

Designed for Durability and Performance

Built with a rugged cast iron body and sealed to IP55 specifications, this motor delivers outstanding durability in industrial settings. It resists corrosion, operates quietly ( 70 dB), and maintains consistent output under tough conditions, making it ideal for continuous operation on the plant floor or outdoors.

Efficiency and Versatility

Available in high-efficiency IE2 and IE3 classes, this motor enables significant energy savings over time. Its suitability for various applicationssuch as pumps, conveyors, and fansis backed by a wide power range (1.5 HP to 100 KW), bidirectional rotation, and compatibility with DOL starting. A broad ambient temperature tolerance ensures reliability even in challenging environments.

FAQs of 1.5 HP 10-100 KW Cast Iron Body Motor , 1440 rpm:

Q: How does the cast iron body benefit the 1.5 HP motor in industrial applications?

A: The cast iron body provides enhanced durability, corrosion resistance, and better heat dissipation. These characteristics make the motor suitable for heavy-duty, continuous-use environments such as found in pumps, compressors, and fans, extending its operational lifespan.

Q: What is the process for installing this 1.5 HP cast iron body motor?

A: Installation is straightforward: mount the motor using the provided foot-mount configuration on a firm base, connect to a compatible 415V three-phase AC supply, and ensure proper alignment with your mechanical equipment. Refer to the manufacturers manual for precise dimension and shaft fitting based on the frame size.

Q: When should thermal protection be considered for this motor?

A: Thermal protection is optional for this motor. It is recommended for applications where overloading might occur, or when operating in environments with fluctuating temperatures to prevent the risk of overheating and ensure motor longevity.

Q: Where can this motor be used most effectively?

A: This motor excels in industrial environments requiring continuous S1 dutycommon in water pumping stations, manufacturing conveyors, ventilation systems, and compressor setups. Its IP55 rating and high humidity tolerance enable reliable performance both indoors and in semi-exposed conditions.

Q: What are the advantages of the IE2/IE3 efficiency class for this motor?

A: IE2/IE3 efficiency classifications indicate superior energy efficiency. This reduces electricity consumption and operating costs over time, making the motor a cost-effective choice for both new installations and energy-focused retrofits.

Q: How do I ensure the motor will withstand high ambient humidity?

A: The motor is designed to operate in environments with up to 95% relative humidity. Its totally enclosed fan cooled (TEFC) construction and corrosion-resistant cast iron body provide robust protection against moisture ingress, ensuring consistent performance.

Q: What makes this motor suitable for bidirectional applications?

A: The bidirectional rotation feature allows the motors shaft to spin in either direction, offering versatility for various machinery requirements. This flexibility simplifies integration with diverse equipment such as pumps or conveyors where rotation direction may vary by system design.
