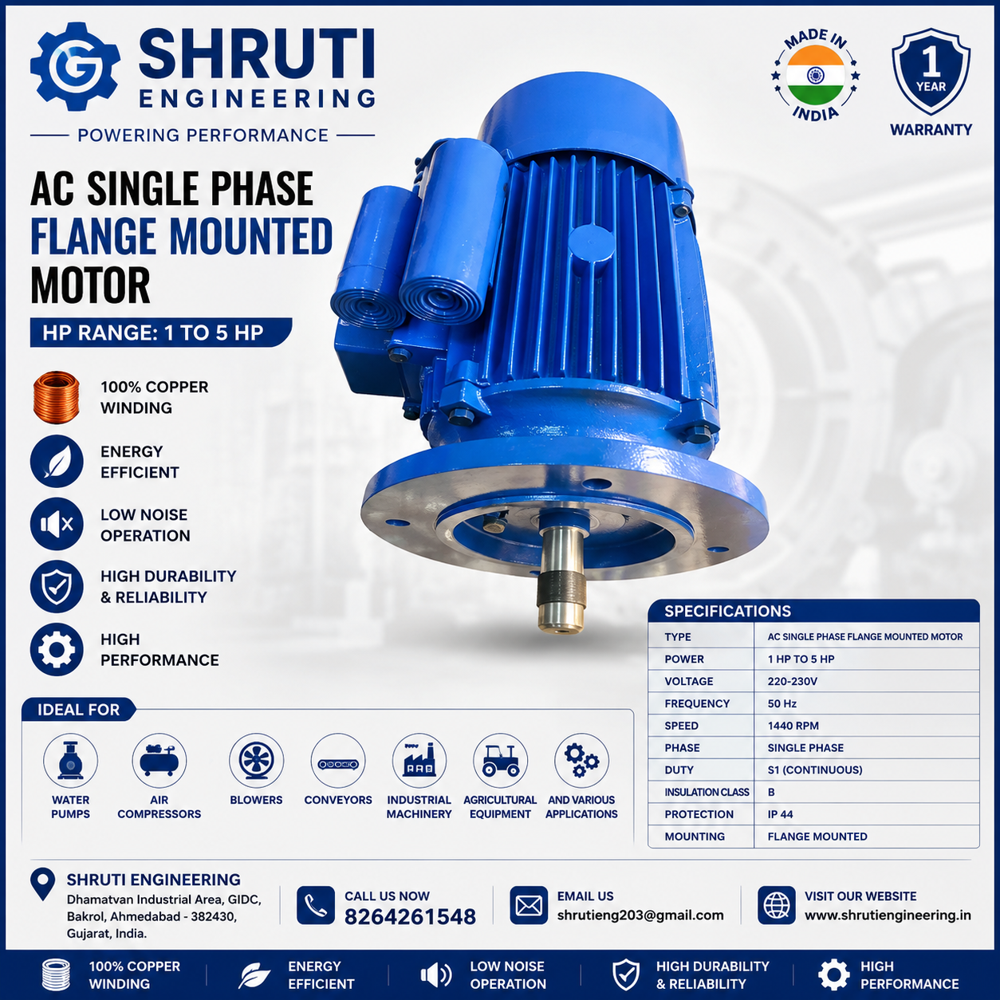

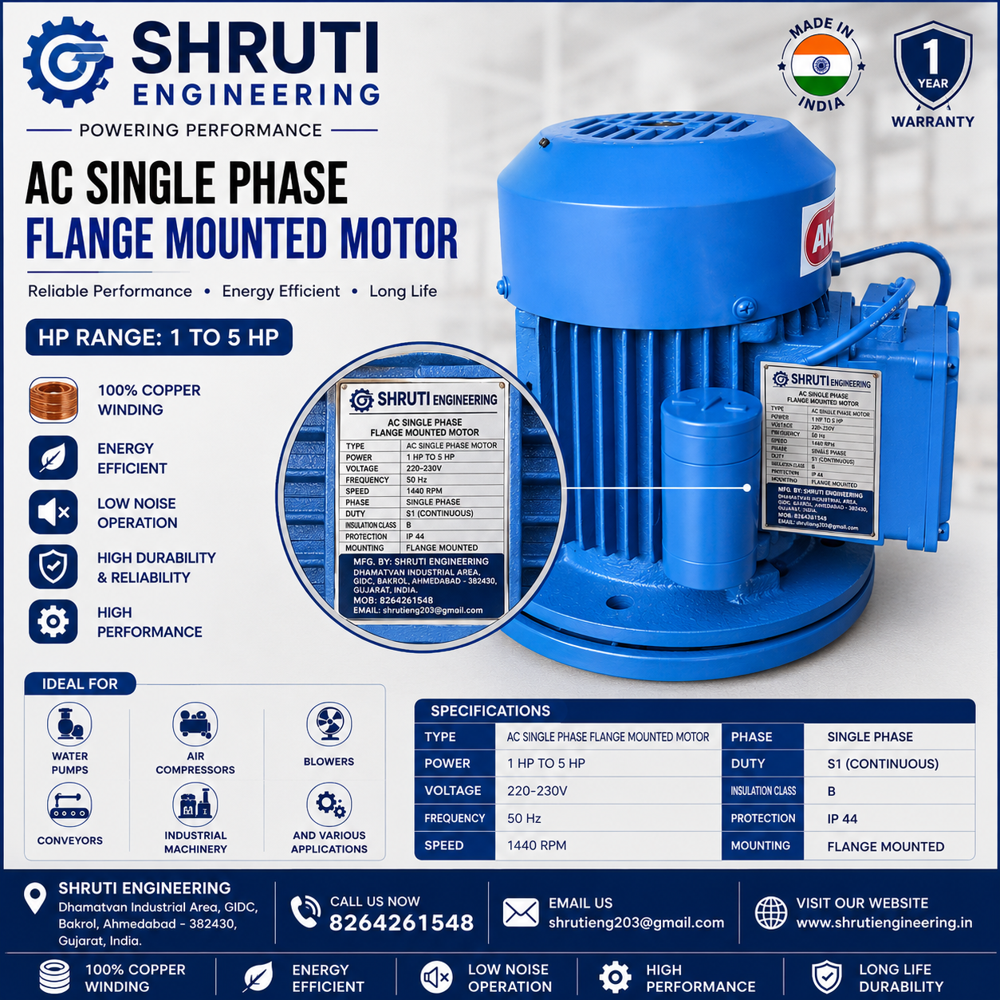

1440 RPM Single Phase Motor

1440 RPM Single Phase Motor Specification

Rated Voltage
220-230 V

Current Type
AC

Noise Level
Low Noise Operation

Efficacy
Energy Efficient

Voltage
220-230 V

Starting Type
Direct On Line (DOL)

Features
100% Copper Winding, High Performance, Long Life Durability

Motor Type
AC Single Phase Induction Motor

Cooling Method
Fan cooled

Standard
S1 (Continuous) Duty, Insulation Class B

Rated Frequency
50 Hz

Horse Power
1 HP

Power Rating
0.75 kW / 1 HP

Product Type
Single Phase Induction Motor

Output Power
0.75 kW / 1 HP

Protect Feature
IP 55

Phase
Single Phase

Speed
1440 RPM

Power
0.75 kW / 1 HP

Color
Blue

Mounting Type
Foot mounted

IP Rating
IP 55

Body Material
Cast Iron Body

Performance
Reliable Performance, Energy Efficient, Long Lasting

Duty
S1 (Continuous)

Insulation Class
B

Application
Water Pump, Air Compressor, Blower, Conveyor, Industrial Machinery, Agriculture Equipment, Various Industrial Applications

Winding Material
100% Copper Winding

1440 RPM Single Phase Motor About

We are a leading Single Phase Motor Exporter committed to delivering high-quality, energy-efficient, and durable electric motors to clients across the globe. Our motors are manufactured using premium-grade materials and advanced technology, ensuring superior performance, long service life, and reliability in all operating conditions.

Each motor is designed to meet international quality standards and provide excellent torque, smooth operation, and minimal maintenance. With a strong export network, we cater to industrial, commercial, and agricultural sectors worldwide.

Engineered for Endurance and Efficiency

This motor stands out for its reliable performance and energy efficiency, thanks to its 100% copper winding and insulation class B. The cast iron body not only boosts longevity but also ensures resilience in tough industrial environments, making the device suitable for continuous operation (S1 duty) without frequent maintenance.

Versatile Industrial Applications

Designed to power a wide range of equipment, this single-phase motor is perfect for water pumps, air compressors, blowers, conveyors, and numerous machines across agriculture and industry. With an IP 55 rating, it operates safely even in environments with dust and water exposure, providing flexibility in installation and usage.

FAQ's of 1440 RPM Single Phase Motor:

Q: How should I install the 1440 RPM Single Phase Motor for optimal performance?

A: The motor is foot mounted, so it should be securely fastened to a stable surface to minimize vibration and noise. Ensure proper alignment with the connected equipment and connect via Direct On Line (DOL) starting at the rated voltage of 220-230 V for best results.

Q: What makes this motor energy efficient and reliable in long-term use?

A: With 100% copper winding and Class B insulation, the motor offers high conductivity and effective thermal management. The combination of robust cast iron body and fan cooling ensures durability, low noise, and consistent energy-efficient performance even in continuous operation.

Q: Where can this motor be effectively utilized?

A: This versatile motor is suitable for applications in water pumps, air compressors, blowers, conveyors, industrial machinery, and agricultural equipment. Its IP 55 rating means it performs well in settings exposed to dust, moisture, or challenging industrial conditions.

Q: When is continuous (S1 duty) operation recommended for this motor?

A: Continuous (S1) duty operation is recommended when the motor needs to run at a constant load without interruption for extended periods, such as in industrial processes or pumping systems that require unwavering performance throughout the day.

Q: What are the main benefits of a cast iron body and IP 55 protection?

A: The cast iron body enhances structural strength and longevity, making it suitable for harsh environments. IP 55 protection secures the motor against dust and water jets, increasing operational reliability and reducing maintenance requirements.

Q: How do I ensure safe and efficient usage of this single phase induction motor?

A: Follow manufacturer guidelines for wiring, mounting, and maintenance. Operate the motor at its rated voltage (220-230 V) and frequency (50 Hz), and ensure adequate ventilation for the fan-cooled system to sustain low noise and prevent overheating.
