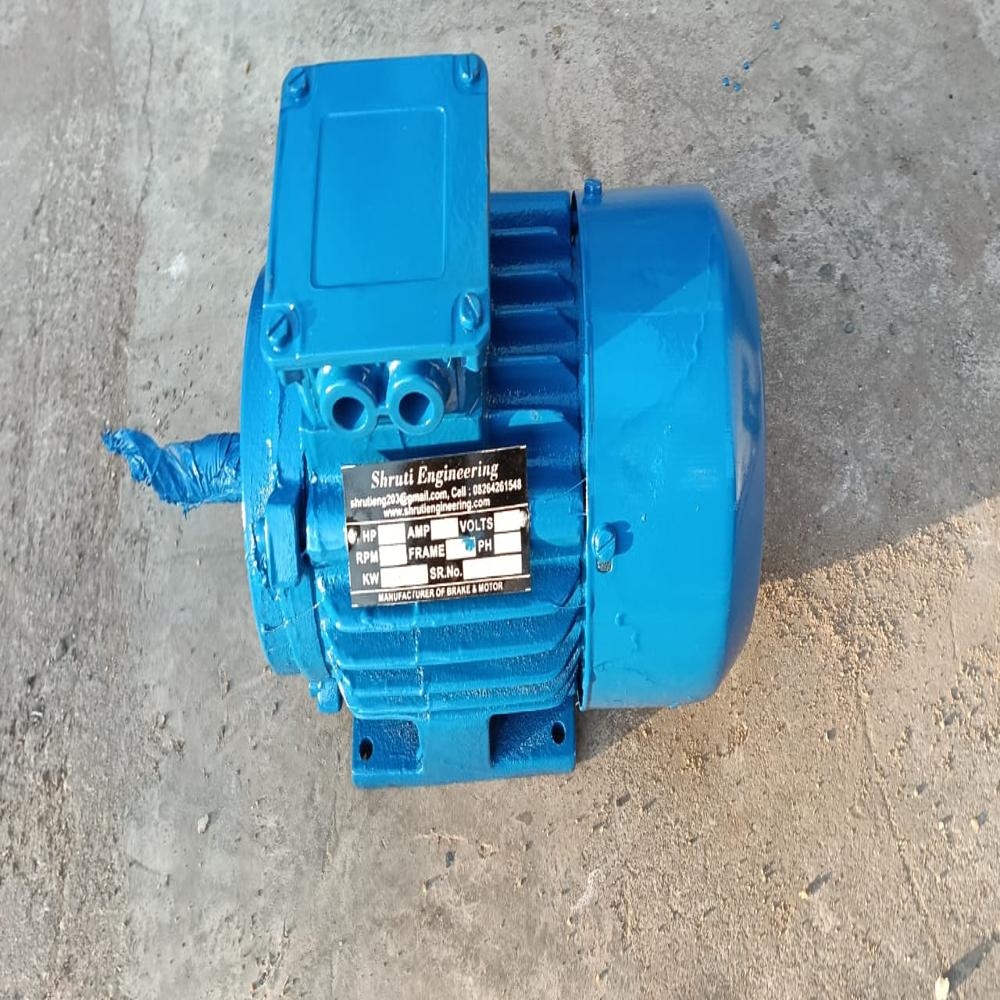

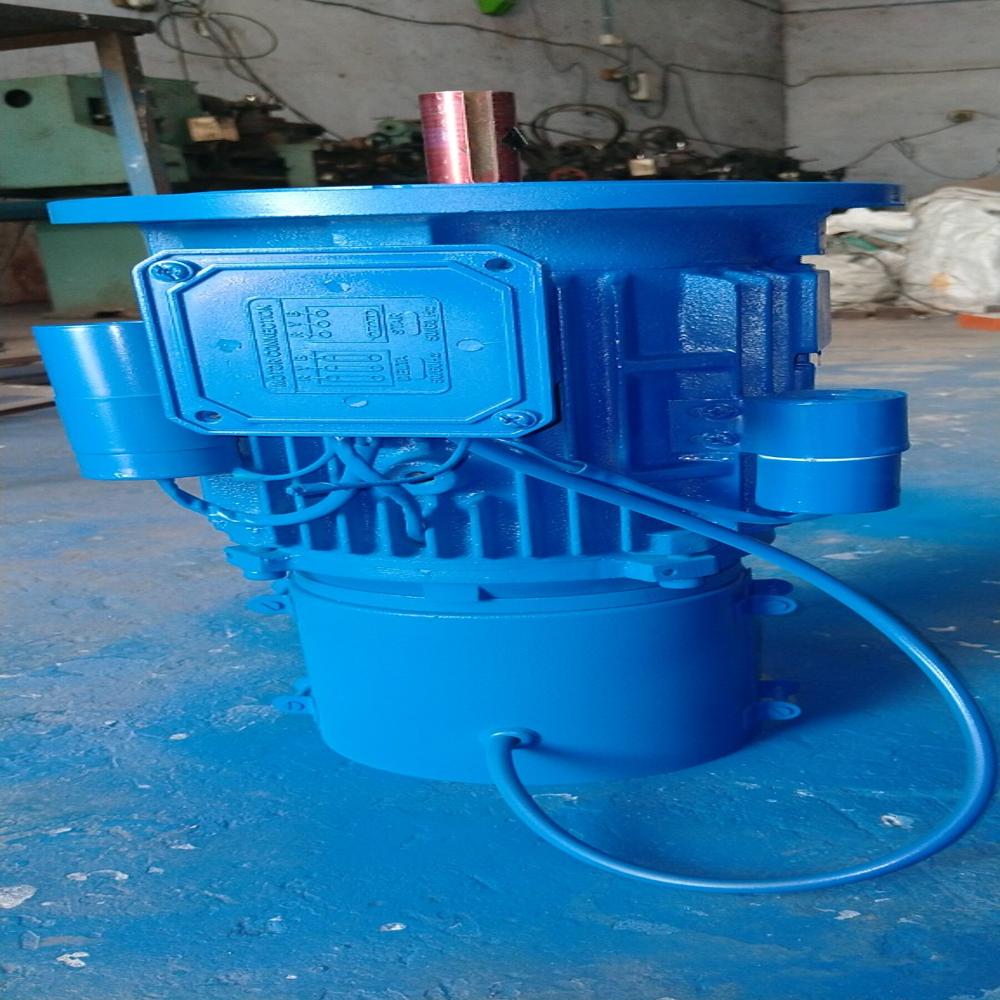

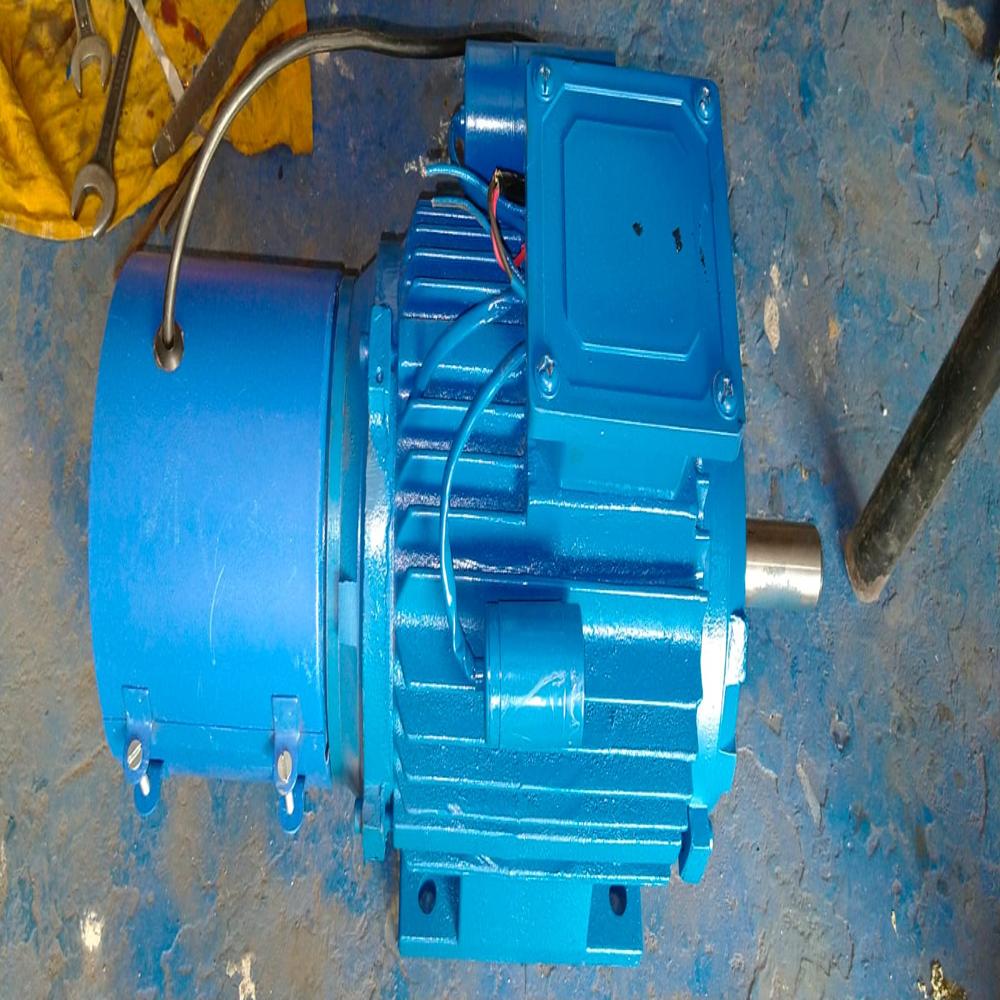

220V AC Motor

220V AC Motor Specification

Pressure
Ambient

Efficacy
High

Bearing Type
Ball Bearing

Torque
High Starting Torque

Features
Energy Efficient, Durable, High Performance

Voltage
220V AC

Motor Type
AC Induction Motor

Rated Frequency
50 Hz

Standard
IS and IEC Standard

Horse Power
0.5 HP to 20 HP

Power Rating
0.37 kW to 15 kW

Noise Level
Low

Cooling Method
Fan Cooled

Rated Voltage
220V

Starting Type
Direct On Line (DOL)

Ambient Temperature
-15C to +40C

Sealed Type
IP55

Poles Number
2, 4, 6 Available

Current Type
AC

Product Type
AC Electric Motor

Output Power
According to requirement

Frequency (MHz)
50 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Single Phase or Three Phase

Speed
1440 RPM

Power
0.5 HP to 20 HP (Range available)

Color
Blue

Dimension (L*W*H)
Depend on Model

Weight
Depend on Model

Shaft Diameter
As per model

Mounting Type
Foot Mounted/Base Mounted

IP Rating
IP55

Enclosure Type
Totally Enclosed

Insulation Class
Class F

Duty Type
S1 (Continuous Duty)

Application
Industrial, Textile, Pump, Compressor, Machine Tools

Frame Size
71 to 160

Body Material
Cast Iron

About 220V AC Motor

High Torque Single Phase Motor

A High Torque Single Phase Motor is engineered to deliver superior starting and running torque, making it ideal for applications that require heavy load starting and frequent start-stop operations. Designed to run on a single-phase AC supply, this motor combines robust construction with high efficiency, ensuring dependable performance in both industrial and commercial environments.

Built with premium-grade copper windings, high-quality laminations, and durable bearings, the motor provides reliable service life under demanding conditions. It is available in capacitor-start and capacitor-run designs, offering smooth acceleration and excellent torque characteristics.

Key Features:

High starting and running torque for heavy-duty applications
Operates on standard single-phase AC supply (230V/240V)
Rugged and compact construction for industrial use
Withstands overload, reversing, and frequent duty cycles
Available in foot-mounted or flange-mounted versions
Low noise, low vibration, and long service life

Engineered for Continuous Performance

Designed with Class F insulation and S1 duty cycle, these AC motors are ideal for continuous operation in rigorous industrial environments. The robust cast iron body ensures long-term durability and resistance to harsh operating conditions. With its totally enclosed fan-cooled (TEFC) enclosure and high IP55 rating, the motor is well-protected against dust, water, and extreme temperatures, making it suitable for a wide array of demanding applications.

Flexible Power Options and Versatility

Choose from power outputs between 0.5 HP to 20 HP, with frame sizes tailored to your needs. These motors are compatible with both single-phase and three-phase power supplies, providing adaptability across diverse machinery like pumps, compressors, and textile equipment. The direct-on-line (DOL) starting type and high starting torque ensure reliable start-up and consistent operation, optimizing productivity in every installation.

Efficiency, Safety, and Standards Compliance

Our motors are recognized for their high efficiency, low noise, and energy-saving performance. All models comply with both IS and IEC international standards, ensuring safety and quality. The ball bearing design reduces maintenance requirements, while features such as foot or base mounting enhance installation convenience. Whether you are an exporter, manufacturer, or end-user, these motors are tailored for optimal reliability and operational excellence.

FAQ's of 220V AC Motor:

Q: How does the totally enclosed fan cooled (TEFC) design benefit the 220V AC motor?

A: The TEFC design ensures that the motor is protected from dust, moisture, and other environmental contaminants, making it suitable for harsh industrial conditions. The integrated fan provides continuous cooling, extending the motor's lifespan and maintaining optimal performance even during continuous duty cycles.

Q: What applications are ideal for this AC induction motor?

A: This motor is best suited for a range of industrial applications such as pumps, compressors, textile machinery, and machine tools. Its robust design and high efficiency make it reliable for continuous duty in demanding settings.

Q: When should I use a single-phase versus a three-phase model?

A: Single-phase models are typically used for lower power requirements and locations with limited electrical infrastructure, like small workshops. Three-phase variants are preferable for larger machines and industrial installations where higher efficiency, smoother operation, and greater power output are needed.

Q: Where can these motors be installed considering their protection features?

A: Thanks to their IP55 rating and totally enclosed construction, these motors can be safely installed in areas exposed to dust, moderate water splashes, and variable ambient temperatures ranging from -15C to +40C. However, they should not be submerged or exposed to corrosive chemicals without proper protection.

Q: What is the process for starting this AC motor, and why is direct-on-line (DOL) starting used?

A: These motors use the direct-on-line (DOL) starting method, which involves applying full voltage directly to the motor terminals. This process provides a simple, reliable start and is ideal for motors with lower to medium horsepower (up to 20 HP), especially when high starting torque is required.

Q: How does the high starting torque benefit industrial operations?

A: High starting torque enables the motor to start heavy loads quickly and efficiently, which is especially important for applications like pumps and compressors that require significant force to begin movement. This minimizes downtime and ensures smooth, consistent operation from the outset.

Q: What are the long-term benefits of using these IS and IEC standard-compliant motors?

A: Motors built to IS and IEC standards offer enhanced safety, quality, and performance. They ensure compatibility with global regulations, reduce the risk of failures, and provide greater energy efficiency, resulting in lower operational costs and longer equipment service life.
