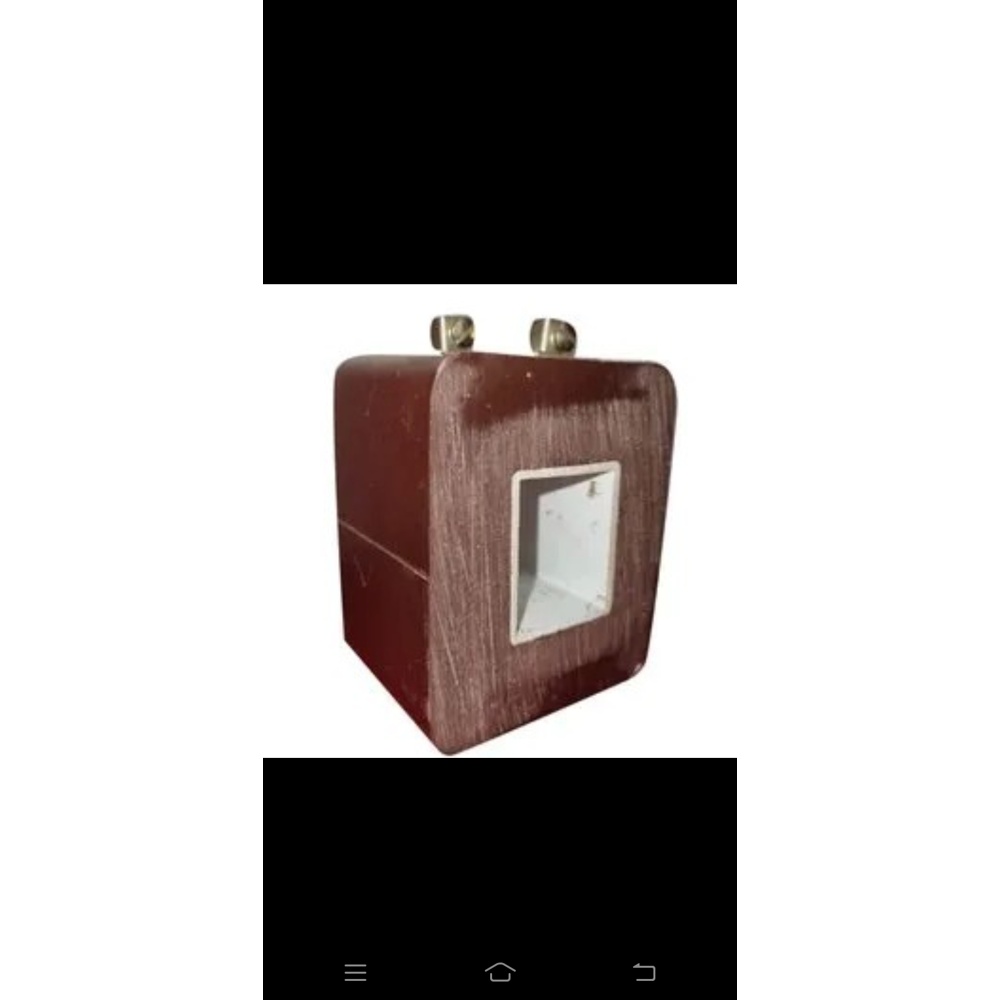

220V Solenoid Coil with Plunger

220V Solenoid Coil with Plunger Specification

Pressure
Not applicable to electrical solenoid coils

Shape
Bobbin, Molded Bakelite, Standard Bakelite, Open Type

Vehicle Type
Not specific to vehicles; mainly for industrial and machinery use

Thickness
Standard coil thickness, customizable as per requirement

Material
Bakelite, Copper Winding, Steel Plunger

Loading Capacity
Varies by application, standard for heavy-duty operations

Diameter
Standard sizes available (custom on request)

Power
Rated for 220V operation

Voltage
220V AC

Application
Solenoid actuators, Electromagnetic Actuators, Industrial Automation, Machine Tools

Ambient Temperature Range
-10C to +60C

Insulation Class
Class F or H

Manufacturing Standard
Made in India, ISO certified processes

Duty Cycle
Continuous (100%)

Customization
Sizes and ratings as per customer specification

Coil Resistance
Standard for rated voltage, specific on request

Quality Assurance
Premium quality, reliable performance

Mounting Type
Base/Bracket Mounting

Frequency
50/60 Hz

Lead Connection
Terminal type with brass screws

Product Type
Open Type and Enclosed Type available

About 220V Solenoid Coil with Plunger

rake coils for Bhartia Culter HammerBCH AC operated Solenoid Brake used in for Cranes, Hoists, Machinery, Mining machineries, Marine, Machine tools, Earthmoving and wet and dry applications.

Shruti Engineering are the very highly acclaimed organization in this sector, engaged in manufacturing and supplying an exclusive range of AC Solenoid Magnetic Brake. These products are gaining appreciation from every where in the world for its unmatched quality and low maintenance. Our offered product range is manufactured using fine grade raw materials and modern technology and it is designed as per the specifications of our distinguished customers.

Robust Design and Versatility

Built with Bakelite housing, copper windings, and a durable steel plunger, these solenoid coils offer reliable performance for various industrial uses. Both open and enclosed types are available, making them suitable for a wide array of automation applications, including machine tools and electromagnetic actuators.

Customizable for Diverse Industrial Needs

Offering flexibility in size, rating, and coil thickness, the 220V solenoid coil can be tailored to meet unique application requirements. With standard terminal-type lead connections and mounting options, installation is straightforward on different industrial equipment.

Certified Quality and Lasting Performance

Manufactured in India under ISO-certified processes, these coils guarantee premium quality and consistent operation. Designed to perform continuously at 100% duty cycle and withstand ambient temperatures from -10C to +60C, they ensure reliable operation in heavy-duty environments.

FAQ's of 220V Solenoid Coil with Plunger:

Q: How do I install the 220V solenoid coil with plunger?

A: The coil is designed for easy installation using a base or bracket mounting system. Secure the unit to your machinery with the provided mounting points and connect the leads using terminal-type brass screws.

Q: What are the main benefits of using this solenoid coil in industrial automation?

A: This solenoid coil offers durability, a continuous duty cycle, and reliability due to its high-quality materials. It supports both open and enclosed configurations, ensuring suitability for various machine tools and automation systems.

Q: When should I consider customizing the solenoid coil's size or ratings?

A: Customization is recommended when your specific application demands unique size constraints, voltage, or loading requirements. You can request changes to coil diameter, thickness, or resistance to match your equipment.

Q: Where can this solenoid coil be applied?

A: The 220V solenoid coil is ideal for industrial sectors, particularly in electromagnetic actuators, solenoid actuators, machine tools, and other automation setups. It is not designed for use in vehicles.

Q: What quality standards does the manufacturing process follow?

A: Each coil is produced in India following ISO-certified manufacturing protocols, ensuring premium quality and consistent performance for industrial applications.

Q: How does the coil's continuous duty cycle benefit my system?

A: A continuous (100%) duty cycle allows the coil to operate without interruption over extended periods, delivering reliable actuation in demanding or repetitive industrial processes.

Q: What is the process for ordering coils with specific technical requirements?

A: You may contact the manufacturer with your application's precise specifications. Custom orders can be fulfilled for coil resistance, diameter, thickness, and load ratings based on your needs.
