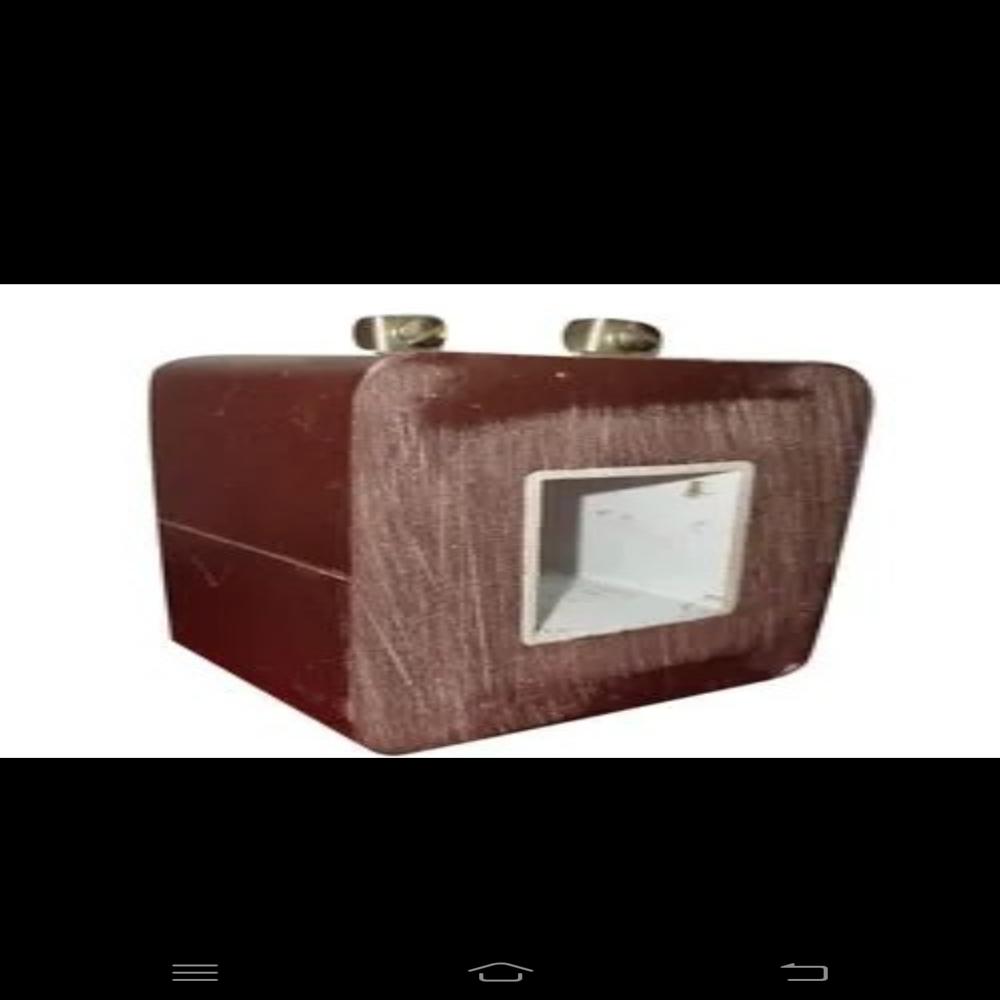

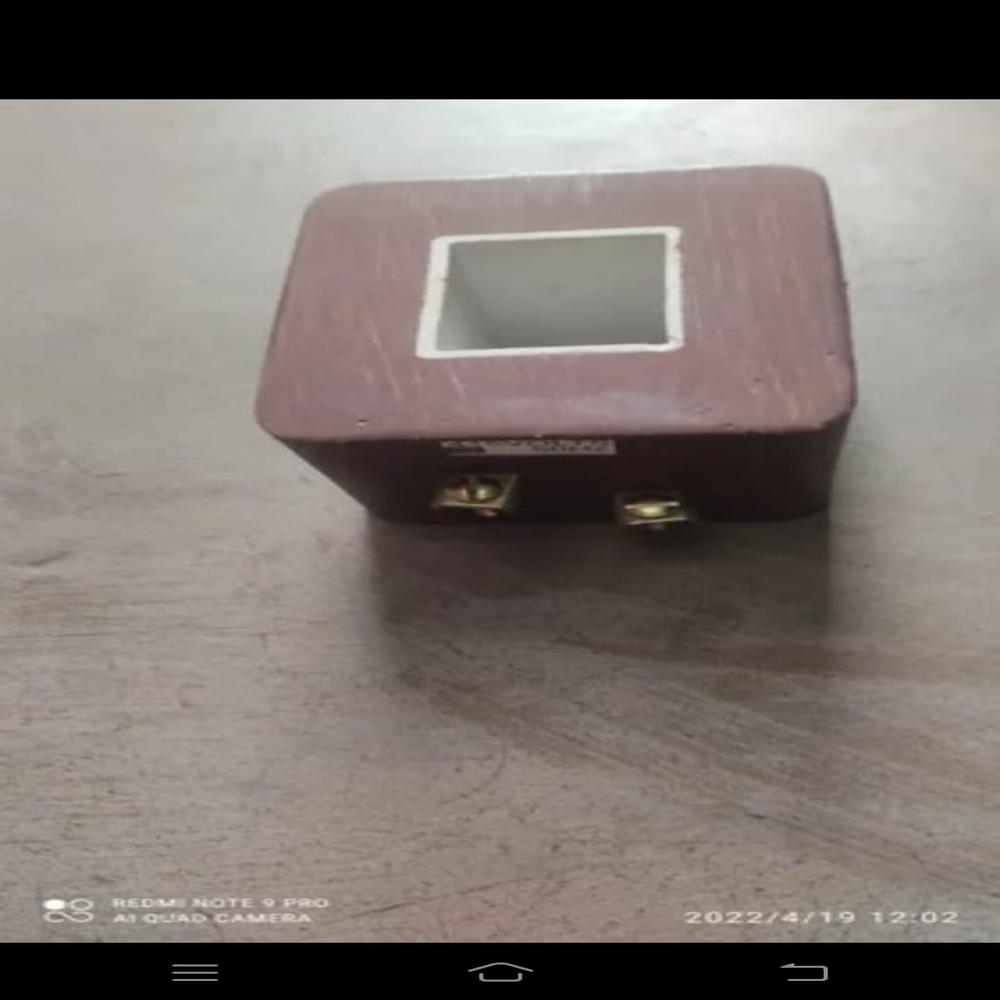

415V AC Solenoid Brake Coil

415V AC Solenoid Brake Coil Specification

Usage & Applications
Electromagnetic Brakes, Overhead Cranes, Hoists, Industrial Machines

Part Type
Solenoid Brake Coil

Features
High Insulation Resistance, Durable Construction, Easy Installation, Long-lasting Performance, Consistent Magnetic Force

Mounting Type
Panel/Bracket Mount

Noise Level
Low

Brake Type
AC Solenoid Brake Coil

Size
Available in Various Sizes (Customizable as per requirement)

Material
Copper Winding, Insulated Thermoset Polymer

Pattern Material
Thermoset Polymer Casing

Surface Finish
Smooth Black Finish

Standard
ISI/IEC Standard

Customization
Available as per customer requirements

Rated Voltage
415V AC

Current Consumption
Low as per coil design

Connection Type
2 Terminal Screw Connectors

Coil Resistance
Optimized (As per design specification)

Operating Temperature
-20C to +70C

Frequency
50 Hz

Insulation Class
Class F or better

Color
Black (as displayed)

Replacement/Interchangeability
Compatible with standard AC solenoid brakes

Operation Mode
Intermittent / Continuous Duty

About 415V AC Solenoid Brake Coil

415V AC Solenoid Brake Coil Description

The 415V AC Solenoid Brake Coil is a robust and reliable component used in AC electromagnetic brake systems for industrial machinery. Designed to operate on a 415V AC supply, this coil generates a strong magnetic field that ensures quick brake release and precise braking performance.

Built with high-quality copper or aluminum windings and thermal-resistant insulation, it offers durability, low power consumption, and long service life, even under continuous duty cycles and heavy-load applications. Its compact and efficient design makes it suitable for a wide range of industrial environments.

Key Features:

Operates on 415V AC, 50Hz/60Hz
High-grade copper/aluminum windings
Heat-resistant insulation for long-lasting performance
Quick response for smooth brake engagement and release
Energy-efficient and low maintenance design

Robust Construction for Industrial Use

Built with copper winding and housed in a rugged thermoset polymer casing, this solenoid brake coil offers exceptional resistance to heat, wear, and moisture. Its Class F insulation ensures safety under high operating temperatures, making it suitable for continuous duty across multiple industrial applications.

Versatile Compatibility and Customization

Featuring 2 terminal screw connectors and compliant with ISI/IEC standards, the coil is interchangeable with standard AC solenoid brakes. Its availability in various sizes and custom options enables seamless integration into existing systems, maximizing operational flexibility for manufacturers and users alike.

Reliable Performance and Easy Installation

Optimized coil resistance and low current draw contribute to consistent magnetic force and long-lasting performance. The smooth black finish and panel/bracket mounting system allow for straightforward installation and maintenance-delivering dependable operation with minimal noise.

FAQ's of 415V AC Solenoid Brake Coil:

Q: How do I install the 415V AC Solenoid Brake Coil?

A: To install the coil, attach it to the mounting panel or bracket using existing holes. Connect your AC supply wires to the two terminal screw connectors, ensuring the power is off during installation. Follow standard procedures recommended for electromagnetic brake components.

Q: What applications are suitable for this solenoid brake coil?

A: This product is ideal for electromagnetic brakes, overhead cranes, hoists, and a range of industrial machines where reliable stopping power and long-lasting performance are essential.

Q: When should I choose the continuous duty operation mode?

A: Select continuous duty operation if your equipment requires the brake to remain energized for extended periods, such as in automated production lines or conveyor systems. The coil's insulation class and durable construction support prolonged use without overheating.

Q: Where can I use a customized solenoid brake coil?

A: A customized coil is recommended for unique machinery or replacement needs where standard sizes may not fit. Industries with specific voltage, mounting, or dimensional requirements can request customization for perfect compatibility.

Q: What is the process for ordering a customized brake coil?

A: Simply provide your specifications-including voltage, size, mounting style, and any additional requirements-to the manufacturer or supplier. They will design and produce the coil according to those parameters, ensuring a proper fit and function.

Q: How does this brake coil benefit my machinery's performance?

A: With high insulation resistance, low current consumption, and optimized design, the coil enhances your machinery's safety and reliability while reducing operating costs and minimizing downtime due to its robust construction and long lifespan.

Q: What makes this solenoid brake coil compatible with standard AC solenoid brakes?

A: Its design adheres to ISI/IEC standards, features two screw terminal connections, and comes in standard and customizable sizes, ensuring straightforward replacement and interchangeability in most existing AC solenoid brake assemblies.
