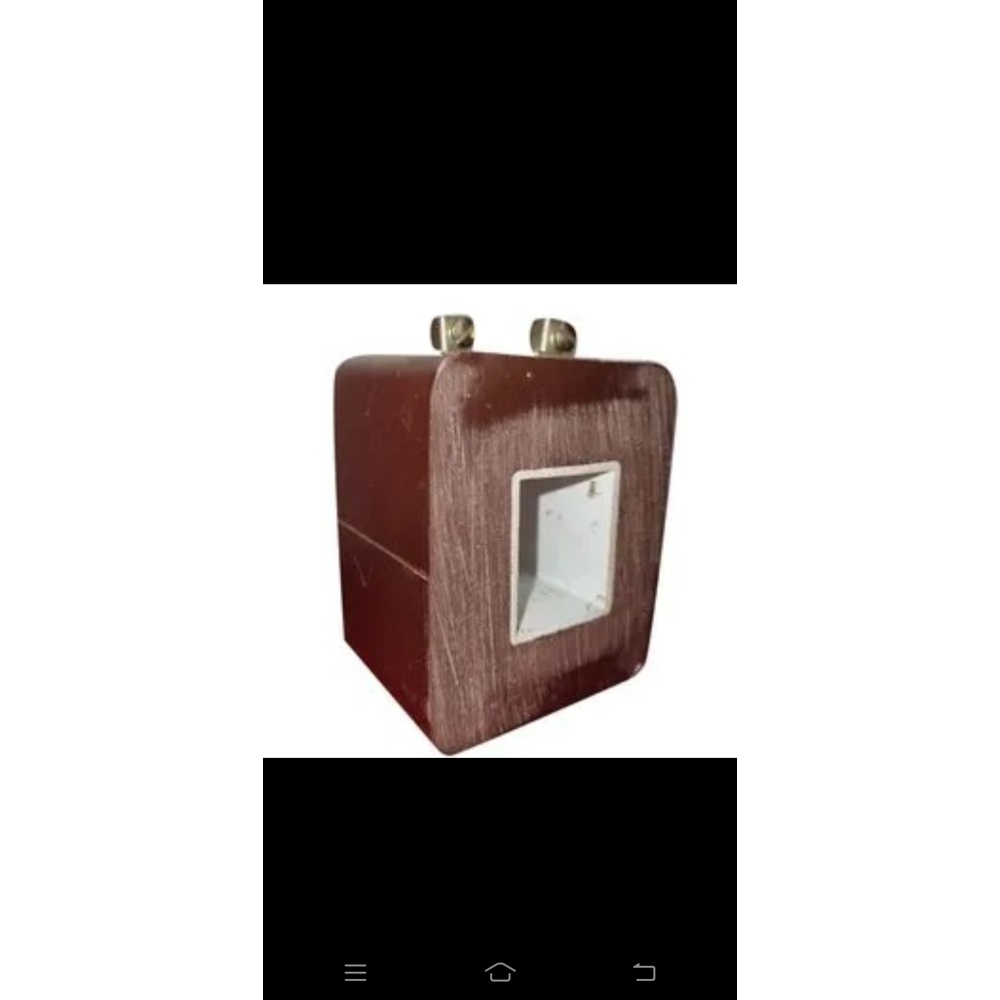

415V Solenoid Coil with Plunger

415V Solenoid Coil with Plunger Specification

Shape
Rectangular / Square (As shown: open and moulded types)

Vehicle Type
Industrial machinery and automation (Not for automotive use)

Thickness
Bakelite thickness typically 3mm-5mm

Pressure
Up to 10 bar (when used in solenoid valves)

Material
Moulded Bakelite / Bobbin Core / Copper Winding

Loading Capacity
Custom as per application

Diameter
Varies (typically 25mm to 75mm as per solenoid size)

Power
Suitable for continuous duty, typical coil 15-50W

Voltage
415V AC

Application
Solenoid valves, actuators, industrial automation, machine tools

Operating Temperature Range
-10C to +80C

Insulation Class
Class B or F

Coil Type
Open Type, Bobbin Type, Standard & Moulded Bakelite Type

Special Features
Premium quality, reliable performance, custom winding possible

Duty Cycle
Continuous (100% ED)

Mounting
Base mounting with fixing holes

Plunger Material
High-grade ferromagnetic steel / Stainless Steel

About 415V Solenoid Coil with Plunger

Solenoid Coil for Electromagnetic Brake Description

The Solenoid Coil for Electromagnetic Brake is a key component that creates the magnetic force required for efficient brake operation. When energized, the coil generates a strong magnetic field, enabling quick brake release and ensuring smooth, precise, and reliable braking in industrial machinery.

Engineered with high-quality copper/aluminum windings and heat-resistant insulation, this coil is designed for durability, energy efficiency, and consistent performance under heavy-duty applications. It is available in various voltages and frequencies (110V, 220V, 415V / 50Hz60Hz) to match different brake systems.

Key Features:

Strong magnetic force for reliable brake function
Copper/aluminum winding for long service life
Thermal and electrical insulation for safe operation
Quick response time with low power consumption
Compatible with multiple electromagnetic brake models

Engineered for Reliability in Industrial Automation

This solenoid coil is specifically designed for demanding automation and machine tool tasks. Its continuous duty rating and robust construction offer dependable operation for long hours, making it an ideal choice for industrial machinery. Whether you use the open or moulded type, the coil ensures consistent performance even in high-pressure or high-temperature environments, delivering peace of mind for critical automation applications.

Versatile Mounting and Customizable Performance

With a base mounting system and fixing holes, installation is straightforward and secure. The coil allows for custom winding and loading capacities, permitting precise adaptation to your specific industrial setup. Available in a range of sizes, diameters, and shapes, this product meets varied application needs, especially for solenoid valves and actuators in automation.

FAQ's of 415V Solenoid Coil with Plunger:

Q: How do I mount the 415V solenoid coil with plunger in my industrial setup?

A: The solenoid coil features base mounting with fixing holes, allowing secure and straightforward installation onto your machinery or control panels. Ensure the mounting surface is level and use the provided holes for optimal stability.

Q: What types of applications are suitable for this solenoid coil?

A: This coil is suitable for use in solenoid valves, actuators, industrial automation systems, and machine tools. It is commonly employed in processes requiring precise and continuous actuation under varying loads and environments.

Q: When is custom winding required for the solenoid coil?

A: Custom winding is preferred when specific voltage, current, or loading capacities are demanded by unique automation processes or machinery requirements. Our manufacturing can tailor windings to optimize performance for your application.

Q: Where can the 415V solenoid coil be effectively used?

A: These solenoid coils are perfect for industrial environments and factories utilizing automation machinery. They are not intended for automotive usage but excel in robotic, manufacturing, and fluid control systems.

Q: What benefits does the high-grade ferromagnetic steel or stainless steel plunger offer?

A: Utilizing premium-grade plunger materials ensures high magnetic responsiveness, wear resistance, and a long operational lifespan, ultimately enhancing reliability in continuous-use applications.

Q: What is the process for selecting the appropriate coil type and specification?

A: Determine your voltage, duty cycle, mounting preferences, and required pressure. Select from open or moulded type, standard or bobbin construction, and specify custom windings or sizes as needed for your particular equipment.

Q: How does the insulation class (B or F) enhance coil safety and longevity?

A: Insulation classes B and F provide superior resistance to heat and electrical stress. This ensures stable performance, reduces the risk of coil failure, and enables the coil to handle temperatures up to 80C effectively.
