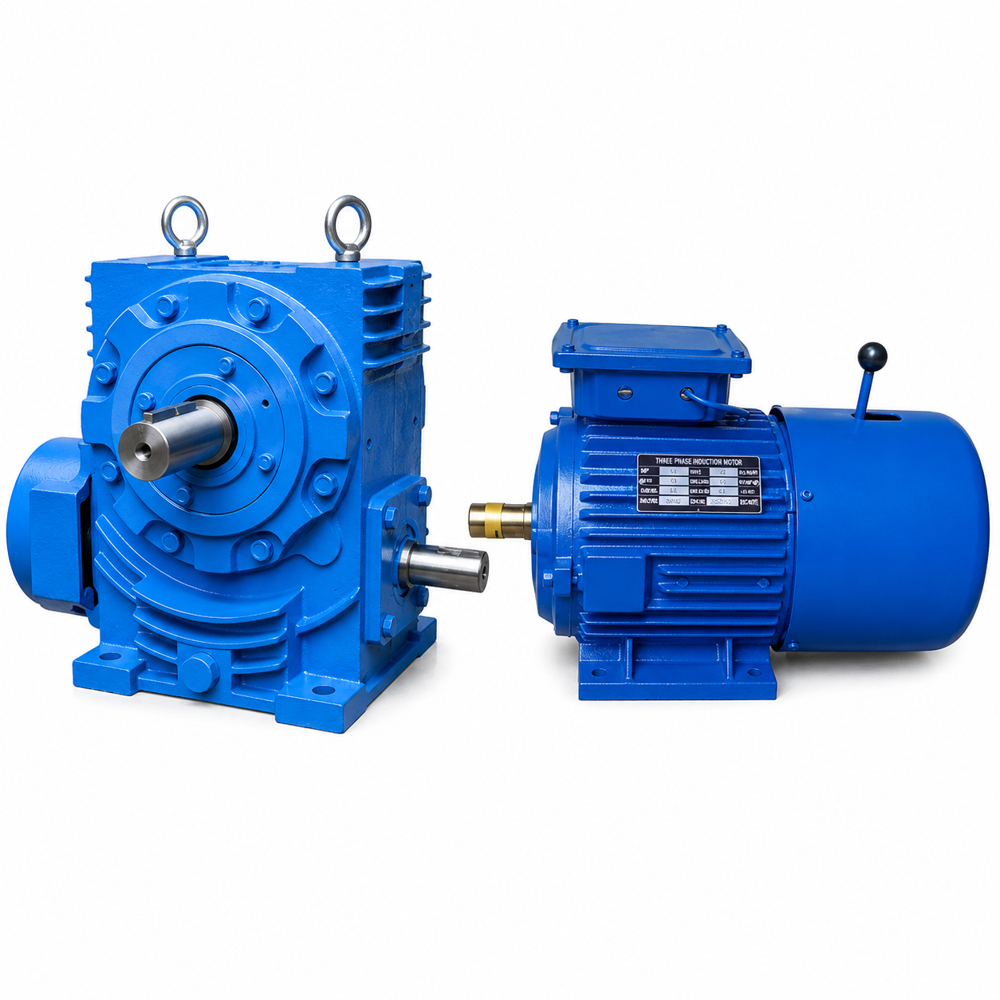

5 HP NXU GEAR BRAKE MOTOR

5 HP NXU GEAR BRAKE MOTOR Specification

Gear Type
Helical & Worm Combination

Material
Cast Iron/Alloy Steel

Processing Type
Precision Machined

Gear Tooth Profile
Helical

Gearing Arrangement
Coaxial/Inline

Direction
Reversible

Output Torque
400 Nm

Rated Power
5 HP

Input Speed
1440 RPM

Output Speed
Variable (Depends on gear ratio, typically 20-100 RPM)

Voltage
415 V AC Three Phase

Efficiency
80-90%

Frequency
50 Hz

Protection
IP55

Noise Level
Below 70 dB

Duty Cycle
S1 Continuous

Paint Finish
Industrial Blue Coating

Brake Type
Electromagnetic

Service Factor
1.15

Ambient Temperature Range
-10C to +50C

Lubrication
Oil Splash

Mounting Type
Foot Mounted

Cooling Type
Totally Enclosed Fan Cooled (TEFC)

Insulation Class
F Class

About 5 HP NXU GEAR BRAKE MOTOR

What it is

A worm gear motor is a drive unit combining an electric motor with a worm-gear reducer (worm and worm-wheel) integrated into a single assembly. The worm (a screw-like shaft) meshes with the worm wheel (a gear orthogonal to the worm) to produce high reduction ratios, high output torque, and often a right-angle output shaft configuration

Precision Engineering for Demanding Tasks

The 5 HP NXU Gear Brake Motor is meticulously crafted using precision machining for exceptional performance and longevity. The use of cast iron and alloy steel ensures structural integrity, while the helical and worm combination gears deliver smooth, efficient power transmission even under continuous duty.

Safety and Reliability in Every Operation

Equipped with an electro magnetic brake and protected by IP55-rated housing, the NXU motor excels in rigorous environments, offering enhanced safety with reliable stopping capabilities. Its S1 continuous duty and oil bath lubrication guarantee prolonged, maintenance-friendly operation.

FAQ's of 5 HP NXU GEAR BRAKE MOTOR:

Q: How does the electro magnetic brake function in the 5 HP NXU Gear Brake Motor?

A: The electro magnetic brake provides quick and secure stopping by applying force when the power supply is cut. This system enhances operational safety, particularly when immediate halting is essential in industrial settings.

Q: What cooling method is used in this motor and why is it important?

A: The motor incorporates a Totally Enclosed Fan Cooled (TEFC) system, which prevents dust, water, and other contaminants from entering while ensuring efficient heat dissipation. This protects internal components and maintains performance in continuous-duty operations.

Q: Where can the 5 HP NXU Gear Brake Motor be installed?

A: With a foot-mounted design, IP55 protection class, and robust materials, this motor is ideal for installation in demanding environments such as manufacturing plants, conveyors, material handling systems, and automated machinery.

Q: What benefits does the combination of helical and worm gears provide?

A: This hybrid gear arrangement offers superior torque transmission and smooth, quiet operation. The helical profile enhances efficiency and load capacity while the worm gear increases versatility for varying speed outputs.

Q: What is the process for maintaining the gear brake motor?

A: Regularly monitor the oil bath lubrication, check for unusual noise levels, and inspect the brake and electrical connections. Following the manufacturer's maintenance schedule ensures optimal gear performance and extends the motor's lifespan.

Q: How does the Class F insulation and continuous duty (S1) rating enhance motor usage?

A: Class F insulation allows the motor to withstand higher temperatures, while the S1 duty cycle rating means it can operate continuously at full load without overheating, maximizing efficiency and reliability in extended operations.
