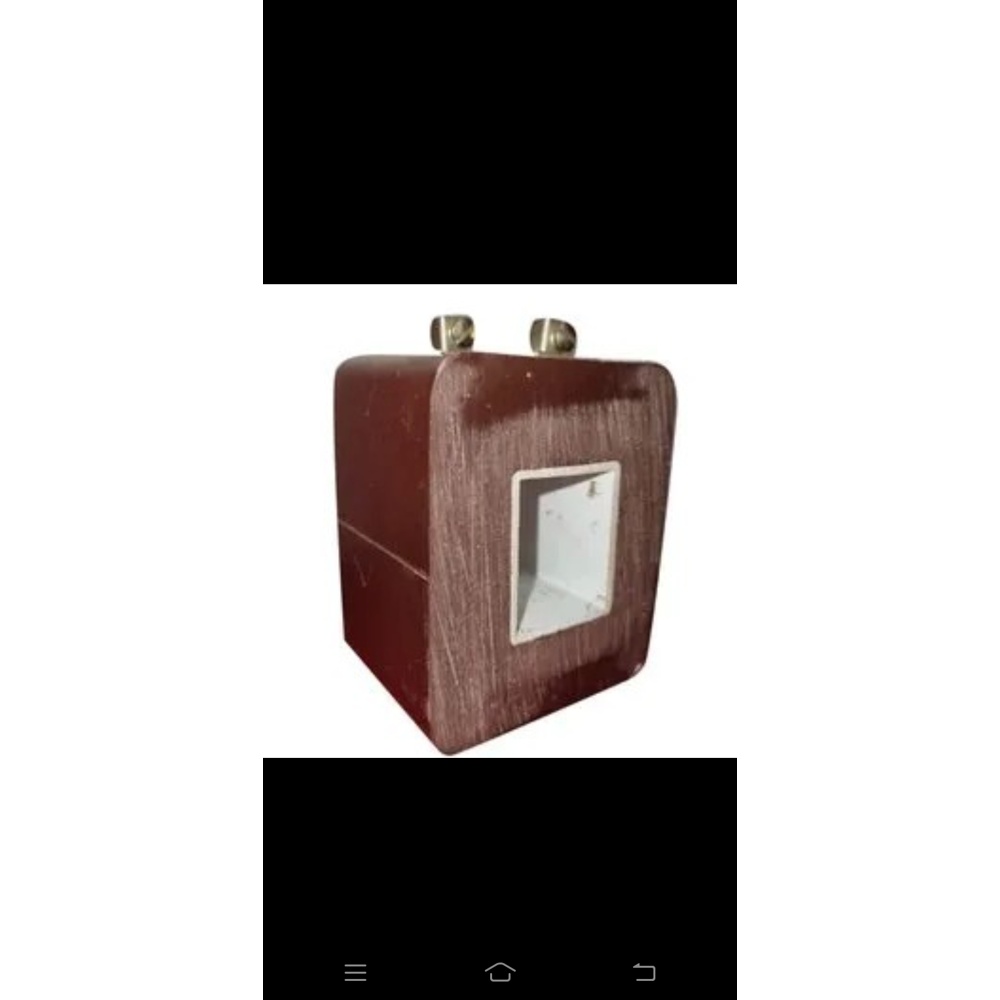

AC Brake Coil with Plunger

AC Brake Coil with Plunger Specification

Shape
Rectangular/Square (Bobbin, Moulded, Standard Bakelite types)

Pressure
Not directly applicable-operates based on electromagnetic actuation, not pressure

Vehicle Type
Not directly applicable-used in industrial machinery rather than vehicles

Thickness
Standard coil thickness as per design (typically from 18mm to 50mm depending on the model)

Material
Bakelite, Copper Wire, Mild Steel (Plunger) and Metal Parts

Loading Capacity
Suitable for standard industrial AC brake duty (customizable as needed)

Diameter
Standard and custom inner diameter as per model (refer to product variant, e.g. Bobbin/Moulded/Standard type)

Power
Varies per model (typically from 12W to 45W, as per brake type)

Voltage
AC 110V/230V/415V (customized as required)

Application
Used in electromagnetic brakes for cranes, hoists, EOT cranes, material handling equipment, and industrial brake mechanisms

Insulation Class
Class B / F as required

Coil Type
Open Type, Bobbin Type, Moulded Bakelite, Standard Bakelite

Terminals
Brass connection terminals for high conductivity

Operating Frequency
50 Hz / 60 Hz

Mounting
Suitable for direct mounting on brake assembly

Product Life Cycle
Long operational life under rated working conditions

Finish
Powder Coated / Painted for enhanced durability

Quality
Premium quality, reliable performance, and made in India

About AC Brake Coil with Plunger

We, Shruti Engineering, are an appreciated manufacturer, exporter and supplier of high quality Disc Brakes and Industrial Hoists. Offered range of products includes Foot Mounted Brake Motor, Disc Brake and Liner Brake.

Precision Engineering for Reliability

Each AC Brake Coil with Plunger is manufactured using premium-grade Bakelite, copper, and mild steel, ensuring sturdy construction and consistent operation. Moulded and bobbin types are designed to suit various brake assemblies, making them suitable for a wide range of industrial applications. These coils are engineered for long operational life and elevated performance standards.

Versatile Application Across Industries

This brake coil is widely used in cranes, hoists, EOT cranes, and material handling machines, providing a critical role in electromagnetic brake mechanisms. Suitable for both standard and custom requirements, it offers flexibility in mounting, voltage, and size, ensuring compatibility with diverse industrial setups and machinery requirements.

FAQ's of AC Brake Coil with Plunger:

Q: How do I select the suitable AC Brake Coil variant for my brake assembly?

A: Choose the coil based on your brake type (Open, Bobbin, Moulded Bakelite, or Standard Bakelite), voltage requirements (AC 110V/230V/415V), insulation class, and assembly mounting needs. Reference the model's diameter, thickness, and power rating to ensure full compatibility.

Q: What applications are supported by this AC Brake Coil with Plunger?

A: This coil is primarily used in electromagnetic brakes for cranes, hoists, EOT cranes, material handling equipment, and a range of industrial brake mechanisms where controlled stopping and holding are essential.

Q: When should the brake coil be replaced?

A: Replace the brake coil when you notice reduced electromagnetic actuation, physical wear, or signs of insulation deterioration. Replacing at scheduled maintenance intervals helps maintain optimal performance and prevents unexpected machine downtime.

Q: Where can this brake coil be installed?

A: It is designed for direct mounting on industrial brake assemblies. Ensure that your equipment matches the coil's mounting, size, and electrical specifications for a secure and safe installation.

Q: What materials are used in the construction of these brake coils?

A: The coils are made from high-quality Bakelite (for insulation), copper wire (for conductivity), mild steel (for the plunger), and precision-engineered metal parts, ensuring durability, high thermal resistance, and optimal electrical performance.

Q: How does the insulation class affect coil performance?

A: Insulation Class B or F determines the maximum temperature the coil can withstand during operation. Higher class ratings allow the coil to perform reliably under more demanding thermal conditions, enhancing both safety and coil lifespan.

Q: What are the benefits of using a powder coated or painted finish on the coil?

A: Powder coated or painted finishes protect the coil from corrosion, environmental exposure, and wear, extending operational life and maintaining appearance, making them ideal for harsh industrial environments.
