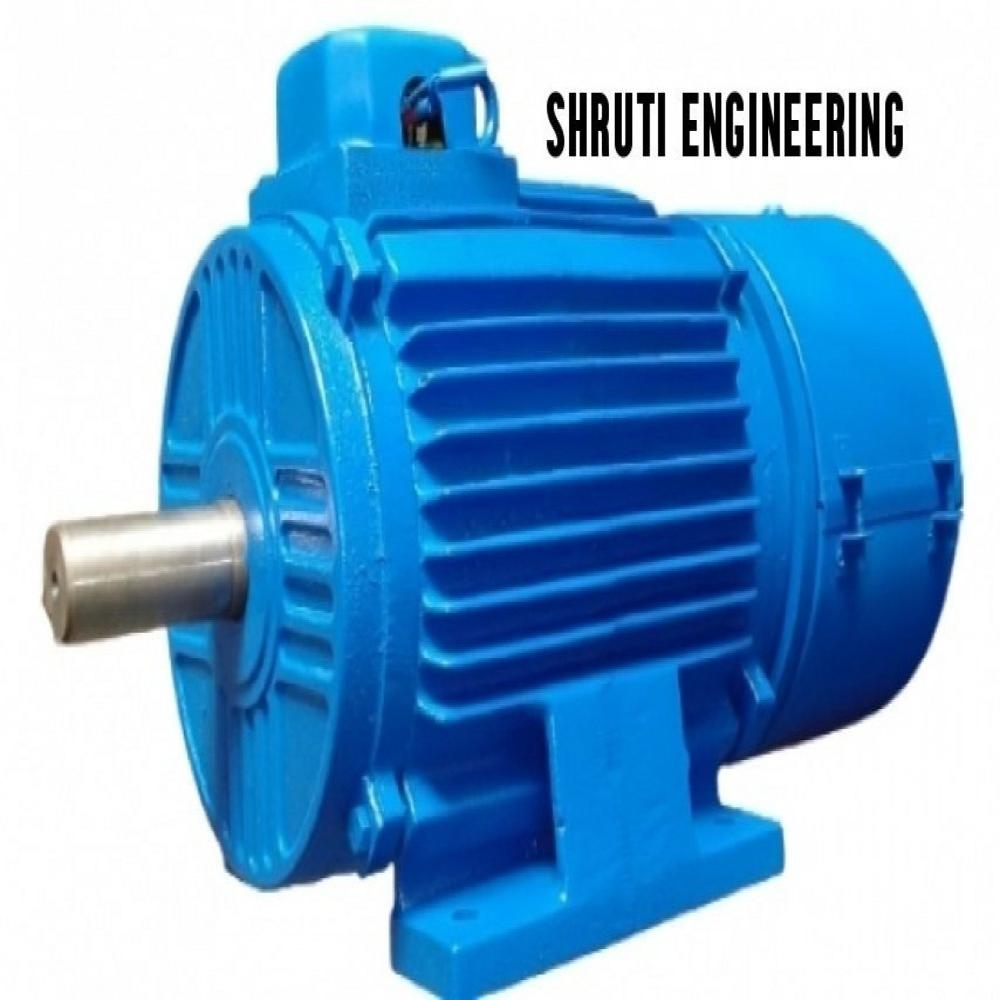

AC Brake Motor Supplier

AC Brake Motor Supplier Specification

Motor Type
AC Induction Brake Motor

Power Rating
0.37 kW - 15 kW

Efficacy
High Efficiency (IE2/IE3 as per standards)

Ambient Temperature
-15C to +50C

Current Type
AC

Standard
IS:325 / IEC60034

Torque
High Starting Torque

Noise Level
Low Noise Operation

Sealed Type
IP55 (Standard)

Features
Corrosion Resistant, Easy Maintenance, Energy Efficient

Horse Power
0.5 HP - 20 HP

Bearing Type
Deep Groove Ball Bearing

Starting Type
Direct On Line / Star Delta

Rated Frequency
50 Hz

Cooling Method
Air Cooled (Fan)

Voltage
415V / 230V

Poles Number
2, 4, 6 Pole

Pressure
Atmospheric

Rated Voltage
415V

Product Type
Electric Brake Motor

Output Power
Varies (Typically 0.37 kW to 15 kW)

Frequency (MHz)
50/60 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Three Phase/Single Phase (as per requirement)

Speed
1440/960/2880 RPM (as per design)

Power
Variable (As per model - 0.5 HP to 20 HP)

Color
Blue

Dimension (L*W*H)
Custom, as per model specification

Weight
Depends on Output Power (Approx. 30-100 kg)

Shaft Diameter
As per Model (e.g. 19mm, 24mm, etc.)

Mounting Type
Foot & Flange Mounted

IP Rating
IP55

Brake Type
AC Electromagnetic Brake

Connection
Star or Delta

Body Material
Cast Iron / Aluminum

Thermal Protection
Inbuilt Thermal Overload Protector

Brake Release
Manual Release Available

Duty Cycle
Continuous S1 Duty

Rotor Type
Squirrel Cage

Frame Size
71 to 160 (as per output power)

Application
Textile Machinery, Lifts, Hoists, Conveyors, Cranes

Brake Voltage
Standard 415V AC

Insulation Class
Class F

About AC Brake Motor Supplier

Unlock premier performance with the new release from a crackerjack AC Brake Motor Supplier. Our matchless AC Brake Motors utilise advanced electromagnetic braking, standard 415V AC voltage, and high-efficiency IE2/IE3 ratings. Designed for continuous S1 duty, these motors boast thermal overload protection and corrosion-resistant cast iron or aluminum construction. Available in custom frame sizes (71-160), with star or delta connection, outputs range from 0.37 kW to 15 kW (0.5-20 HP). Perfect for textile machinery, lifts, hoists, conveyors, and cranes, ensuring reliable operation and easy maintenance. Utilise this offer for a truly matchless drive solution!

Versatile Use and Outstanding Features

AC Brake Motors are used as essential drive units in textile machinery, lifts, conveyors, cranes, and hoists. To operate, connect via star or delta configurations, and benefit from high starting torque with Squirrel Cage rotors. Key material features such as cast iron/aluminum body and deep groove ball bearings provide durability, corrosion resistance, and easy maintenance. The motor is suitable for both foot and flange mounting, adapting seamlessly to diverse industrial requirements.

Certifications, Export Markets, and Delivery

Our AC Brake Motor Supplier boasts certifications to IS:325 and IEC60034 standards, ensuring dependable quality. Export markets include Asia, Africa, the Middle East, and Europe, cementing our global presence. With swift logistics, products arrive typically within 2-4 weeks. The supplier is committed to timely delivery and efficient supply chains to guarantee seamless, hassle-free logistics for international clients across major export markets.

FAQ's of AC Brake Motor Supplier:

Q: How can I select the right frame size for my AC Brake Motor?

A: The frame size depends on your output power requirements; options range from 71 to 160. Reference your machinery's specifications to ensure compatible mounting and power delivery.

Q: What applications are these AC Brake Motors ideally used for?

A: They are ideal for textile machinery, lifts, hoists, conveyors, and cranes-applications where reliable braking and high efficiency are crucial.

Q: When should I perform maintenance on this AC Brake Motor?

A: Routine inspections should be performed in alignment with your operational schedule, but the easy-maintenance design allows for hassle-free periodic checks and servicing.

Q: Where are these AC Brake Motors exported and supplied?

A: They are exported and supplied globally, especially to Asia, Africa, the Middle East, and Europe, meeting the demands of diverse industrial markets.

Q: What are the material features that ensure durability of these motors?

A: The motors feature corrosion-resistant cast iron or aluminum bodies, IP55 protection, and deep groove ball bearings-making them robust and long-lasting.
