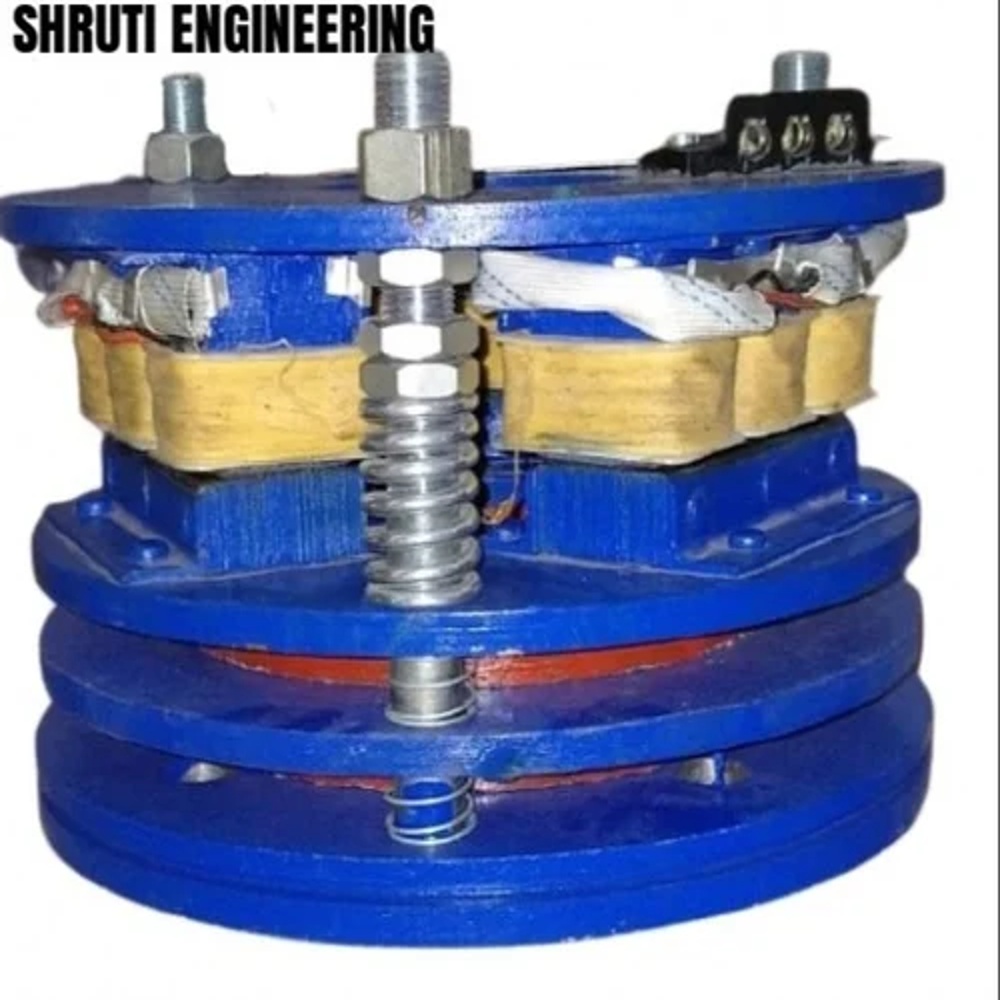

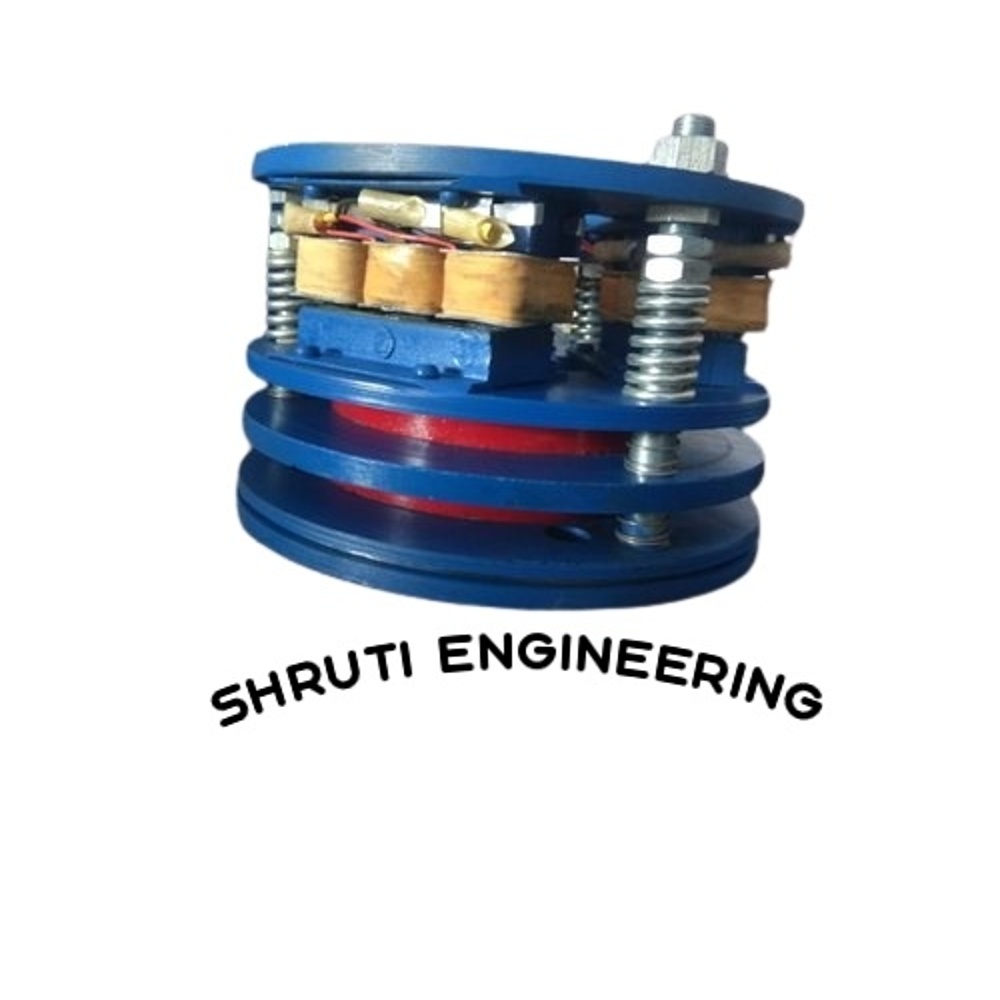

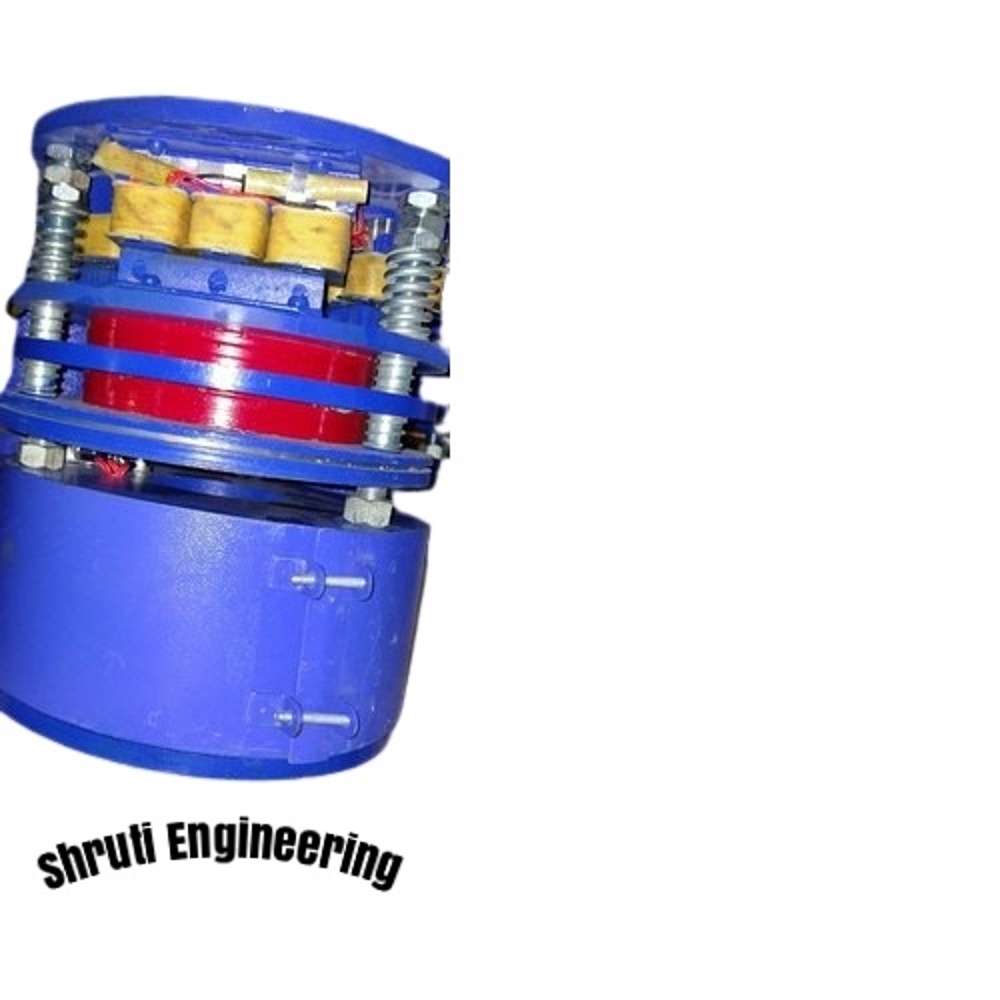

AC Brake Repair Parts

AC Brake Repair Parts Specification

Pressure
Hydraulic/Mechanical Pressure as per application

Shape
Round

Thickness
10 mm to 30 mm (Based on component and model)

Vehicle Type
Not Applicable (For Industrial Machines)

Material
Mild Steel (MS), Copper Coil, Insulated Binding Material

Loading Capacity
Up to 1000 kg (varies as per model)

Diameter
100 mm to 300 mm (Available in various sizes)

Power
0.5 HP to 3 HP (Depends on brake size)

Voltage
220V / 415V AC

Application
Electromagnetic AC Brake Systems, Industrial Machinery, Overhead Cranes

Mounting Type
Flange Mounted / Foot Mounted

Surface Finish
Powder Coated

Operating Temperature
-10C to 70C

Color
Blue (Standard)

Insulation Class
Class F

Coil Type
Copper Wound, Insulated

AC Brake Repair Parts About

When Ac supply is given to Brake coil, the plate gets magnetized and releases the brake disc and sets to rotate free. When supply is cut off the coil and brake gets applied.
These coils are widely used in hydro extractors, cranes, hoist, electrically driven machinery. This comes as a set of 6 nos and mostly 9 nos. These coil is suitable for the model DAT130, DAT140, DAT150 and DAT190.

Superior Durability and Protection

Powder coating on a mild steel structure ensures enduring protection against corrosion and mechanical wear, while insulation Class F and a copper-wound coil provide excellent thermal stability. These features collectively extend the operational lifespan even under rigorous industrial use.

Flexible Design to Suit Every Industrial Need

Ranging from 100 mm to 300 mm in diameter and supporting loading capacities up to 1000 kg, our AC brake repair parts are offered with both flange and foot mounting options. This makes them versatile for various installation requirements in overhead cranes and other industrial machinery.

FAQ's of AC Brake Repair Parts:

Q: How are these AC brake repair parts installed?

A: Installation is straightforward with flexible options available: flange mounting or foot mounting based on your equipment's requirements. Always consult the installation manual for the correct procedure, ensuring secure and optimal placement.

Q: What surface finish do the parts come with, and how does it benefit industrial use?

A: The parts feature a high-quality powder-coated finish in blue, which provides enhanced protection against corrosion and wear, helping them withstand harsh industrial environments and extending service life.

Q: When should I consider replacing AC brake repair parts?

A: Replace your brake parts when you notice decreased performance, abnormal noise, visible wear, or compromised insulation. Regular inspections and timely replacement are essential for maintaining safety and efficiency in industrial machinery.

Q: Where can these AC brake repair parts be used?

A: These components are specifically designed for use in industrial machinery, such as electromagnetic AC brake systems and overhead cranes. Their robust construction supports applications demanding high reliability and loading capacity.

Q: What is the process of selecting the correct brake part model?

A: Selection is based on equipment specifications including required diameter (100 mm to 300 mm), loading capacity (up to 1000 kg), power (0.5 HP to 3 HP), and mounting preference (flange or foot). Consult the manufacturer or supplier with application details for accurate model matching.

Q: How does the Class F insulation and copper-wound coil improve reliability?

A: Class F insulation ensures protection against excessive heat up to 155C, while the copper-wound, insulated coil provides optimal electrical conductivity and resistance to thermal stress, making the parts reliable and efficient even in continuous operation.

Q: What are the main benefits of using these AC brake repair parts in industrial settings?

A: Using these parts ensures consistent braking performance, superior durability due to powder coating and robust materials, compatibility with various mounting systems, and dependable operation across a wide range of temperatures and pressures.
