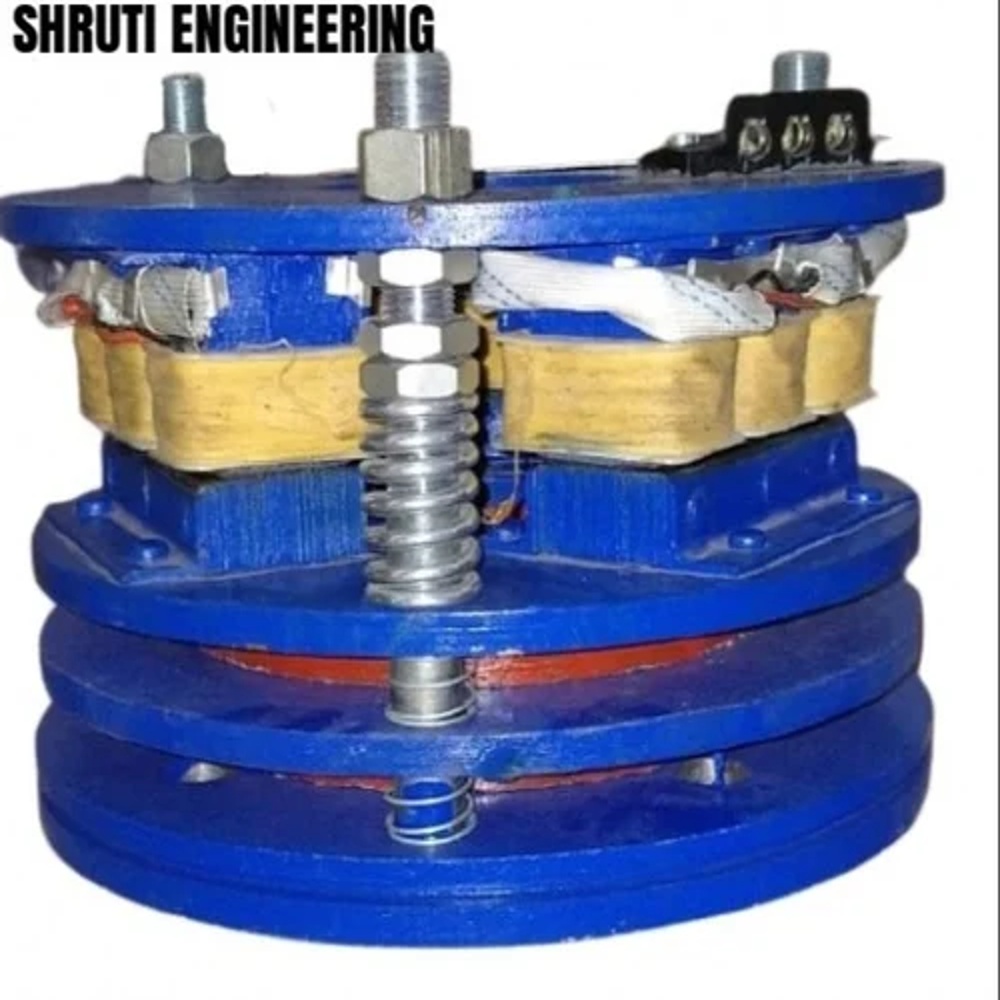

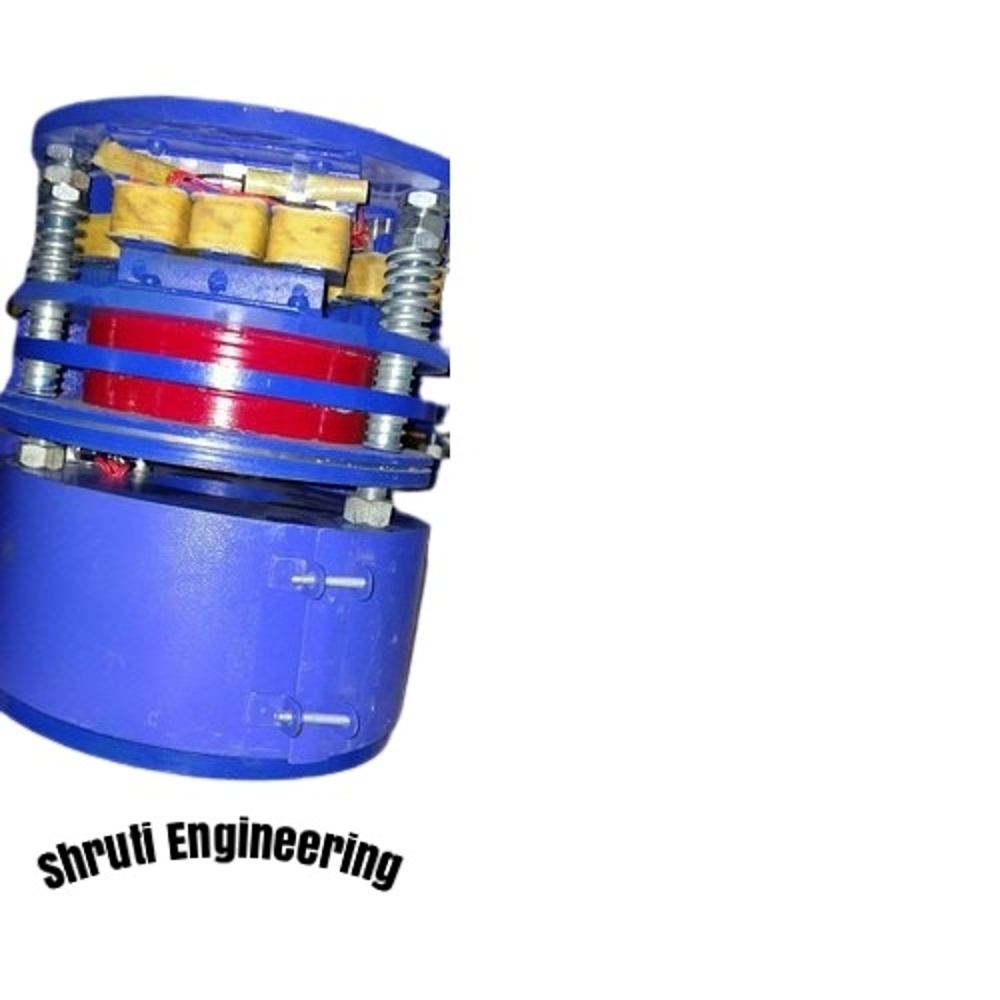

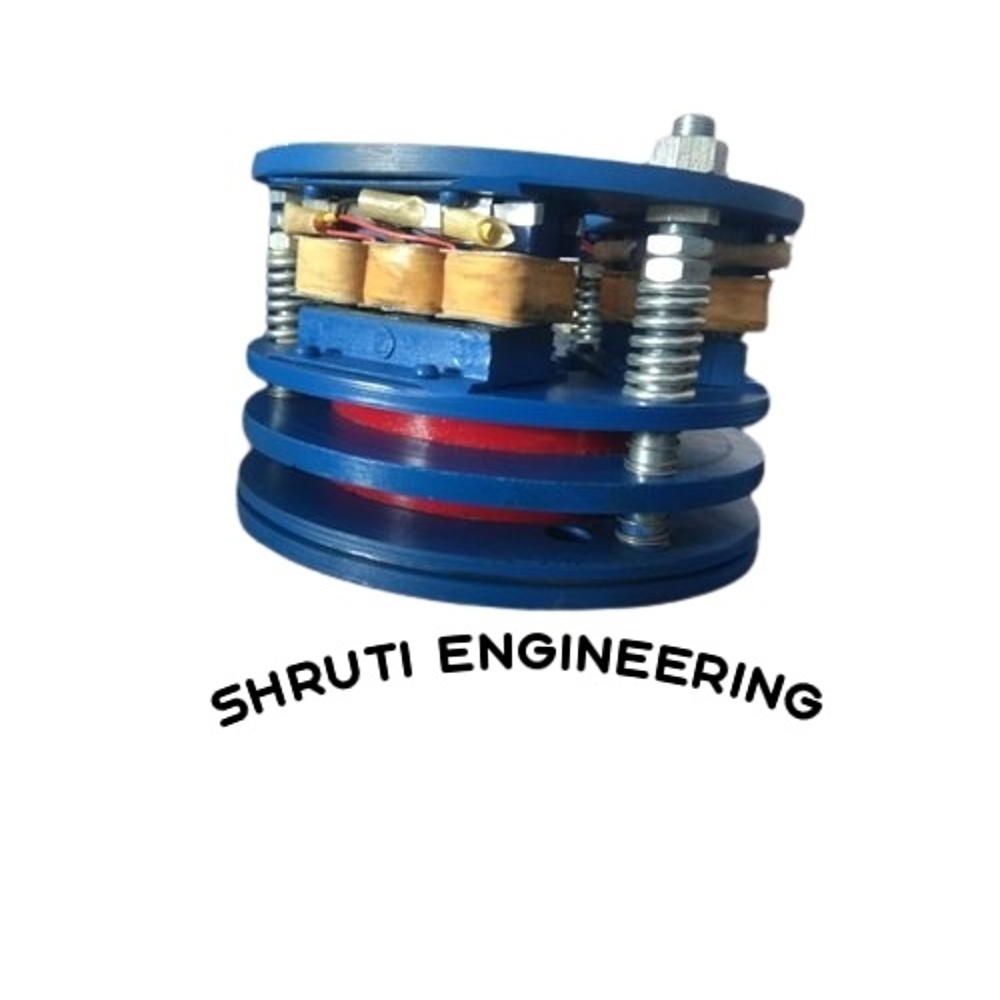

AC Brake Torque Motor

AC Brake Torque Motor Specification

Pressure
Hydraulic/Pneumatic/Manual, as applicable

Shape
Round

Thickness
Customizable as per requirement

Vehicle Type
Not Applicable (Industrial Use)

Material
Cast Iron & Copper Winding

Loading Capacity
Up to 20 Ton

Diameter
150 mm - 300 mm

Power
0.5 HP - 30 HP

Voltage
220V / 415V AC

Application
Industrial Braking Applications, Lifting Equipment, Elevators, Cranes, Hoists

Mounting Type
Flange / Foot Mounted

Operating Temperature
-10C to +50C

Duty Cycle
S1 Continuous

Protection Class
IP 54 / IP 55

Finish
Powder Coated / Painted

Frequency
50 Hz / 60 Hz

Brake Torque Range
Up to 200 Nm

Response Time
< 0.1 seconds

Phase
Single / Three Phase

Insulation Class
Class F or H

About AC Brake Torque Motor

The Material Handling Brake is a heavy-duty, high-performance braking system designed to ensure safe stopping, controlled deceleration, and reliable load holding in various material handling applications. Ideal for conveyors, EOT cranes, hoists, winches, stackers, and industrial lifting equipment, this brake offers smooth operation, high torque, and dependable performance even under continuous-duty conditions.

Built using premium cast iron/steel components, precision-machined friction surfaces, and robust electromagnetic or solenoid mechanisms, the brake ensures long service life, minimal maintenance, and maximum operational safety.

Premium Construction and Durability

Manufactured using high-grade cast iron and copper windings, the AC Brake Torque Motor is built to endure heavy-duty industrial environments. The powder-coated or painted finish provides protection against corrosion, while the IP54/IP55 protection class ensures resistance to dust and water ingress. Precision engineering guarantees optimal performance and longevity, even under continuous S1 duty cycles.

Flexible Configurations for Industrial Applications

This motor can be customized with foot or flange mounting, in various diameters (150 mm to 300 mm), and supports flexible voltage options (220V/415V AC). With both single and three-phase compatibility, it is suitable for a wide range of machinery in factories, warehouses, and lifting systems, adapting easily to specific requirements like thickness and pressure types.

Enhanced Safety and Performance

With a brake torque range up to 200 Nm and a lightning-fast response time of under 0.1 seconds, these motors provide superior control in critical braking scenarios. The robust design supports loads up to 20 tons, making the motor ideal for heavy-duty equipment. Users benefit from smooth, reliable operation that improves safety and productivity across industrial settings.

FAQ's of AC Brake Torque Motor:

Q: How does the AC Brake Torque Motor ensure reliable performance in industrial settings?

A: The motor is constructed with cast iron housing and copper winding for durability and efficient thermal management. Its insulation (Class F or H) and IP54/IP55 protection allow consistent operation in challenging environments, while powder coating or painting protects against corrosion.

Q: What types of industrial applications are suitable for this brake torque motor?

A: This motor is ideal for use in elevators, cranes, hoists, and various lifting equipment where precise braking and load control are essential. It supports operation in factories, warehouses, and any setting requiring industrial braking applications.

Q: When should I select single-phase versus three-phase configurations?

A: Single-phase models are suited for lighter-duty or smaller-scale equipment with standard domestic or commercial power supplies. For high-power, heavy-duty industrial systems, the three-phase version is preferred as it offers stable performance and supports higher capacities.

Q: Where can the AC Brake Torque Motor be installed?

A: Engineered for versatility, it can be foot or flange mounted and integrated into machinery requiring torque control. Its customizable diameter and mounting options make it compatible with a broad range of industrial equipment requiring round-shaped, robust motors.

Q: What is the benefit of a rapid response time (<0.1 seconds) in this motor?

A: A fast braking response enhances safety by reducing stopping distances in moving machinery. This feature is particularly advantageous in equipment where timely and precise braking can prevent accidents and improve workflow efficiency.

Q: How is the loading capacity determined and what is the process for selecting the correct motor?

A: The loading capacity depends on your application's weight requirements, up to 20 tons. Selection involves matching your system's voltage, torque, power rating (0.5 HP - 30 HP), and physical specifications-including mounting type and diameter-to the correct motor variant.
