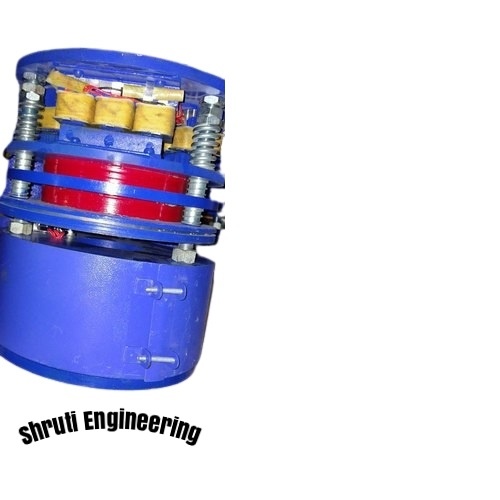

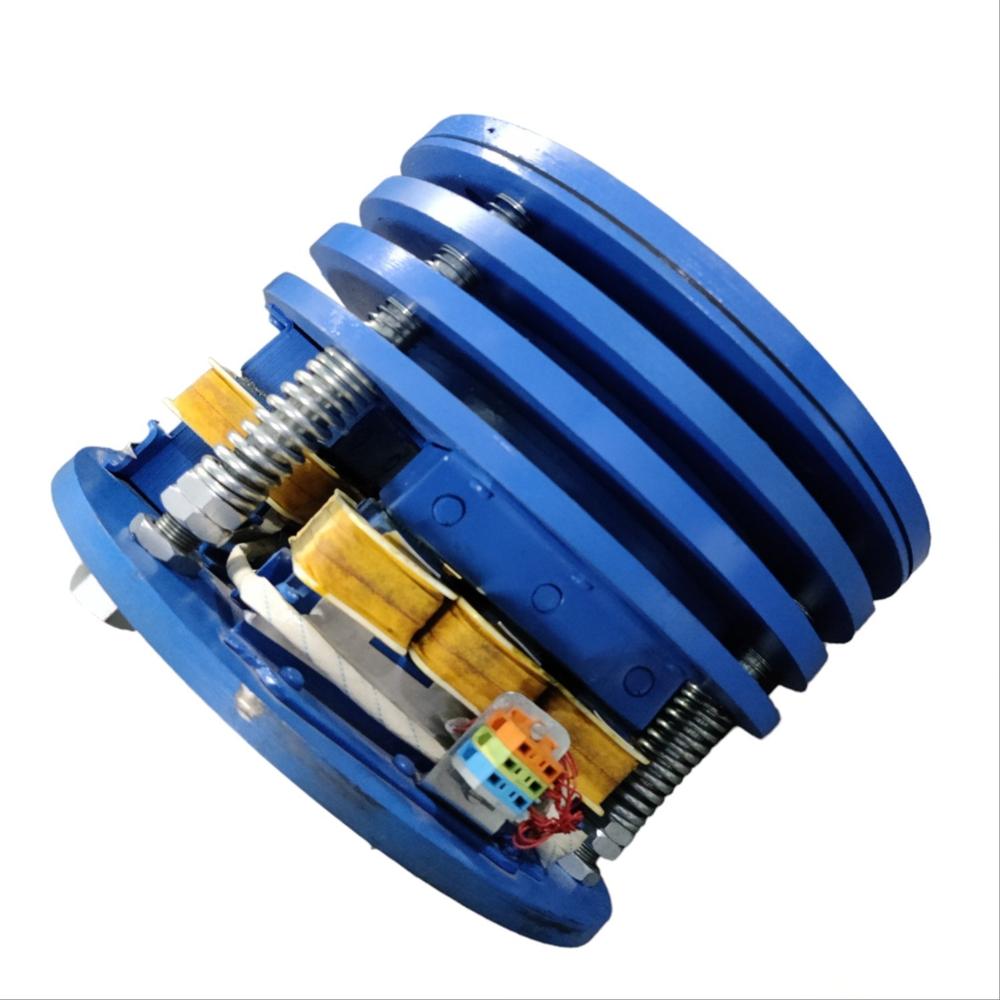

AC Electro Magnetic Disc Brake

AC Electro Magnetic Disc Brake Specification

Pressure
Spring pressure activated, adjustable

Vehicle Type
Industrial Machinery (not for vehicle use)

Thickness
As per design/model (typically 40-120 mm)

Shape
Round/Disc

Material
Cast Iron / Steel

Loading Capacity
Up to 1200 Nm (as per model)

Diameter
100 mm to 400 mm (as per model)

Power
0.5 HP to 3 HP (as per application)

Voltage
415V AC (Standard), 220V/380V/440V AC (Available)

Application
Hoists, Cranes, Conveyors, Elevators, Lifts, Material Handling Equipment

Mounting Type
Flange Mounted

Duty Cycle
S1 (Continuous)/S3 (Intermittent)

Finish
Powder Coated / Painted

Coil Insulation Class
Class F/H

Release Mechanism
Manual Release Provided

Response Time
Fast Braking (0.2 seconds)

Ambient Temperature
-10C to 60C

Friction Lining
Non-Asbestos

Noise Level
Low Noise Operation

Operation
Electromagnetic, Fail Safe

About AC Electro Magnetic Disc Brake

We are offering a wide range of Disc Brakes for Text Rig which is widely used marine engineering, construction machinery and automobiles. These are known for single valve side object, corrosion resistance and external adjust-ability.

These single disc brakes are available in varied specifications, these components are also customized as per the clients' requirement.

Designed for Industrial Reliability

Engineered for heavy-duty use, this AC Electro Magnetic Disc Brake with flange mounting provides exceptional stopping power and safety for a range of industrial machinery. The fail-safe operation, reinforced materials, and durable construction ensure consistent performance under rigorous conditions.

Precision and Flexible Operation

With both continuous (S1) and intermittent (S3) duty cycles, this brake meets varying operational requirements. Its rapid response, low noise output, and manual release mechanism are tailored for effective, user-friendly integration with hoists, cranes, elevators, and more.

FAQ's of AC Electro Magnetic Disc Brake:

Q: How does the fail-safe operation of the AC Electro Magnetic Disc Brake enhance safety?

A: This brake employs a fail-safe design-when power is lost or interrupted, spring pressure activates the braking system, ensuring the machinery stops securely, minimizing the risk of accidents and unintended movements.

Q: What installation requirements are there for the flange-mounted design?

A: The flange-mounted construction allows for straightforward integration with industrial machinery, requiring a compatible flange interface on the equipment. Proper alignment and secure fastening are recommended to ensure optimal performance and longevity.

Q: When should I choose S1 (continuous) or S3 (intermittent) duty cycle for my application?

A: Select S1 (continuous) if sustained, long-duration braking is needed, such as with elevators or hoists operating frequently. S3 (intermittent) suits machines that operate in pulses or cycles, like conveyors or some material handling systems.

Q: Where can this brake system be used?

A: It is suitable for stationary industrial equipment, including hoists, cranes, elevators, conveyors, and lifts, in environments with ambient temperatures between -10C and 60C. It is not recommended for automotive vehicles.

Q: What is the benefit of having a non-asbestos friction lining?

A: Non-asbestos friction linings offer excellent braking performance with reduced environmental hazards and health risks, complying with modern safety standards while delivering reliable and consistent operation.

Q: How does the manual release mechanism work in case of power failure?

A: The manual release feature allows operators to disengage the brake manually when needed, such as during maintenance or in the event of a power outage, ensuring controlled and safe access to the machinery.
