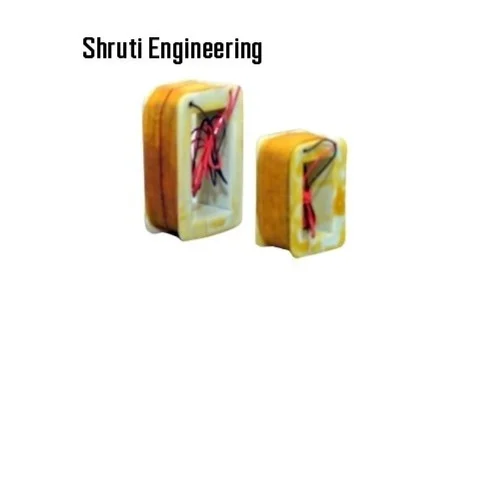

AC Electromagnetic Brake Coil

AC Electromagnetic Brake Coil Specification

Part Type
Brake Coil

Usage & Applications
Industrial Brakes, Overhead Cranes, Hoists, Elevators, Winches

Noise Level
Low

Mounting Type
Clamp or Bolt mounting

Features
High thermal stability, Low power consumption, Easy installation, Durable design

Brake Type
AC Electromagnetic

Size
Customizable as per brake model

Material
Copper/Aluminum Winding with Bakelite Frame

Pattern Material
Fibre/Bakelite

Surface Finish
Insulated/Polished

Standard
IS Specification compliant

Wire Gauge
As per design/requirement

Color
Yellow (winding), Cream (frame)

Lead Type
Flexible PVC insulated

Voltage Range
24V, 48V, 110V, 190V, 230V AC options

Operating Temperature
-10C to 100C

Insulation Class
Class F/H

Frequency
50/60 Hz

About AC Electromagnetic Brake Coil

Unlock first-string performance for your industrial equipment with our AC Electromagnetic Brake Coil, offered at a special rate. Designed for noble applications demanding both lavish durability and high efficiency, it comes in a versatile voltage range (24V-230V AC) and operates seamlessly at 50/60 Hz. Take advantage of customizable sizes and configurations, including copper or aluminum winding in a robust bakelite frame. Insulation Class F/H ensures high thermal stability, while the insulated polished finish meets IS standards-ideal for cranes, hoists, elevators, and more.

Prime Applications and Industrial Utility

The AC Electromagnetic Brake Coil excels in plant environments requiring reliable stopping power. Commonly used by manufacturers, plant operators, and maintenance engineers, this coil is indispensable in overhead cranes, hoists, elevators, and winches. Its specific usage lies in providing consistent and safe electromagnetic braking, ensuring secure load handling and operational control in demanding industrial settings. This makes it an ideal component for facilities prioritizing safety and efficiency in motion control.

Order Completion, Shipping, and Export Markets

Enjoy a seamless order completion process with swift dispatch and reliable exchange. We cater to major export markets globally, ensuring our noble brake coils reach customers with efficiency. Delivery time is optimized for both bulk and sample orders, with samples available at a competitive rate for evaluation. Our established supply chain guarantees on-time shipments, supporting both small-scale orders and large contracts, so you can plan your projects without delay.

FAQ's of AC Electromagnetic Brake Coil:

Q: How do I choose the correct voltage range for my AC Electromagnetic Brake Coil?

A: Select the voltage based on your equipment requirements-options include 24V, 48V, 110V, 190V, or 230V AC. Consult your machinery's specifications or contact our support team for tailored advice.

Q: What are the main benefits of using this brake coil in industrial applications?

A: This brake coil delivers high thermal stability, low noise, energy efficiency, and is easy to install. Its durable design and insulation ensure longevity, making it reliable for cranes, hoists, elevators, and winches.

Q: When can I expect delivery after placing an order for brake coils?

A: Delivery times are optimized for both bulk and sample orders, with prompt dispatch arranged upon order completion. Exact timelines depend on order volume and destination, but you'll receive regular updates throughout the process.

Q: Where are these brake coils typically used?

A: They are extensively utilized in industrial settings such as overhead cranes, hoisting systems, elevators, and winches, where safe and consistent braking is a priority.

Q: What materials are used in the construction of these brake coils?

A: The brake coils are crafted using high-quality copper or aluminum winding with a bakelite frame and fibre/bakelite pattern material, ensuring robust performance and compliance with IS standards.

Q: How does the sample exchange process work and what is the sample rate?

A: Samples are available upon request at a special rate for evaluation. The exchange and order process is streamlined to ensure you can test product suitability before committing to bulk purchases.
