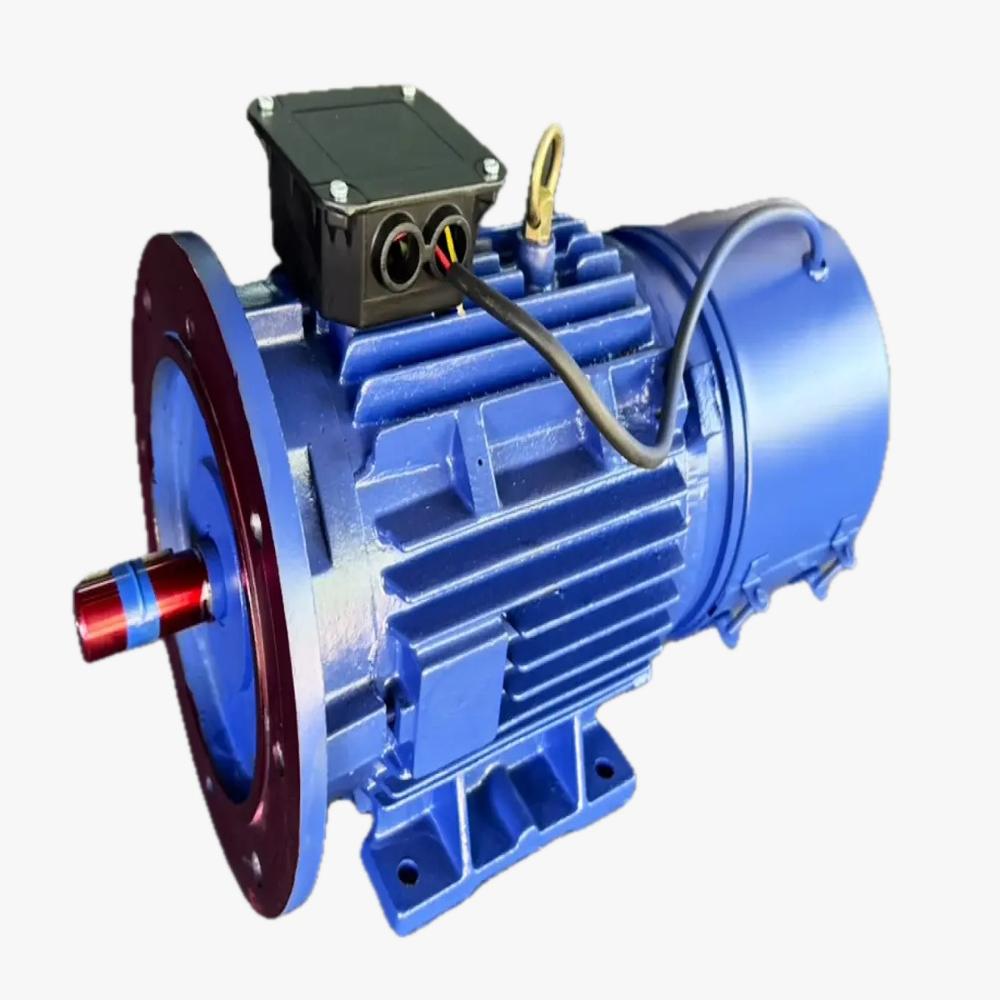

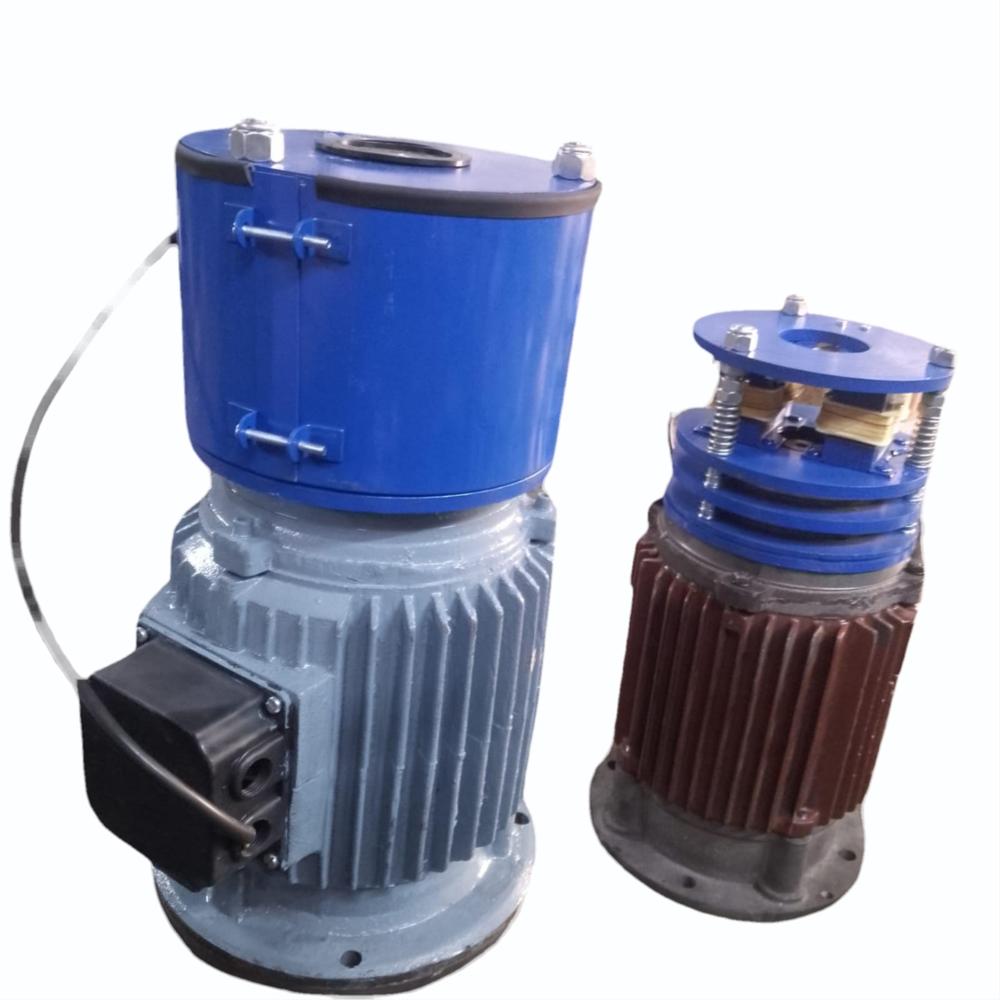

AC Electromagnetic Brake Motor

AC Electromagnetic Brake Motor Specification

Cooling Method
Fan Cooled

Torque
Standard/Custom as per requirement

Starting Type
Direct on Line (DOL)

Noise Level
Low

Motor Type
AC Electromagnetic Brake Motor

Rated Frequency
50 Hz

Horse Power
0.5 HP to 30 HP

Rated Voltage
415 Volts AC

Efficacy
High

Power Rating
0.37 to 22 kW

Features
Heavy Duty, Reliable Performance, Long Life

Pressure
Atmospheric

Poles Number
2 / 4 Poles

Bearing Type
Ball Bearing

Standard
Conforms to IS/IEC Standards

Ambient Temperature
-10C to +50C

Voltage
415 V

Sealed Type
Totally Enclosed

Current Type
AC

Product Type
Electromagnetic Brake Motor

Output Power
0.37 kW to 22 kW (range available)

Frequency (MHz)
50/60 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Three Phase

Speed
1440 RPM / 2880 RPM

Power
0.5 HP to 30 HP (options available)

Color
Blue

Dimension (L*W*H)
Standard/customized as per model

Weight
Depends on model (Approx. 40-200 kg)

Shaft Diameter
Standard/Custom options

Mounting Type
Foot / Flange Mounted

IP Rating
IP55

Rotation
CW/CCW

Operation
Manual Release Provision

Insulation Class
Class F/ Class H

Brake Type
AC Electromagnetic Spring Applied

Duty Cycle
S1 Continuous Duty

Body Material
Cast Iron/Aluminum

Brake Supply
230 V/415 V AC

Frame Size
63 to 180 Frame

Application
Hoists, Cranes, Rolling Mills, Conveyors, Elevators, Textile & Packaging Machinery

Finish
Powder Coated

About AC Electromagnetic Brake Motor

With rich industrial experience we are involved in offering an extensive range of Foot Mounted Brake Motor. We offer these motors in both single phase and three phase finish as per the requirements of our clients. Moreover, these have long life and are reliable, thus highly appreciated among our clients. These can be availed at industry leading prices.

Built for Reliability and Versatility

This AC Electromagnetic Brake Motor is specifically tailored for industrial environments where consistent and safe operation is paramount. With its heavy-duty construction, it is suitable for a wide range of sectors, including textile, packaging, and material handling. Its totally enclosed fan-cooled (TEFC) design and IP55 rating provide excellent protection against dust and moisture, ensuring stable performance even under harsh working conditions.

Superior Braking Mechanism

Equipped with a spring-applied electromagnetic brake, the motor guarantees instant, dependable stopping power. The manual release feature allows for easy maintenance and emergency intervention. The brake operates seamlessly on both 230 V and 415 V AC, supporting safe operations in equipment where precise motion control is essential.

FAQ's of AC Electromagnetic Brake Motor:

Q: How does the AC electromagnetic brake operate in this motor?

A: The AC electromagnetic brake is spring-applied, meaning that the brake engages automatically when power is cut off, providing a fail-safe mechanism. When power is supplied to the brake coil, the electromagnetic force releases the brake, allowing the motor shaft to rotate. This ensures safety and reliability, especially in applications requiring immediate stopping.

Q: What industries and machines are best suited for this brake motor?

A: This motor is ideal for hoists, cranes, rolling mills, conveyors, elevators, textile, and packaging machinery. Its heavy-duty design and reliable braking performance make it suitable for any sector requiring precise, continuous operation and enhanced safety measures.

Q: When should I choose manual release provision in a brake motor?

A: Manual release provision is recommended when the application may require occasional manual movement of the load, such as during maintenance or power outages. This feature allows operators to manually disengage the brake, facilitating safer and easier handling.

Q: What are the benefits of the totally enclosed fan cooled (TEFC) construction?

A: The TEFC design prevents dust, dirt, and moisture from entering the motor, improving its durability and reducing maintenance needs. This enhances longevity and allows the motor to maintain consistent performance even in demanding industrial environments.

Q: How can I customize the AC brake motor to fit specific installation requirements?

A: You can choose from various frame sizes (63 to 180), shaft diameters, torque ratings, and mounting types (foot or flange). Customized dimensions and torque options are also available to accommodate unique application needs.

Q: Where can I install this motor and what electrical specifications should I consider?

A: The motor is suitable for installation in industrial locations with standard three-phase AC power supply at 415 V and 50/60 Hz frequency. It operates in ambient temperatures from -10C to +50C and atmospheric pressure, ensuring compatibility with most industrial setups.
