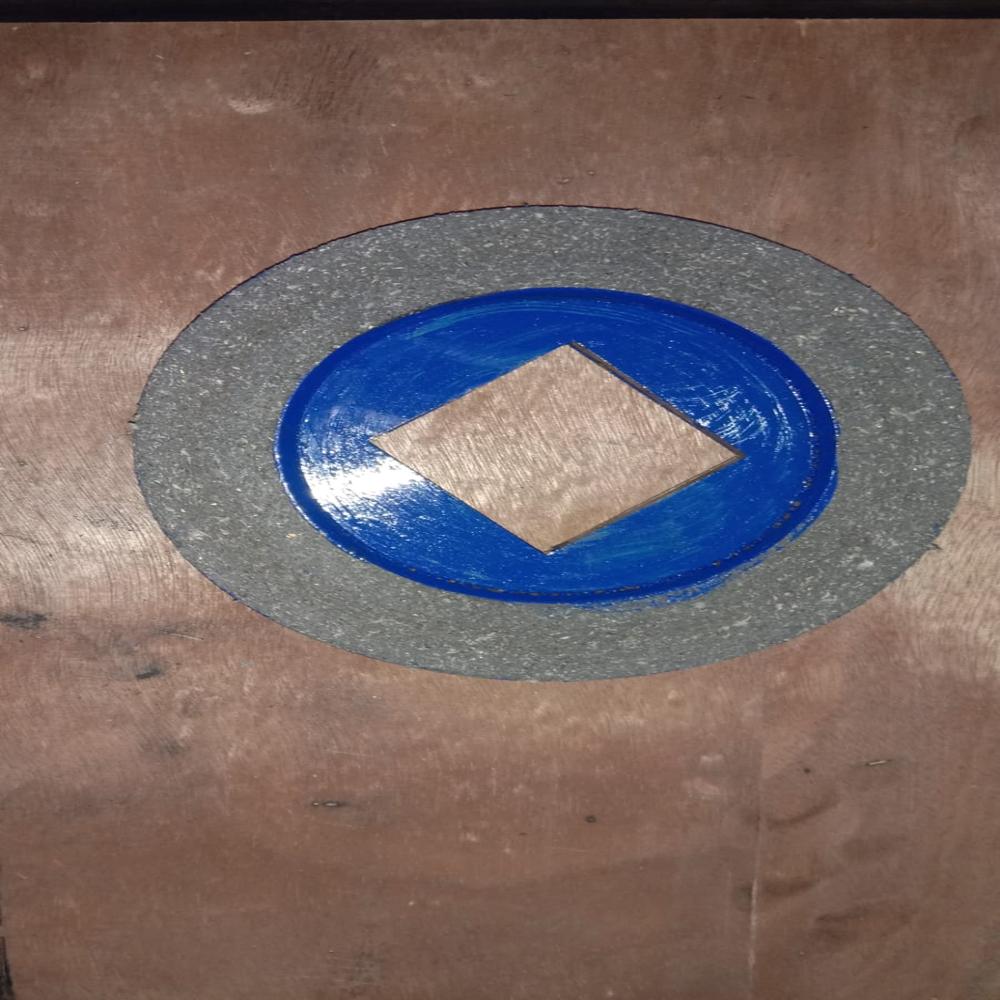

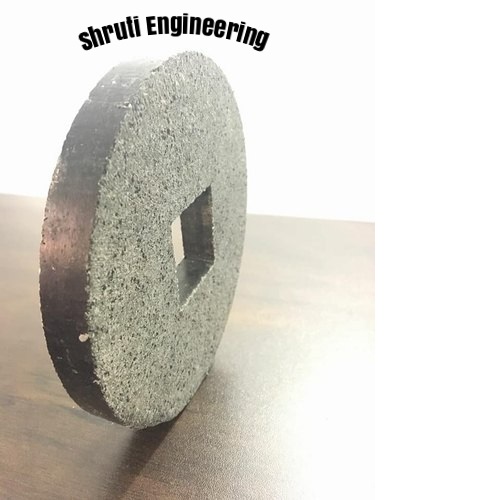

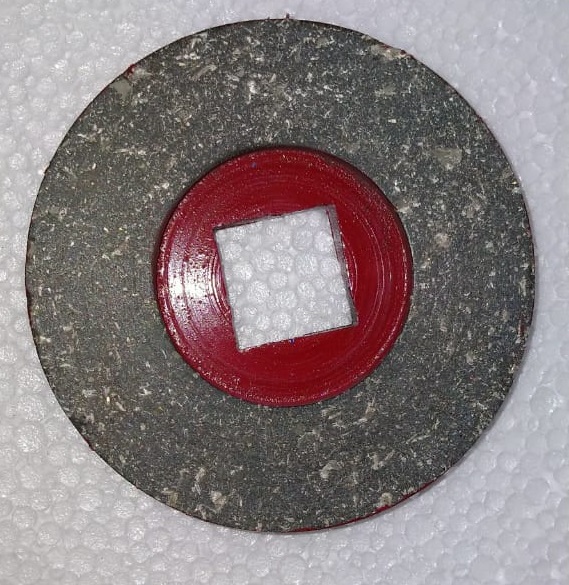

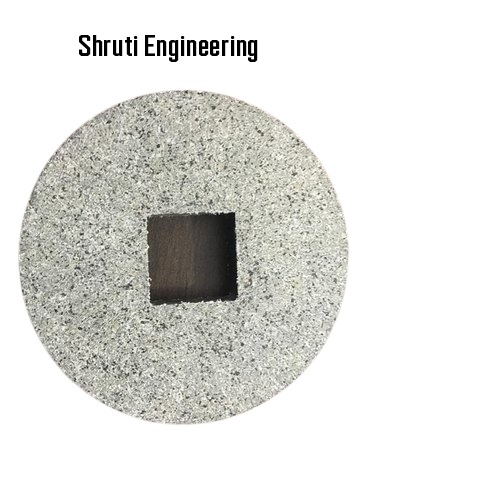

AC Motor Brake Liner

AC Motor Brake Liner Specification

Thickness
10 mm - 25 mm

Vehicle Type
Industrial Equipment

Shape
Round with Square Center Hole

Pressure
Up to 5.5 kg/cm2

Material
Asbestos/Non-Asbestos Composite

Loading Capacity
Up to 20 Tons (varies by application)

Diameter
150 mm - 400 mm (customizable)

Power
Compatible with motors up to 50 HP

Voltage
220V / 415V (AC)

Application
AC Motor Braking Systems, Industrial Machinery, Cranes, Elevators

Finish
Sintered and Precision Ground

Mounting
Bolt-on/Clamp-on as required

Friction Coefficient
0.38 - 0.50

Hardness
65 - 80 Shore D

Color
Grey

Temperature Resistance
Up to 350C

About AC Motor Brake Liner

Using the best grade raw material, we are successfully manufacturing and supplying a wide gamut of Brake Liner to our clients. Offered liner is stringently examined under the supervision of our skilled professionals against the exquisite parameters of quality to offer a defect free range to our clients. In order..

Superior Temperature and Load Resistance

Our AC Motor Brake Liners are engineered to handle high-heat environments up to 350C and heavy loads reaching up to 20 tons, making them ideal for demanding industrial applications. Their robust composite material construction ensures minimal wear even under continuous, high-stress operations, providing reliability and safety where it matters most.

Customizable Dimensions and Easy Installation

Available in diameters from 150 mm to 400 mm and thicknesses of 10 mm to 25 mm, with both bolt-on and clamp-on mounting configurations, these brake liners can be tailored to fit a variety of AC motor braking systems. The round design with a square center hole offers compatibility and convenience during installation and maintenance.

Enhanced Safety and Performance

With a friction coefficient between 0.38 and 0.50 and a hardness rating of 65 to 80 Shore D, these brake liners ensure consistent and controlled braking. The sintered and precision-ground finish guarantees smooth operation while reducing vibration and noise, contributing to both machinery protection and operator safety.

FAQ's of AC Motor Brake Liner:

Q: How are these AC Motor Brake Liners installed?

A: These brake liners can be mounted using either bolt-on or clamp-on methods, depending on your machinery's requirements. Their precise shape and customizable dimensions facilitate straightforward integration into AC motor braking systems.

Q: What materials are used in the construction of these brake liners?

A: We manufacture brake liners from high-quality asbestos or non-asbestos composite materials, offering both traditional and environment-friendly options to match regulatory compliance and operational needs.

Q: When should I replace the brake liner in my AC motor system?

A: Brake liners should be checked periodically for wear or damage, especially in high-load or high-cycle environments. Replacement is recommended when the liner approaches the lower limit of its thickness range (10 mm) or exhibits significant performance decline.

Q: Where can these brake liners be used?

A: These liners are suitable for a wide range of industrial machinery, including AC motor braking systems, cranes, elevators, and heavy equipment commonly found in manufacturing, warehousing, and construction facilities.

Q: What is the typical process for ordering custom-sized brake liners?

A: To order custom-sized liners, provide your required diameter (150-400 mm), thickness (10-25 mm), and preferred mounting style. We will manufacture the liners to your specifications with either asbestos or non-asbestos composite materials as per your selection.

Q: How do these brake liners benefit industrial operations?

A: Their high thermal resistance, excellent load-bearing capacity, and low wear rate help ensure smooth braking and increased equipment lifespan, reducing maintenance costs and operational interruptions.

Q: What is the maximum power and voltage compatibility for these brake liners?

A: These brake liners are suitable for use with motors up to 50 HP and support both 220V and 415V AC power supplies, making them versatile for a variety of industrial applications.
