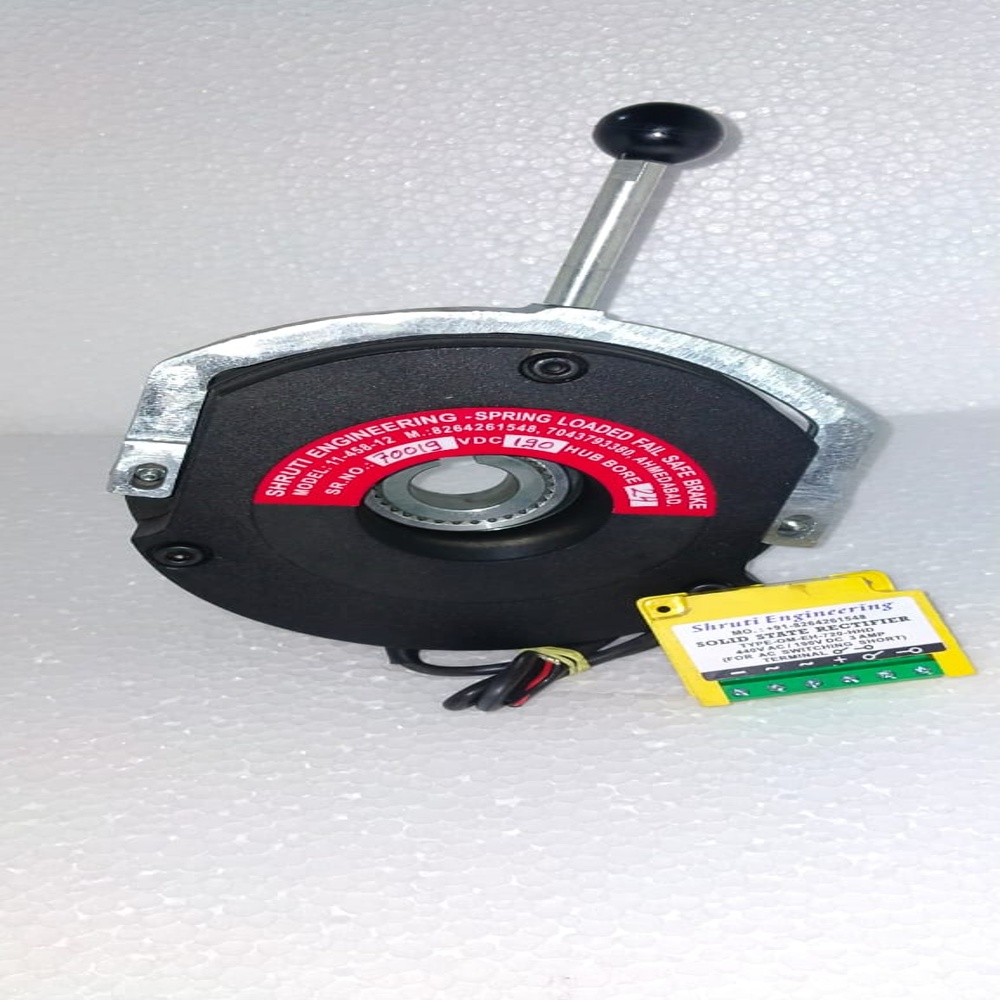

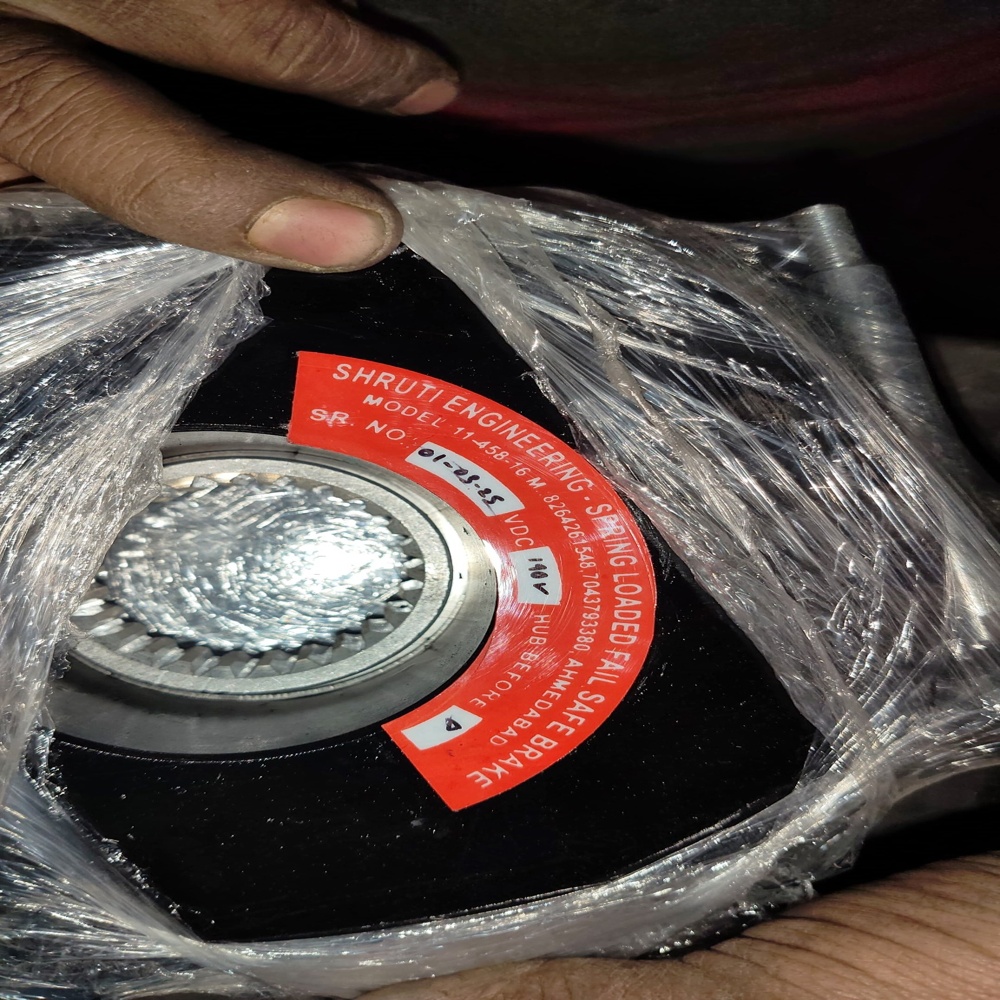

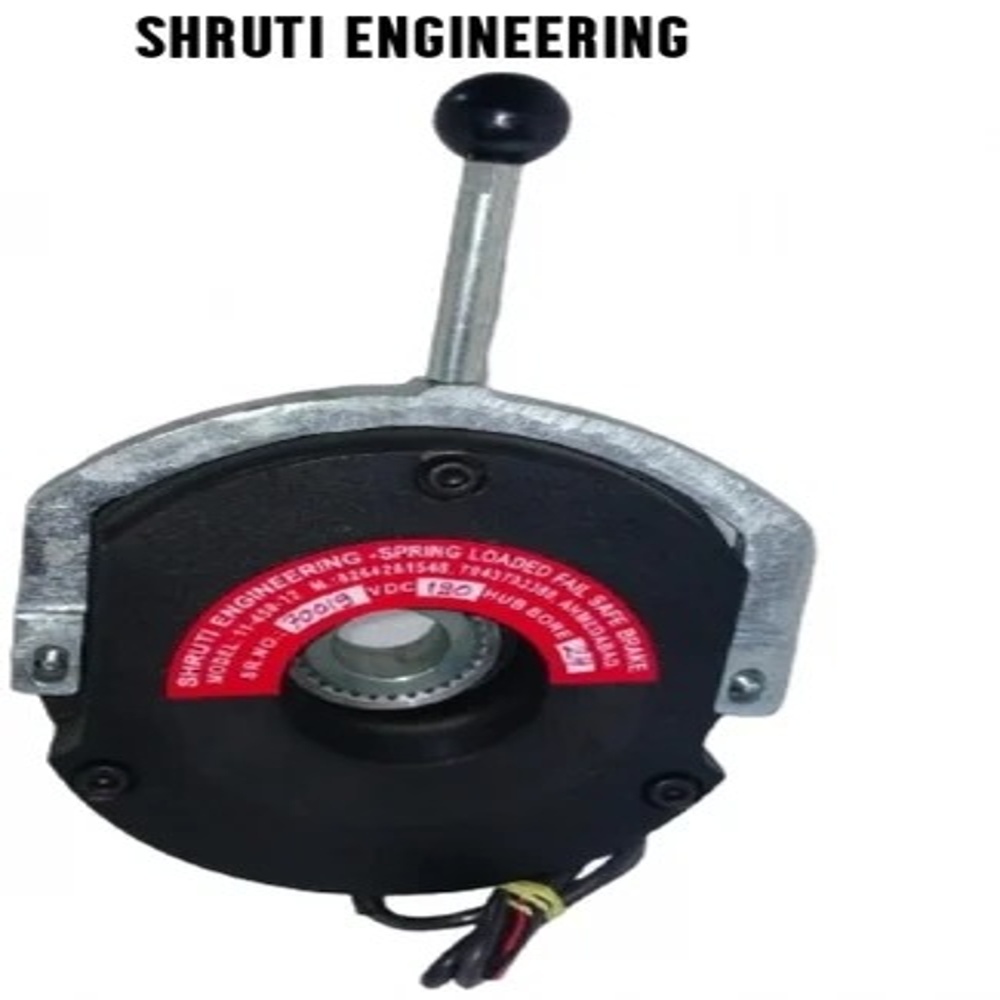

AC Motor DC Brake

AC Motor DC Brake Specification

Thickness
25 mm (Example, actual may vary)

Vehicle Type
Not Applicable (Industrial Electric Motors)

Shape
Round

Pressure
Spring Loaded DC Brake

Material
Cast Iron and Steel

Loading Capacity
Standard (Varies by Model)

Diameter
120 mm (Example, actual may vary)

Power
Standard, 0.18 HP - 10 HP (Varies with Motor)

Voltage
220V/415V AC/DC

Application
AC Electric Motors, Industrial Machinery, Elevators, Hoists

Response Time
20-50 ms

Mounting
Flange/Foot Mounted

Operating Temperature
-20C to +50C

Duty Cycle
Continuous

Torque Range
6 Nm to 100 Nm (Varies by model)

Model
SEB-06 (As seen on label, example)

Finish
Powder Coated/Anti-Corrosion Finish

Insulation Class
Class F or H

Brake Type
Electromagnetic, Spring Loaded DC Brake

About AC Motor DC Brake

We, Shruti Engineering, are an appreciated manufacturer, exporter and supplier of high quality Disc Brakes and Industrial Hoists. Offered range of products includes Foot Mounted Brake Motor, Disc Brake and Liner Brake.

Versatile Mounting and Sturdy Build

Choose between flange or foot mounting to suit various industrial applications. The brake assembly is constructed from robust cast iron and steel, providing both reliability and durability. Its powder-coated, anti-corrosion finish ensures extended service life, even in challenging environments.

Efficient and Safe Brake Operation

This electromagnetic, spring-loaded DC brake enables rapid response times, stopping motors within 20-50 ms. Suitable for continuous-duty cycles, it works seamlessly with AC electric motors found in industrial machinery, elevators, and hoists, enhancing safety and operational efficiency.

FAQ's of AC Motor DC Brake:

Q: How does the spring-loaded electromagnetic DC brake operate?

A: The brake utilizes a spring-loaded mechanism that holds the brake in the engaged position. When electrical power is supplied, the electromagnetic coil releases the brake, allowing the motor shaft to rotate. Removing power causes the spring to re-engage the brake rapidly, ensuring quick stopping times of 20-50 milliseconds.

Q: What are the typical applications of this AC Motor DC Brake?

A: This brake is widely used in industrial electric motors, including machinery, elevators, and hoists. Its rapid response and robust design make it ideal for applications where precise stopping and holding are critical.

Q: When should I select Class F or Class H insulation for my DC brake?

A: Choose Class F for standard industrial environments with moderate temperature conditions. Opt for Class H insulation in applications exposed to higher temperatures or where heat resistance is essential for longevity and safety.

Q: Where can these brakes be mounted?

A: The brakes can be flange-mounted or foot-mounted, depending on your equipment and installation requirements. This versatility allows compatibility with a wide range of industrial electric motors and machinery setups.

Q: What is the process for maintaining these DC brakes?

A: Regular maintenance involves checking for wear on the friction surfaces, ensuring all electrical connections are secure, and inspecting the general condition of the mounting and brake components. The powder-coated finish helps minimize corrosion during routine use.

Q: What benefits does the powder-coated anti-corrosion finish provide?

A: The powder-coated finish enhances resistance to corrosion and abrasion, extending the operational life of the brake in harsh industrial environments and reducing maintenance frequency.

Q: Can these brakes handle continuous-duty cycles?

A: Yes, these DC brakes are engineered for continuous operation, making them suitable for applications where frequent, reliable actuation is required, such as in automated machinery and production lines.
