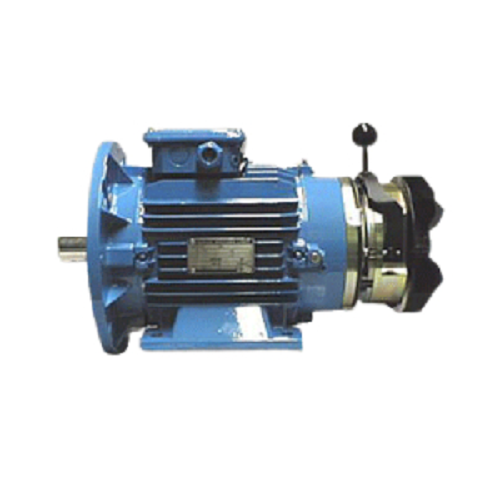

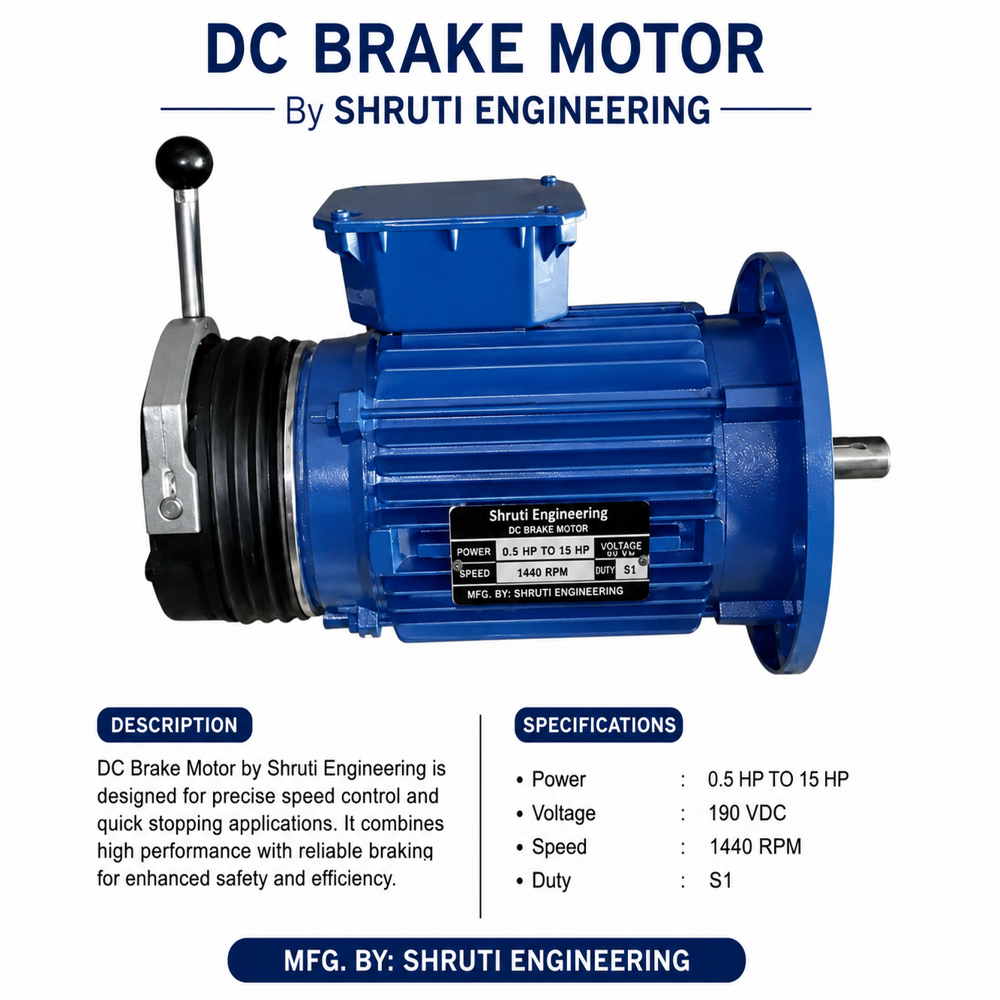

AC Single Phase DC Brake Motor

AC Single Phase DC Brake Motor Specification

Starting Type
Direct On Line (DOL)

Ambient Temperature
-15C to +40C

Sealed Type
IP55

Cooling Method
Fan Cooled

Current Type
AC

Torque
High Starting Torque

Poles Number
4 Poles

Noise Level
Low

Rated Frequency
50 Hz

Features
Quick Braking, High Performance, Compact Design

Pressure
Atmospheric

Horse Power
0.18 HP to 10 HP

Standard
IS 325

Voltage
220V

Efficacy
High Efficiency

Motor Type
AC Single Phase DC Brake Motor

Rated Voltage
220V

Bearing Type
Deep Groove Ball Bearing

Power Rating
As per Model

Product Type
Single Phase Brake Motor

Output Power
0.18 HP to 10 HP

Frequency (MHz)
50 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Single Phase

Speed
1440 RPM

Power
0.18 kW - 7.5 kW

Color
Blue

Dimension (L*W*H)
Varies with Model

Weight
Depends on Capacity (Approx. 10-60 kg)

Shaft Diameter
As per Standard Specification

Mounting Type
Flange/Foot Mounted

IP Rating
IP55

Insulation Class
Class F

Frame Size
63 to 132 mm

Frequency Tolerance
5%

Duty Cycle
S1 (Continuous Duty)

Starting Current
High but Suitable for DOL Start

Application
Cranes, Hoists, Conveyors, Textile, Machine Tools

Brake Supply Voltage
190V DC

Construction
Robust Cast Iron/Aluminium Body

Operating Position
Horizontal

Stop Time
Very Short (Quick Braking)

About AC Single Phase DC Brake Motor

We, Shruti Engineering, are an appreciated manufacturer, exporter and supplier of high quality Disc Brakes and Industrial Hoists. Offered range of products includes Foot Mounted Brake Motor, Disc Brake and Liner Brake.

Reliable and Rapid Braking Performance

Designed for precision and safety, the built-in DC brake ensures instantaneous stopping for enhanced control, critical for cranes, hoists, and machine tools. Quick braking minimizes downtime and offers superior operational safety, making it suitable for industries where precise and fast stopping is essential.

Versatility and Robust Construction

With a tough cast iron or aluminium body and IP55 protection, this motor endures demanding environments. Available in flange or foot mounting, and with adaptable frame sizes, it suits a wide range of installation needs. The compact design allows easy integration into existing systems.

Efficiency for Continuous Duty Applications

Optimized for continuous use (S1 duty), the motor offers high efficiency and low noise levels, supported by a totally enclosed fan cooled (TEFC) system. Operate confidently under varying frequencies and temperatures, ensuring maximal productivity and minimum energy loss.

FAQ's of AC Single Phase DC Brake Motor:

Q: How does the DC brake system in this motor enhance operational safety?

A: The integrated DC brake (190V DC) provides rapid and reliable stopping power, reducing motor stop time significantly. This quick braking feature improves safety for applications like cranes and hoists where precise and prompt stopping is crucial.

Q: What types of applications are best suited for this AC Single Phase DC Brake Motor?

A: This motor is ideal for cranes, hoists, conveyors, textile machinery, and machine tools, thanks to its high starting torque, rapid braking, and reliable continuous operation.

Q: When should this motor be selected over a standard single phase motor?

A: Choose this motor when your application demands high starting torque, very short stopping times, consistent efficiency, and robust construction-particularly in environments requiring enhanced operational safety and fast cycling.

Q: Where can these motors be mounted in industrial settings?

A: The AC Single Phase DC Brake Motor offers both flange and foot mounting options, making it suitable for horizontal installations across diverse settings such as workshops, textile plants, and on machinery frames.

Q: What are the benefits of the totally enclosed fan cooled (TEFC) design?

A: TEFC construction ensures dust, moisture, and external contaminant protection, facilitating reliable operation in harsh industrial environments and prolonging the motor's lifespan.

Q: How does the high starting torque contribute to performance?

A: High starting torque allows the motor to effortlessly power heavy loads from standstill, especially valuable in applications requiring robust and immediate starts, like conveyors and cranes.

Q: What process is followed to ensure compliance with industry standards?

A: Manufactured according to IS 325, each motor undergoes rigorous quality checks to guarantee reliability, performance, and compatibility with industrial safety and efficiency standards.
