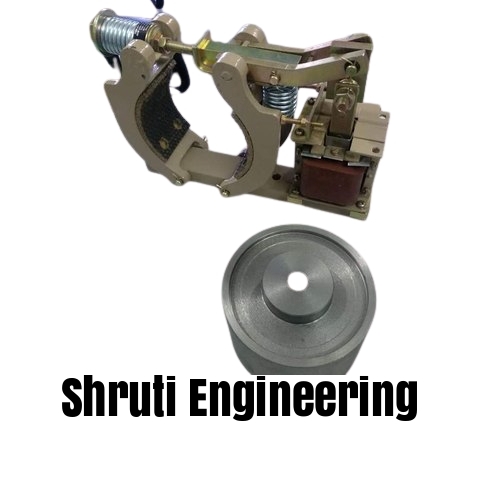

Ac Solenoid Brake 4 Inch

Ac Solenoid Brake 4 Inch Specification

Vehicle Type
Industrial Equipment, Not for Automotive Use

Pressure
Spring Loaded (Approx. 500-900 N)

Thickness
Standard 10 mm to 20 mm (As per design)

Shape
Round/Drum Type

Material
Cast Iron/Steel

Loading Capacity
Heavy Duty (Typically up to 10 Tons)

Diameter
4 Inch

Power
0.4 kW to 1.5 kW (Depending on Model)

Voltage
230V / 415V AC

Application
EOT Crane, Hoists, Elevators, Material Handling Systems

Brake Lining Material
Asbestos-Free Non-Metallic

Operation
Electro-Mechanical Operation with Fail-Safe Design

Response Time
<0.1 Seconds

Enclosure
IP 55

Mounting
Foot Mounted

Ambient Temperature
-10C to +50C

Insulation Class
Class F or Higher

Duty Cycle
S1, S2 and S3 as per requirement

Finish
Corrosion Resistant Painted Finish

About Ac Solenoid Brake 4 Inch

Our AC Solenoid Brake for EOT Crane is specially designed for Electric Overhead Traveling (EOT) cranes, delivering precise, reliable, and fail-safe braking for heavy-duty lifting operations. Equipped with a high-quality AC solenoid coil, it ensures instant stopping and controlled motion, enhancing both safety and operational efficiency.

With robust construction and premium materials, this brake offers smooth, vibration-free, and low-noise performance, making it ideal for continuous industrial use.

Reliable Fail-Safe Operation

This AC solenoid brake is specifically designed with a fail-safe mechanism: it applies braking when power is lost to ensure the safety of your equipment and personnel. Its electro-mechanical operation, optimized for S1, S2, and S3 duty cycles, makes it a dependable solution for continuous, intermittent, or sequential use in industrial automation.

Heavy Duty Performance and Compatibility

Constructed from durable cast iron or steel, this 4-inch round/drum-type brake is tailored for industrial machinery found in crane systems, hoists, and elevators. It accommodates loading capacities up to 10 tons and fits a variety of power requirements (230V/415V AC). Its asbestos-free linings promote safe, eco-friendly operation.

Enhanced Durability and Fast Response

With a corrosion-resistant painted exterior and an IP 55 rated enclosure, this brake withstands harsh industrial conditions. The thermal insulation (Class F or higher) ensures stable performance in ambient temperatures from -10C to +50C. Its rapid response time (less than 0.1 seconds) delivers almost instant braking, essential for precision and safety in material handling environments.

FAQ's of Ac Solenoid Brake 4 Inch:

Q: How does the fail-safe design of the AC solenoid brake enhance safety in industrial applications?

A: The fail-safe mechanism ensures that the brake engages and stops equipment instantly if electrical power is lost. This feature is particularly crucial in preventing accidents and uncontrolled movement in heavy-duty machinery such as EOT cranes and hoists.

Q: What types of industrial equipment can use this 4-inch AC solenoid brake?

A: This brake is suitable for EOT cranes, hoists, elevators, and a variety of material handling systems. It is tailored for heavy-duty loads, offering a loading capacity of up to 10 tons and is not designed for automotive use.

Q: When should the brake be installed with Class F or higher insulation?

A: Class F or higher insulation is recommended when the equipment operates in environments with elevated temperatures or heavy-duty cycles, as it provides greater thermal endurance and prolongs brake lifespan.

Q: Where should the AC solenoid brake be mounted for optimal performance?

A: For best results, the brake should be foot-mounted as specified. This mounting style ensures stability and efficient transmission of braking force in industrial machinery.

Q: What is the process for adjusting the brake's response time or pressure?

A: While the brake is engineered for a rapid response time of less than 0.1 seconds and spring-loaded pressure between 500-900 N, precise adjustments should be performed according to the manufacturer's manual or by a qualified technician to ensure safety and functionality.

Q: How does the corrosion-resistant painted finish benefit long-term usage?

A: The specialized finish protects the brake components from rust and degradation caused by exposure to industrial environments, significantly extending the product's service life and reducing maintenance needs.
