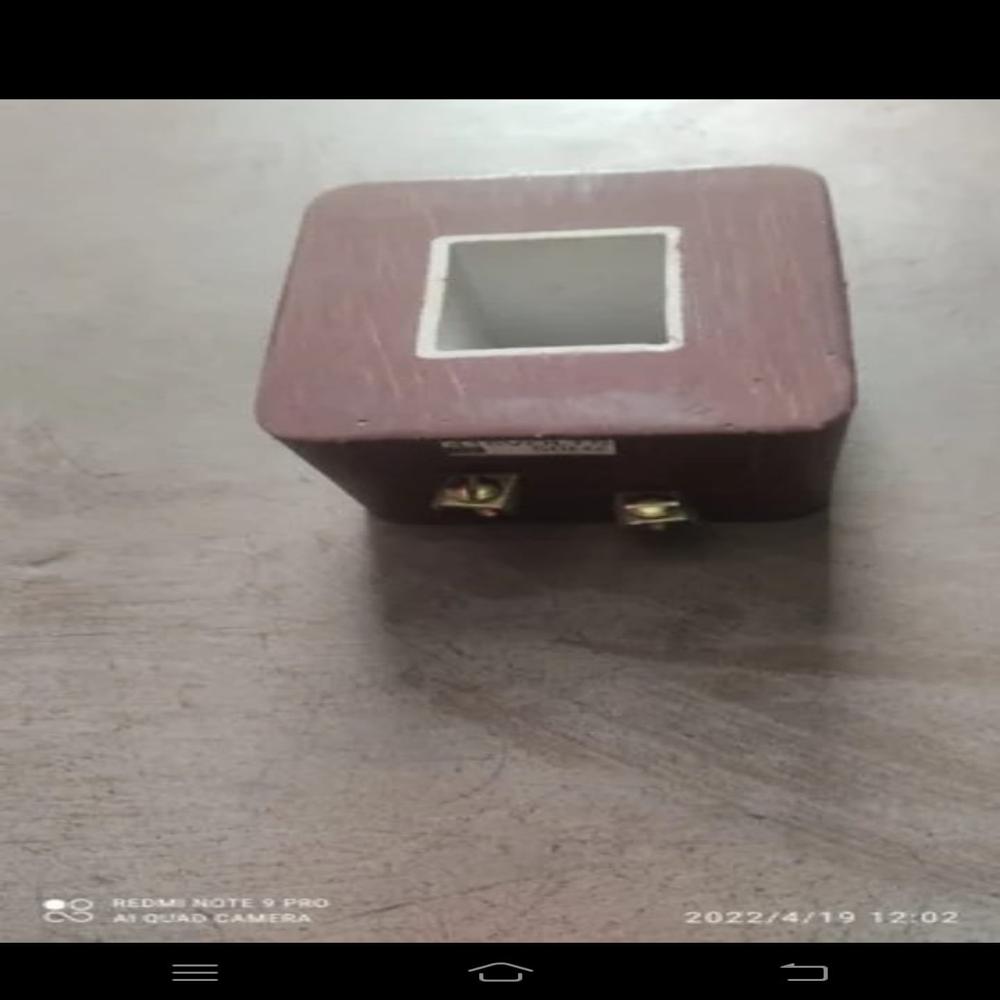

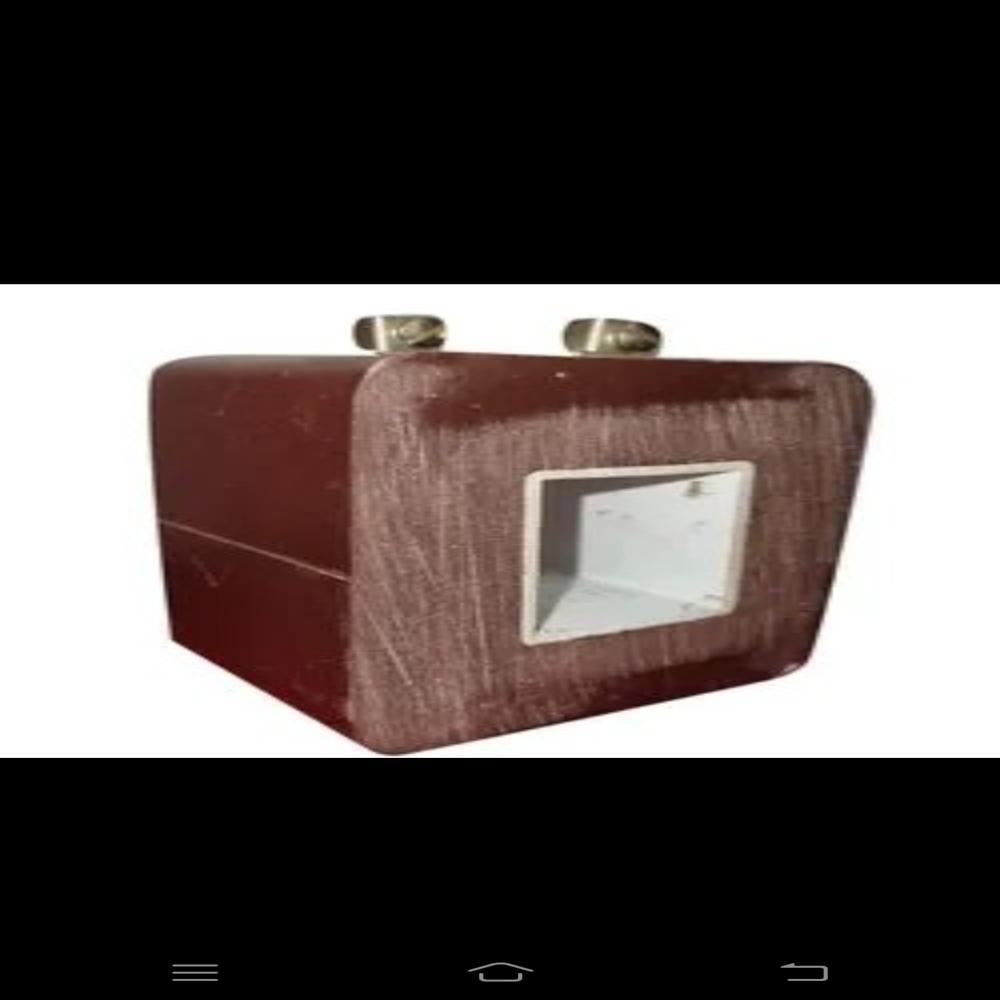

AC Solenoid Brake Coils

AC Solenoid Brake Coils Specification

Noise Level
Low Noise Operation

Features
High insulation resistance, Heat resistant, Durable construction, Stable performance

Usage & Applications
Electromagnetic Brake System, Industrial Machinery, Cranes, Hoists

Mounting Type
Direct Fit / Slot Mounting

Part Type
AC Solenoid Coil for Brakes

Brake Type
AC Solenoid Brake

Size
Available in various sizes as per brake model specifications

Material
High-grade Copper/Enamelled Copper Wire

Pattern Material
Moulded Polyester/Phenolic Resin

Surface Finish
Smooth, Black Insulated Surface

Standard
IS/IEC Standards Compliant

Insulation Class
Class F/H

Current Rating
As per design specification (Typically 0.2A to 1.5A)

Core Opening
Compatible with standard solenoid brake cores

Compatibility
Suitable for various electromagnetic AC brake models

Operating Temperature
-10C to +60C

Connection Type
Screw Terminal / Lug Type

Coil Resistance
Design specific, provided according to brake model

Voltage Rating
AC 110V/220V/415V, Customizable as per requirement

Life Cycle
Over 1 Million Operations

AC Solenoid Brake Coils About

Solenoid Brake Coil for Crane Description

The Solenoid Brake Coil for Crane is a key component in electromagnetic crane braking systems, designed to provide reliable magnetic force for smooth and efficient brake operation. When energized, the coil generates a strong magnetic field that ensures quick brake release and precise stopping control, making it ideal for lifting and material handling applications.

Built with high-grade copper or aluminum windings and heat-resistant insulation, this brake coil is highly durable, energy-efficient, and capable of withstanding continuous duty cycles under heavy loads. It is available in various voltage and frequency ratings (110V, 220V, 415V / 50Hz60Hz) to suit different crane brake models.

Key Features:

Strong magnetic force for dependable crane brake performance
High-quality copper/aluminum winding construction
Excellent heat resistance and long service life
Low maintenance and energy-efficient design
Compatible with a wide range of crane brake systems

Applications:

Reliable Performance for Industrial Applications

Our AC Solenoid Brake Coils are built to handle demanding operation cycles in heavy-duty environments like cranes, hoists, and diverse industrial machinery. With high insulation class, robust construction, and over a million-cycle life, these coils offer tremendous reliability and efficiency for various electromagnetic brake models, making them ideal for continuous use in safety-critical operations.

Customizable to Fit Your Design Requirements

We accommodate specific voltage, size, core opening, resistance, and mounting preferences to ensure seamless integration into your unique brake systems. Choose between screw terminal or lug connection types, and specify mounting that matches your brake assembly for effortless installation and operation. Our flexible solutions empower you to meet your machinery's exact needs.

Certified Quality for Safe and Durable Operation

Manufactured from high-grade copper and insulated with smooth, black phenolic or polyester resin, our brake coils conform to IS/IEC standards for industrial safety and performance. Each coil undergoes rigorous testing for heat resistance, noise reduction, and long-term durability, ensuring you benefit from stable, reliable braking with minimal maintenance over extended operational cycles.

FAQ's of AC Solenoid Brake Coils:

Q: How do I choose the correct voltage and current rating for an AC solenoid brake coil?

A: Selecting the appropriate voltage (AC 110V, 220V, or 415V) and current rating (typically 0.2A to 1.5A) depends on your brake's specifications and power supply. Refer to your brake model's manual or consult our technical team for guidance on customization to match your requirements.

Q: What are the advantages of using Class F/H insulation and high-grade copper wire in these coils?

A: Class F/H insulation and high-grade copper wire provide excellent heat resistance, durability, and efficient conductivity. This results in stable coil performance, enhanced safety, a prolonged operational life exceeding one million cycles, and minimal risk of electrical failures during continuous industrial use.

Q: Where can these AC solenoid brake coils be used, and what models are they compatible with?

A: Our coils are suitable for a variety of industrial applications including electromagnetic brake systems in cranes, hoists, and other machinery. They are compatible with multiple standard solenoid brake cores and can be customized for nearly any electromagnetic AC brake model.

Q: What is the installation process for these brake coils?

A: Installation is straightforward-coils are available with screw terminal or lug type connections and mount directly or via slot into standard brake assemblies. Detailed guidelines are provided for safe installation, and customization for mounting type ensures compatibility with your specific model.

Q: When should I consider replacing the solenoid brake coil in my system?

A: Consider coil replacement if you observe diminished braking performance, visible insulation damage, or after exceeding the coil's rated life cycle (over one million operations). Regular maintenance checks can help detect signs of wear and prevent unexpected downtime.

Q: How does the smooth, insulated surface and low-noise operation benefit my application?

A: The smooth, black insulated surface enhances electrical safety and resistance to environmental factors, while low-noise operation supports quieter workplaces and improved machine comfort-essential for continuous-use environments.

Q: What standards and testing processes are these coils subject to before delivery?

A: All coils are manufactured to IS/IEC standards, undergoing thorough inspection for insulation quality, resistance rating, heat tolerance, structural durability, and functional reliability. This ensures consistent safety and performance in your industrial setup.
