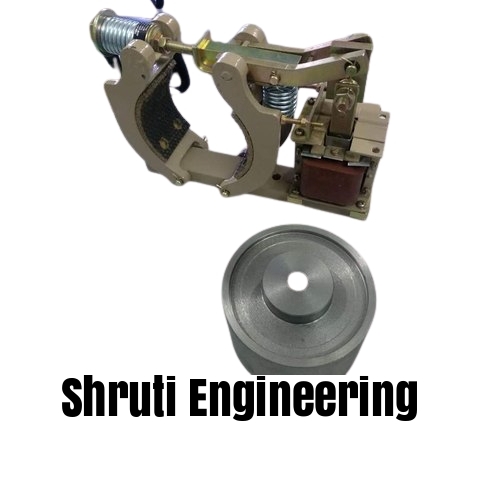

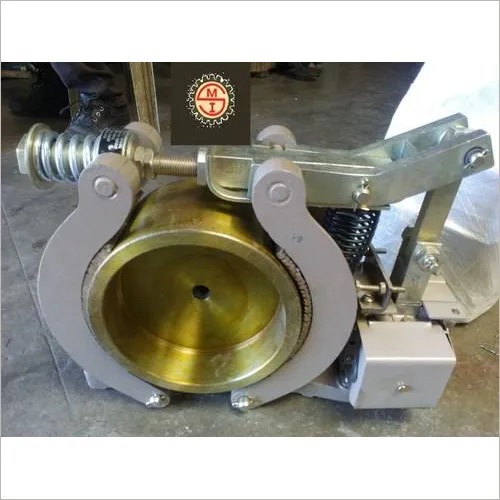

AC Solenoid Shoe Brake

AC Solenoid Shoe Brake Specification

Vehicle Type
Industrial Lifting and Material Handling Machinery

Shape
Rectangular Base with Twin Shoe Arms

Thickness
6 mm - 12 mm (Brake Lining)

Pressure
Electromagnetic Actuated (Spring Loaded, up to 100 N)

Material
Mild Steel, Cast Iron, Asbestos Brake Lining

Loading Capacity
Up to 1000 kg (varies per model)

Diameter
100 mm - 400 mm

Power
0.5 HP to 2 HP

Voltage
220V/230V/415V AC

Application
Overhead Cranes, Hoists, Material Handling Equipment, Elevators, Conveyors

Brake Lining Material
Asbestos Free (on request)

Operating Temperature
-20C to +50C

Finish
Powder Coated / Painted

Standards
IS: 4771 / IEC certified

Control Method
Electromagnetic Solenoid

Response Time
< 1 second

Mounting Type
Foot Mounted

Insulation Class
Class F or H

Duty Cycle
Continuous

Braking Torque
Up to 320 Nm (varies by model)

About AC Solenoid Shoe Brake

Jump on this first-class AC Solenoid Shoe Brake, perfect for industrial lifting and material handling needs. With a glorious finish-choose powder coated or painted-plus an option of insulation class F or H, this unit is designed for supreme safety and longevity. Enjoy a first-string response time of less than 1 second, a robust braking torque up to 320 Nm, and a loading capacity tailored up to 1000 kg. Order today for a reduced wait and bring reliable, IS:4771/IEC certified performance to your operations. Mild steel, cast iron, and optional asbestos-free linings provide durability for continuous, heavy-duty use.

Robust Material & Versatile Industrial Applications

Crafted from mild steel and cast iron, this AC Solenoid Shoe Brake exemplifies excellent material integrity and endurance. Its rectangular base and twin shoe arms make it suitable for continuous, first-rate performance in overhead cranes, hoists, elevators, and conveyors. Designed for industrial lifting and material handling machinery, it offers powerful electromagnetic braking with minimal maintenance. The asbestos-free brake lining (available on request) ensures safety and complies with stringent industrial standards, making it ideal for demanding operational requirements.

Swift Exchange, Export Market Reach, and Reliable Delivery

AC Solenoid Shoe Brakes are available for rapid delivery upon purchase order confirmation. Our supply chain is equipped to handle large orders, ensuring consistent availability for domestic and export markets. Thanks to our efficient exchange process and robust supply ability, customers experience minimal downtime and seamless integration into existing systems. Whether you operate within the main domestic market or require export solutions, our commitment to on-time, first-string delivery means you receive products exactly when you need them.

FAQ's of AC Solenoid Shoe Brake:

Q: How does the electromagnetic solenoid control method work in these brakes?

A: The electromagnetic solenoid creates a magnetic field that actuates the braking mechanism, allowing for rapid and precise engagement or release as required.

Q: What are the main benefits of using an AC Solenoid Shoe Brake in material handling machinery?

A: These brakes provide quick response times, high braking torque, continuous duty operation, and durability, ensuring safe, efficient, and reliable performance in lifting and material handling tasks.

Q: When should I consider requesting asbestos-free brake lining?

A: You should request asbestos-free brake lining if your application requires compliance with modern safety and environmental regulations or to reduce occupational health risks for maintenance personnel.

Q: Where can these brakes be installed?

A: They are foot-mounted and versatile, suitable for installation on overhead cranes, hoists, elevators, conveyors, and various industrial material handling equipment.

Q: What is the process for ordering and receiving these brakes for export?

A: Simply submit a purchase order and specify your requirements; we handle all export documentation and ensure swift exchange and shipping to your location, whether for domestic or international deliveries.
