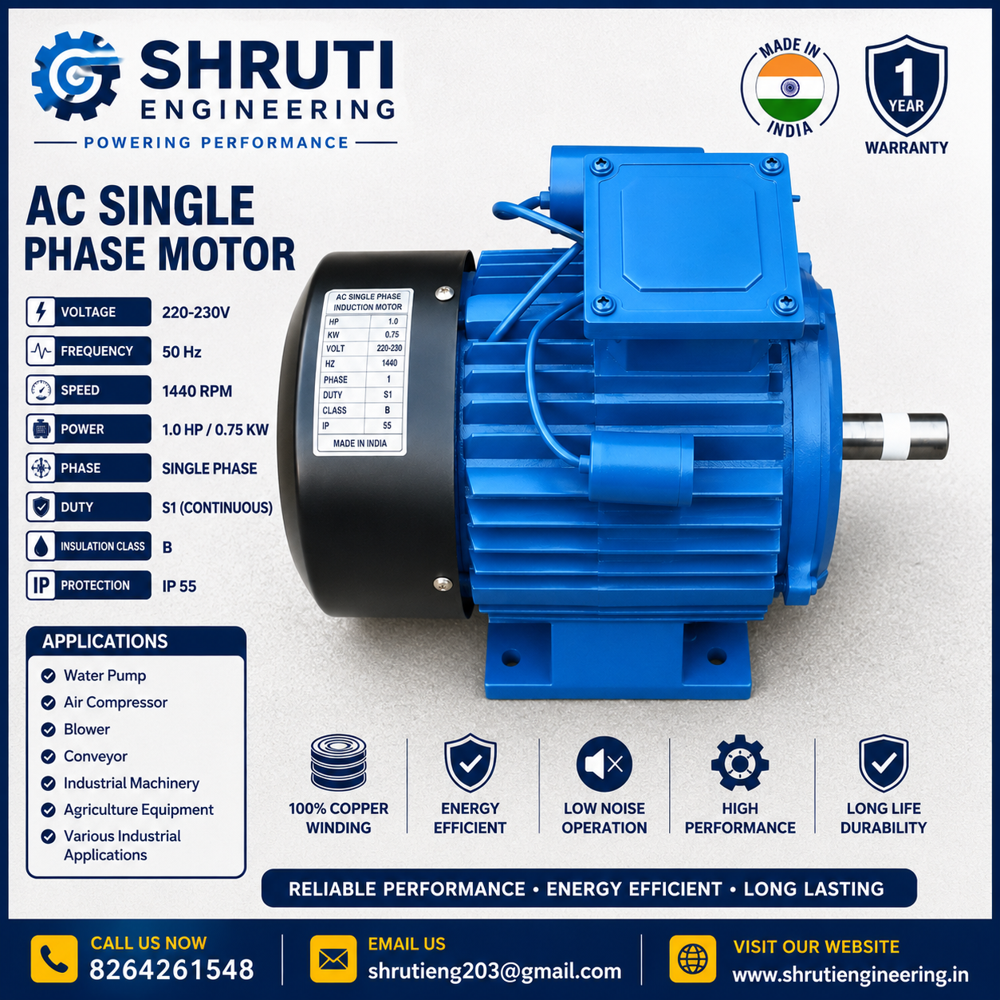

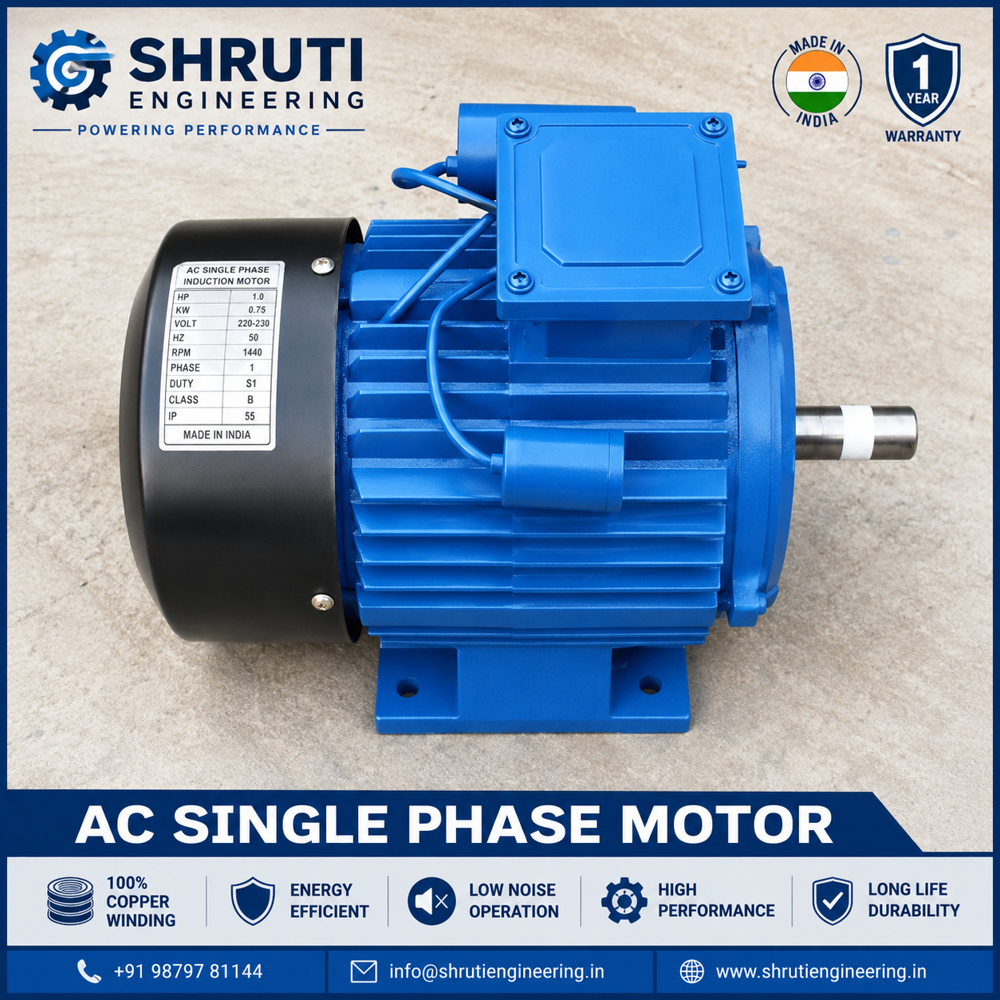

B3 Foot Mounted Motor

B3 Foot Mounted Motor Specification

Voltage
220-230V

Motor Type
AC Single Phase Motor

Noise Level
Low Noise Operation

Starting Type
Direct On Line (DOL)

Power Rating
0.75 KW

Efficacy
High Performance

Cooling Method
IC411 (Fan Cooled)

Features
100% Copper Winding, Energy Efficient, Low Noise, High Performance, Long Life Durability

Current Type
AC

Rated Frequency
50 Hz

Standard
IS:325

Horse Power
1 HP

Rated Voltage
220-230V

Product Type
AC Single Phase Motor

Output Power
0.75 KW

Frequency (MHz)
50 Hz

Protect Feature
IP 55

Phase
Single Phase

Speed
1440 RPM

Power
1.0 HP

Color
Blue

Mounting Type
Foot Mounted (B3)

IP Rating
IP 55

Winding Material
100% Copper

Insulation Class
B

Application
Water Pumps, Air Compressors, Blowers, Conveyors, Industrial Machinery, Agricultural Equipment, and Various Applications

Duty
S1 (Continuous)

About B3 Foot Mounted Motor

High Torque Single Phase Motor

A High Torque Single Phase Motor is engineered to deliver superior starting and running torque, making it ideal for applications that require heavy load starting and frequent start-stop operations. Designed to run on a single-phase AC supply, this motor combines robust construction with high efficiency, ensuring dependable performance in both industrial and commercial environments.

Built with premium-grade copper windings, high-quality laminations, and durable bearings, the motor provides reliable service life under demanding conditions. It is available in capacitor-start and capacitor-run designs, offering smooth acceleration and excellent torque characteristics.

Key Features:

High starting and running torque for heavy-duty applications
Operates on standard single-phase AC supply (230V/240V)
Rugged and compact construction for industrial use
Withstands overload, reversing, and frequent duty cycles

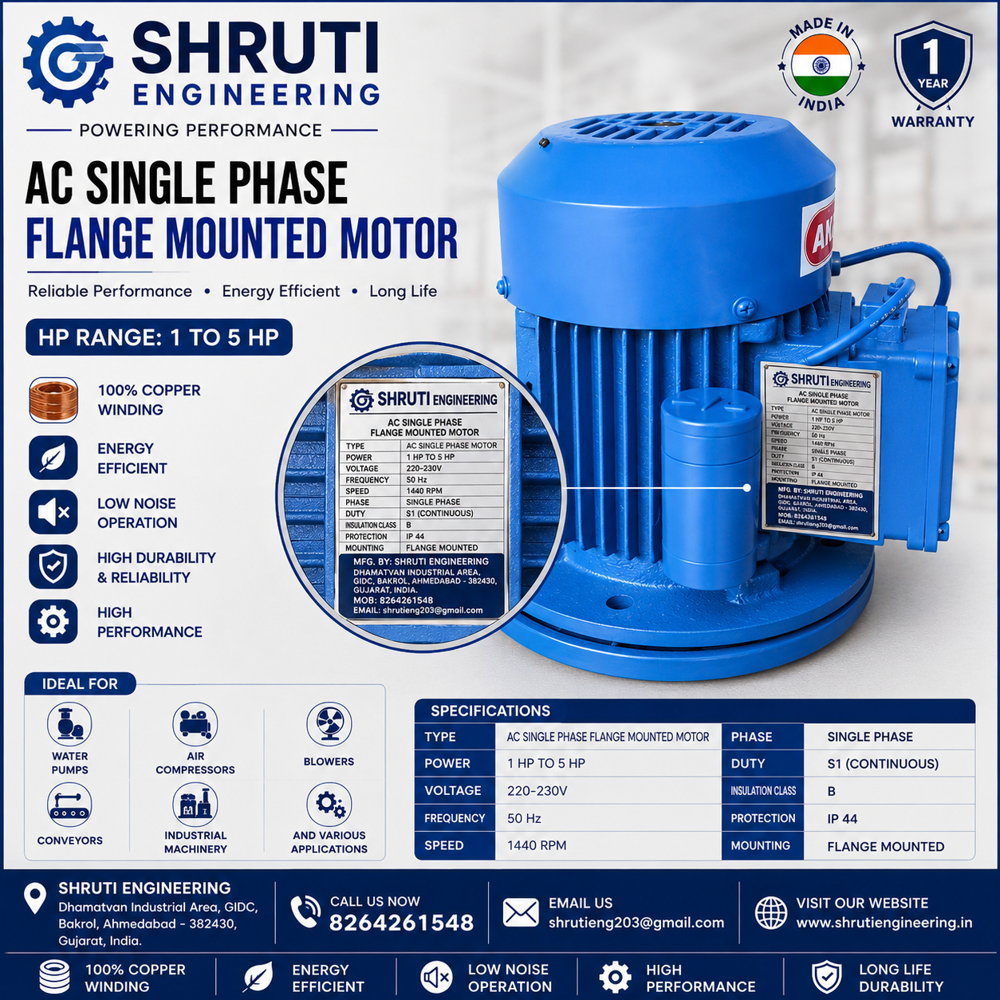

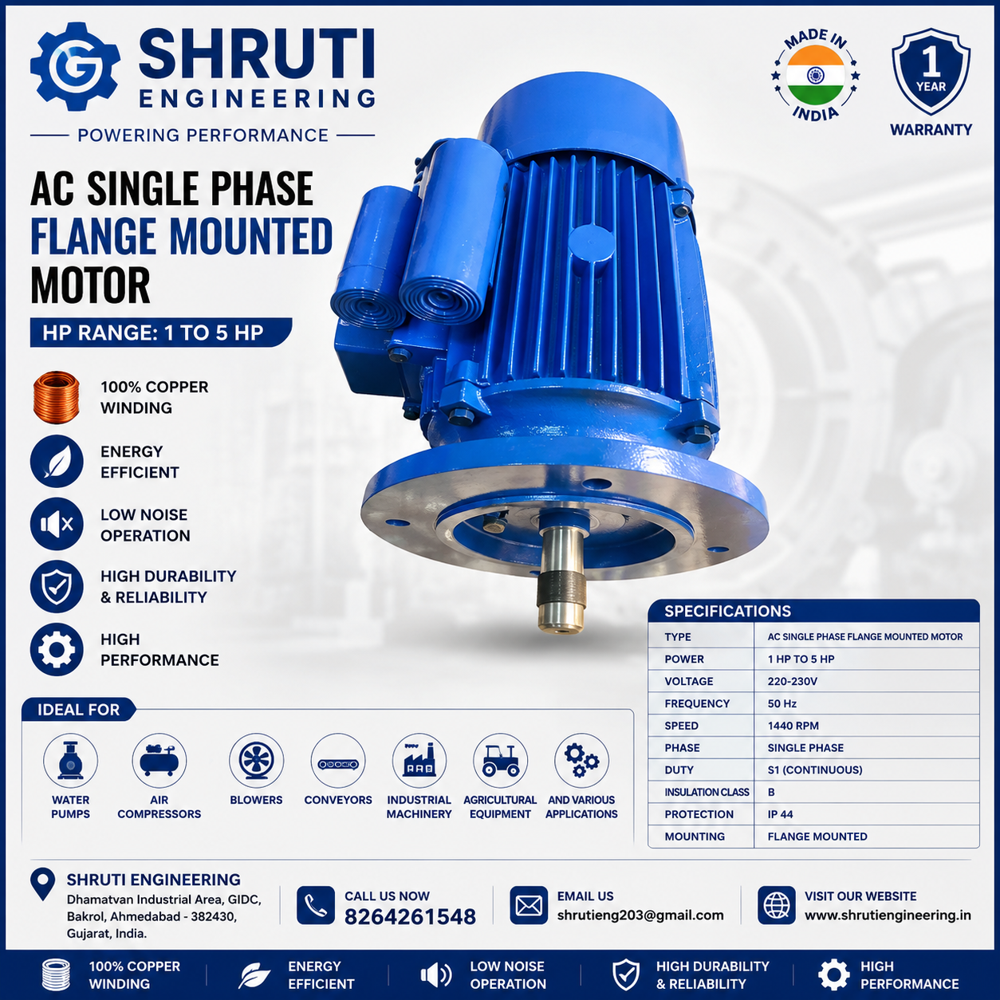

Available in foot-mounted or flange-mounted versions
Low noise, low vibration, and long service life

Engineered for Multisector Applications

The B3 Foot Mounted Motor is designed for versatility across a wide range of uses, including water pumps, blowers, conveyors, and various agricultural or industrial machines. Its durable construction and reliable operation ensure consistent performance in demanding environments.

Advanced Protection and Longevity

Boasting an IP55 protection feature, this motor resists dust and water ingress, extending its life even in challenging working conditions. Combined with Class B insulation and 100% copper windings, it is engineered to meet high standards of safety and reliability.

Energy Efficiency and Quiet Operation

Benefit from energy savings and minimal noise thanks to its efficient IC411 fan-cooled design and precise engineering. This motor offers high performance with reduced operational costs, making it an economical choice for continuous use.

FAQ's of B3 Foot Mounted Motor:

Q: How do I install the B3 Foot Mounted Motor in my equipment?

A: Installation is straightforward using the foot mounting (B3) configuration. Secure the motor onto a flat, stable surface using the designated mounting holes, follow the wiring diagram for single-phase (220-230V AC), and ensure proper alignment with the driven equipment. Always refer to the manual and local standards for safe installation.

Q: What types of applications is this motor suitable for?

A: This motor is ideal for water pumps, air compressors, blowers, conveyors, industrial machinery, agricultural equipment, and many other general-purpose applications where a reliable single-phase motor is required.

Q: When should I consider using a motor with an IP55 rating?

A: Choose an IP55-rated motor when your application is exposed to dust and water splashes. IP55 offers solid protection, making this motor suitable for both indoor and moderately harsh outdoor environments.

Q: Where can the B3 Foot Mounted Motor be used safely?

A: The motor's construction and IP55 protection make it safe for use in industrial facilities, agricultural settings, workshops, pump houses, and anywhere that requires reliable performance and resistance against dust and moisture.

Q: What are the benefits of having 100% copper winding and IC411 cooling?

A: 100% copper winding ensures excellent conductivity, enhancing efficiency, temperature tolerance, and longevity. IC411 (fan cooled) cooling maintains optimal motor temperature during prolonged operation, reducing the risk of overheating and increasing overall life expectancy.

Q: How does the Direct On Line (DOL) starting method work for this motor?

A: Direct On Line (DOL) starting means the motor is connected directly to the power supply and starts at full voltage, offering simple and reliable startup operation for applications that do not require variable speed.

Q: What processes or operations are enhanced by using this high-performance motor?

A: Processes like fluid movement, air handling, material conveyance, and various machinery operations benefit from the motor's efficient performance, low noise, and continuous duty capability, improving productivity and reducing energy costs.
