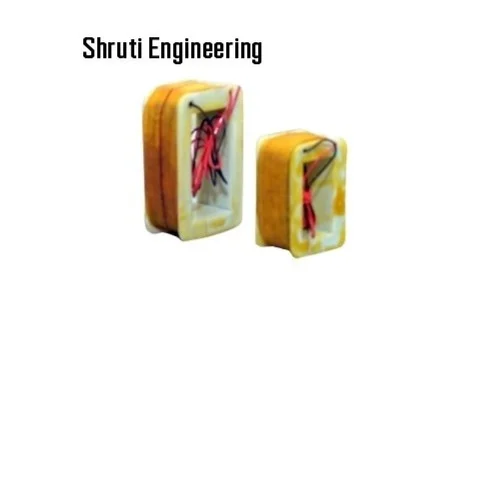

Brake Magnet Coil Specification

Noise Level
Low

Mounting Type
Insert/Fit in electromagnetic brake housing

Features
Durable, High Efficiency, Heat resistant, Easy installation

Part Type
Brake Magnet Coil

Usage & Applications
Electromagnetic brake, Industrial machinery, Automation system

Brake Type
Electromagnetic Brake

Size
Custom/Standard as per requirement

Material
Copper winding with insulation

Pattern Material
Fiber/Resin/Plastic

Surface Finish
Smooth (varnished/cured)

Standard
IS/IEC standards (if required as per application)

Rated Voltage
24V / 48V / 110V / 220V / 415V AC or DC (Custom depending on equipment)

Temperature Resistance
Up to 180C (as per insulation class)

Wire Gauge
SWG 24-30 copper enamelled wire (as per design)

Rated Power
Custom as per design (typically 10W - 50W as per brake)

Color
Yellow/Amber (winding externally visible)

Lead Wire Length
Standard 300mm/500mm (customizable)

Insulation Class
Class F or H (as per requirement)

Compatibility
Suitable for various electromagnetic brakes

Winding Type
Multilayer uniformly wound

Weight
Varies as per size (typically 100g up to 1Kg)

About Brake Magnet Coil

We, Shruti Engineering, are an appreciated manufacturer, exporter and supplier of high quality Disc Brakes and Industrial Hoists. Offered range of products includes Foot Mounted Brake Motor, Disc Brake and Liner Brake.

Durability and Heat Resistance

Thanks to copper windings and insulation class F or H, the brake magnet coils boast excellent heat resistance, operating safely at temperatures up to 180C. Their smooth, varnished finish further enhances protection against environmental factors, ensuring longevity in demanding industrial applications.

Flexible Customization Options

Every brake magnet coil can be tailored as per voltage requirement, dimensions, winding type, and lead wire length. This customization ensures a perfect fit whether you need a coil for a standard or specialized electromagnetic brake. Such flexibility simplifies installation and maximizes compatibility with various systems.

Reliable Performance for Industry

Manufactured to IS/IEC standards, these coils are suitable for industrial machinery, automation systems, and other demanding environments. Their low noise and high efficiency ensure minimal maintenance while providing robust electromagnetic force for precise braking, contributing to smooth and safe machine operation.

FAQ's of Brake Magnet Coil:

Q: How do I choose the right insulation class for my brake magnet coil?

A: Select between insulation Class F or H depending on your application's maximum operating temperature. Class F is suitable for operations up to 155C, while Class H withstands up to 180C, ensuring longevity and safety in high-temperature environments.

Q: What are the available voltage options for these coils?

A: Brake magnet coils are available in standard voltages including 24V, 48V, 110V, 220V, and 415V, in both AC and DC variants. Custom voltages can be provided to match specific equipment requirements.

Q: Where can these brake magnet coils be used?

A: These magnet coils are compatible with a wide range of electromagnetic brakes used in industrial machinery, automation systems, and various OEM equipment requiring precise and reliable braking mechanisms.

Q: What customization options are available for lead wire length and coil size?

A: Lead wire lengths are usually 300mm or 500mm but can be customized. Likewise, coil size and winding specifics can be tailored according to brake type and spatial constraints.

Q: How is the brake magnet coil installed?

A: The coil is designed to insert or fit directly into the electromagnetic brake housing. Its construction and standard lead lengths are optimized for easy installation with minimal technical effort.

Q: What are the key benefits of using these coils?

A: Benefits include high efficiency, excellent heat resistance, low noise operation, and durable construction. Customizable design ensures compatibility and trouble-free installation across various industrial applications.

Q: How does the insulation and surface finish enhance performance?

A: The copper windings with superior insulation and a smooth, cured surface finish reduce heat buildup, enhance mechanical durability, and provide reliable long-term operation even in demanding industrial settings.
