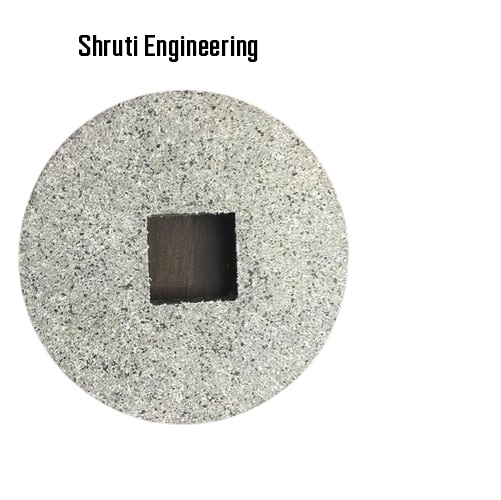

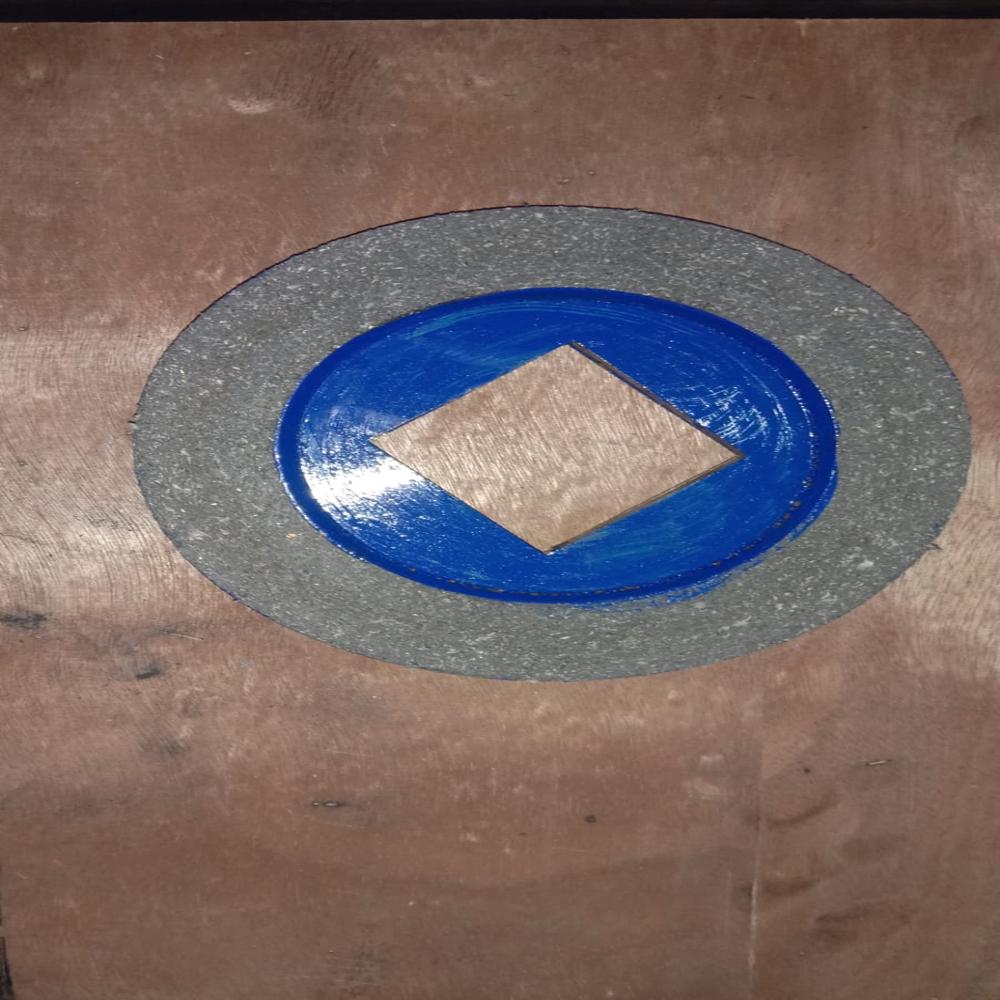

Brake Motor Spare Parts

Brake Motor Spare Parts Specification

Shape
Round with central square hole

Thickness
Approx. 5-8 mm (may vary by design)

Pressure
Structural design supports typical spring or electromagnetic brake pressure

Vehicle Type
Not for vehicle use; intended for industrial machinery and brake motors

Material
Composite friction material with metal core

Loading Capacity
Designed for industrial electric brake motors (specific values depend on model/application)

Diameter
Approx. 95-110 mm (can vary by specification)

Power
Suitable for brake motors from 0.5 HP to 7.5 HP

Voltage
Works with standard brake motor voltage (110V/220V/415V depending on motor)

Application
Brake motor spare part, used for stopping/holding industrial and commercial motors

Central Orifice
Square cut suitable for keyed shaft

Mounting Type
Insert fit with square hole for shaft coupling

Part Type
Friction disc/Brake lining plate

Surface Texture
Textured for optimal friction performance

Finish
Anti-corrosion coated, heavy-duty

Heat Resistance
Withstands high friction heat generated during braking

Color
Grey outer friction surface with red central hub

Wear Resistance
High, suitable for frequent start-stop cycles

Compatibility
Customizable for various brands and models of brake motors

About Brake Motor Spare Parts

We, Shruti Engineering, are an appreciated manufacturer, exporter and supplier of high quality Disc Brakes and Industrial Hoists. Offered range of products includes Foot Mounted Brake Motor, Disc Brake and Liner Brake.

Durable Anti-Corrosion Coating

Each friction disc/brake lining plate comes with a robust anti-corrosion finish, providing maximum resistance to harsh industrial conditions. The special coating not only protects the underlying metal but also extends the part's operational lifespan, ensuring consistent and reliable braking performance for your electric motors in challenging applications.

Custom Fit and Broad Compatibility

Our spare parts feature a unique square orifice insert fit, tailored for straightforward coupling with keyed shafts. With customizable options, these components fit a diverse range of industrial brake motors, accommodating variations in diameter, thickness, and mounting styles, making them an adaptable solution for numerous brands and models.

FAQ's of Brake Motor Spare Parts:

Q: How do I determine if this friction disc is compatible with my brake motor?

A: To identify compatibility, compare your motor's shaft size, central orifice shape (square hole), and required dimensions (diameter and thickness) with our product specifications. If you require a custom fit, provide your motor's model details for tailored manufacturing.

Q: What advantages does the anti-corrosion coating offer in industrial settings?

A: The anti-corrosion finish resists moisture, chemicals, and harsh environmental factors, protecting the disc from rust and degradation. This extends the service life of the brake lining, resulting in reduced maintenance and downtime.

Q: When should I replace the friction disc or brake lining plate?

A: Replacement is recommended when you notice decreased braking effectiveness, unusual noise, visible wear beyond manufacturer specifications, or during scheduled maintenance cycles to prevent unexpected failures.

Q: Where can these brake lining plates be used?

A: These friction discs are specifically engineered for industrial electric brake motors and are not suitable for vehicles. They support machinery in manufacturing plants, conveyor systems, and commercial automation, accommodating motors from 0.5 HP to 7.5 HP.

Q: What is the benefit of the composite friction material with a metal core?

A: The composite material, supported by a robust metal core, delivers superior heat resistance and consistent friction, supporting heavy-duty start-stop operations while minimizing wear and maintaining reliable performance.

Q: How do I install the brake friction disc?

A: Installation is simple: Align the square central orifice with your brake motor's keyed shaft, then secure according to manufacturer guidelines. Insert-fit design ensures a snug and reliable coupling for stable operation.
