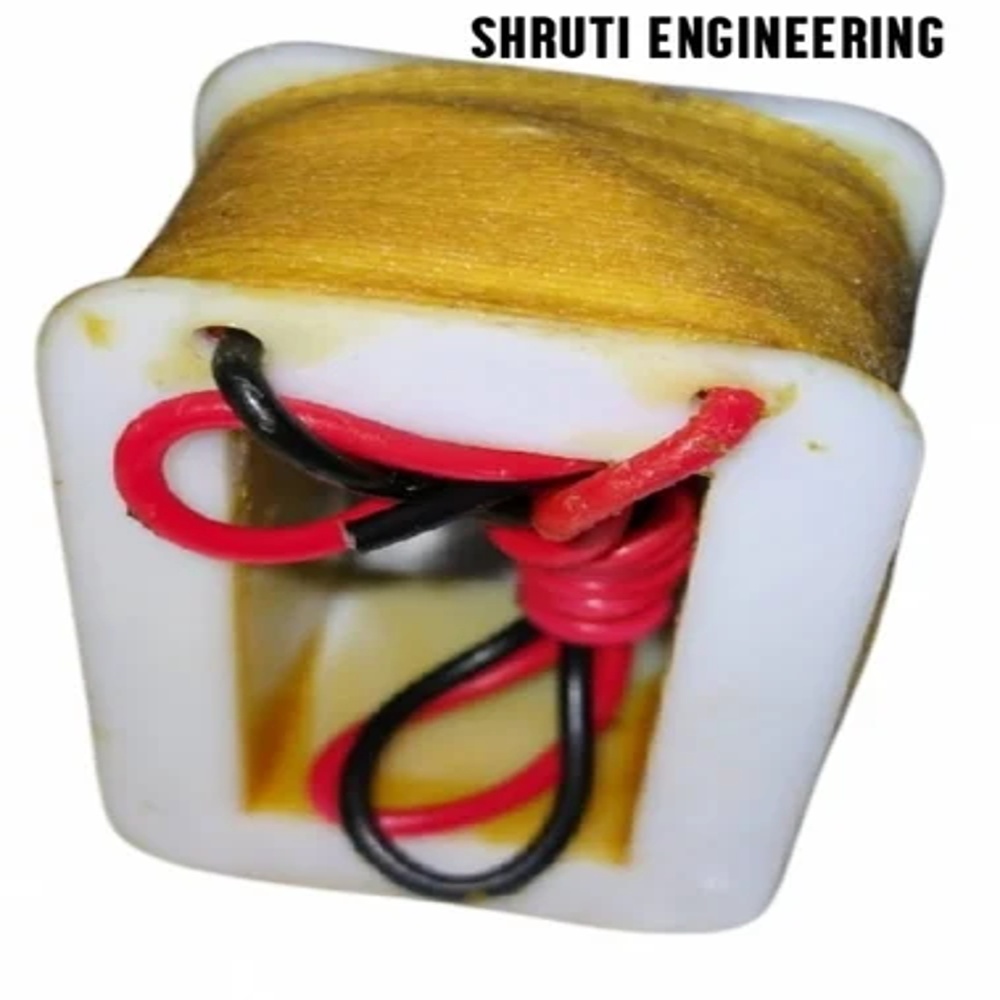

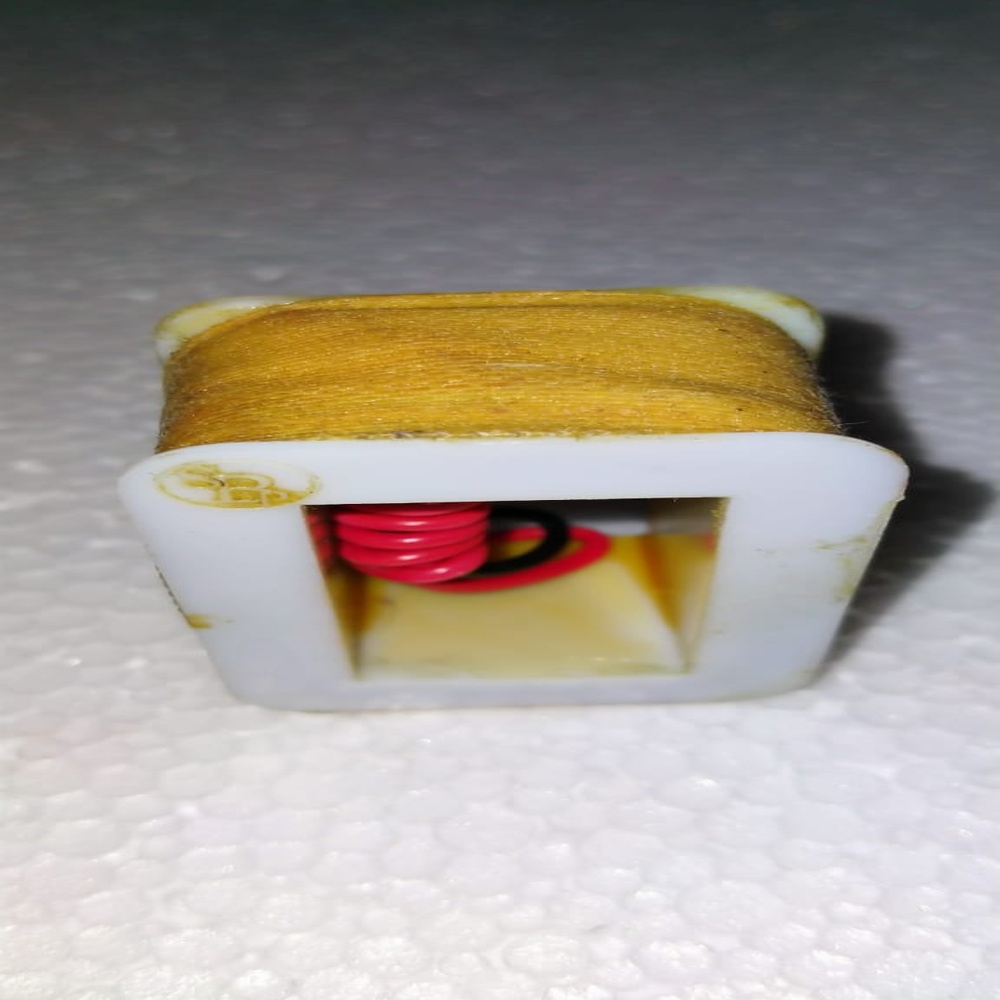

Brake Suspension Coils

Brake Suspension Coils Specification

Part Type
Coil/solenoid for brake systems

Usage & Applications
Brake system activation in industrial machinery

Mounting Type
Screw/bolt mount

Noise Level
Low

Features
High durability, efficient magnetic response, heat resistant

Brake Type
Electromagnetic Brake

Size
Customized sizes available

Material
Copper wire with insulating material

Pattern Material
Epoxy resin encapsulated

Surface Finish
Laminated/varnished finish

Standard
IS compliant

Operating Temperature Range
-20C to +120C

Lead Wire Length
Standard 200mm or as required

Current Rating
0.5A to 5A (customizable)

Insulation Class
Class F / Class H

Voltage Rating
24V, 48V, 96V, or as specified

Color
Yellow with red & black lead wires

About Brake Suspension Coils

Ours is an illustrious organization that is engaged in manufacturing, supplying and exporting high quality Brake Coil. The coils offered by us are manufactured using high quality metal that is sourced from reliable vendors of the market. Moreover, we offer these components to customers in various sizes.

Features:

Dimensionally stable
Durable
Rust-proof

Specifications:

Size: 2.5 MM-15 MM
Material: pa 12, pa 11

Precision Engineering for Industrial Braking

Our brake suspension coils are meticulously designed to deliver swift and reliable brake activation essential for industrial applications. With a range of customizable options for voltage, current, size, and lead wire length, you are assured of compatibility with various brake system configurations. The use of high-grade copper and superior insulation materials ensures long-lasting performance even under thermal or mechanical stress.

Durable Construction & Reliable Performance

Each coil is built to endure high temperatures and demanding operational cycles. The epoxy resin encapsulation and laminated/varnished surface enhance the coil's durability, safeguarding against environmental factors and mechanical wear. Excellent thermal management and insulation class ratings ensure safety and efficiency across a wide temperature range, making them suitable for diverse industrial settings.

FAQ's of Brake Suspension Coils:

Q: How do I choose the correct voltage and current rating for my brake suspension coil?

A: Select the voltage (24V, 48V, 96V, or custom) and current (0.5A-5A) based on your brake system's requirements and electrical supply. If unsure, consult your equipment's technical specifications or contact us for tailored guidance.

Q: What are the key benefits of using an epoxy resin encapsulated coil in brake systems?

A: Epoxy resin encapsulation provides excellent protection against moisture, dust, and mechanical damage. It also improves electrical insulation and enhances the coil's longevity and reliability, especially in harsh industrial environments.

Q: When should I consider a customized coil size or lead wire length?

A: Customized coil sizes and lead wire lengths are ideal when your brake system has unique spatial constraints or specific installation requirements. We can tailor the coil dimensions and wire length to ensure an optimal fit and consistent performance.

Q: Where are these brake suspension coils typically installed?

A: These coils are designed for direct integration into electromagnetic brake systems used in industrial machinery, such as cranes, hoists, conveyors, and various automated equipment, where reliable brake activation is crucial.

Q: What process is involved in mounting these coils to a brake system?

A: The coils come equipped with lead wires and are designed for screw or bolt mounting, making installation straightforward. Secure the coil in the designated position and connect the leads as specified in your brake system manual.

Q: How does the insulation class affect coil performance?

A: Insulation Class F or H indicates the coil's ability to withstand higher operating temperatures, ensuring safe and continuous operation even during extended or demanding use, thereby minimizing the risk of overheating or insulation failure.
