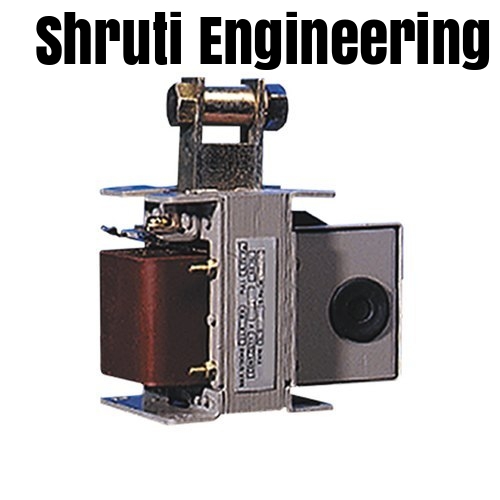

Coil with Plunger

Coil with Plunger Specification

Thickness
Standard: As per design (usually 2mm to 10mm depending on application)

Vehicle Type
Universal / Industrial Machinery (not specific to vehicles)

Pressure
Operated by electromagnetic force, not specified by pressure

Shape
Square / Rectangular (as per image - molded, standard, bobbin type configurations)

Material
Bakelite / Molded Insulating Plastic / Copper Windings / Metal Plunger

Loading Capacity
Customizable as per requirement

Diameter
Customizable based on coil design

Power
Customizable (Typical: 12V, 24V, 110V, 230V AC/DC coils options)

Voltage
12V / 24V / 110V / 230V AC/DC

Application
Electromagnetic Actuation, Control Panels, Industrial Automation, Relays, Contactors

Finish
Insulating Protective Coating

Coil Type
Open Type, Bobbin Type, Moulded Bakelite, Standard Bakelite

Feature
With Plunger (Solenoid Action)

Mounting
Panel/Bracket Mountable

Performance
Premium Quality, Reliable Performance

About Coil with Plunger

AC Solenoids (Pull Type) encourages application to a wide range of requirements e.g. a definite pull motion under automatic or distant control in connection with electrically driven machinery. Typical functions include the operation of electromechanical brakes and valves, various short stroke motions on machine tools.

Premium Design for Industrial Applications

Crafted for reliability, our coils with plungers feature open-type bobbins made from moulded or standard Bakelite, combined with copper windings and robust metal plungers. Their premium build ensures consistent electromagnetic actuation performance in control panels, automation systems, relays, and contactors.

Customizable for Diverse Requirements

We offer tailored solutions to match your project needs. With options for coil diameter, power, and mounting, these coils adapt seamlessly to your existing systems. Choose from standard thicknesses and shapes (square or rectangular) to get a perfect fit for your unique application.

Safe, Reliable, and Easy-to-Install

Each coil is finished with an insulating protective coating to enhance safety and longevity. Panel or bracket mounting makes installation straightforward, while the bakelite body guarantees durability even in challenging environments, making them ideal for universal use in industrial machinery.

FAQ's of Coil with Plunger:

Q: How do coils with plungers operate in electromagnetic actuation?

A: These coils function by converting electrical energy into mechanical force; when energized, the coil's electromagnetic field moves the metal plunger, enabling actuation within systems like relays, control panels, and industrial automation equipment.

Q: What materials are used in the construction of these coils with plungers?

A: The coils are built with premium-quality bakelite or molded insulating plastic for the bobbin, copper windings for efficient conductivity, and a robust metal plunger to ensure reliable actuation and durability.

Q: When should I choose a moulded Bakelite bobbin versus a standard one?

A: Moulded Bakelite bobbins are preferred for extra strength, insulation, and intricate designs, typically used in harsher environments, while standard Bakelite suits conventional control applications requiring good performance and reliability.

Q: Where can these coils with plungers be installed?

A: They are suitable for installation in control panels, industrial machinery, automation systems, relays, and contactors-essentially any environment that requires dependable electromagnetic actuation in a universal or industrial context.

Q: What is the process for customizing coil loading capacity and voltage?

A: Clients can specify their loading capacity and required voltage (12V, 24V, 110V, or 230V AC/DC). Our manufacturing process tailors coil windings and component sizes to match these specifications, ensuring optimal performance for the intended application.

Q: How does the insulating protective coating benefit the coil's performance?

A: The coating provides enhanced electrical insulation, safeguards components against dust and moisture, and prolongs the coil's lifetime, particularly important for long-term reliability in industrial or challenging operational environments.
