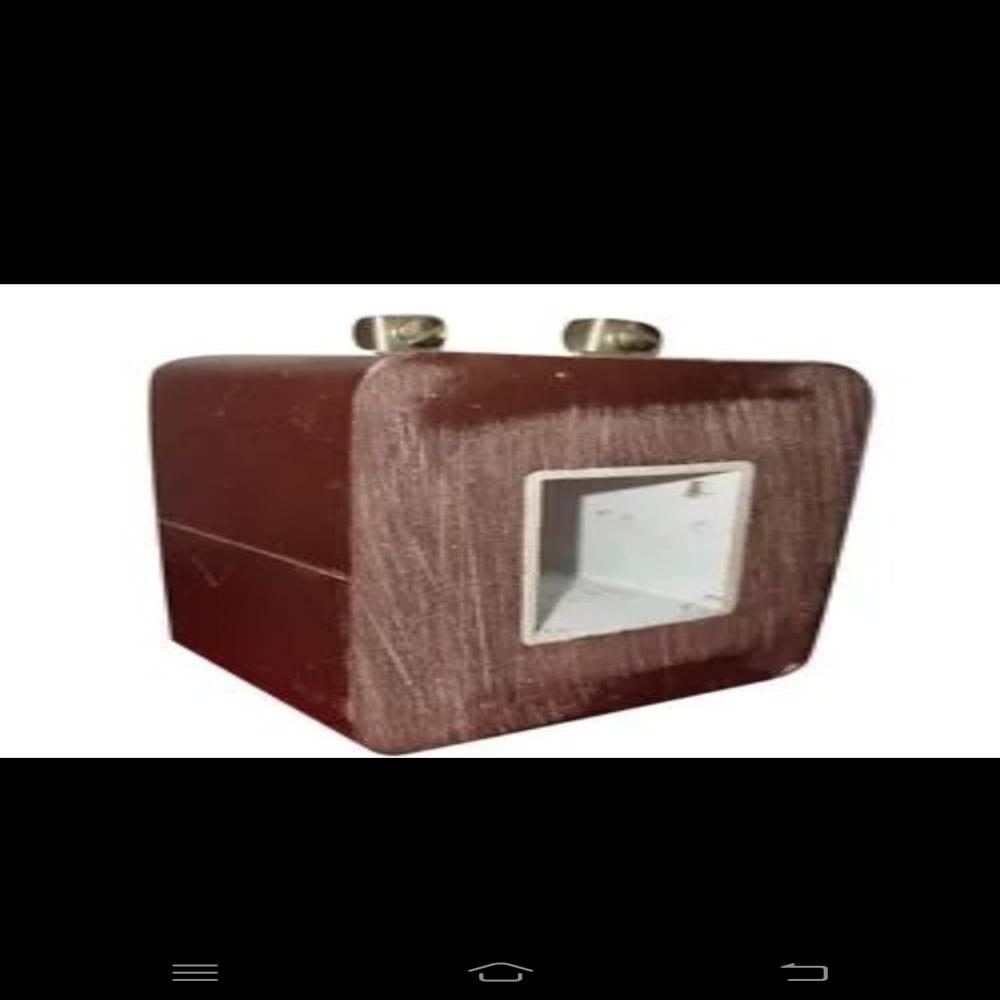

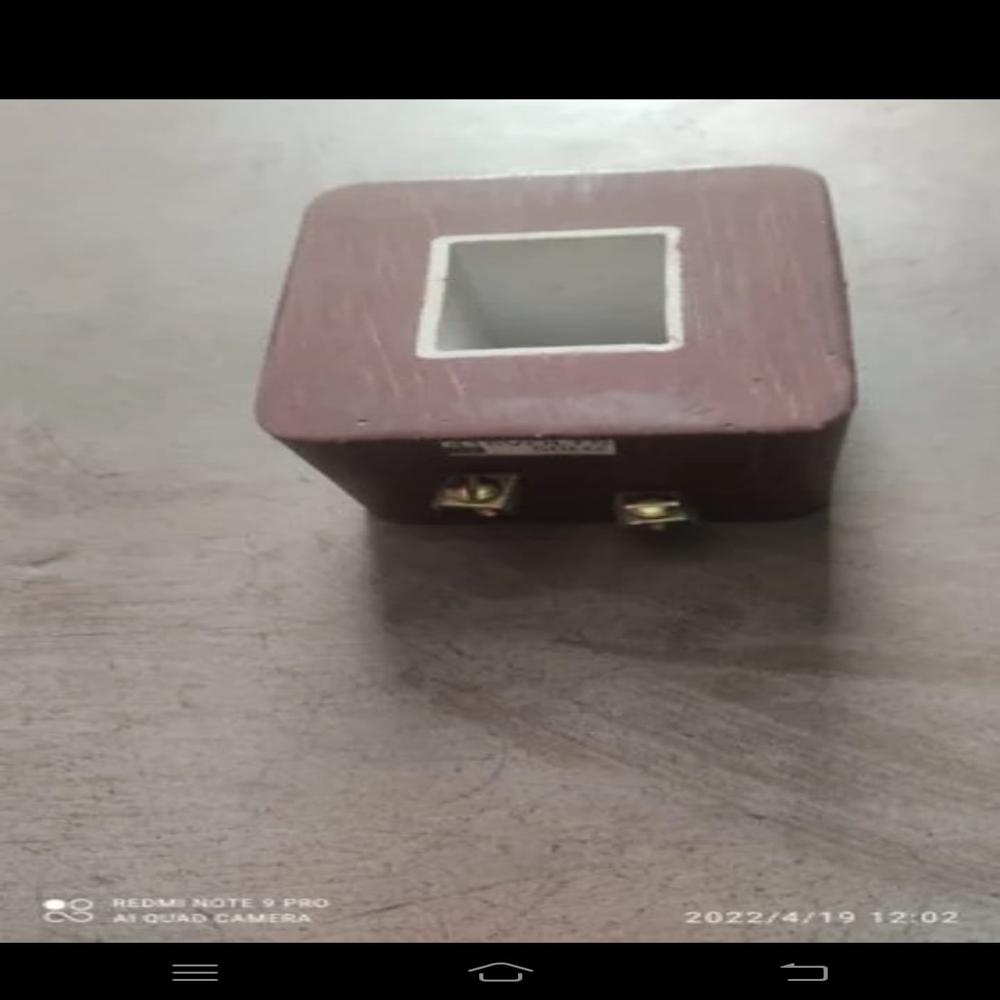

Coil with Plunger Online

Coil with Plunger Online Specification

Thickness
Standard Wall Thickness for Coil Housing

Shape
Rectangular

Material
Copper Winding with Molded Plastic Housing

Loading Capacity
Suitable for Solenoid Applications

Diameter
Standard Size As Per Application

Power
15W

Voltage
230V AC / 24V DC (customizable)

Application
Industrial Solenoid Valve, Hydraulic Equipment, Automation

Insulation Class
Class F

Color
Black

Termination
Quick Connect Terminals

Mounting Type
Panel/Inline Mounted

Operating Temperature Range
-5C to +70C

Current Type
AC/DC

Coil with Plunger Online About

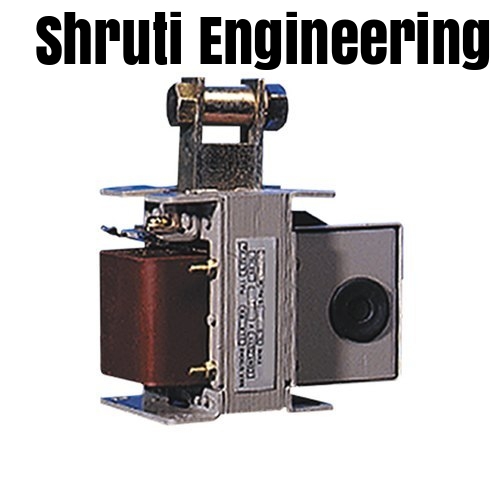

Brake coils for Bhartia Culter HammerBCH AC operated Solenoid Brake used in for Cranes, Hoists, Machinery, Mining machineries, Marine, Machine tools, Earthmoving and wet and dry applications.

Shruti Engineering are the very highly acclaimed organization in this sector, engaged in manufacturing and supplying an exclusive range of AC Solenoid Magnetic Brake. These products are gaining appreciation from every where in the world for its unmatched quality and low maintenance. Our offered product range is manufactured using fine grade raw materials and modern technology and it is designed as per the specifications of our distinguished customers.

Advanced Design and Versatility

Our coil with plunger offers a customizable voltage option, working flawlessly on both 230V AC and 24V DC, making it adaptable for a wide variety of industrial needs. Its quick connect terminals simplify installation, while Class F insulation guarantees reliable operational safety under demanding conditions.

Durable Construction for Industrial Environments

Constructed from high-quality copper winding and housed in durable molded plastic, this coil is built to last. The panel or inline mounting options provide flexibility for integration into solenoid valves or automation set-ups, ensuring suitability for hydraulic equipment and multiple industrial processes.

FAQ's of Coil with Plunger Online:

Q: How is this coil with plunger typically installed?

A: The coil is designed for panel or inline mounting, making it easy to integrate into new or existing setups in industrial solenoid valves, hydraulic equipment, and automation applications. Quick connect terminals facilitate fast and secure electrical connections.

Q: What types of electrical current does the coil support?

A: This coil can operate on both AC (230V) and DC (24V) currents. The voltage can also be customized according to your specific application needs, enhancing its versatility for different industrial systems.

Q: When should this coil with plunger be used in industrial applications?

A: It should be used when precise and reliable actuation is required, such as in solenoid valves, hydraulic controls, and automated machinery. Its robust insulation and construction make it suitable for continuous operation between -5C and +70C.

Q: Where can these coils be effectively applied?

A: These coils are ideal for use in industrial solenoid valves, hydraulic equipment, and automation systems. Their standard size and shape ensure compatibility with a range of machinery across sectors like manufacturing, process control, and energy.

Q: What is the advantage of using copper winding with molded plastic housing?

A: Copper windings provide superior electrical conductivity and efficiency, while the molded plastic housing offers insulation and environmental protection, ensuring durability and safe operation even in harsh industrial environments.

Q: How does the customizable voltage feature benefit users?

A: By allowing customization between 230V AC and 24V DC, the coil adapts to various power supply setups, reducing the need for additional conversion equipment and enabling smooth integration into different systems.
