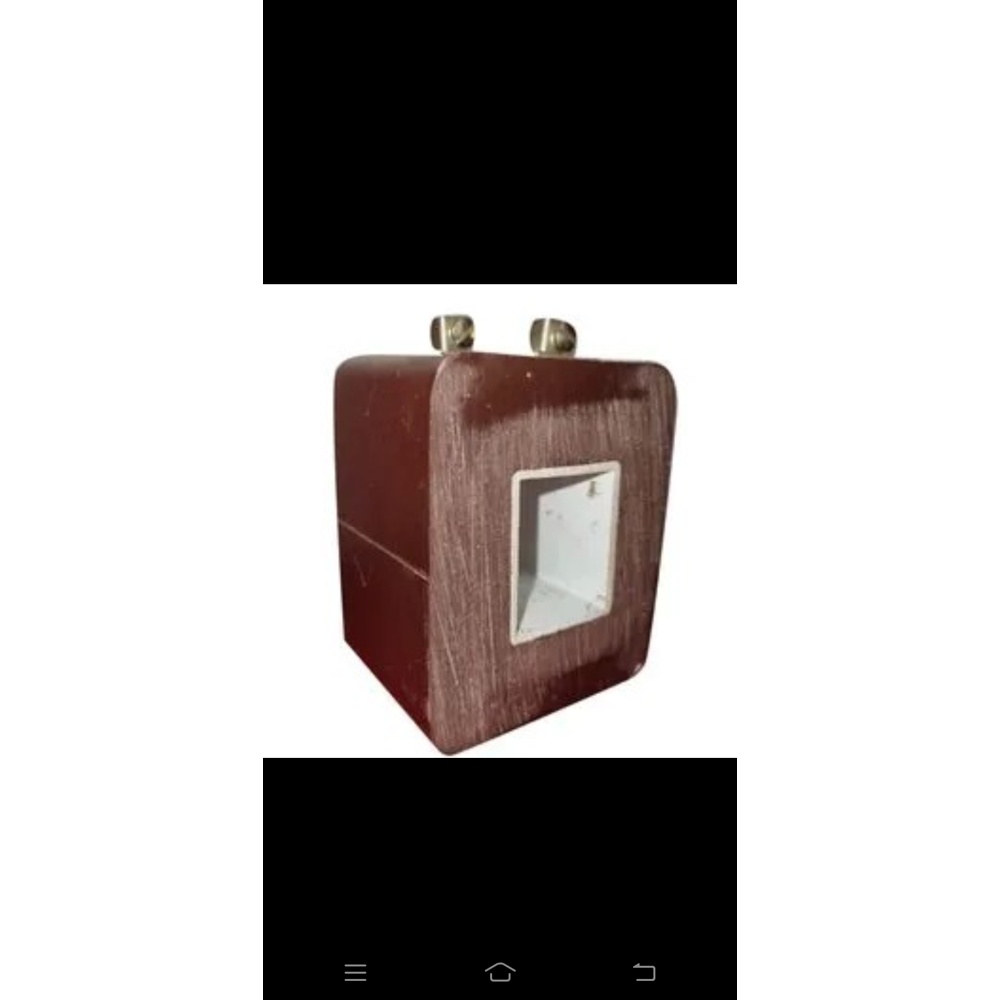

Coil with Plungers

Coil with Plungers Specification

Shape
Square, Rectangular, Bobbin, Open Type

Thickness
Custom/As per design specification

Vehicle Type
Not Applicable (Industrial/Automation use)

Material
Bakelite, Copper, Steel

Loading Capacity
Custom/As per requirement

Diameter
Custom/As per specification

Power
18W - 72W (varies by coil type)

Voltage
110V/220V AC (other voltages available on request)

Application
Electromechanical actuation, switching, automation systems

Type
Bobbin Type, Moulded Bakelite, Standard Bakelite, Open Type

Surface Finish
Smooth/Polished, Painted

Plunger Material
Mild Steel/EN Series Steel

Mounting
Base Plate Mountable

Insulation Class
Class B / Class F

Performance
Premium Quality, Reliable Performance

Operating Temperature
-20C to +70C

About Coil with Plungers

Shruti Engineering are the very highly acclaimed organization in this sector, engaged in manufacturing and supplying an exclusive range of AC Solenoid Magnetic Brake. These products are gaining appreciation from every where in the world for its unmatched quality and low maintenance. Our offered product range is manufactured using fine grade raw materials and modern technology and it is designed as per the specifications of our distinguished customers.

Versatile Coil Designs

Our coils accommodate a range of mounting and shape preferences-choose from square, rectangular, bobbin, or open types. We leverage robust Bakelite, copper, and steel for enhanced longevity and optimal conductivity. Each unit exhibits a high-quality surface finish, whether smooth, polished, or painted, making them suitable for both new installations and system upgrades in industrial automation.

Customized for Precision Applications

Every Coil with Plunger is produced to specification, supporting custom diameters, loading capacities, and thicknesses. The insulation rating of Class B or Class F and adaptable power range (18W to 72W) ensures these coils perform reliably under varied thermal and electrical demands. Designed to operate efficiently across a wide temperature range, these products excel in continuous or demanding switching applications.

FAQ's of Coil with Plungers:

Q: How are Coil with Plungers mounted in industrial systems?

A: Coil with Plungers are designed for base plate mounting, enabling secure and straightforward integration into panels, enclosures, or automation assemblies commonly found in industrial environments.

Q: What materials are used in the construction of these coils and plungers?

A: The coils utilize premium-grade Bakelite and copper for insulation and conductivity, while the plungers are made from mild steel or EN series steel to ensure strength and longevity in active duty cycles.

Q: When should I choose Class B versus Class F insulation for my application?

A: Class B insulation is suitable for moderately demanding thermal environments, whereas Class F provides enhanced heat resistance for higher-temperature operations. Select insulation class based on the thermal profile of your specific application.

Q: Where can these coils be used within automation systems?

A: These coils are ideal for electromechanical actuation, switching devices, and automated machinery within industrial automation and control panels-essentially anywhere precise electrical to mechanical conversion is needed.

Q: What customization options are available for diameter, loading capacity, or power ratings?

A: Both diameter and loading capacity can be tailored to match your design requirements. Power ratings are available from 18W up to 72W, with other specifications available upon request, ensuring compatibility with diverse operational needs.

Q: What is the benefit of choosing a moulded Bakelite or bobbin-type coil?

A: Moulded Bakelite coils provide superior insulation, mechanical strength, and thermal stability, while bobbin-type designs offer ease of winding and precise dimensional control. Both contribute to reliable and efficient system performance.

Q: How do I ensure compatibility with different voltages or operating environments?

A: Standard voltage options include 110V and 220V AC, but other voltages can be supplied upon request. Additionally, operational parameters such as temperature range, mounting method, and insulation class support adaptability to varied industrial conditions.
