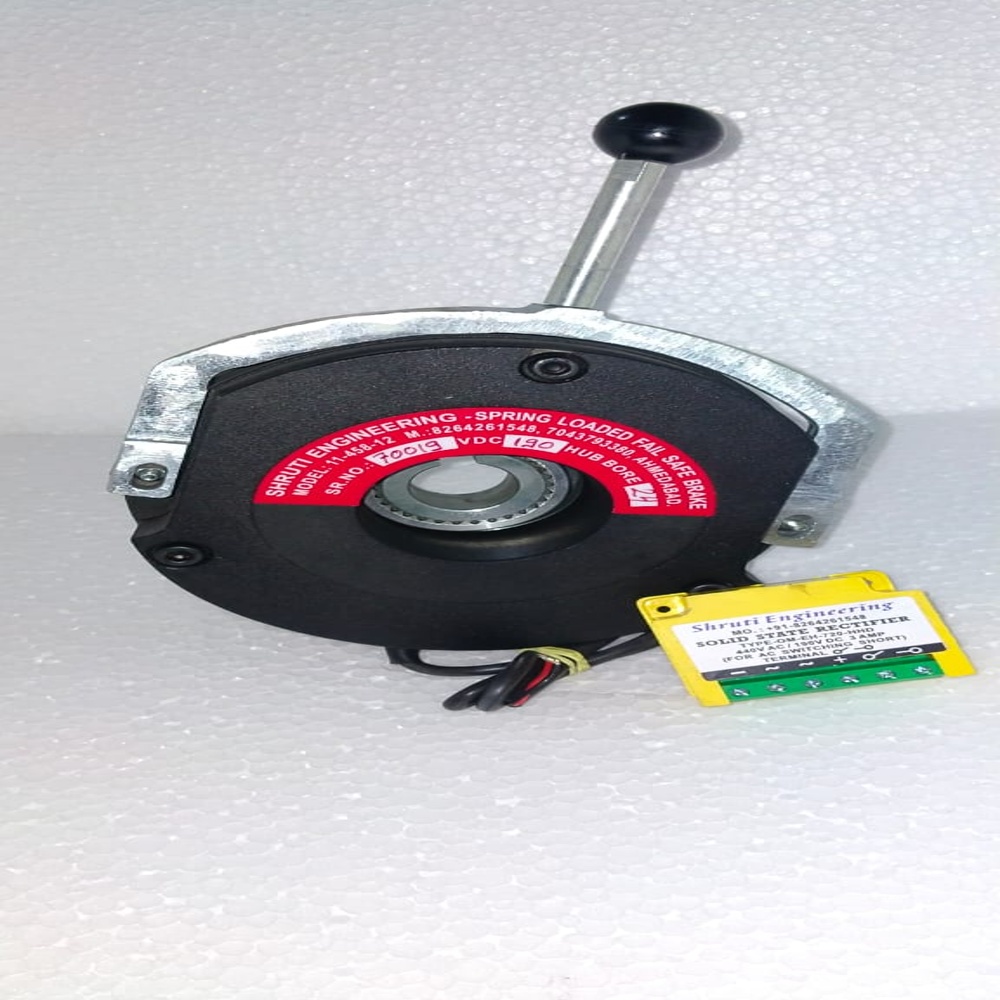

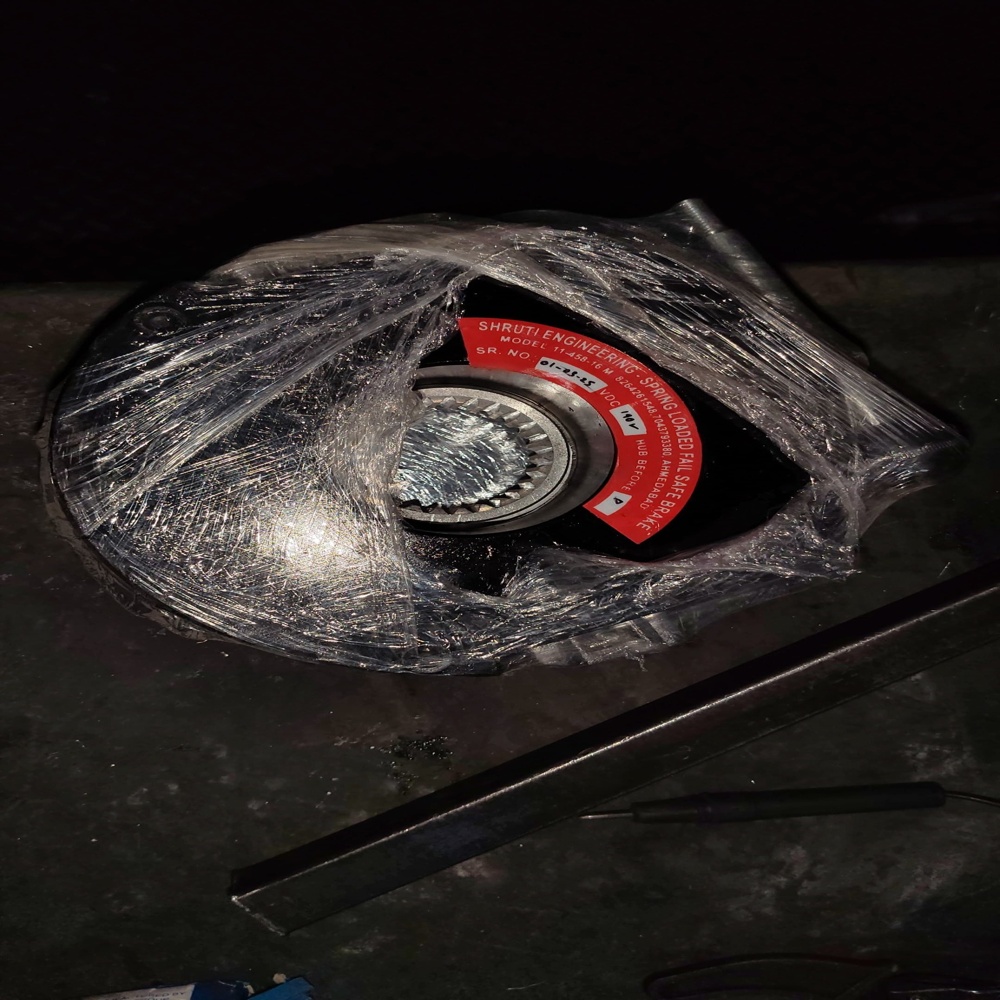

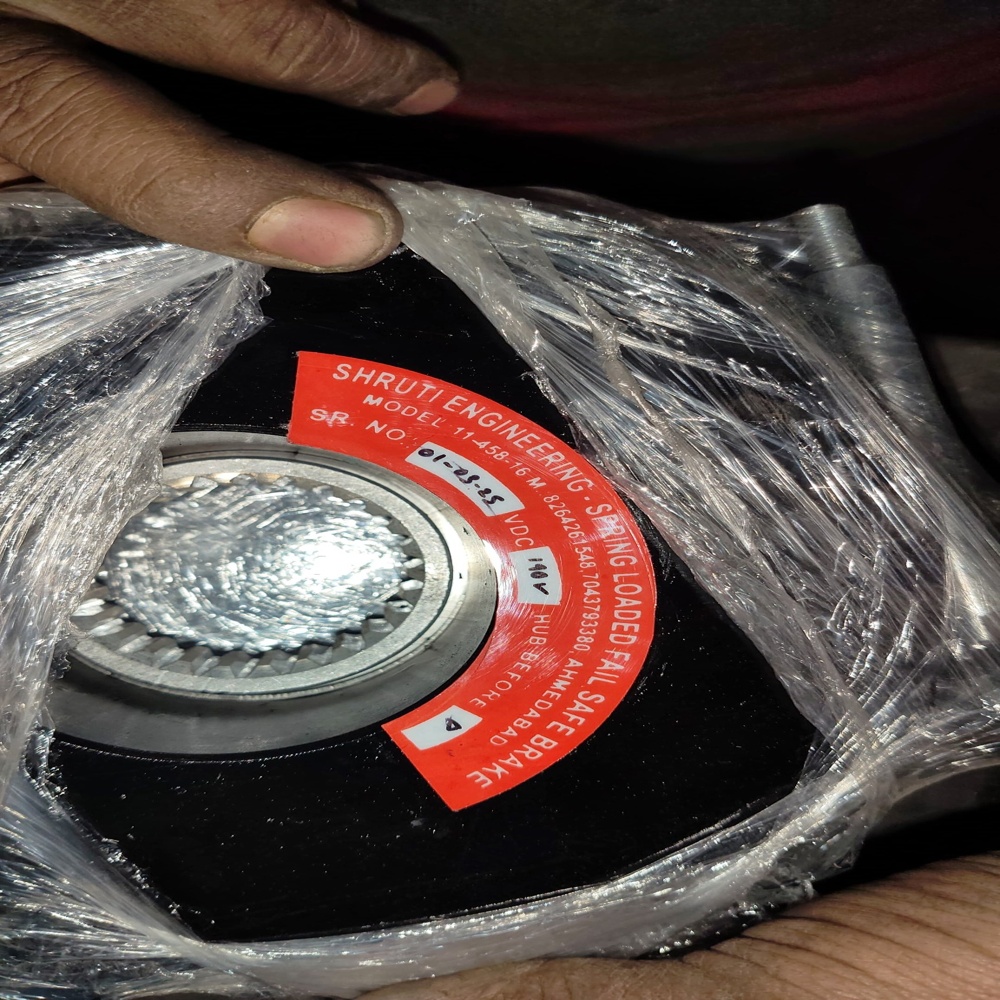

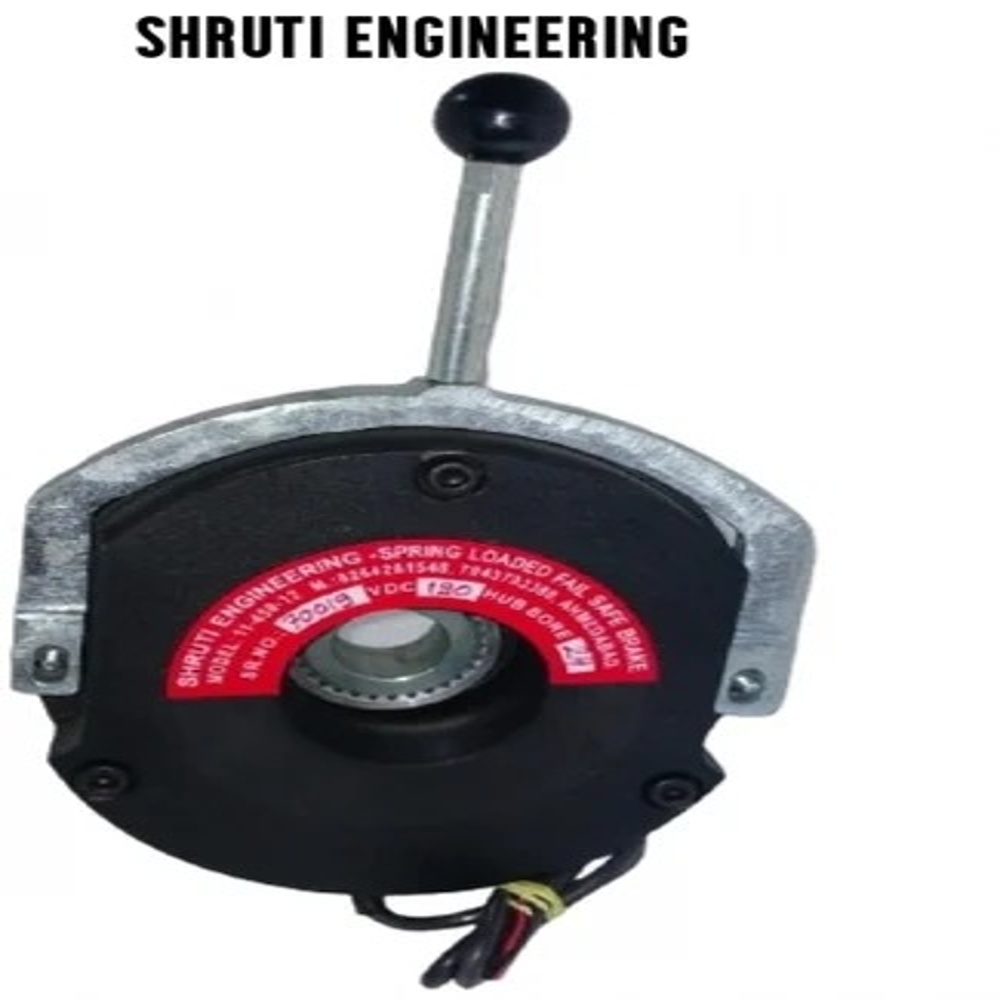

DC Brake Coil Supplier

DC Brake Coil Supplier Specification

Vehicle Type
Industrial/Electric Motors (not for vehicles)

Pressure
Not Applicable (Electronic Coil Component)

Thickness
About 20-25 mm

Shape
Round/Disc

Material
Copper Winding with Insulated Enclosure

Loading Capacity
Standard (as per DC brake size/model)

Diameter
Approx. 80-120 mm (varies by model)

Power
Up to 25W - 35W (model dependent)

Voltage
190V DC

Application
Electromagnetic Brake Systems for Industrial Motors

Insulation Class
Class F or Class H

Color
Black Body with Red Label

Mounting Type
Bolt Mounted

Current Type
Direct Current (DC)

Compatibility
Suitable for EMCO, Hindustan, Stromag, and similar brakes

Coil Type
DC Solenoid Coil

Operating Temperature
-40C to +120C

Terminal Type
Two-Wire Terminal

DC Brake Coil Supplier About

We, Shruti Engineering, are an appreciated manufacturer, exporter and supplier of high quality Disc Brakes and Industrial Hoists. Offered range of products includes Foot Mounted Brake Motor, Disc Brake and Liner Brake.

Advanced and Durable DC Brake Coil Design

Our solenoid coils are constructed with high-grade copper windings and are safely encased in insulated enclosures, providing optimum performance and longevity. The Class F or Class H insulation enhances durability, making them suitable for continuous use within harsh industrial environments and varying temperature ranges. Users can rely on consistent, stable operation in their electromagnetic brake systems.

Seamless Compatibility and Quick Installation

Designed for easy bolt-mounted installation, our DC brake coils are directly compatible with EMCO, Hindustan, Stromag, and similar industrial brakes. Each coil features a clear two-wire terminal for straightforward connections, streamlining the setup process for maintenance teams and equipment manufacturers. Their distinctive design ensures quick identification and integration onto compatible motors.

FAQ's of DC Brake Coil Supplier:

Q: How are DC brake coils installed in industrial brake systems?

A: DC brake coils are typically bolt-mounted directly onto the brake assembly in industrial motors. The installation involves aligning the coil with mounting points, securing it using appropriate bolts, and connecting the two-wire terminals to the DC power source as per the manufacturer's guidelines.

Q: What benefits does Class F or Class H insulation provide for these coils?

A: Class F or Class H insulation allows the DC brake coils to operate safely at higher temperatures (up to +120C), providing enhanced thermal stability, longer lifespan, and improved safety in demanding industrial environments.

Q: When should a DC brake coil be replaced or serviced?

A: It is recommended to replace or service a DC brake coil when you notice signs of wear, reduced braking efficiency, or overheating beyond specified temperature limits. Routine inspections during maintenance cycles help ensure optimal performance and safety.

Q: Where can these DC brake coils be used?

A: These coils are primarily designed for electromagnetic brake systems in industrial and electric motors, especially for brands such as EMCO, Hindustan, and Stromag. They are not intended for automotive or vehicle braking applications.

Q: What is the typical voltage and power rating for these brake coils?

A: Our DC brake coils are rated for 190V DC and offer power ratings that range up to 25W-35W, depending on the specific model and brake size they are intended for.

Q: How does the copper winding contribute to coil performance?

A: Copper winding offers excellent electrical conductivity and durability, allowing the coil to deliver stable, efficient electromagnetic force for braking with minimal heat loss, which results in enhanced reliability for industrial operations.

Q: What are the main advantages of using these DC brake coils in electromagnetic motors?

A: Key advantages include high thermal endurance, straightforward bolt mounting, compatibility with popular brake brands, reliable performance across wide temperature ranges, and robust design with insulated enclosures for enhanced safety.
