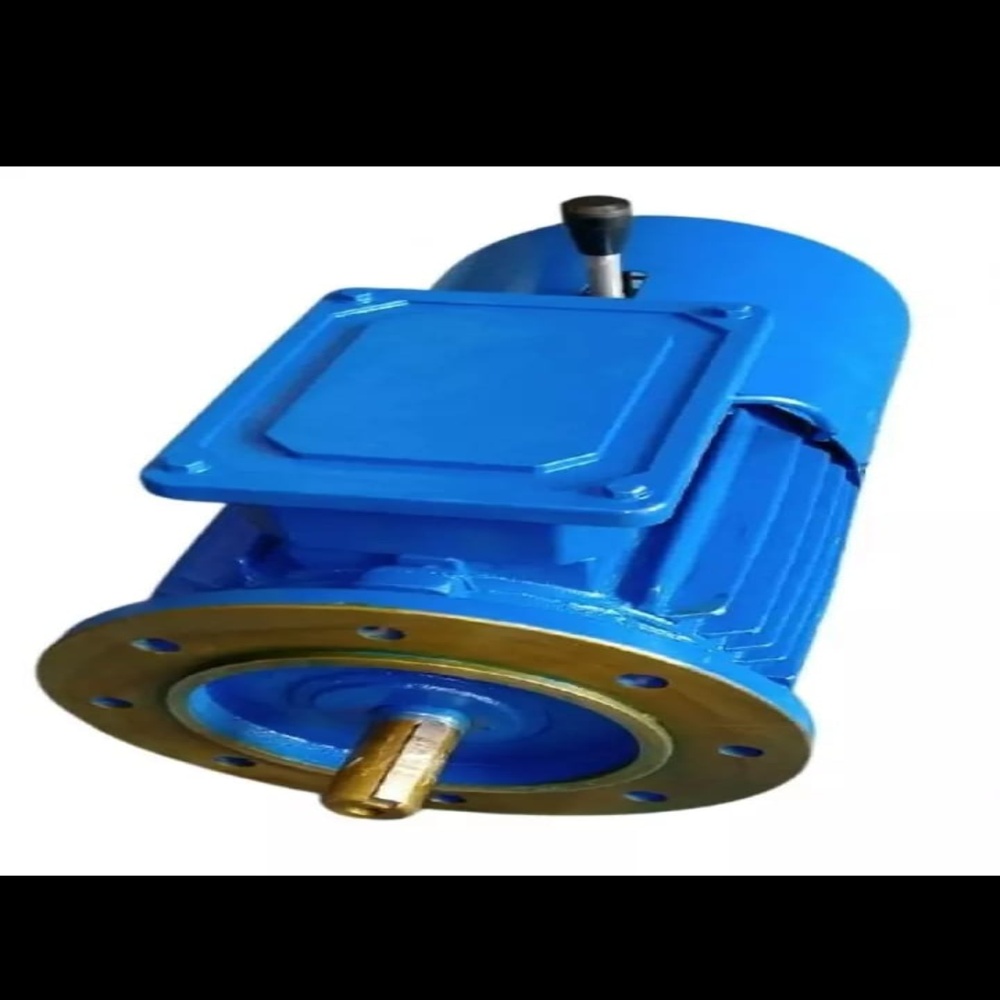

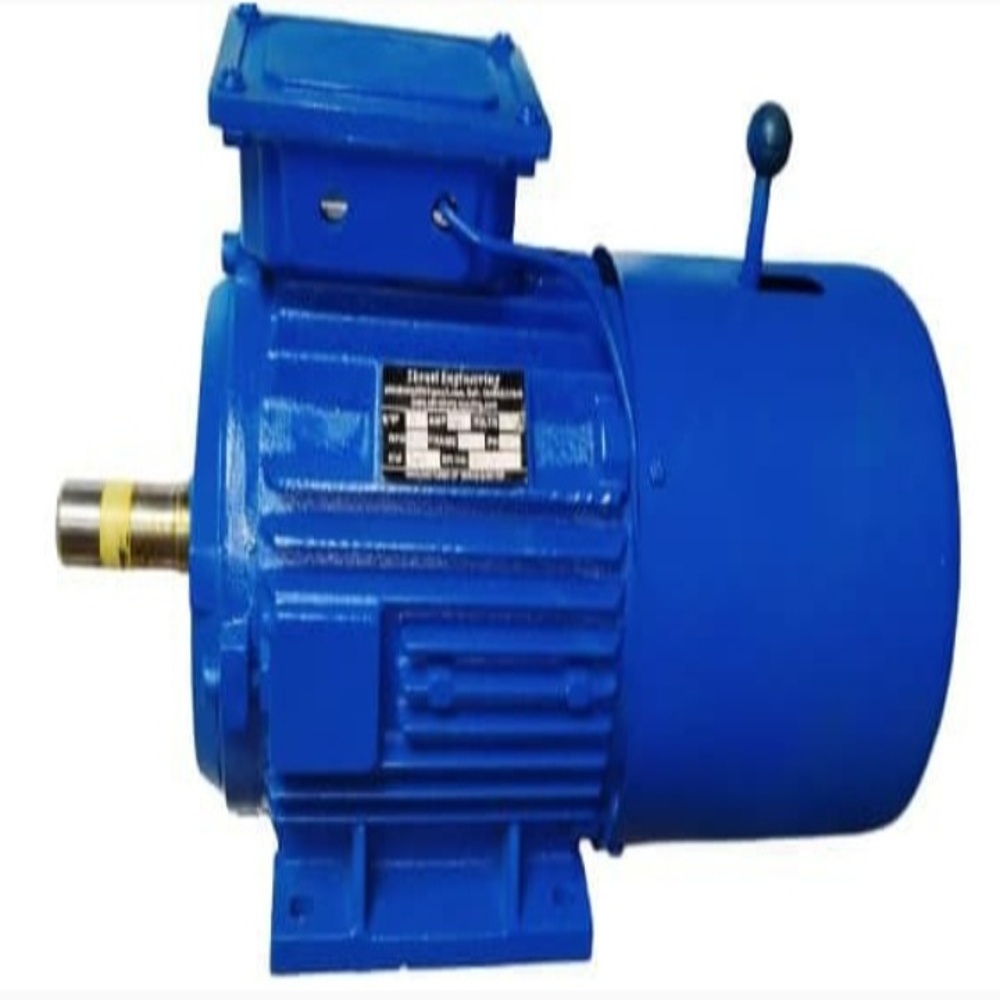

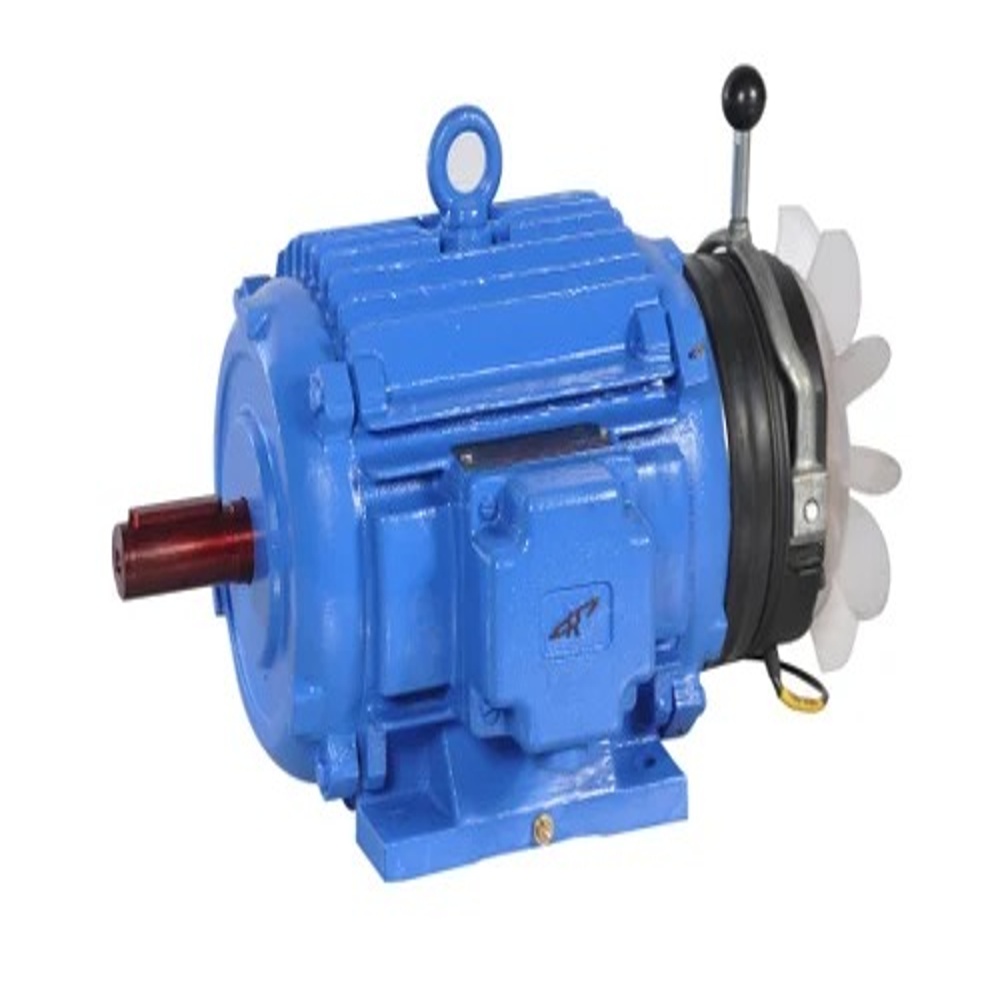

DC Brake Motor Manufacturer Ahmedabad

DC Brake Motor Manufacturer Ahmedabad Specification

Power Rating
Up to 22 kW

Standard
IS:325

Cooling Method
External Fan Cooling

Rated Voltage
415 V

Poles Number
2 / 4 / 6 / 8 Poles

Voltage
415 V

Noise Level
Low Noise

Motor Type
Squirrel Cage Induction Motor with DC Brake

Starting Type
Direct On Line (DOL)

Bearing Type
Ball Bearing

Current Type
AC

Sealed Type
IP 55

Rated Frequency
50 Hz

Torque
As per rating

Pressure
Standard

Features
High starting torque, low maintenance, compact design, strong build

Efficacy
High Efficiency

Horse Power
0.25 to 30 HP

Ambient Temperature
-15C to +40C

Product Type
DC Brake Motor

Output Power
0.18 kW to 22 kW

Frequency (MHz)
50 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Three Phase

Speed
1440 RPM / 2880 RPM

Power
0.25 HP to 30 HP

Color
Blue

Dimension (L*W*H)
Standard as per model

Weight
As per capacity

Shaft Diameter
Standard as per model

Mounting Type
Foot / Flange / Face Mounting

IP Rating
IP 55

Insulation Class
Class F

Duty Cycle
S1 (Continuous)

Enclosure
Totally Enclosed

Brake Operation
Electro-Magnetic DC Fail Safe Brake

Efficiency Class
IE2 / IE3

Construction Material
High Grade Cast Iron

Brake Coil Voltage
190V / 24V / 110V DC

Suitable For
Cranes, Lifts, Hoists, Conveyors, Textile Machinery, Machine Tools

About DC Brake Motor Manufacturer Ahmedabad

DC Brake Motor. Which are for various applications requiring almost instant stopping of drive load. The braking action is obtained without axial sliding of shaft and provided equal braking torque in both directions of rotations. Basically brake motor combination of an a.c. induction motor and a disc type, fail safe Electromagnetic brake unit. The IMB series covers products with outputs from as 0.18kW to 7.5kW in frame sizes 63 to 132M in 2, 4 & 6 pole speed. Brake motors are available in foot, flange mounting.

Precision DC Brake Design

These DC brake motors feature Electro-Magnetic DC Fail Safe Brakes, delivering quick response and secure operation in critical applications. Fail-safe braking ensures the motor stops instantly when power is cut, significantly enhancing workplace safety. The advanced design makes these motors indispensable wherever precise and controlled stopping is crucial.

Reliable Performance Under Demanding Conditions

Constructed from high-grade cast iron and featuring an IP55 totally enclosed enclosure, these motors resist dust and moisture. With a duty cycle of S1 (continuous) and efficiency ratings up to IE3, they are adept for demanding operations in varied environments, making them highly dependable in industrial applications.

Versatile Industrial Applications

Suited for use in cranes, lifts, hoists, conveyors, textile machines, and machine tools, these DC brake motors accommodate multiple voltage and mounting requirements. Available in output powers up to 22 kW and standard pole configurations, they are a preferred choice for new installations and upgrades in diverse industries.

FAQ's of DC Brake Motor Manufacturer Ahmedabad:

Q: How does the Electro-Magnetic DC Fail Safe Brake work in these motors?

A: The Electro-Magnetic DC Fail Safe Brake activates automatically when power is removed, ensuring immediate braking and higher safety. The brake remains engaged via spring pressure and releases upon application of the specified DC voltage to the coil, making it ideal for applications where controlled stopping is critical.

Q: What industrial applications are these DC brake motors best suited for?

A: These motors are extensively used in cranes, lifts, hoists, conveyor systems, textile machinery, and various machine tools. Their reliable fail-safe braking and robust construction make them ideal for critical lifting, transport, and material handling applications.

Q: When should I choose a motor with an IE2 or IE3 efficiency class?

A: Selecting a higher efficiency class such as IE2 or IE3 is advantageous when energy savings, reduced operational costs, and compliance with global efficiency standards are priorities. These motors are best suited for continuous, demanding operations where long-term performance is essential.

Q: Where can these DC brake motors be installed, considering their mounting and enclosure options?

A: These motors can be installed in a variety of industrial settings. Their robust IP55 totally enclosed fan-cooled (TEFC) design allows use in dusty or humid environments, and they are available with foot, flange, or face mounting to fit different machinery and space requirements.

Q: What are the benefits of the high-grade cast iron construction and totally enclosed design?

A: High-grade cast iron provides exceptional mechanical strength and vibration resistance, while the totally enclosed design (TEFC, IP55) protects internal components from dust and water ingress. This translates into longer motor life, reduced maintenance, and enhanced operational reliability.

Q: How is the cooling managed in DC brake motors, especially during continuous operation?

A: Cooling is ensured by an external fan, which efficiently dissipates heat even during extended use. The totally enclosed fan-cooled (TEFC) system helps maintain optimal operating temperatures and prevents overheating, ensuring consistent motor performance.

Q: What is the process for selecting the correct brake coil voltage for my application?

A: Choosing the brake coil voltage depends on the available DC supply and application requirements. These motors support 24V, 110V, and 190V DC coil voltages. It is essential to match the coil voltage to your control system and operational safety needs for optimal brake performance.
