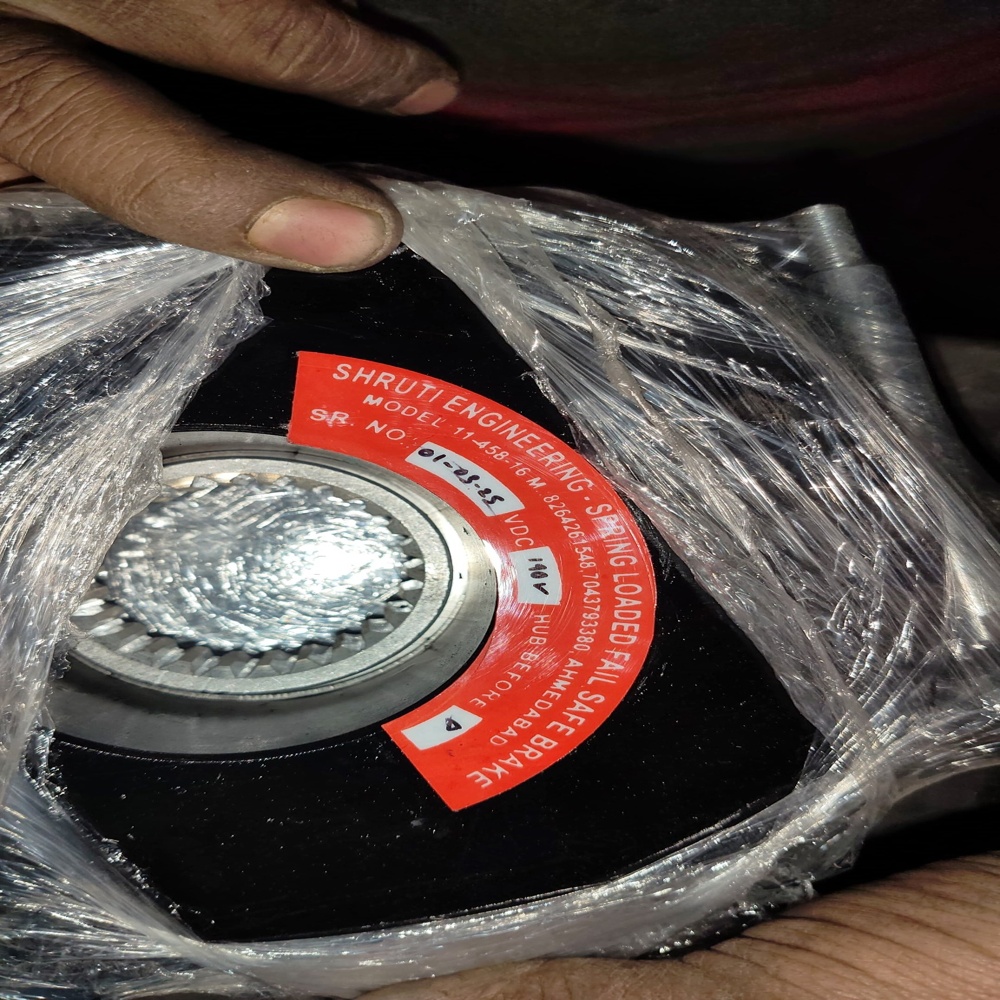

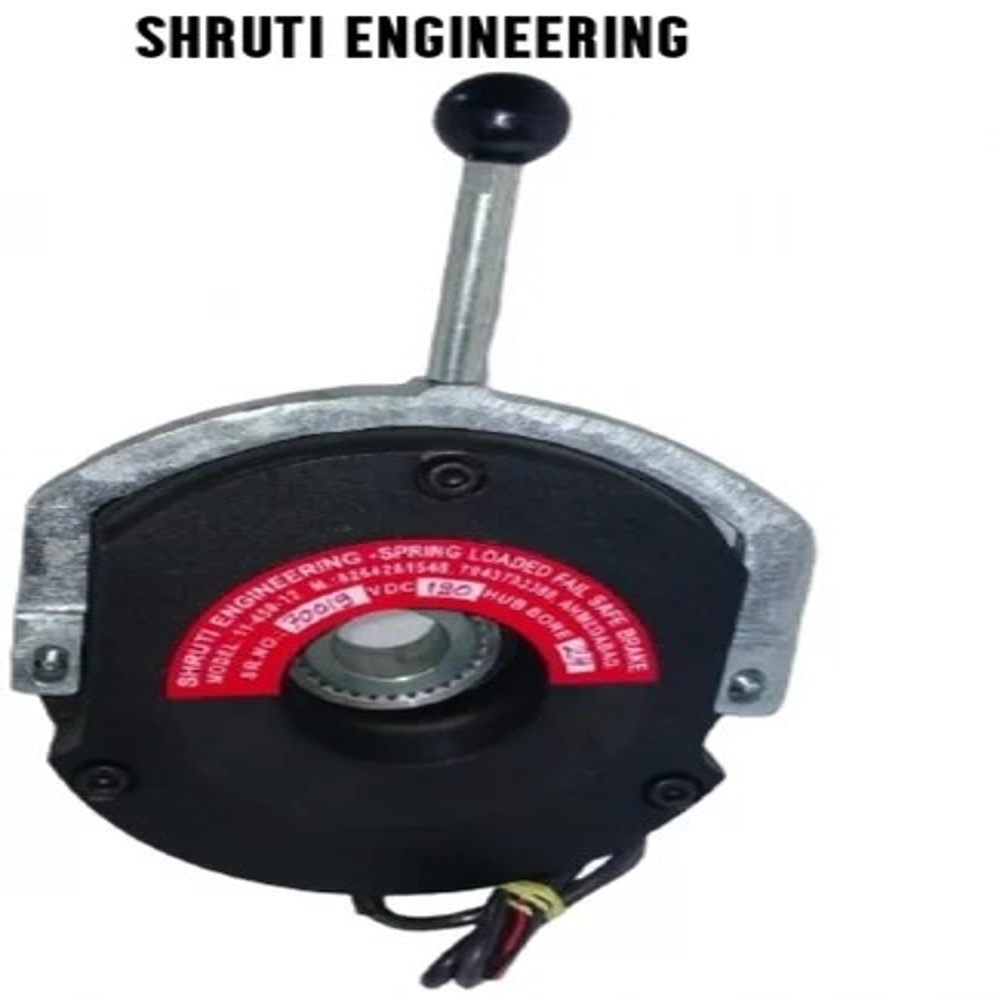

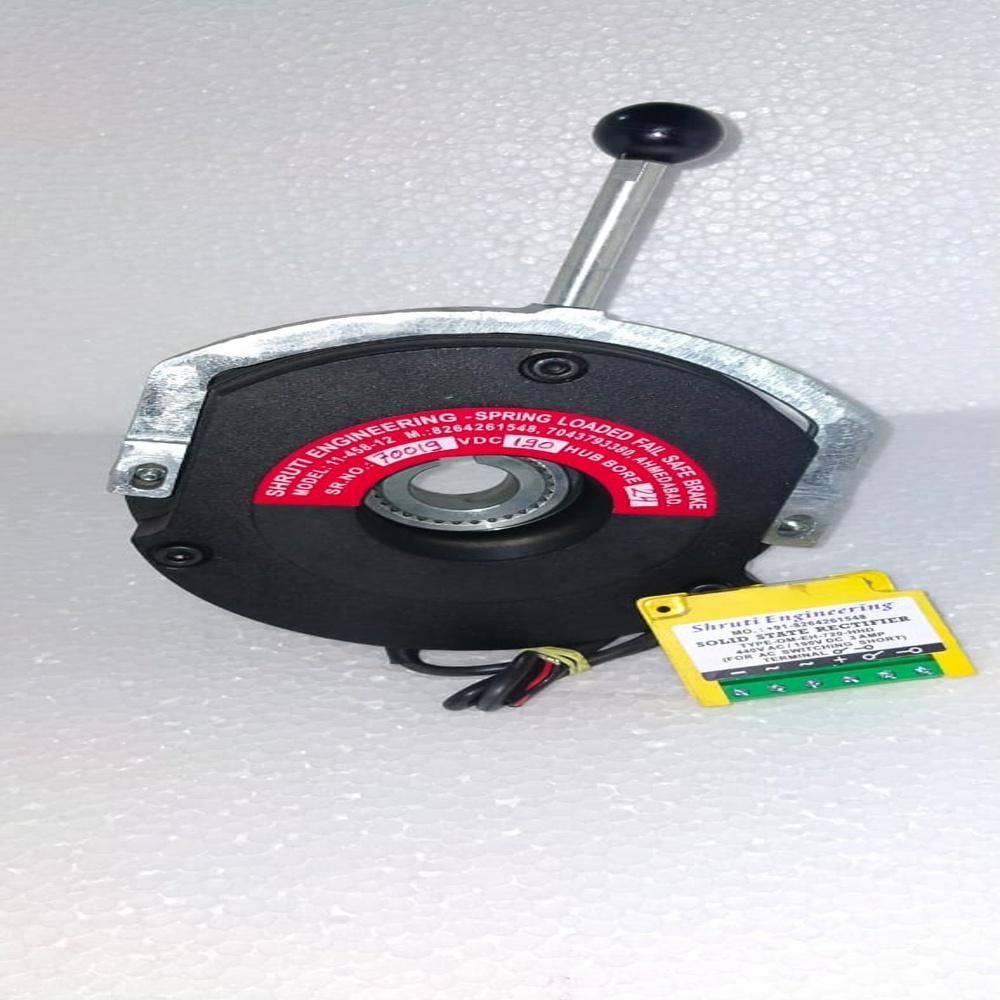

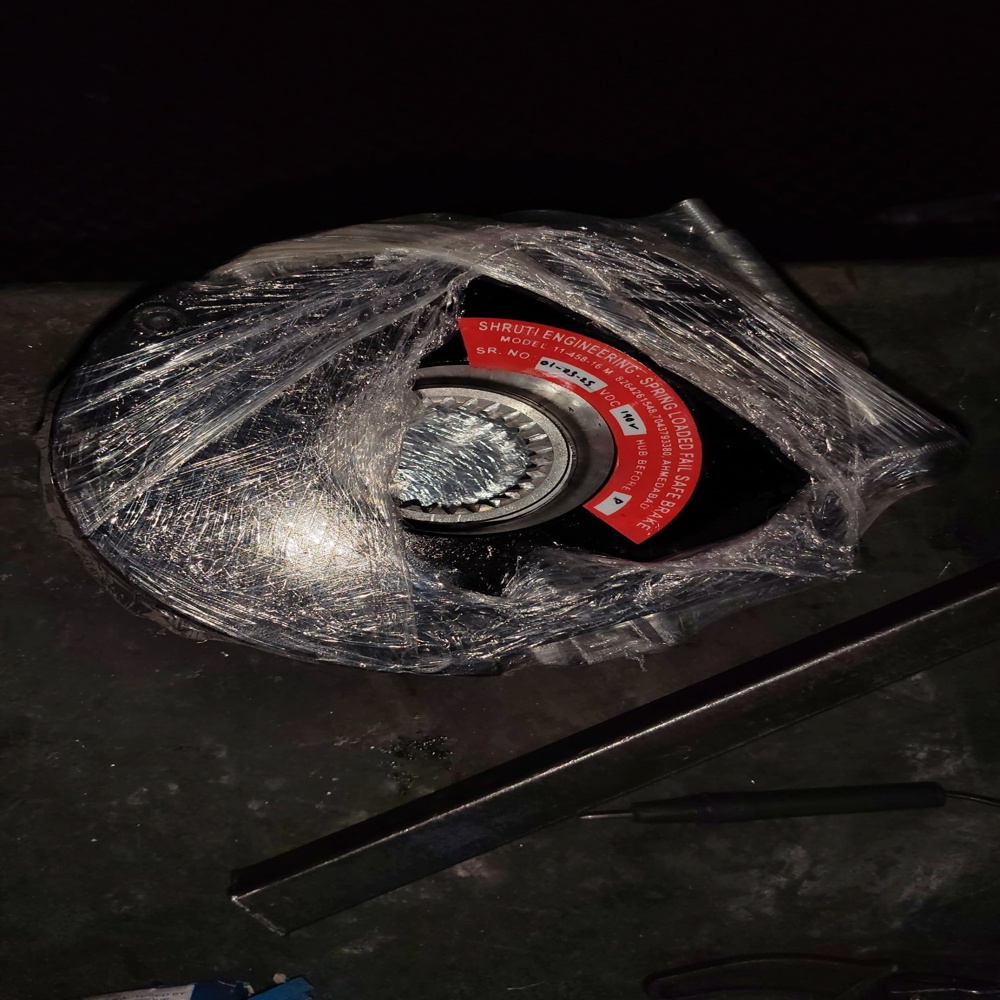

DC Holding Brake

DC Holding Brake Specification

Pressure
Electromagnetic holding, no hydraulic pressure

Thickness
30 mm (typical)

Vehicle Type
Industrial Machinery

Shape
Round

Material
Steel and Aluminum Alloy

Loading Capacity
Customizable as per model (typically up to several tons)

Diameter
50 mm (Inner Diameter, typical)

Power
15-30 W (typical range per standard models)

Voltage
24V DC

Application
Industrial machinery, hoists, cranes, and elevators

Operation
Fail Safe - holds position when power is off

Insulation Class
Class F

Release Time
40 ms (typical)

Mounting Type
Flange Mount

Brake Type
Electromagnetic Holding Brake

Holding Torque
5 Nm to 50 Nm (based on model)

Ambient Temperature Range
-20C to 60C

DC Holding Brake Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5-7 Days

About DC Holding Brake

We, Shruti Engineering, are an appreciated manufacturer, exporter and supplier of high quality Disc Brakes and Industrial Hoists. Offered range of products includes Foot Mounted Brake Motor, Disc Brake and Liner Brake.

Fail-Safe Performance for Critical Applications

This holding brake provides reliable, fail-safe operation by engaging automatically when the power is off, preventing unwanted movement in your equipment. Its electromagnetic system ensures immediate response, enhancing the safety and integrity of cranes, elevators, and industrial machinery in any power-loss situation.

Customizable Torque and Loading Capacity

Adjust the brake to fit your machinery's requirements with models supporting holding torques from 5 Nm to 50 Nm and customizable loading capacity, typically up to several tons. Its design accommodates diverse applications, ensuring versatility across different industries.

FAQ's of DC Holding Brake:

Q: How does the electromagnetic holding brake ensure fail-safe operation?

A: The brake uses electromagnetic force to hold the load when power is applied. Upon power loss, the brake engages automatically to firmly lock the mechanism, providing fail-safe holding for safety-critical processes.

Q: What are the primary applications for this flange mount holding brake?

A: This brake is ideal for industrial machinery, hoists, cranes, and elevator systems, where reliable position holding and safety during power loss are essential.

Q: When should I select a model with higher holding torque?

A: Higher holding torque models (up to 50 Nm) should be selected when handling heavier loads or when your application requires greater resistance to movement during a power outage.

Q: Where can the DC holding brake be installed?

A: Thanks to its flange mounting and round shape, it can be easily installed in confined spaces within industrial settings such as machinery axles, lift mechanisms, and drive systems.

Q: What is the typical process for releasing the brake once power is restored?

A: When power is reapplied (24V DC), the electromagnetic coil releases the brake within approximately 40 ms, allowing the machinery to resume normal operation.

Q: How does the ambient temperature range impact brake performance?

A: With an ambient temperature range of -20C to 60C, the brake operates dependably in both cold storage and high-heat industrial environments, maintaining performance across diverse conditions.

Q: What are the benefits of using an electromagnetic holding brake compared to hydraulic brakes?

A: Electromagnetic holding brakes offer swift, precise operation without the need for hydraulic fluid or pressure, reducing maintenance and improving compatibility with electrically-driven systems.
