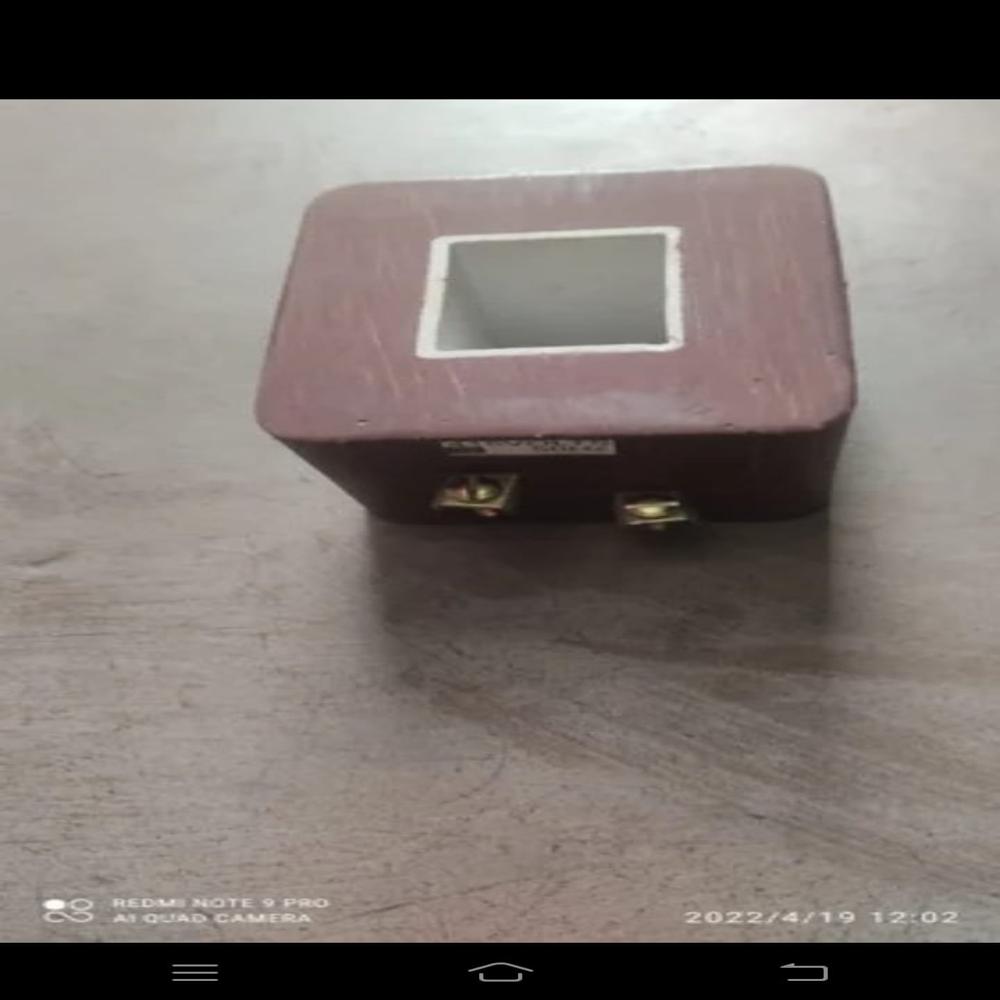

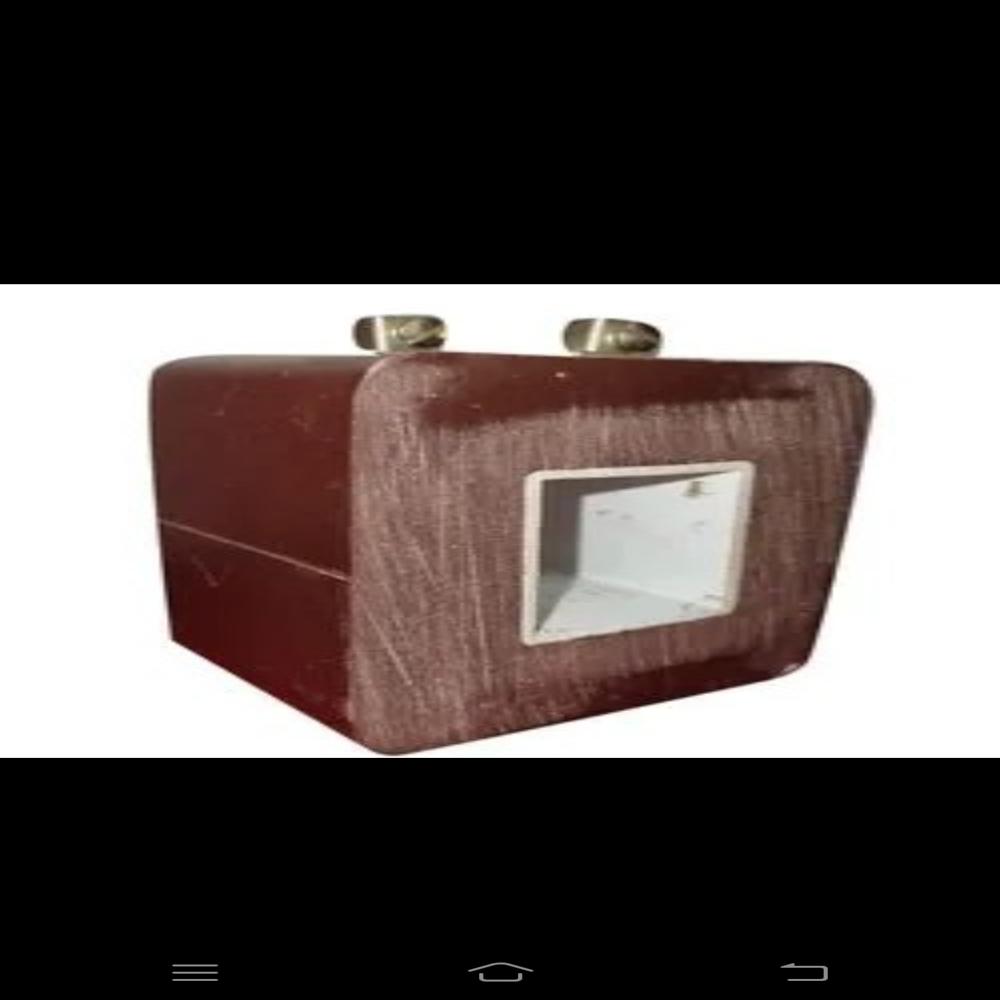

Electromagnetic Brake Coil for Crane

Electromagnetic Brake Coil for Crane Specification

Part Type
Coil

Noise Level
Low

Usage & Applications
Crane hoist brakes, EOT cranes, material handling equipment

Features
Highly durable, Superior insulation, Consistent electromagnetic performance, Easy to install

Mounting Type
Direct mounting in brake assembly

Brake Type
Electromagnetic Brake Coil

Size
Customizable as per crane model requirements

Material
High-grade Copper winding with molded insulation

Pattern Material
Phenolic Resin or Bakelite

Surface Finish
Smooth insulation with anti-corrosive surface

Standard
Conforms to industrial standards IS/IEC 60947

Temperature Rise Class
Class F (max 155C)

Shape
Rectangular/square-shaped with central cavity

Frequency
50 Hz/60 Hz

Winding Type
Enamelled Copper Wire

Customization
Available in various sizes & voltages

Operating Voltage
24V/110V/220V/415V AC or DC (as per requirement)

Dielectric Strength
Up to 2000V AC

Power Consumption
10 W to 150 W (depending on size)

Connection Type
2 Terminal connectors

Insulation Resistance
More than 20 Mega Ohms

About Electromagnetic Brake Coil for Crane

Owing to the dedication of our diligent professionals, we have earned a reputed name in manufacturing, exporting and supplying the finest quality EOT crane Brakes . Our offered hoist finds extensive usage in automobile & engineering industries for safe and easy operations. Under the strict supervision of our experts, this crane hoist is manufactured using quality assured raw material & cutting edge technology. Widely known for robust construction and superb performance, our offered crane hoist is available at nominal prices

Versatile Voltage and Power Ratings

Our electromagnetic brake coils accommodate a range of operating voltages from 24V to 415V in both AC and DC, with power consumption tailored from 10W to 150W depending on coil size. This flexibility allows seamless compatibility with various international crane electrical systems, ensuring efficient and safe operation of material handling mechanisms.

Exceptional Durability and Safety Standards

Constructed with high-grade copper windings and molded insulation, these coils resist wear and provide consistent performance even in tough industrial environments. The anti-corrosive surface, robust phenolic resin or Bakelite pattern material, and class F insulation offer superior safety, meeting or exceeding IS/IEC 60947 industry standards.

Customizable for Various Crane Models

Every crane has unique technical demands, so our electromagnetic brake coils are available in customizable sizes, voltages, and configurations. Whether for new installations or replacement needs, our design flexibility ensures a perfect fit, making installation straightforward while optimizing brake reliability.

FAQ's of Electromagnetic Brake Coil for Crane:

Q: How is the electromagnetic brake coil installed in a crane's brake assembly?

A: The coil is designed for direct mounting within the crane's brake assembly using its two terminal connectors. This simplifies integration and ensures absolute compatibility with most standard crane mounting requirements.

Q: What benefits does Class F insulation provide for the brake coil?

A: Class F insulation enables the coil to operate safely at higher temperatures (up to 155C), enhancing durability and reducing the risk of overheating during demanding crane operations.

Q: When should I consider customizing the coil's size or voltage?

A: Customization is recommended when the crane model has specific voltage requirements or space limitations. Providing precise specifications ensures the coil fits seamlessly and delivers reliable braking performance.

Q: Where can these brake coils be used beyond crane hoist brakes?

A: Besides crane hoist brakes and EOT cranes, these coils are well-suited for a variety of material handling equipment, making them ideal for applications needing consistent electromagnetic braking.

Q: What is the process for selecting the right coil for my equipment?

A: Determine your crane's voltage, power, and size requirements, then consult with our technical team. We offer guidance and customization options to ensure an exact match to your equipment specifications.

Q: How does the product ensure long lifespan and reliability?

A: High-grade copper windings, molded insulation, anti-corrosive surface, and adherence to IS/IEC 60947 standards all contribute to superior durability, reliable electromagnetic performance, and long operational life.

Q: What are the usage advantages of this electromagnetic brake coil for cranes?

A: Installation is easy due to direct mounting and user-friendly connectors, while the coil's superior insulation and low noise operation guarantee safe, quiet, and efficient crane braking.
