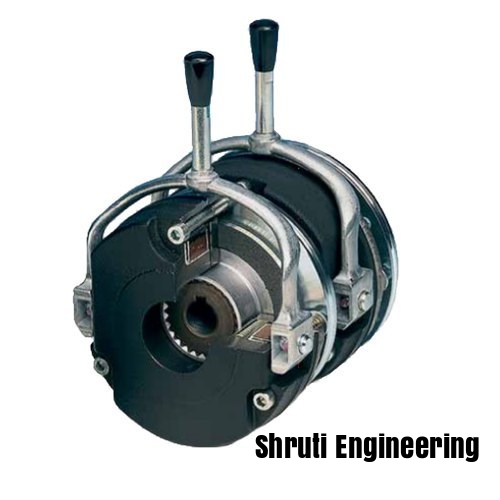

Electromagnetic DC Brake Supplier

Electromagnetic DC Brake Supplier Specification

Pressure
Spring Loaded

Thickness
Standard (as per model specification)

Shape
Round

Material
Mild Steel

Loading Capacity
Up to 10 Nm

Diameter
130 mm (Hub Bore)

Power
Electromagnetic

Voltage
24 VDC

Application
Industrial Electric Motors, Material Handling Systems

Control Unit
Solid State Rectifier (SSR)

Mounting Type
Flange Mounted

Operation
Fail Safe, Spring Loaded

Insulation Class
F

Model No.
17094

Phase
DC

Usage
Automated Industrial Braking Systems

Response Time
Fast Acting

About Electromagnetic DC Brake Supplier

We are ranked amongst the most trusted firms deeply engaged in offering a wide range of DC brakes.
Typical Application:Textile Machines, Material handling equipments, Conveyors, Machine Tools, Cranes & Hoists, Glass Manufacturing Machines, Geared Motors, Wire dawing machinery, Sluice Gates, Cable reeling drum, Navy Deck Machinery, Leather processing machinery, Steel rolling mills, Special purpose machines, Defence equipments... etc.

Superior Safety and Performance

This fail-safe, spring-loaded DC brake guarantees dependable protection during power loss or emergency stops. The fast acting response ensures machines halt safely, reducing the risk of accidents and equipment damage.

Robust Construction for Industry

Manufactured from high-grade mild steel, this brake is built to endure the demanding environments of industrial electric motors and material handling systems. The solid-state rectifier (SSR) ensures reliable operation with minimal maintenance.

Flexible and Easy Mounting

The flange-mounted configuration allows for straightforward installation across various setups, while its compact round shape (130 mm hub bore) adapts seamlessly to modern automation systems.

FAQ's of Electromagnetic DC Brake Supplier:

Q: How does the fail-safe operation of the electromagnetic DC brake work?

A: The brake uses spring-loaded pressure to automatically engage in the event of power loss, ensuring immediate stopping action. When power (24 VDC) is applied, the electromagnetic force overcomes the spring, releasing the brake. Once power is cut or fails, the spring actuates, rapidly stopping the system.

Q: What industrial applications is this DC brake suitable for?

A: This brake is ideal for automated industrial braking systems, particularly in electric motors and material handling equipment, where quick and reliable stopping is essential for safety and process control.

Q: When should this brake be used in automated systems?

A: It is best utilized when fail-safe performance is required-such as in applications where loss of power or emergencies necessitate an instant and secure stop to prevent accidents or machinery damage.

Q: Where can the flange-mounted brake be installed?

A: The flange-mounted design enables easy integration into existing machinery in factories, manufacturing units, or any setting with industrial motors requiring a robust braking system.

Q: What is the process for installing and operating this electromagnetic brake?

A: Installation involves affixing the flange mount to the desired position, connecting the power supply (24 VDC), and integrating the solid-state rectifier control unit. Operation is largely automatic, with the brake engaging or disengaging based on electrical control signals.

Q: How does the fast-acting response time benefit industrial operations?

A: A rapid response time is crucial for safety and productivity. The fast-acting brake ensures machinery can be stopped immediately, minimizing downtime and reducing the risk of injury or equipment wear.
