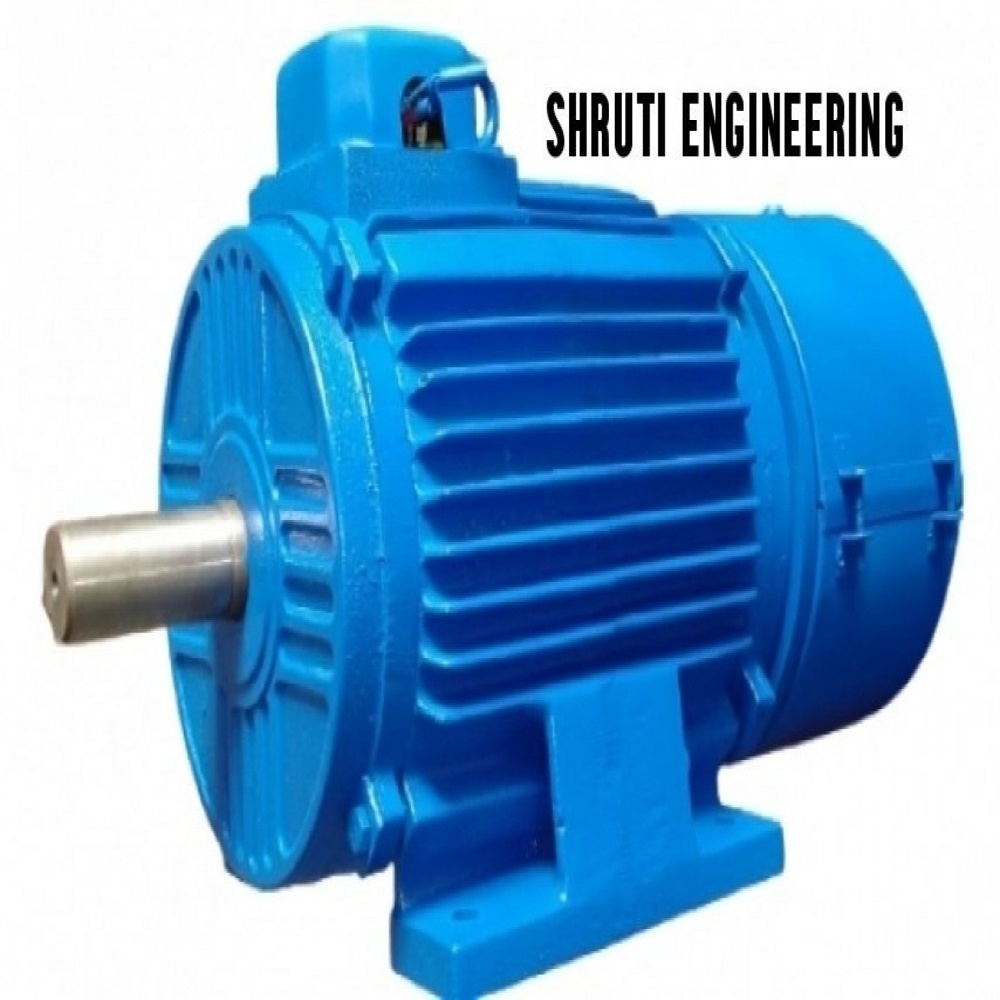

Electromagnetic Disc Brake Motor

Electromagnetic Disc Brake Motor Specification

Poles Number
4 Pole

Starting Type
DOL (Direct On Line)

Rated Voltage
415V

Efficacy
IE2/IE3

Features
Reliable Braking, Low Maintenance, High Efficiency, Rugged Construction, Easy Installation

Pressure
Standard Atmospheric

Cooling Method
External Fan Cooling

Voltage
415V AC

Bearing Type
Ball Bearing

Horse Power
Up to 15 HP

Motor Type
Squirrel Cage Induction Motor with Electromagnetic Disc Brake

Current Type
AC

Sealed Type
TEFC (Totally Enclosed)

Standard
IS 325, IEC Standards

Torque
High Starting Torque

Power Rating
1.1 kW to 11 kW

Ambient Temperature
-15C to +40C

Noise Level
Below 75 dB

Rated Frequency
50 Hz

Product Type
Electromagnetic Disc Brake Motor

Output Power
Up to 15 HP

Frequency (MHz)
50 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Three Phase

Speed
1440 RPM

Power
1.1 kW to 11 kW

Color
Blue

Dimension (L*W*H)
Standard As Per Model

Weight
Depends on Model (Approx. 30-110 kg)

Shaft Diameter
Standard As Per Model

Mounting Type
Foot / Flange Mounted

IP Rating
IP55

Duty Type
S1 (Continuous Duty)

Insulation Class
Class F

Material
Cast Iron Body

Brake Type
Electromagnetic Disc Brake, Fail Safe

Brake Voltage
190V/230V AC (as per requirement)

Bearings
Deep Groove Ball Bearing

Frame Size
90 to 160 mm

Application
Cranes, Hoists, Material Handling, Machine Tools, Packaging Machinery

Electromagnetic Disc Brake Motor About

Owing to the immense experience and a competent team of experts, we are able to offer Brake Motor to respectable clients. These brake motors offered by us are made utilizing high grade raw material at trustworthy vendors premises. In addition to this, the offered range of brake motors is suitably checked on different parameters to ensure its adherence with the international quality norms and standards.

Reliable Fail-Safe Braking Technology

Our motor features a fail-safe electromagnetic disc brake system that automatically engages in case of power failure, ensuring safety in every application. This makes it exceptionally suitable for environments where controlled stopping is critical, like cranes and hoists. The brake operates at 190V/230V AC, as per your requirements, delivering dependable performance in demanding operations.

Robust & Efficient Construction

Constructed with a durable cast iron body and premium deep groove ball bearings, the motor offers high mechanical strength and longevity. The external fan cooling (TEFC) and an enclosure with IP55 rating protect against dust and moisture, ensuring consistent performance even in harsh industrial environments. With high efficiency ratings (IE2/IE3) and insulation Class F, this motor is built to last.

Versatile Applications, Easy Integration

Designed for versatility, this motor supports both foot and flange mounting types, fitting seamlessly into various systems such as material handling, packaging machinery, and machine tools. Its standard dimensions and blue finish, together with low noise levels, make the motor easy to incorporate into any new or existing industrial setup.

FAQ's of Electromagnetic Disc Brake Motor:

Q: How does the fail-safe electromagnetic disc brake enhance operational safety?

A: The fail-safe electromagnetic disc brake is designed to automatically engage and stop the motor if power is lost. This ensures that equipment like cranes or hoists stops securely, preventing accidents or damage associated with uncontrolled movement.

Q: What is the typical process for installing this motor in industrial machinery?

A: Installation is straightforward due to the standard foot or flange mounting options. The motor is connected via Direct On Line (DOL) starting, wired to a 415V AC three-phase supply, and can be integrated into existing systems using its standard shaft and mounting dimensions.

Q: Where can this electromagnetic disc brake motor be used effectively?

A: This motor is ideal for use in cranes, hoists, material handling systems, packaging machinery, and machine tools. Its robust build and reliable brake make it particularly suitable for industries requiring precise load handling and safety.

Q: What benefits does the Totally Enclosed Fan Cooled (TEFC) design provide?

A: The TEFC design ensures the motor is protected from dust, debris, and moisture, which enhances its durability and operational reliability. The external fan aids cooling, allowing continuous (S1) duty without overheating.

Q: When should this motor be selected over a standard induction motor?

A: Choose this motor when your application demands reliable stopping capabilities under load, such as in hoisting, lifting, or material conveying systems where safety and load control are paramount.

Q: How does high efficiency (IE2/IE3) contribute to the motor's performance?

A: IE2/IE3 efficiency ratings mean the motor consumes less electricity to deliver its output power, leading to reduced operational costs and improved sustainability over the product's lifecycle.

Q: What maintenance is involved with this electromagnetic brake motor?

A: The motor requires minimal maintenance due to its sturdy construction and reliable ball bearings. Periodic checks on brake wear, wiring, and bearings will ensure sustained optimal performance.
