Foot Mounted Helical Gear AC Brake Motor Specification

Starting Type
Direct On Line (DOL)

Standard
IS, IEC

Rated Frequency
50 Hz

Current Type
AC

Ambient Temperature
-10C to +50C

Features
Integrated electromagnetic brake, High efficiency, Robust construcion

Sealed Type
IP55

Poles Number
2 / 4 / 6

Power Rating
Up to 15 kW

Pressure
Atmospheric

Bearing Type
Ball/Roller

Efficacy
IE2/IE3 options available

Rated Voltage
415 V

Cooling Method
Fan Cooled

Horse Power
0.25 HP to 20 HP

Motor Type
Foot Mounted Helical Gear AC Brake Motor

Voltage
415V AC

Noise Level
Below 65 dB

Torque
Varies with model, up to 2400 Nm

Product Type
Helical Gear AC Motor with Brake

Output Power
0.18 kW to 15 kW (varies based on model)

Frequency (MHz)
50 Hz / 60 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC), Optional Brake

Phase
Three Phase

Speed
1440 RPM / 960 RPM / 720 RPM (as per pole selection)

Power
0.25 HP to 20 HP (varies by variant)

Color
Blue

Dimension (L*W*H)
Depends on model, approximate: 430 mm x 250 mm x 300 mm

Weight
Approx. 25 to 120 kg (model dependent)

Shaft Diameter
Varies according to power rating, 28 to 60 mm

Mounting Type
Foot Mounted

IP Rating
IP55

Duty Cycle
S1 (Continuous duty)

Lubrication
Synthetic Oil filled for life

Housing Material
Cast Iron

Frame Size
63 to 160 (IEC Standards)

Brake Type
Electromagnetic AC Brake

Application
Conveyor Systems, Material Handling, Elevators, Packaging Machines, Automation

Service Factor
1.15

Gear Material
High-grade alloy steel, case hardened and precision ground

Insulation Class
Class F

Gear Ratio
3:1 to 60:1 (Model-wise variation)

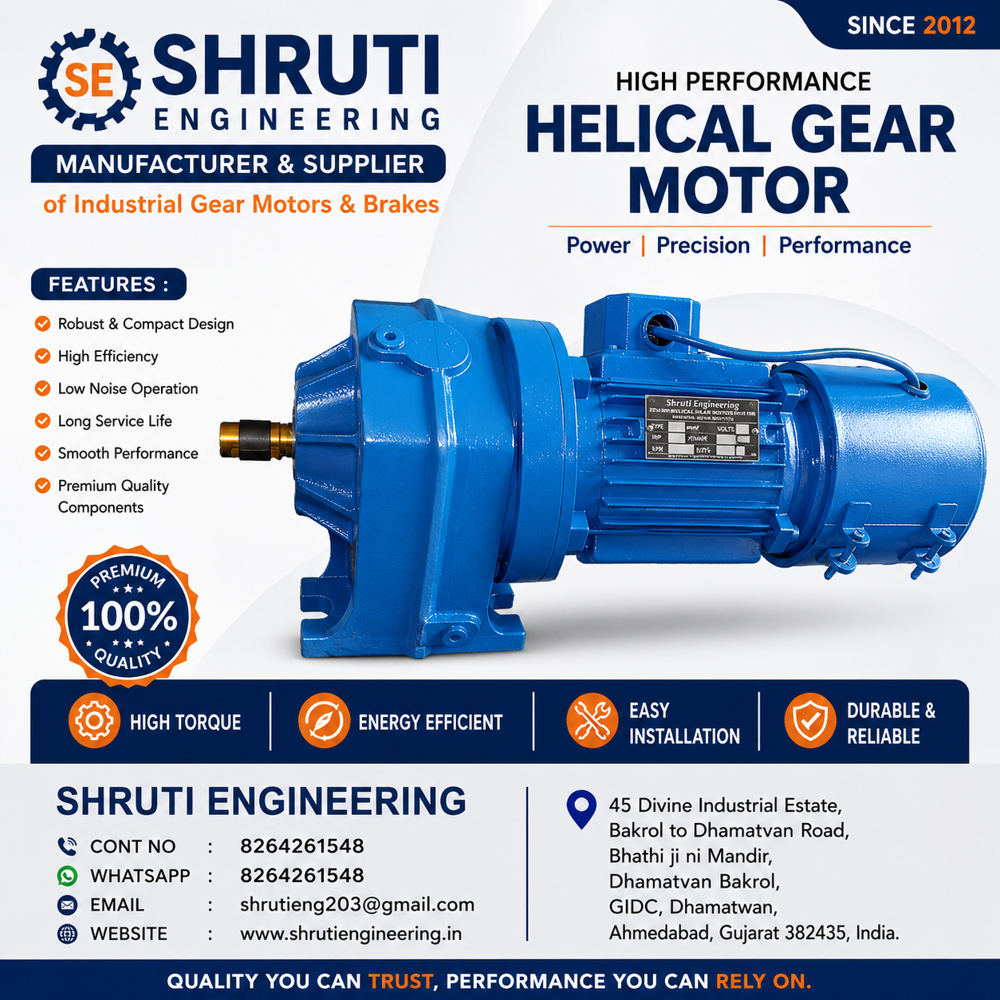

About Foot Mounted Helical Gear AC Brake Motor

We are offering an extensive series of helical gearbox with motor. These products are extremely employed in the market for diverse purposes.
Manufacturing Range:
- Geared Motors Reducers - Power: 0.33 HP to 125 HP
- Output Speed: 0.4 to 585 RPM
-

Versatile and Robust Design

This brake motor caters to varied industrial requirements with frame sizes ranging from IEC 63 to 160 and power outputs from 0.25 HP to 20 HP. Its foot-mounted build, precision ground gears, and IP55 protected body ensure optimal performance in challenging conditions. The integrated electromagnetic brake enhances control and safety in automated systems.

Engineered for Longevity

With synthetic oil lubrication for life, maintenance demands are minimized. High-grade alloy steel gears and a cast iron housing promise durability, while the TEFC enclosure and class F insulation ensure long-term reliability-even in harsh settings. The motor delivers low noise (below 65 dB) and high efficiency, adhering to IS and IEC standards.

FAQ's of Foot Mounted Helical Gear AC Brake Motor:

Q: How does the electromagnetic AC brake work in this motor?

A: The integrated electromagnetic AC brake operates by rapidly engaging when electrical power is cut off, ensuring swift stopping of machinery for enhanced safety and control. This makes the motor ideal for applications requiring precise braking, such as conveyors and elevators.

Q: What applications are best suited for this foot mounted helical gear AC brake motor?

A: It is designed for demanding uses in conveyor systems, material handling, elevators, packaging machines, and automation processes. Its robust construction, high torque capacity, and continuous duty rating allow reliable operation in industrial environments.

Q: What are the benefits of having synthetic oil-filled lubrication for life?

A: Synthetic oil-filled lubrication ensures the gears are optimally lubricated throughout the motor's life, reducing routine maintenance and minimizing wear for longer operational life and greater reliability.

Q: When should I choose a model with a higher gear ratio or torque?

A: Select a higher gear ratio or torque model for applications requiring stronger starting force, precise motion control, or low-speed, high-torque operations-such as heavy conveyors or lifting equipment.

Q: Where can this motor be installed considering its protection level?

A: With a TEFC and IP55 enclosure, this motor is protected against dust ingress and water jets, making it suitable for installation in indoor and outdoor industrial settings, provided atmospheric pressure and temperature parameters are met.

Q: What is the process for mounting and connecting this motor?

A: The motor is designed for easy foot mounting on a stable surface using IEC-standard frame sizes. Electrical connection should follow three-phase wiring standards and be performed by qualified personnel, adhering to local safety norms.
