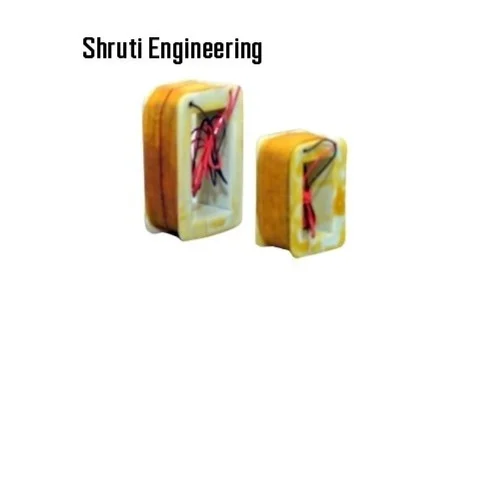

Gantry Crane Brake Coil

Gantry Crane Brake Coil Specification

Noise Level
Low Noise Operation

Features
High Durability, Heat Resistant, Efficient Magnetization

Part Type
Brake Coil

Usage & Applications
Gantry Crane, EOT Crane, Industrial Lifting Equipment

Mounting Type
Base Mount/Enclosure Mount

Brake Type
Electromagnetic Brake Coil

Size
Custom/As per requirement

Material
Copper Winding with Insulated Base

Pattern Material
Epoxy/Fiber Base Material

Surface Finish
Laminated/Insulated Finish

Standard
ISI/IEC Standard Compatible

Winding Type
Precision Layered

Color
Yellowish Copper with Off-White Base

Voltage Rating
24V/110V/220V/415V (AC/DC - as specified)

Maintenance
Low Maintenance Required

Compatibility
Suitable for Various Gantry/EOT Crane Brake Systems

Wire Gauge
As per Brake Requirement

Lifespan
Up to 5 Years under Standard Operating Conditions

Temperature Rating
Up to 180C (Class H Insulation)

Current Type
AC or DC

Connection Type
Lead Wire/Cable Terminal

Gantry Crane Brake Coil Trade Information

Minimum Order Quantity
10 Pieces

Delivery Time
5-7 Days

About Gantry Crane Brake Coil

We, Shruti Engineering, are an appreciated manufacturer, exporter and supplier of high quality Disc Brakes and Industrial Hoists. Offered range of products includes Foot Mounted Brake Motor, Disc Brake and Liner Brake.

Precision Engineering for Demanding Applications

Our brake coil's advanced winding technique and premium copper materials ensure maximum efficiency and heat resistance, making it ideal for use in critical lifting equipment and heavy-duty crane systems. The robust insulation and epoxy/fiber base material safeguard performance even in high-temperature settings.

Low Maintenance, Extended Lifespan

Engineered for minimal maintenance, this brake coil offers prolonged service life of up to five years when operated under standard conditions. The laminated and insulated finish adds an extra layer of protection, keeping operational interruptions and repair costs low.

FAQ's of Gantry Crane Brake Coil:

Q: How is the Gantry Crane Brake Coil installed in crane systems?

A: The brake coil is designed for versatile mounting, supporting both base and enclosure installations. It connects to the crane's braking system using either lead wires or cable terminals, depending on your configuration. Custom sizing ensures compatibility with different crane models.

Q: What voltage ratings are available for this brake coil?

A: This brake coil is available in several voltage options: 24V, 110V, 220V, and 415V, supporting both AC and DC current types as specified. This flexibility enables integration with a variety of industrial crane electrical systems.

Q: When should the brake coil be replaced or maintained?

A: Routine maintenance is minimal due to its robust design. However, after approximately five years of standard operation or if you notice a decrease in braking efficiency, inspection or replacement is recommended.

Q: Where can the brake coil be used?

A: It is ideal for Gantry Cranes, EOT Cranes, and other industrial lifting equipment. Its compatibility with a wide array of electromagnetic brake systems makes it suitable for use in warehouses, manufacturing plants, and heavy equipment facilities.

Q: What benefits does this coil offer compared to standard models?

A: The coil's high durability, heat-resistant insulation (up to 180C), and efficient magnetization contribute to superior performance, low noise operation, extended service life, and reduced maintenance requirements.

Q: How does the precision layered winding affect coil performance?

A: Precision layered winding enhances magnetic efficiency and thermal management, ensuring effective and consistent braking force while minimizing energy losses and heat build-up during operation.
