Heavy Duty Gear Motor

Heavy Duty Gear Motor Specification

Gear Type
Worm/Helical Gearbox

Material
Cast Iron/Steel

Processing Type
Machined Finish

Gear Tooth Profile
Involute

Gearing Arrangement
Worm/Helical

Direction
Bi-Directional

Output Torque
High Torque (Up to 350 Nm or as per model)

Rated Power
0.55 kW to 22 kW

Input Speed
1440 RPM (Standard)

Output Speed
12 to 400 RPM (Depending on ratio)

Voltage
415V AC, Three Phase

Efficiency
Up to 90%

Insulation Class
Class F

Cooling Method
Surface Air Cooled

Noise Level
Low Noise Operation

Protection Class
IP55

Lubrication
Grease/Oil Lubricated

Mounting Type
Foot Mounted

Duty
S1 (Continuous)

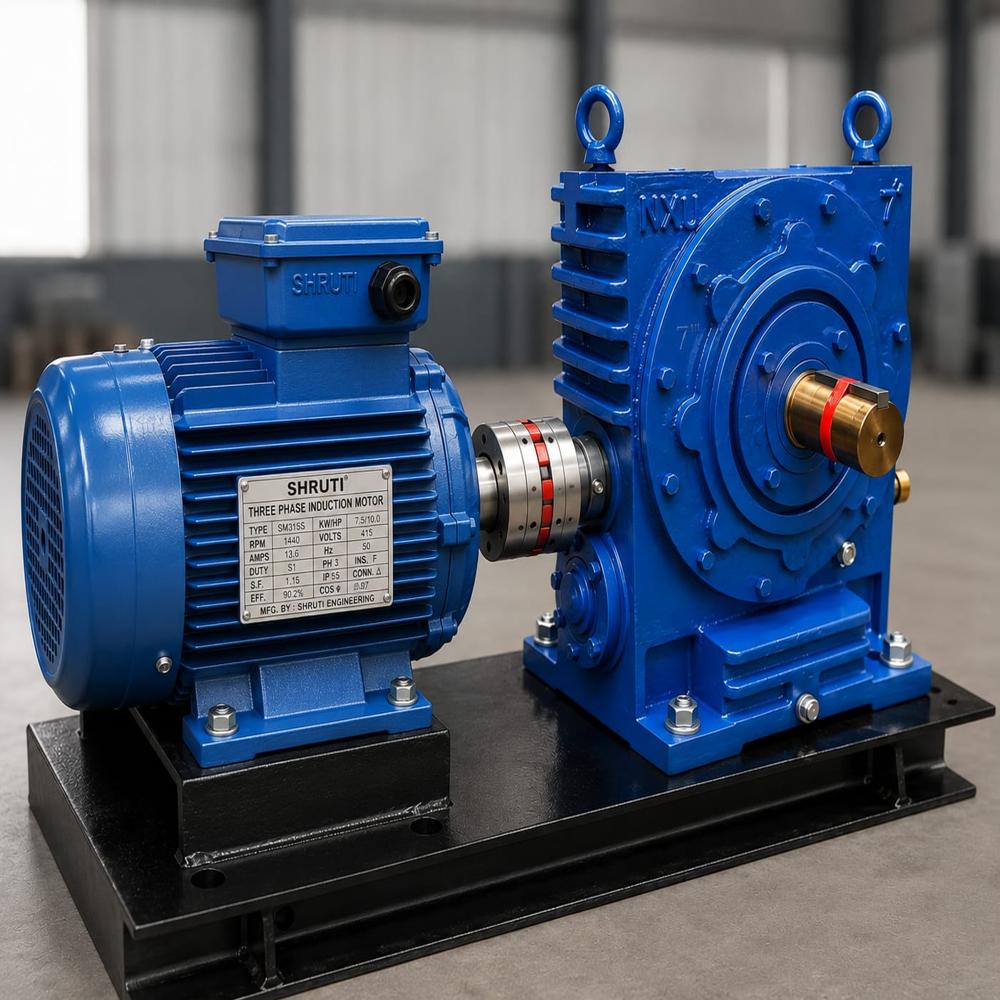

About Heavy Duty Gear Motor

The Heavy Duty NXU Gear Motor is designed for rugged industrial applications requiring high torque, superior strength, and continuous performance. It integrates a precision-engineered NXU helical gear box with a powerful electric motor, delivering smooth, efficient, and reliable power transmission under heavy load conditions.

Built with high-grade alloy steel gears and a sturdy cast iron housing, this gear motor ensures long service life, minimal vibration, and low maintenance. Its robust construction makes it ideal for use in cranes, hoists, conveyors, and lifting machinery.

Superior Design for Industrial Strength

Crafted with precision-machined cast iron or steel and boasting an involute gear tooth profile, this gear motor ensures reliable and efficient performance even under heavy load. The foot-mounted format enhances structural stability, making it a perfect fit for demanding industrial settings.

Efficient Power Transmission

Available in worm or helical gearing arrangements, this gear motor achieves up to 90% efficiency and offers high torque output. With a broad power range and customizable speed ratios, it adapts seamlessly to different applications while maintaining minimal noise and extended operation.

Durability in Challenging Environments

Protected by an IP55 enclosure and Class F insulation, this gear motor withstands dust, moisture, and high temperatures. Its continuous (S1) duty rating ensures it operates round-the-clock, delivering consistent and dependable performance over extended cycles.

FAQ's of Heavy Duty Gear Motor:

Q: How is the Heavy Duty Gear Motor installed and mounted?

A: The gear motor features a foot-mounted design, allowing for straightforward and secure installation onto standard industrial bases or frames, ensuring both stability and ease of maintenance.

Q: What environments can this gear motor operate in?

A: With its IP55 protection class and Class F insulation, the motor is suited for dusty, moist, or high-temperature environments, making it ideal for various industrial and manufacturing settings.

Q: When should I choose a worm vs. a helical gearbox arrangement?

A: Worm gearboxes are best for applications requiring high torque and compactness, while helical gearboxes offer higher efficiency and quieter operation, suitable for applications needing smoother and more energy-efficient performance.

Q: Where is this gear motor typically used?

A: This gear motor is commonly used in conveyors, mixers, hoists, and other machinery in sectors such as manufacturing, material handling, and processing industries that demand high torque and reliability.

Q: What is the process for routine maintenance on this gear motor?

A: Routine maintenance involves periodically checking and replenishing grease or oil lubrication, inspecting the surface air cooling system, and ensuring the foot-mounted bolts remain tight for optimal performance.

Q: How does the gear motor benefit industrial operations?

A: By delivering high torque at low noise levels, with up to 90% efficiency and adaptability for continuous operation, this gear motor reduces downtime and energy costs, maximizing productivity.

Q: Can the direction of rotation be changed on this gear motor?

A: Yes, the gear motor is bi-directional, allowing for easy reversal of output shaft direction, which is crucial for applications requiring flexible movement controls.
