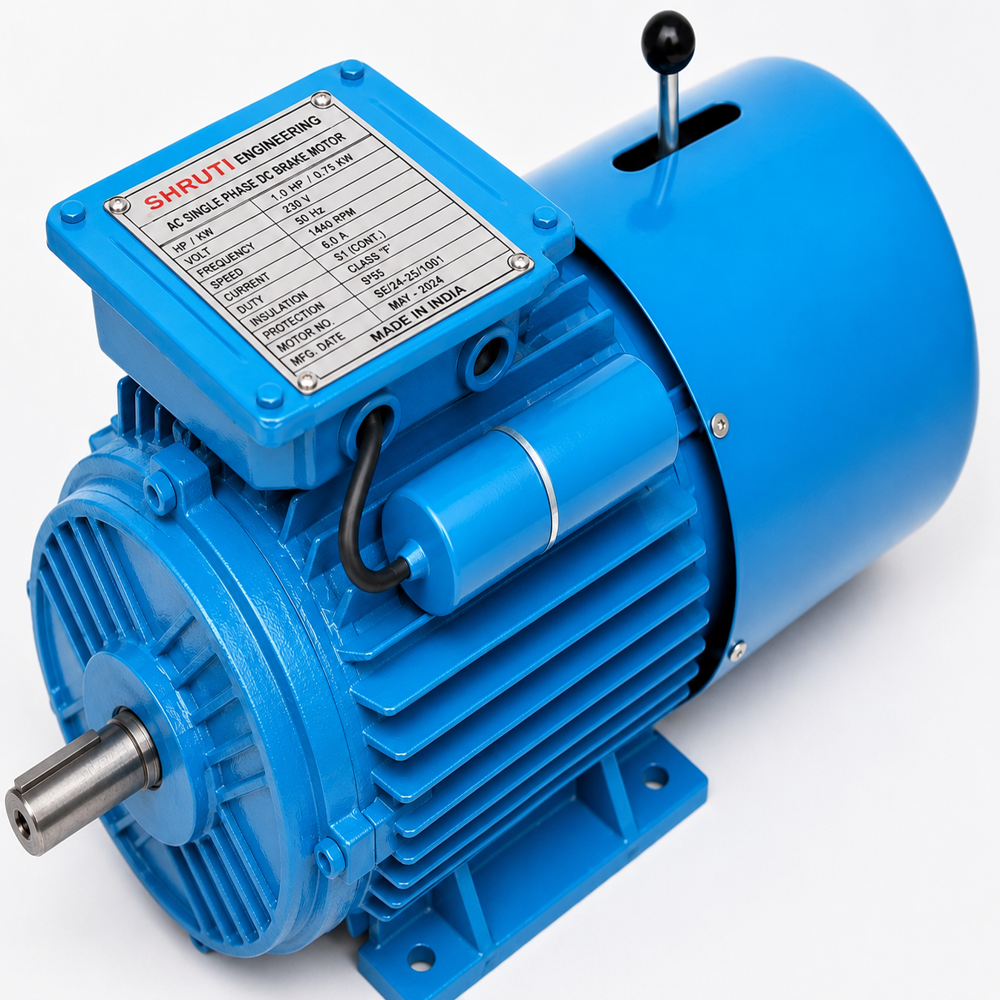

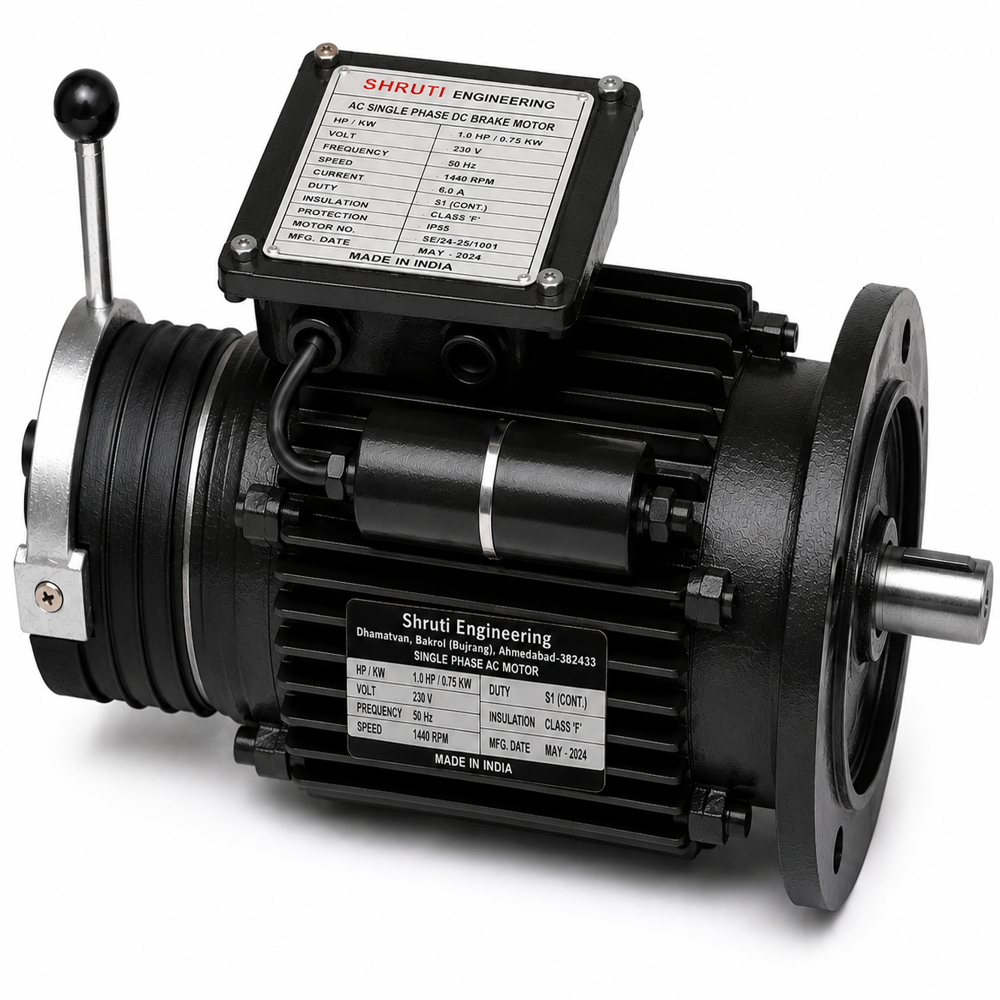

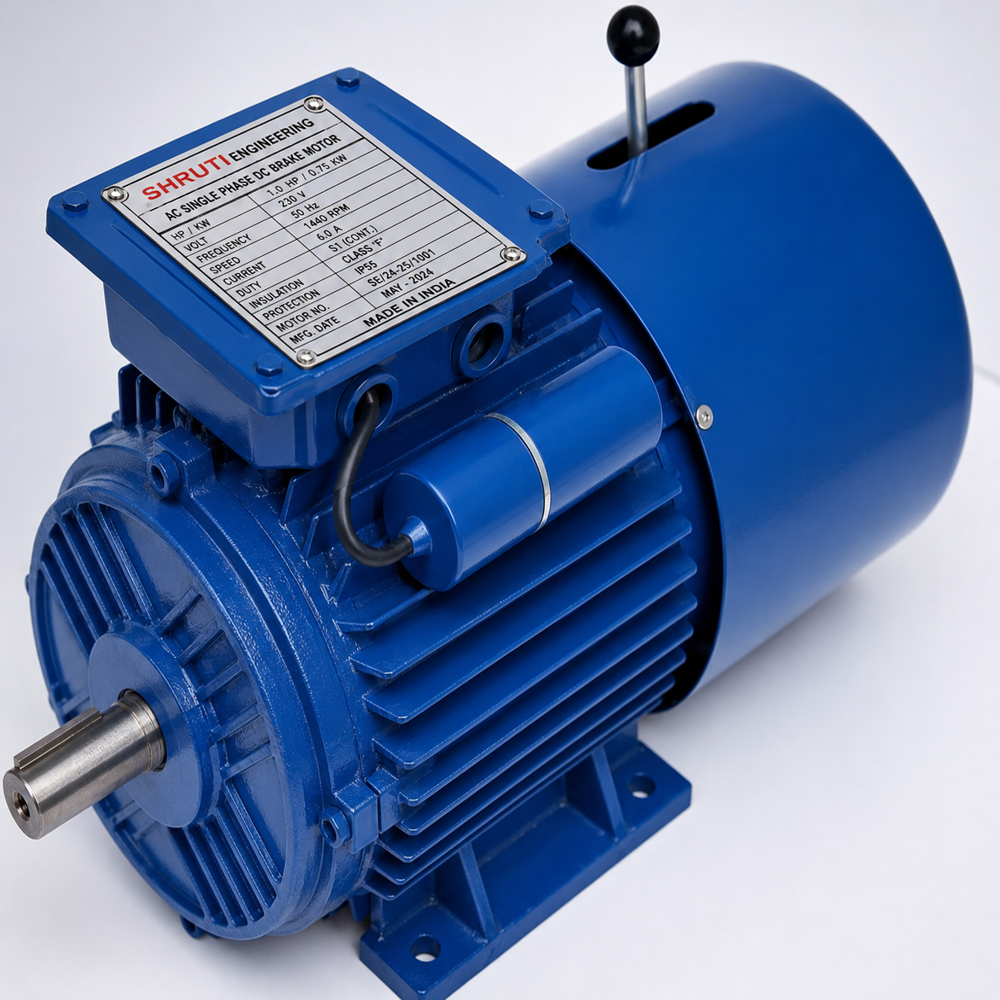

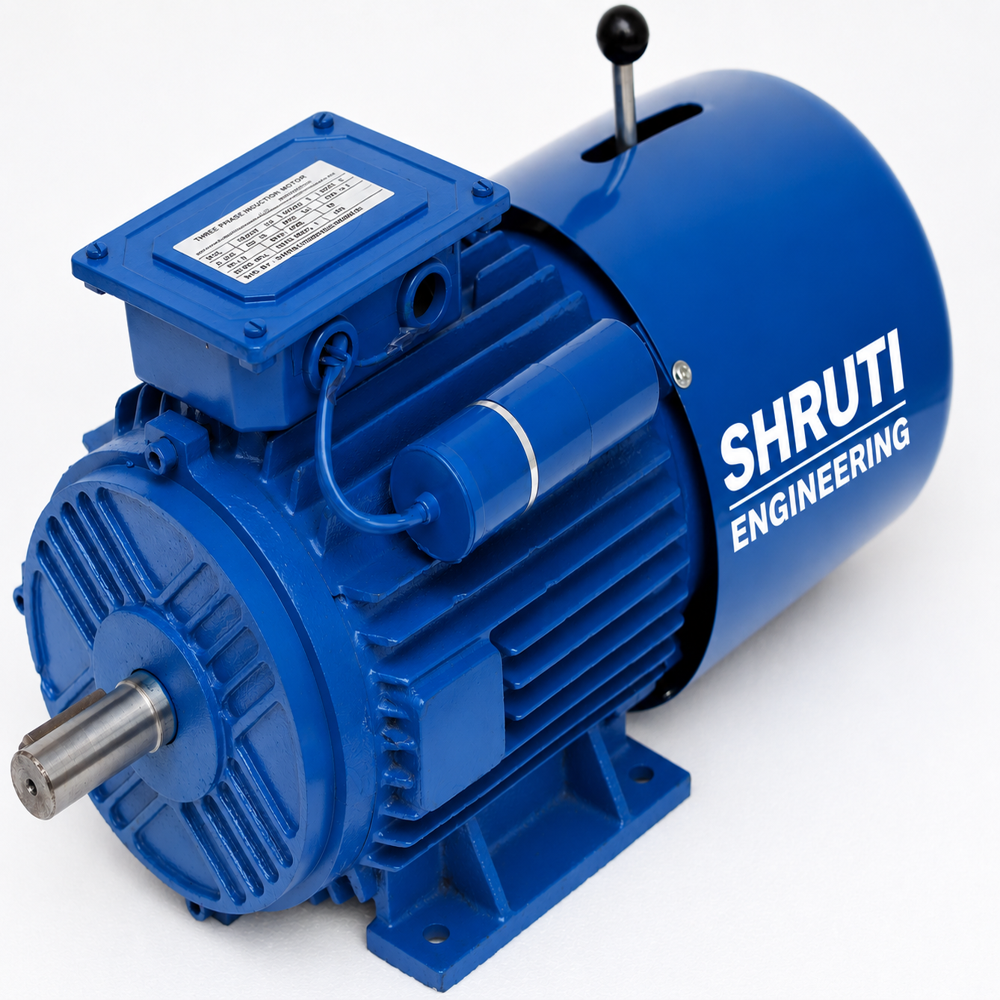

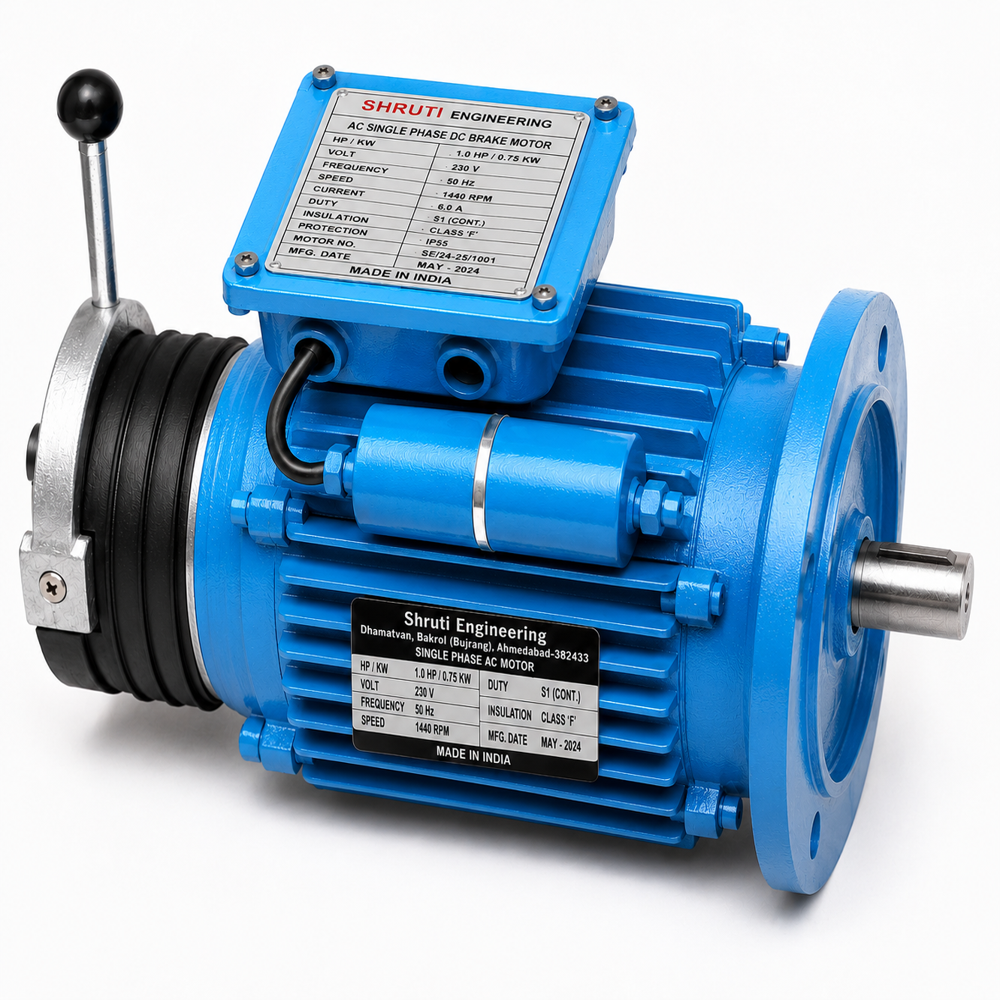

Heavy Duty Single Phase Brake Motor

Heavy Duty Single Phase Brake Motor Specification

Efficacy
S1 (Continuous Duty)

Starting Type
Direct On Line (DOL)

Bearing Type
Deep Groove Ball Bearing

Power Rating
0.75 kW

Voltage
230 V

Cooling Method
Fan Cooled

Rated Voltage
230 V

Torque
Data Not Provided

Rated Frequency
50 Hz

Ambient Temperature
Data Not Provided

Horse Power
1.0 HP

Pressure
Data Not Provided

Poles Number
4

Standard
IS 325-1001

Current Type
AC

Motor Type
Single Phase AC Brake Motor

Noise Level
Data Not Provided

Features
With DC Brake, High Efficiency, Robust Construction

Sealed Type
Totally Enclosed (TEFC)

Product Type
Heavy Duty Single Phase Brake Motor

Output Power
1.0 HP / 0.75 kW

Frequency (MHz)
50 Hz (not MHz)

Protect Feature
Class F Insulation

Phase
Single Phase

Speed
1440 RPM

Power
0.75 kW

Color
Blue

Dimension (L*W*H)
Data Not Provided

Weight
Data Not Provided

Shaft Diameter
Data Not Provided

Mounting Type
Foot & Flange (B5) Mount

IP Rating
Data Not Provided

Duty Cycle
S1 (Continuous)

Insulation Class
Class F

Heavy Duty Single Phase Brake Motor About

Our Long Life AC Single Phase DC Brake Motor is engineered for high durability, precise stopping, and reliable performance in demanding industrial applications. Combining a robust single-phase AC motor with a high-performance DC brake, this motor ensures instant braking, smooth operation, and extended service life, making it ideal for lifts, hoists, cranes, and material handling equipment.

Designed with premium-quality materials and advanced manufacturing techniques, this motor guarantees low maintenance, energy efficiency, and long-lasting reliability, even under frequent start-stop operations.

Efficient Performance for Continuous Use

Designed with an S1 duty cycle, this brake motor delivers continuous, uninterrupted power. With advanced Class F insulation, it maintains thermal stability under heavy loads, while the fan-cooled system prevents overheating, making it dependable for prolonged industrial operations.

Enhanced Safety and Rapid Stopping

The motor features an integrated DC brake, ensuring rapid and secure stopping of machinery to enhance worker safety and process precision. This makes it particularly suitable for automation lines, conveyors, or manufacturing setups that require frequent start-stop cycles.

Built for Durability and Longevity

With robust mechanical construction and a totally enclosed fan-cooled enclosure, the motor is shielded from dust and contaminants. Deep groove ball bearings further minimize maintenance downtime, ensuring reliable service even in harsh industrial conditions.

FAQ's of Heavy Duty Single Phase Brake Motor:

Q: How is the Heavy Duty Single Phase Brake Motor typically installed?

A: This motor supports both foot and flange (B5) mounting, allowing flexible installation into a wide range of machinery and industrial equipment.

Q: What types of applications benefit from using the integrated DC brake feature?

A: Applications requiring precise or frequent start-stop operations, such as conveyor systems, packaging machinery, and automated production lines, benefit most from the rapid stopping provided by the DC brake.

Q: What are the main advantages of the S1 (Continuous) duty cycle?

A: The S1 duty cycle ensures the motor is designed for continuous, round-the-clock operation without the risk of overheating, making it highly suitable for demanding industrial environments.

Q: Where can this motor be used, given its protection and insulation features?

A: With Class F insulation and a totally enclosed fan-cooled (TEFC) design, the motor is ideal for indoor environments exposed to dust or moisture, such as factories, workshops, and processing facilities.

Q: What process is recommended for starting this brake motor?

A: The motor is designed for Direct On Line (DOL) starting, simplifying the connection and allowing for straightforward commissioning and operation.

Q: What benefits does the deep groove ball bearing type provide?

A: Deep groove ball bearings reduce friction, increase longevity, and support high rotational speeds, leading to smoother and more reliable motor performance with minimal maintenance.
