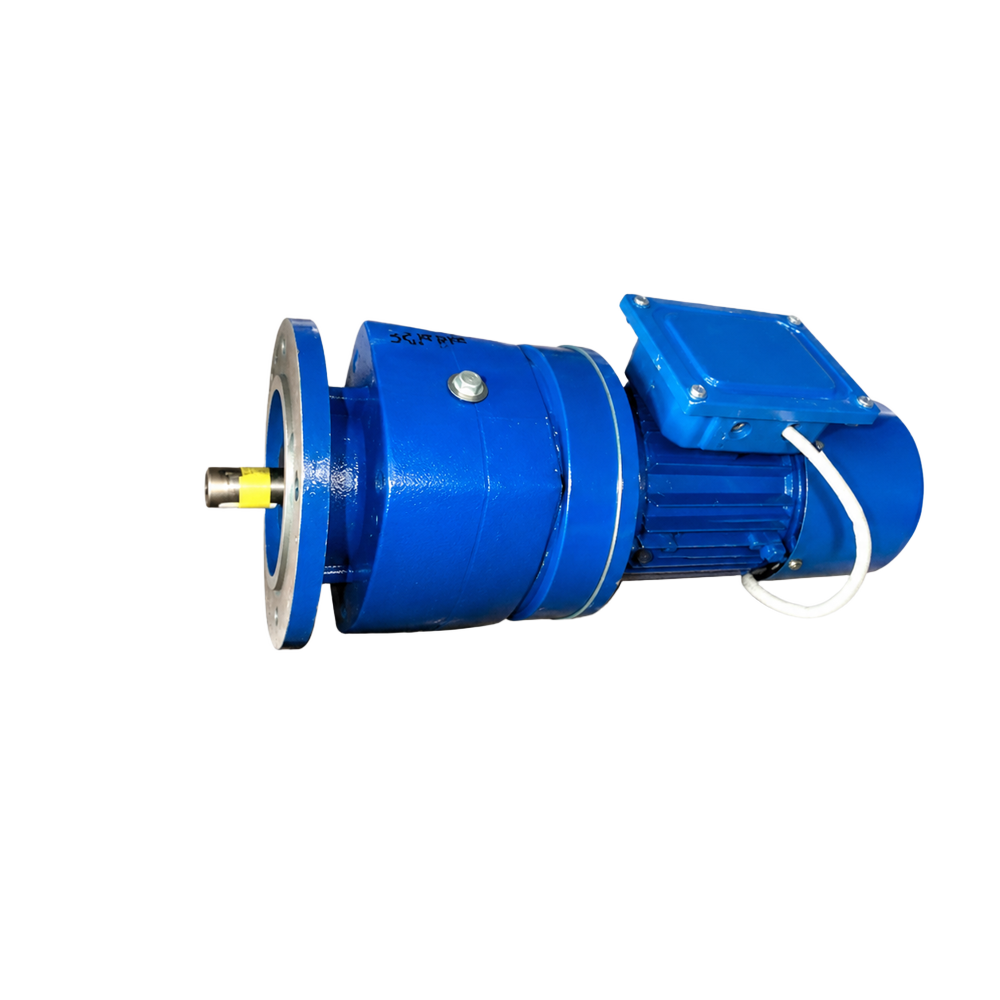

Helical Gear AC Brake Motor for Packaging Machine

Helical Gear AC Brake Motor for Packaging Machine Specification

Standard
IS & IEC Standard

Cooling Method
Surface cooled (IC411)

Power Rating
0.18 kW to 7.5 kW

Torque
High starting torque

Voltage
415V AC

Features
High efficiency, Low noise, Maintenance-free operation

Current Type
AC

Horse Power
0.25 HP to 10 HP

Motor Type
Helical Gear AC Brake Motor

Rated Voltage
415 V

Bearing Type
Double Ball Bearing

Sealed Type
Totally Enclosed

Ambient Temperature
-20C to +50C

Pressure
Atmospheric

Starting Type
Direct On Line (DOL)

Efficacy
IE2 / IE3

Noise Level
Low

Rated Frequency
50 Hz

Poles Number
4 Pole

Product Type
Gear Brake Motor

Output Power
0.18 kW to 7.5 kW

Frequency (MHz)
50 Hz

Protect Feature
IP55

Phase
Three Phase

Speed
1440 RPM

Power
0.18 kW to 7.5 kW

Color
Blue

Dimension (L*W*H)
Depends on model, Compact Size

Weight
12 kg to 85 kg (approx.)

Shaft Diameter
Customized

Mounting Type
Foot / Flange

IP Rating
IP55

Application
Packaging Machine, Conveyor, Automation equipment

Insulation Class
Class F

Gear Type
Helical Gear Drive

Material
Cast Iron Body

Brake Type
Electromagnetic AC Brake

Duty Cycle
S1 Continuous

Efficiency
75% - 90% (model dependent)

Lubrication
Grease Lubricated for Life

Mounting Options
Foot, Flange, Face

About Helical Gear AC Brake Motor for Packaging Machine

Shruti Engineering is a leading Manufacturer of Helical Gear Brake Motors, delivering high-performance, durable, and safe motor solutions for industrial applications. Our motors combine precision-engineered helical gears with reliable electromagnetic or DC braking systems to provide instant stopping, smooth torque transmission, and high efficiency.

Ideal for cranes, hoists, lifts, conveyors, and material handling systems, these motors ensure fail-safe operation, long service life, and minimal maintenance, even under heavy-duty conditions.

Engineered for Packaging Excellence

Combining high starting torque and low noise features, the Helical Gear AC Brake Motor is tailored for complex packaging operations. Its compact design and broad power range make it perfect for tasks demanding precision and reliability under continuous usage.

Optimized for Versatile Installations

With flexible mounting options including foot, flange, and face, this motor seamlessly integrates into existing workflows. The totally enclosed, IP55-rated body shields internal parts, ensuring extended operational life in challenging factory settings.

Efficiency and Safety in Every Application

Certified to IS & IEC standards, the motor delivers up to 90% efficiency while providing secure and smooth starts with its Direct On Line (DOL) system. The high-quality cast iron body and permanent lubrication contribute to safe, dependable material handling and automation solutions.

FAQ's of Helical Gear AC Brake Motor for Packaging Machine:

Q: How does the helical gear drive benefit my packaging machine?

A: The helical gear drive ensures smoother and quieter operation compared to other gear types. It provides high torque transmission, reducing vibration and noise, which is vital for sensitive and continuous packaging processes.

Q: What is the application range for this AC brake motor?

A: This motor is suitable for packaging machines, conveyors, and automation equipment where precise stopping, high efficiency, and reliable performance are required. It is especially effective in continuous-duty (S1) environments.

Q: When should I consider using a motor with an electromagnetic AC brake?

A: Electromagnetic AC brakes are crucial when rapid and secure stopping is required, such as in packaging machinery for accurate positioning or emergency stops. They enhance safety and positioning accuracy during machine operation.

Q: Where can this motor be installed and what mounting types are available?

A: You can install this motor in a variety of industrial environments, thanks to its IP55 protection. It supports foot, flange, and face mounting for seamless integration with new or existing equipment layouts.

Q: What process ensures maintenance-free operation of the motor?

A: The motor features grease lubrication for life and uses double ball bearings, eliminating the need for routine lubrication and minimizing maintenance downtime, even under continuous usage.

Q: How does this motor ensure energy efficiency and safety during operation?

A: Complying with IE2/IE3 standards, the motor achieves up to 90% efficiency. Its Direct On Line (DOL) starting type and IP55 sealed body ensure dependable, safe, and energy-saving operation in industrial applications.
