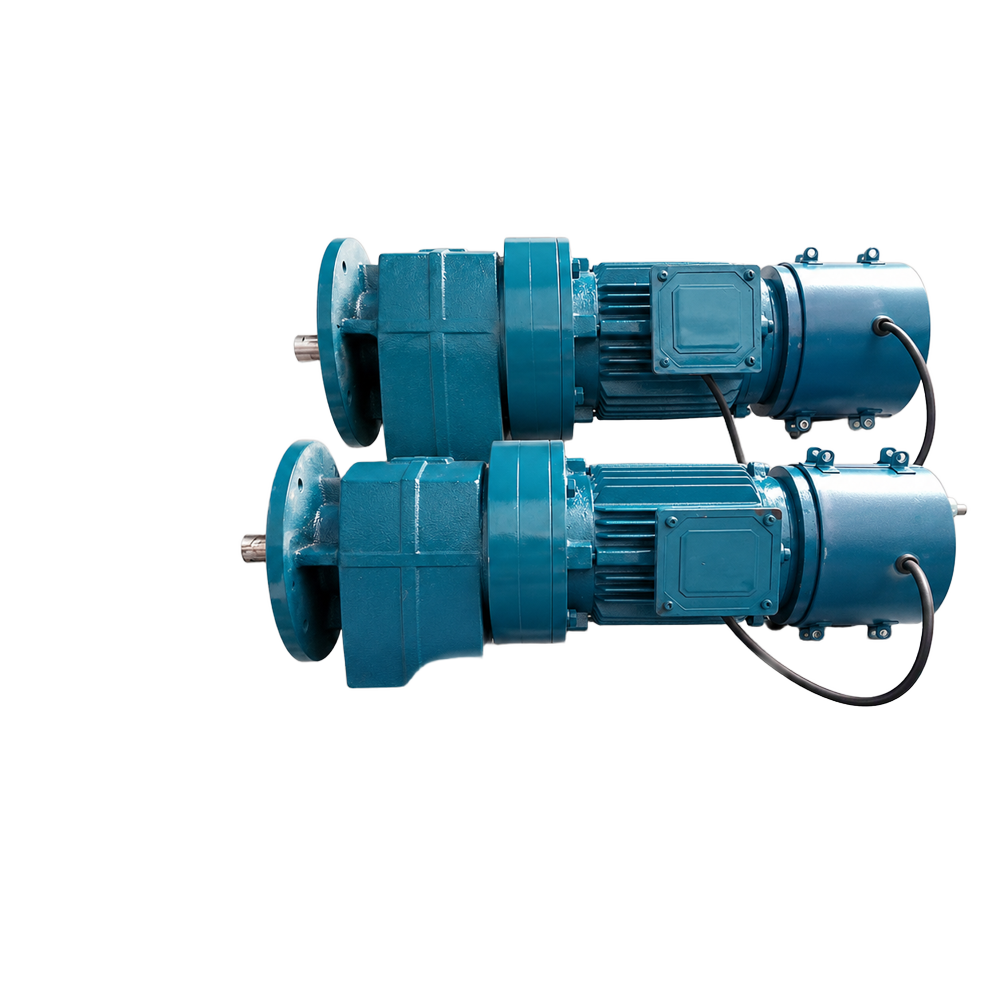

Helical Gear AC Brake Motor Manufacturer India

Helical Gear AC Brake Motor Manufacturer India Specification

Starting Type
Direct On Line (DOL)

Pressure
Standard Atmospheric Pressure

Noise Level
Low Noise Operation

Horse Power
0.25 HP to 20 HP (as per requirement)

Features
High Efficiency, Robust Design, Low Vibration, Energy Efficient

Current Type
AC

Ambient Temperature
Up to 50C

Rated Voltage
220-415V

Voltage
220V / 380V / 415V (Customizable)

Standard
As per IEC/NEMA standards

Sealed Type
Standard Sealed Motor Structure

Power Rating
Standard/Custom Ratings

Efficacy
High Efficiency

Rated Frequency
50Hz / 60Hz

Poles Number
2, 4, 6 Poles (Optional)

Bearing Type
Heavy Duty Ball Bearing

Cooling Method
Totally Enclosed Fan Cooled (TEFC)

Motor Type
Helical Gear AC Brake Motor

Torque
High Torque Output

Product Type
Gear Motor with Integrated Brake

Output Power
Customizable as per requirement

Frequency (MHz)
50 / 60 Hz

Protect Feature
Robust & Compact Design

Phase
Three Phase / Single Phase (Optional)

Speed
Low Noise Operation, Controlled Speed

Power
Varies as per model, consult manufacturer

Color
Blue

Dimension (L*W*H)
As per Model / Custom Sizes

Weight
As per model specification

Shaft Diameter
As per requirement

Mounting Type
Foot/Flange/Both

IP Rating
IP55 (Standard), Higher on request

Efficiency Class
IE2/IE3 (on request)

Installation
Easy Installation

Application
Industrial Automation, Conveyor Systems, Material Handling

Material
Cast Iron/Aluminum Body

Service Factor
High Service Factor

Year of Establishment
Since 2012

Reliability
Durable & Reliable

Insulation Class
Class F / Class H

Overload Capacity
150% of Rated Load

Brake Type
Electromagnetic AC Brake

About Helical Gear AC Brake Motor Manufacturer India

Voltage	440
Duty	S4
Material	casting,copper,Stamping
RATIO	AS PER REQUIREMENT
Brand	Shruti
Usage/Application	Industrial
Power	3 Phase

Output Power: 60 w
Rated Power: 0.12 KW-160 KW

Built for Industrial Demands

Designed to meet the rigorous requirements of industrial automation, conveyor systems, and material handling, our Helical Gear AC Brake Motors excel with high torque, reliable braking, and energy efficiency. Their construction from cast iron or aluminum ensures durability, while the robust IP55 enclosure and TEFC cooling provide long-term protection and low maintenance.

Precision Performance and Customization

Each motor can be tailored for output power, voltage (220V/380V/415V), and mounting arrangements (foot, flange, or both), suiting a wide variety of operational needs. With insulation classes F or H and overload capacities up to 150%, they deliver dependable performance in challenging environments, and support both three-phase and single-phase power.

Ease of Installation and Maintenance

Our motors offer easy installation with standardized mounting and customizable sizes. The sealed structure and high-quality bearings enhance operational longevity, while low noise and low vibration ensure a smooth working environment. Maintenance tasks are streamlined by sturdy design and accessible components.

FAQ's of Helical Gear AC Brake Motor Manufacturer India:

Q: How does the electromagnetic AC brake work in Helical Gear AC Brake Motors?

A: The electromagnetic AC brake ensures rapid and efficient stopping of the motor shaft when power is disconnected, enhancing safety for industrial automation and material handling applications. It operates reliably under frequent start-stop cycles required in such environments.

Q: What industries commonly use Helical Gear AC Brake Motors from your company?

A: These motors are primarily used in industrial automation, conveyor systems, and material handling setups, thanks to their high service factor, robust build, and reliable performance. They're a preferred choice for industries requiring precise motion control and consistent uptime.

Q: What is the installation process for these motors?

A: Installation is straightforward-motors can be mounted using foot, flange, or both, depending on site requirements. Custom sizes and mounting configurations ensure compatibility with existing equipment, and each unit includes clear instructions for direct on-line (DOL) starting.

Q: When should I choose IE2 or IE3 efficiency class?

A: Select the IE2 or IE3 efficiency class based on your energy-saving goals and compliance needs. IE3 motors offer higher efficiency, which reduces operating costs and supports sustainability initiatives, especially in continuous-duty operations.

Q: Where can I request customization for power output or voltage?

A: Customization requests, including power output, voltage (220V/380V/415V), shaft dimensions, and mounting type, can be made directly with the manufacturer or supplier to match your project's specifications and ensure optimal integration.

Q: What are the benefits of the robust design and IP55 rating?

A: The robust construction and IP55 protection safeguard the motor against dust and water ingress, extending the lifespan and minimizing downtime in harsh or demanding environments. This ensures reliable operation even under tough industrial conditions.

Q: How does the high service factor and overload capacity benefit material handling applications?

A: A high service factor and 150% overload capacity mean the motors handle extra loads and demanding operations without compromising performance or longevity. This is especially beneficial in material handling, where unexpected load variations are common.
