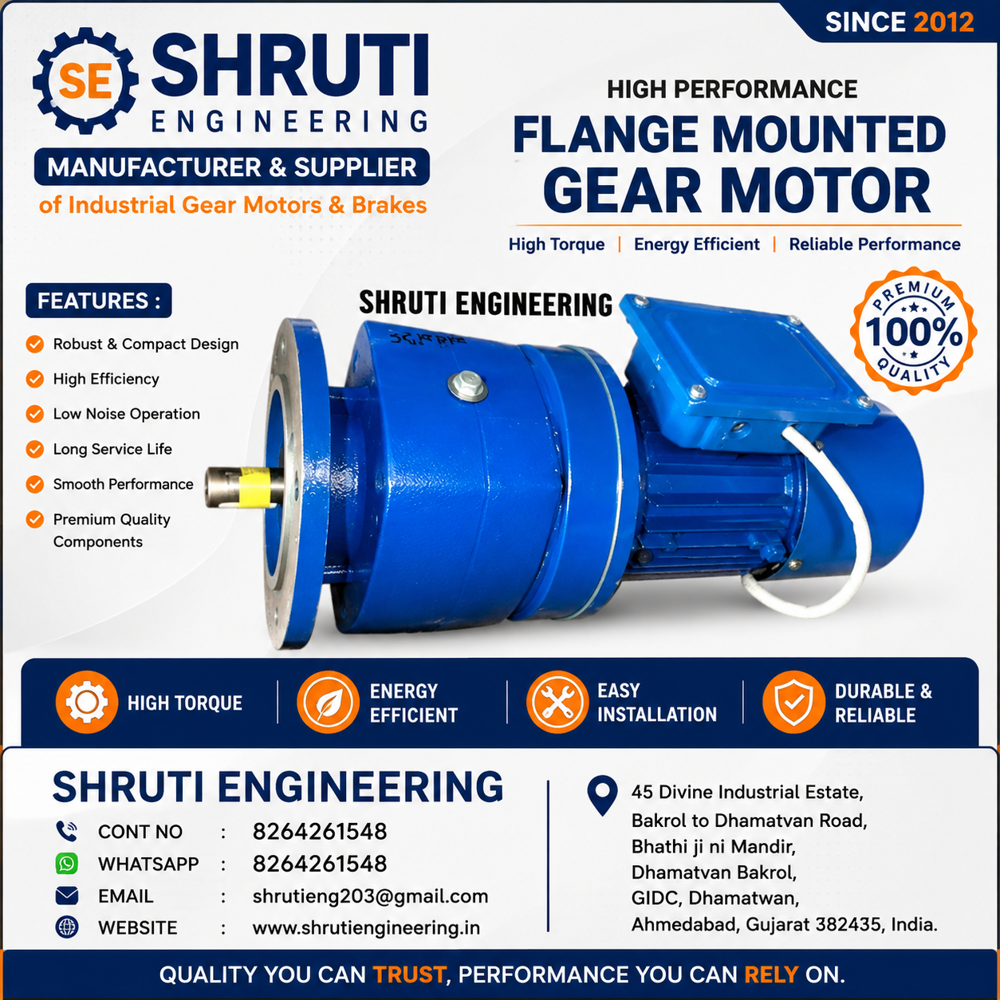

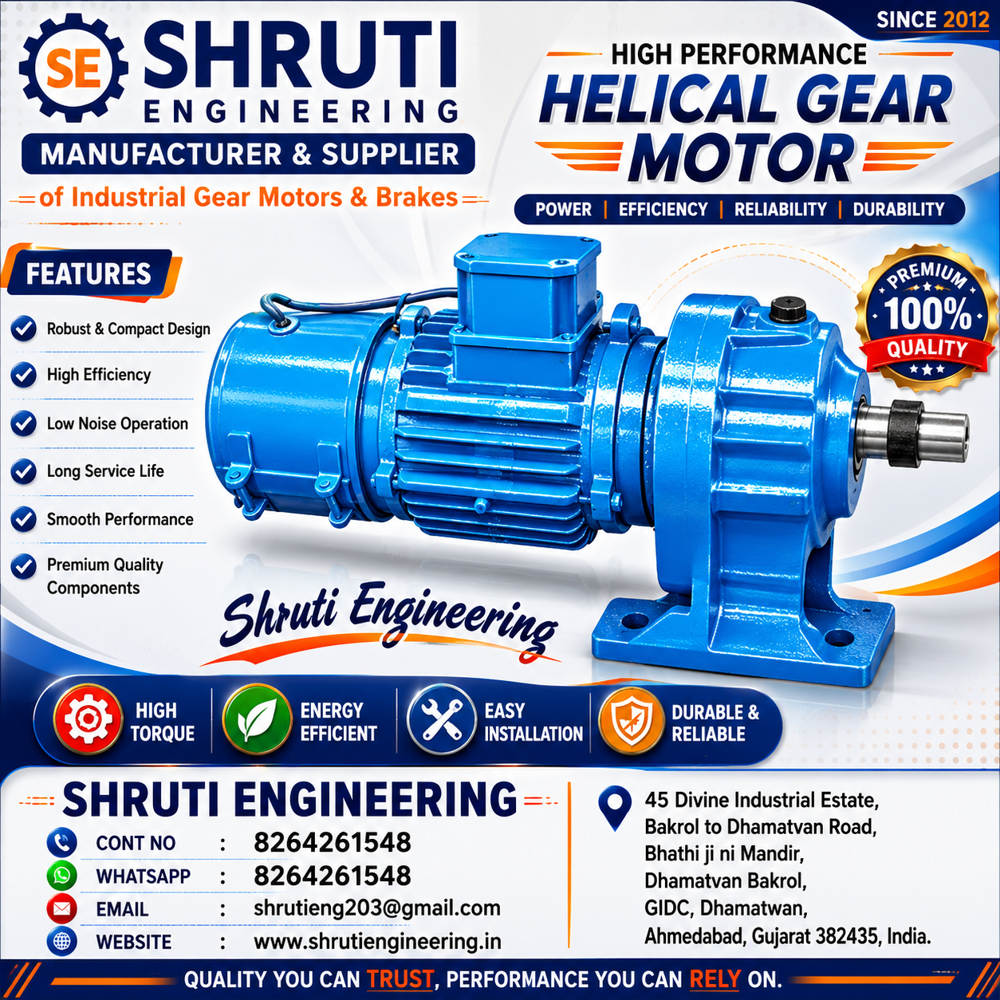

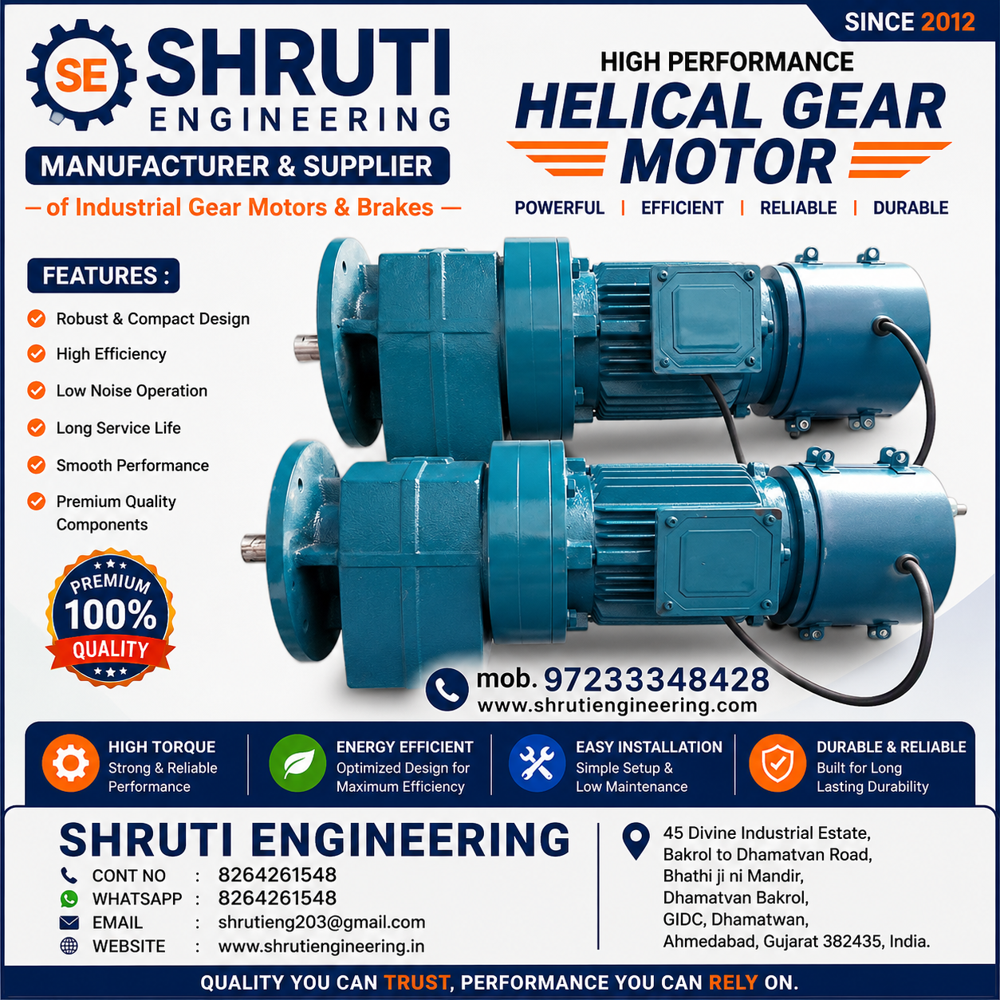

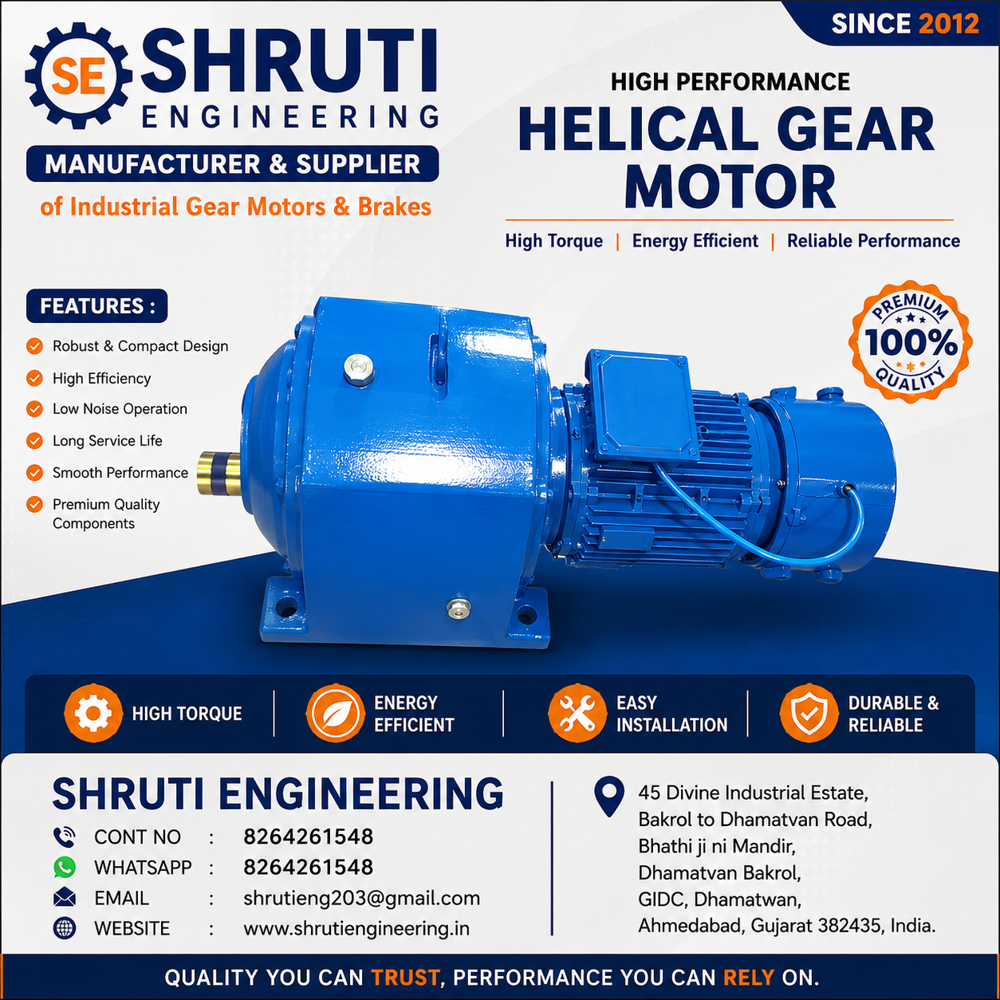

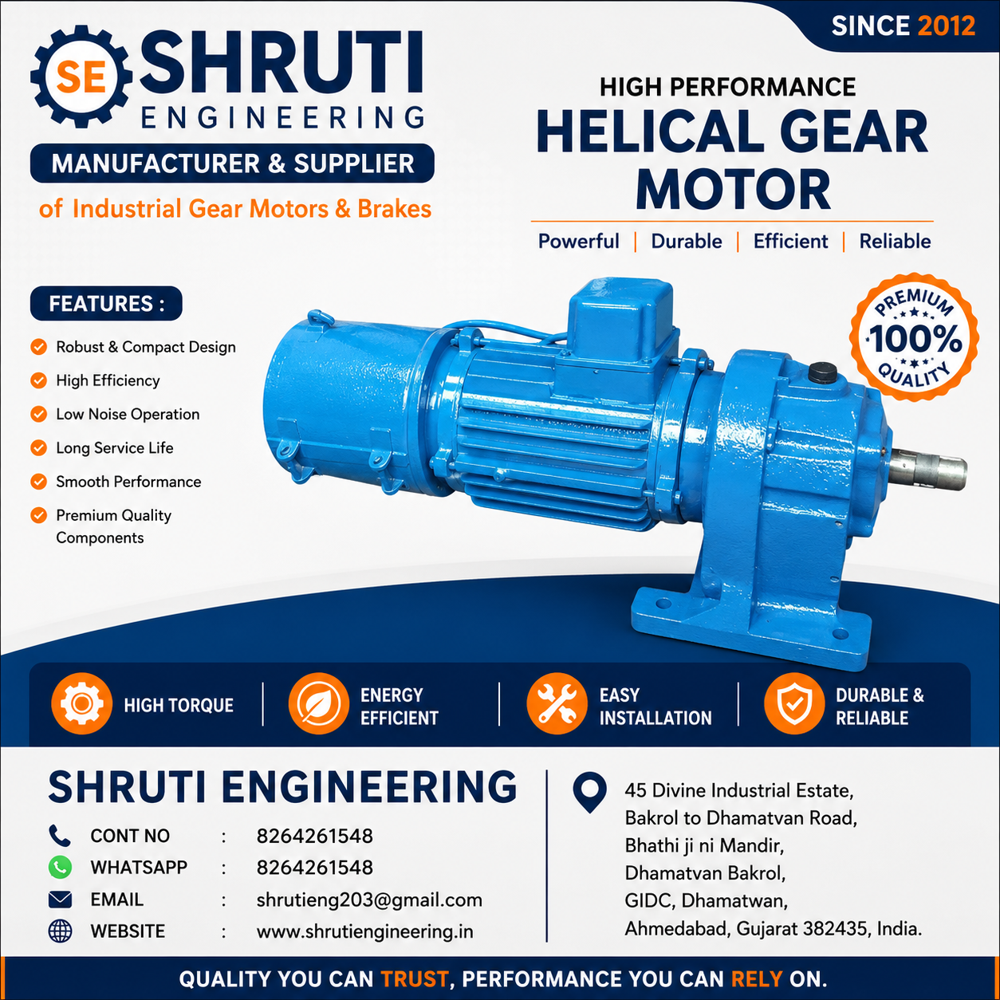

Helical Geared Brake Motor

Helical Geared Brake Motor Specification

Voltage
415 V

Ambient Temperature
-15C to +50C

Standard
IS, IEC, NEMA

Efficacy
IE2/IE3

Cooling Method
Air Cooled

Sealed Type
Sealed

Starting Type
DOL

Current Type
AC

Motor Type
Helical Geared Brake Motor

Rated Frequency
50 Hz

Noise Level
Low Noise

Pressure
Standard Atmospheric

Horse Power
0.25 HP up to 60 HP

Features
Brake equipped, Compact design, Rugged construction, High efficiency, Easy installation, Reliable operation

Bearing Type
Ball / Roller Bearings

Torque
High Torque Output

Power Rating
0.18 kW to 45 kW

Rated Voltage
415 V

Poles Number
2, 4, 6, 8 Poles

Product Type
Electric Geared Motor

Output Power
0.18 kW to 45 kW

Frequency (MHz)
50 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Three Phase

Speed
10-300 RPM

Power
0.25 HP to 60 HP

Color
Blue

Dimension (L*W*H)
Custom/Standard Sizes

Weight
Depends on model

Shaft Diameter
Custom / Standard Sizes

Mounting Type
Foot / Flange Mounted

IP Rating
IP55

Application
Material Handling, Conveyors, Industrial Automation, Hoists, Elevators, Packaging Machines

Brake Type
Electromagnetic Brake

Duty Cycle
Continuous (S1)

Insulation Class
Class F / Class H

Gear Type
Helical Gear

Output Shaft Material
High Grade Alloy Steel

Material of Construction
Cast Iron / Aluminum Housing

Lubrication
Grease Packed for Life / Oil Bath

Reduction Ratio
7:1 to 200:1

About Helical Geared Brake Motor

Being a client centric organization, we are involved in manufacturing and supplying a wide range of Helical Geared Motors. These are made using best quality components to ensure optimum performance and long functional life. Helical geared motors are the conventional solution for your drive application.

Reliable Power and Precise Braking

Designed with a helical gear mechanism and an electromagnetic brake, this motor ensures high torque output with exceptional reliability. The brake system allows for precise stopping, enhancing operational safety and workflow efficiency in critical industrial applications such as conveyors and hoists.

Durable Construction and Enhanced Protection

Built from heavy-duty cast iron or lightweight, corrosion-resistant aluminum, this geared brake motor is engineered for long-term durability. The IP55 protection rating safeguards the motor against dust and water, while the totally enclosed fan-cooled (TEFC) design ensures optimal cooling and performance.

Versatile and Customizable

Available in a broad range of power ratings, reduction ratios, shaft sizes, and mounting options, the Helical Geared Brake Motor meets diverse industrial requirements. Its compatibility with multiple international standards (IS, IEC, NEMA) makes it suitable for global operations and easy system integration.

FAQ's of Helical Geared Brake Motor:

Q: How does the electromagnetic brake function in the Helical Geared Brake Motor?

A: The electromagnetic brake provides rapid and controlled stopping of the motor shaft by engaging as soon as electrical power is removed. This feature is crucial for applications that require immediate halting, such as on conveyors or hoists, ensuring safety and precise positioning.

Q: What are the benefits of choosing a helical geared brake motor for industrial automation?

A: Helical geared brake motors offer high efficiency, low noise levels, and robust torque output. Their built-in braking system guarantees accurate stopping, making them ideal for automation, material handling, and packaging machines where operational precision is essential.

Q: Where can this motor be installed and used effectively?

A: This motor is suitable for installation in various industrial environments, including factories, warehouses, and production plants. Its design accommodates material handling systems, elevators, hoists, and automated machinery, providing dependable power and control.

Q: What is the lubrication process for this geared brake motor?

A: Depending on the model, the motor is either grease packed for life or uses an oil bath for gear lubrication. Both methods ensure long-term, maintenance-free operation by minimizing wear and enhancing performance reliability.

Q: When should a continuous duty (S1) motor be used?

A: Continuous duty (S1) motors are intended for operations that require the motor to run at a constant load for prolonged periods without overheating. This makes them ideal for conveyor systems and other applications demanding uninterrupted operation.

Q: What is the advantage of the IP55 protection rating?

A: An IP55 rating means the motor is protected against dust ingress and water jets from any direction. This feature ensures long-lasting performance and reliability, even in harsh or dusty industrial environments.
