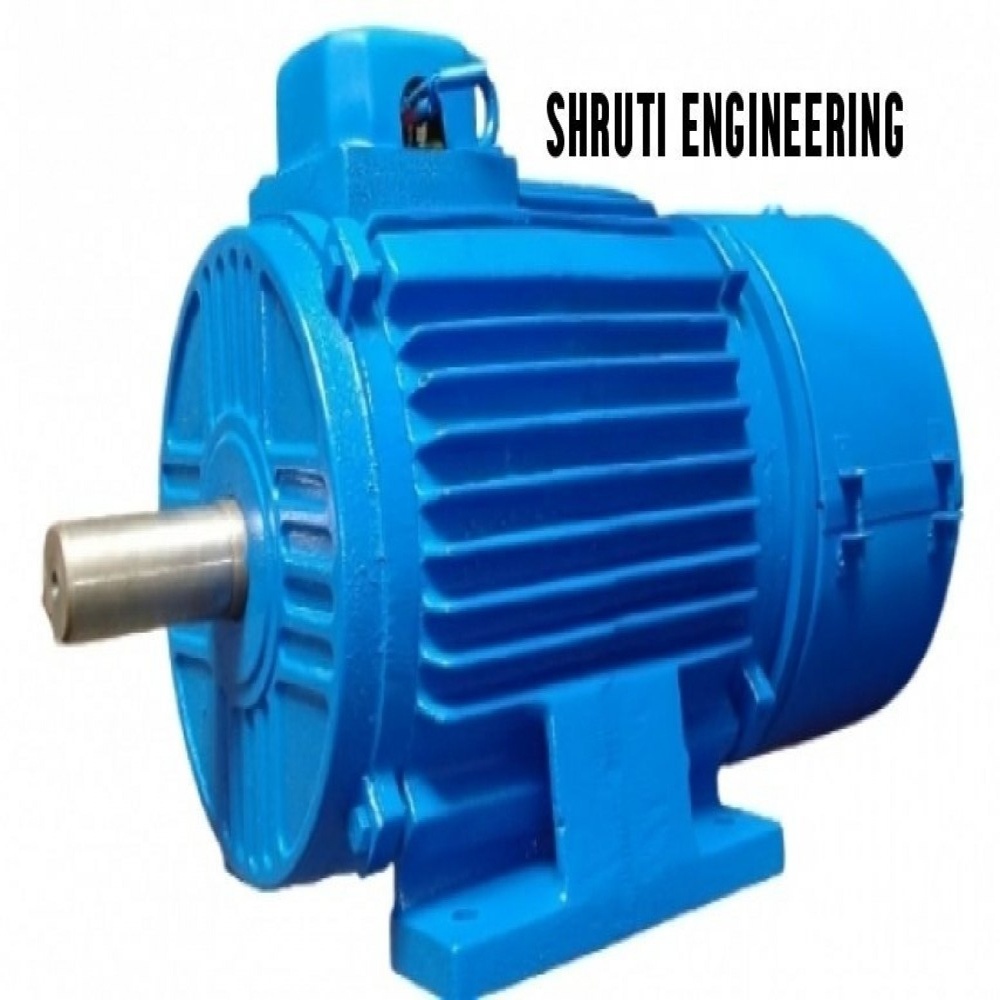

High Torque AC Brake Motor

High Torque AC Brake Motor Specification

Motor Type
AC Brake Motor

Torque
High Starting Torque

Efficacy
High Efficiency

Pressure
Standard Atmospheric

Voltage
415 V

Rated Frequency
50 Hz

Bearing Type
Ball Bearing

Rated Voltage
415 V

Power Rating
0.37 kW to 15 kW

Standard
IS:325, IEC

Features
Robust Construction, Long Service Life, Instant Braking

Sealed Type
Sealed Bearings

Horse Power
0.5 HP to 20 HP

Starting Type
Direct On Line / Star Delta

Ambient Temperature
-15C to +40C

Poles Number
2/4/6 Pole

Cooling Method
IC411 (TEFC)

Current Type
AC

Noise Level
Low Noise

Product Type
High Torque AC Brake Motor

Output Power
0.5 HP to 20 HP (customized range)

Frequency (MHz)
50/60 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Three Phase

Speed
1500/3000 RPM

Power
0.37 kW to 15 kW

Color
Blue

Dimension (L*W*H)
As per standard frame size

Weight
Varies as per model

Shaft Diameter
As per IEC/IS standards

Mounting Type
Foot / Flange Mounting

IP Rating
IP55

Frame Material
Cast Iron

Vibration
2.5 mm/s

Brake Type
Electromagnetic AC Brake

Control Voltage (for Brake)
230V AC / 415V AC

Insulation Class
Class F

Thermal Protection
Available on request

Rotor Type
Squirrel Cage

Application
EOT Cranes, Hoists, Elevators, Conveyors

Duty Cycle
S1 Continuous

Service Factor
1.15

High Torque AC Brake Motor About

Matching up with the exact requirements of customers, we are involved in presenting wide array of Brake Motor.
Features: Rugged design Reliable operation Accurate dimension Also Available: IE1, IE2, IE3 BRAKE MOTOR

Advanced Braking Technology

Equipped with an Electromagnetic AC Brake, this motor guarantees swift and reliable stopping power for enhanced operational safety. The brake operates on 230V or 415V AC control voltage, ensuring compatibility with various control systems, tailored for continuous heavy-duty use in industrial environments.

Versatile Applications and Mounting

Designed to perform under consistent, demanding conditions, this motor excels in EOT cranes, hoists, elevators, and conveyors. Its cast iron frame, foot/flange mounting, and customizable output power range make it adaptable to both existing and new equipment setups, supporting diverse industrial requirements.

Built for Durability and Efficiency

This AC brake motor features a totally enclosed fan cooled design (IC411 - TEFC), sealed bearings, and IP55 protection, ensuring longevity and minimal maintenance. Manufactured to IS:325 and IEC standards, it delivers high efficiency, low noise, and dependable performance over extended operational cycles.

FAQ's of High Torque AC Brake Motor:

Q: How does the electromagnetic AC brake ensure instant stopping in this motor?

A: The electromagnetic AC brake utilizes an electrical signal to engage the brake, instantly stopping the motor shaft when power is cut, providing quick, reliable braking essential for safety in cranes, hoists, and conveyors.

Q: What types of applications are best suited for this high torque AC brake motor?

A: This motor is ideal for applications requiring rapid stopping and high starting torque, such as EOT cranes, elevators, hoists, and conveyor systems in manufacturing, warehouses, and logistics operations.

Q: When should thermal protection be considered for this motor?

A: Thermal protection is available upon request and should be included in environments with frequent starts/stops or elevated ambient temperatures to safeguard against overheating and extend motor lifespan.

Q: Where can this AC brake motor be mounted in an industrial setup?

A: The motor supports both foot and flange mounting, making it versatile for integration into various equipment frames and machinery structures as per IEC/IS standard dimensions.

Q: What is the process for selecting the correct control voltage for the brake?

A: Choose between 230V AC or 415V AC control voltage based on your available site power supply and control panel setup to ensure reliable brake activation and system compatibility.

Q: What are the benefits of the totally enclosed fan cooled (TEFC) design?

A: The TEFC enclosure (IC411) protects the motor from dust, contaminants, and moisture, significantly reducing maintenance needs and ensuring consistent cooling for prolonged high-efficiency performance.
