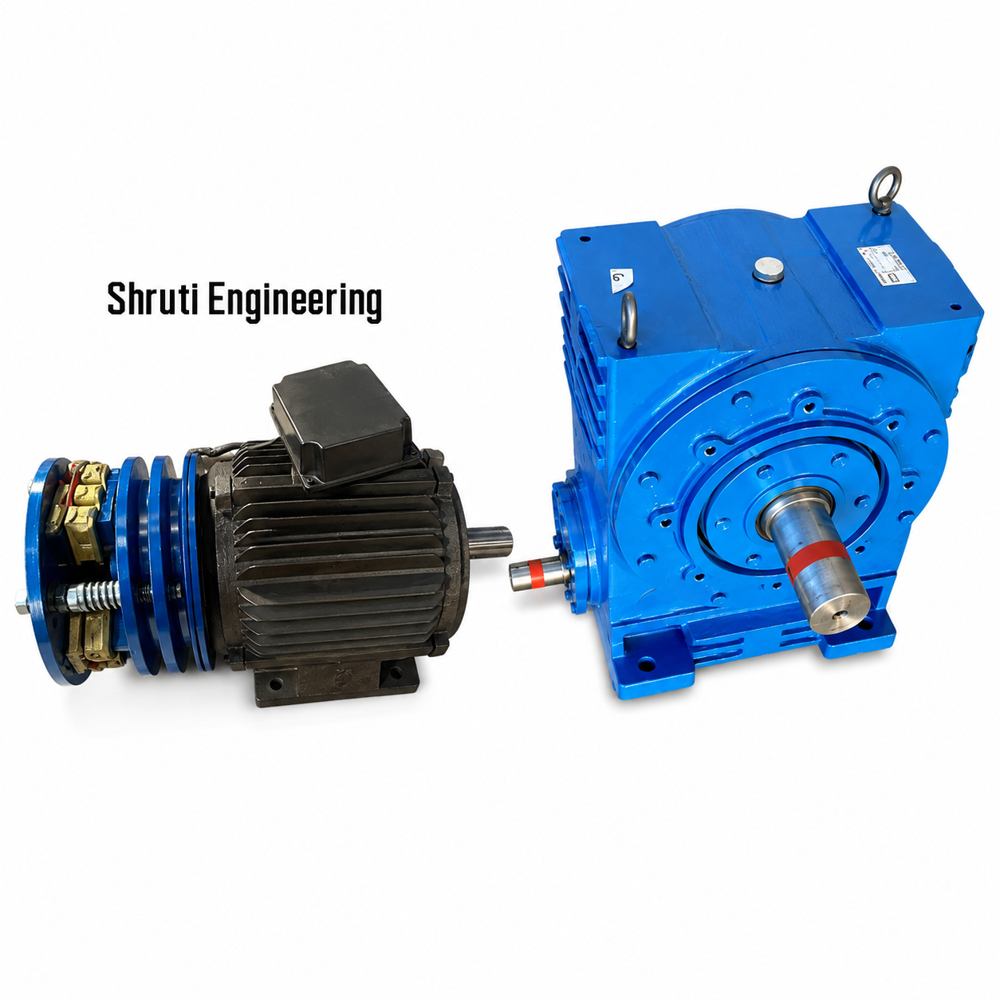

NXU GEAR BOX, NU GEAR MOTOR, NXU GEAR BRAKE MOTOR

ELECTRO HYDRAULIC THRUSTER

High Torque Gear Motor

High Torque Gear Motor Specification

Gear Type
Helical Gear / Worm Gear (configurable)

Material
High-strength alloy steel housing, heat-treated steel gears

Processing Type
Precision machined, case-hardened

Gear Tooth Profile
Helical / Spur type

Gearing Arrangement
Parallel shaft, right angle (customizable)

Direction
Reversible, bidirectional

Output Torque
Up to 12000 Nm (custom ratings available)

Rated Power
1.5 kW - 22 kW or more (customizable)

Input Speed
1400 - 1800 RPM (standard 4-pole motor)

Output Speed
10 - 200 RPM (customizable ratio)

Voltage
380V / 415V / 440V, 50/60 Hz, 3-phase

Efficiency
Up to 90% (based on gearing type and ratio)

Noise Level
Low noise, typically <75 dB(A)

Insulation Class
Class F / H

Lubrication
Grease or oil bath lubricated

Cooling Method
Surface cooling, fan-cooled motor

Duty Cycle
Continuous (S1)

Protection Class
IP55 (standard), higher upon request

Application
Heavy machinery, conveyors, material handling, mixers

Mounting Type
Foot-mounted / Flange-mounted options

About High Torque Gear Motor

We are indulged in manufacturing, supplying and exporting a wide gamut of Ac Geared Motors. This motor is designed and engineered in compliance with the international quality standards with the use of premium quality basic materials and components. Moreover, to meet the specific demands of clients, we provide these products in varied specifications.

Robust Engineering for Demanding Environments

These gear motors are meticulously designed to excel in tough environments within heavy industries, including mining, material handling, and process manufacturing. With IP55 standard protection, high-strength alloy steel construction, and precision machining, they provide exceptional resilience, durability, and stability under continuous, intensive operations. Optional enhancements and custom capabilities offer tailored solutions for specific operational needs.

Versatile Configurations and High Customizability

Offered with adaptable mounting (foot or flange), various cooling options, and multiple gearing and shaft configurations, these motors cater to diverse setups. Input speeds range from 1400 to 1800 RPM, with output speeds customizable between 10 and 200 RPM to fit different machinery requirements. Custom torque and power ratings are available, ensuring seamless integration into any application.

Efficient, Quiet Operation with Easy Maintenance

Benefit from highly efficient gearing arrangements delivering up to 90% efficiency and exceptionally low noise levels. Lubrication options include grease or oil bath for extended service intervals and reduced downtime. With continuous duty cycle capability and Class F/H insulation, our gear motors ensure dependable operation, minimal maintenance needs, and superior longevity.

FAQ's of High Torque Gear Motor:

Q: How are these high torque gear motors installed in machinery?

A: The gear motors can be installed using either foot-mounted or flange-mounted configurations, making them suitable for a wide variety of machinery layouts. The robust design also ensures stable and secure installation in most heavy-duty applications.

Q: What cooling methods are available for this gear motor?

A: Our motors can be ordered with surface cooling or integral fan-cooling to maintain optimal operating temperatures during continuous use. The cooling method can be selected based on the environmental conditions and application requirements.

Q: When should higher IP protection than IP55 be considered?

A: While IP55 is standard for effective protection against dust and water jets, higher IP ratings may be needed in environments with more severe dust, water ingress, or corrosive conditions. These can be provided upon request to match your specific site needs.

Q: Where can these gear motors be applied?

A: They are ideal for use in heavy machinery, conveyors, mixers, and material handling systems in industries such as mining, manufacturing, and logistics, where durable and powerful drive solutions are essential.

Q: What is the typical process for lubricating these motors?

A: These gear motors are available with either grease or oil bath lubrication. Lubrication intervals depend on operating conditions, and most units are designed for simplified maintenance, ensuring long service life and minimal downtime.

Q: How does the reversible, bidirectional design benefit users?

A: The reversible, bidirectional capability allows the motor to drive loads in either direction, increasing operational flexibility for processes that require frequent changes in rotation direction, such as conveyors or mixers.

Q: What are the key benefits of helical or worm gear configurations?

A: Helical gears offer high efficiency, smooth power transfer, and reduced noise, while worm gears provide high torque output and compact design. Both options are available, allowing users to choose the gearing that best fits their application requirements.
