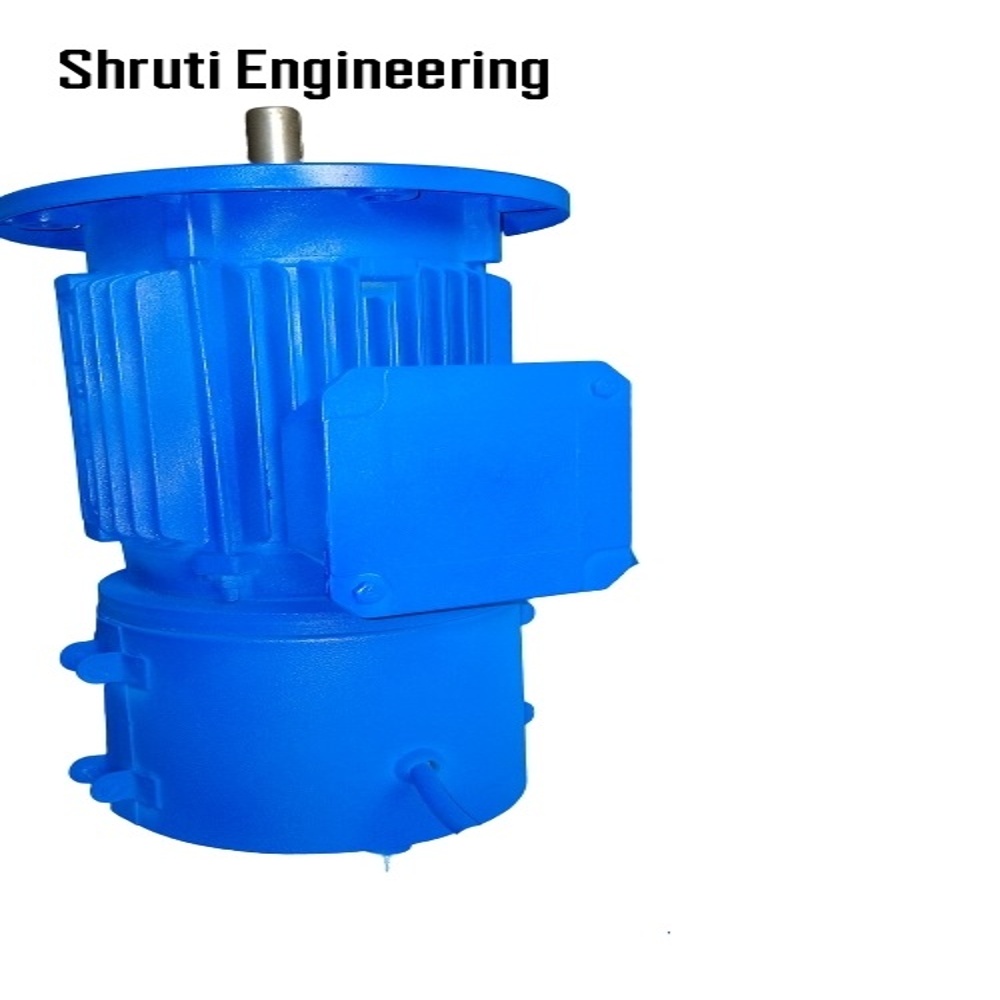

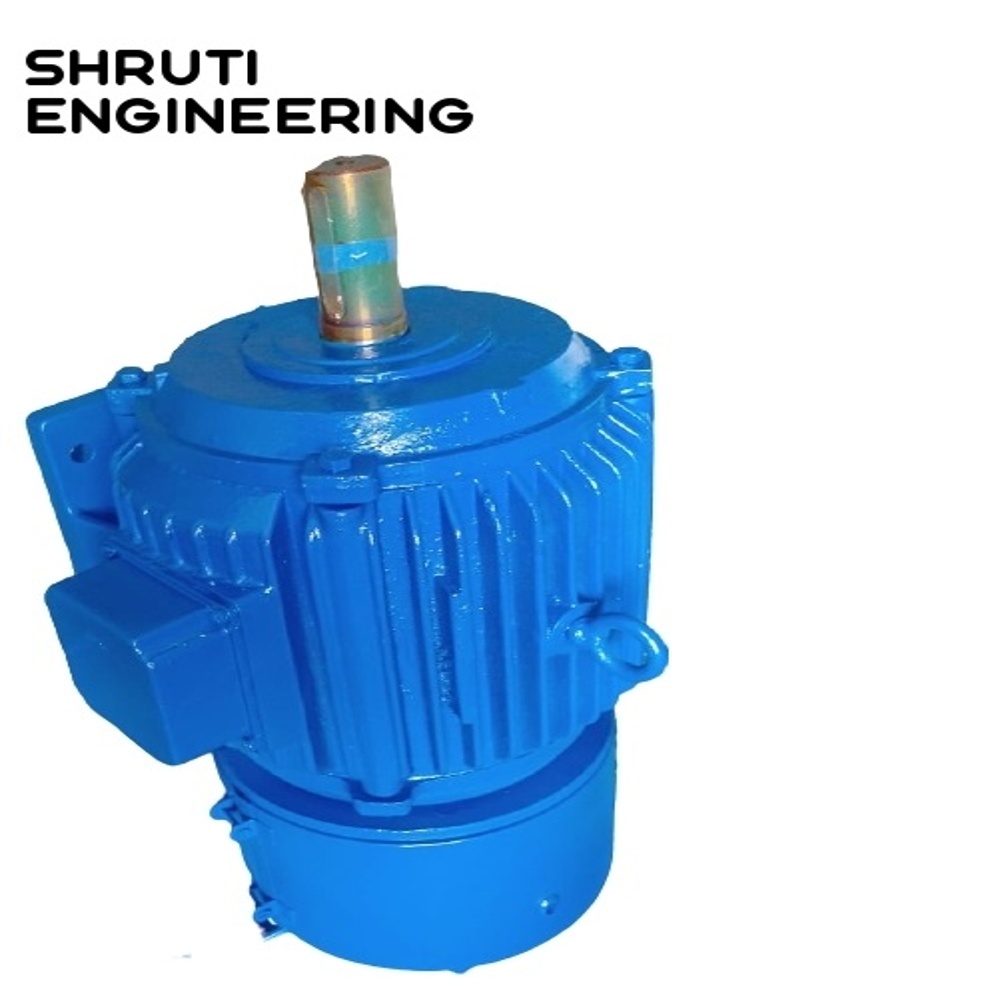

Hoist Brake Motor

Hoist Brake Motor Specification

Bearing Type
Deep groove ball bearing

Pressure
Standard atmospheric

Rated Frequency
50 Hz

Motor Type
Squirrel Cage Induction Motor with Electromagnetic Brake

Voltage
415V

Current Type
AC

Torque
High starting torque

Poles Number
2 / 4 Poles

Cooling Method
Force Cooled / Fan Cooled

Power Rating
As per requirement

Standard
IS 325, IS 4722, IEC

Features
Heavy duty, robust construction, easy maintenance

Efficacy
High Efficiency

Rated Voltage
415V

Starting Type
DOL / Star Delta

Noise Level
Low

Sealed Type
Sealed

Ambient Temperature
-20C to +50C

Horse Power
0.5 HP to 20 HP

Product Type
Hoist Brake Motor

Output Power
0.5 HP to 20 HP

Frequency (MHz)
50 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC), Overload Protected

Phase
Three Phase

Speed
1440 RPM / 2880 RPM

Power
0.37 kW to 15 kW

Color
Blue

Dimension (L*W*H)
Depends on model (customized available)

Weight
As per model (10 kg to 250 kg)

Shaft Diameter
Standard as per model

Mounting Type
Foot / Flange Mounting

IP Rating
IP55/IP65

Frame Size
71 to 180 L

Vibration
Low vibration design for smooth operation

Thermal Protection
Thermistor embedded (Optional)

Duty Cycle
S4/S5 (Intermittent duty as per hoist duty)

Enclosure
TEFC (Totally Enclosed Fan Cooled)

Rotation Direction
CW/CCW

Application
Hoists, Cranes, Elevators, Lifts

Material
High grade cast iron/Aluminium

Brake Voltage
110V/190V/415V AC & 24V/190V DC

Brake Type
AC/DC Electromagnetic Disc Brake

Insulation Class
Class F / Class H

Hoist Brake Motor About

With rich industrial experience we are involved in offering an extensive range of Foot Mounted Brake Motor. We offer these motors in both single phase and three phase finish as per the requirements of our clients. Moreover, these have long life and are reliable, thus highly appreciated among our clients. These can be availed at industry leading prices.

Features:

Various sizes
Cost effective
Durable

Specifications:

Output Power: 0.55-45 kw
Frequency: 50 Hz/60 Hz
Voltage: 36 V

Robust Construction for Industrial Applications

Built with high-grade cast iron or aluminium, these hoist brake motors are designed to endure rugged usage in hoists, cranes, elevators, and lifts. Their hardy construction ensures they withstand the rigors of heavy-duty industrial environments, delivering reliable performance over extended periods.

Advanced Safety and Protection Features

Safety is prioritized with features like Totally Enclosed Fan Cooled (TEFC) enclosures, optional thermistor thermal protection, and adherence to IS and IEC standards. These attributes guarantee protection against dust, moisture, and thermal overload, thereby reducing downtime and maintenance requirements.

Versatile Design with Customizable Options

Ranging from 0.5 HP to 20 HP and supporting voltages up to 415V, these motors come in multiple frame sizes and mounting types. They offer both CW and CCW rotation, with easily customizable dimensions and power ratings to fit various installation needs and performance specifications.

FAQ's of Hoist Brake Motor:

Q: How does the electromagnetic disc brake operate in this hoist motor?

A: The AC/DC electromagnetic disc brake functions by using an electromagnetic force to quickly stop and hold the motor shaft when power is cut, ensuring prompt braking for enhanced safety in hoist, crane, and lift applications.

Q: What benefit does the Totally Enclosed Fan Cooled (TEFC) enclosure provide?

A: The TEFC enclosure protects the motor from external contaminants such as dust, moisture, and debris, ensuring optimal cooling and extending the motor's lifespan in demanding industrial environments.

Q: When is the thermal protection with thermistor recommended?

A: Thermistor-embedded thermal protection is recommended when the motor is expected to face frequent overloads or operate in environments with high ambient temperatures. It helps prevent overheating and potential damage, preserving motor health.

Q: Where can these hoist brake motors be installed?

A: These motors are designed for installation in heavy-duty lifting equipment such as hoists, cranes, elevators, and lifts across manufacturing, construction, and logistic facilities, thanks to their robust build and versatile mounting options.

Q: What is the process for selecting the appropriate frame size and power rating?

A: Choosing the right frame size and power rating involves evaluating application requirements such as load, duty cycle, and mounting type. Customized dimensions and power ratings are available to match specific operational needs.

Q: How does the low vibration design improve motor usage?

A: The low vibration design enhances operational smoothness, minimizes mechanical wear, and lowers noise levels, thus improving safety and comfort for both operators and equipment.
