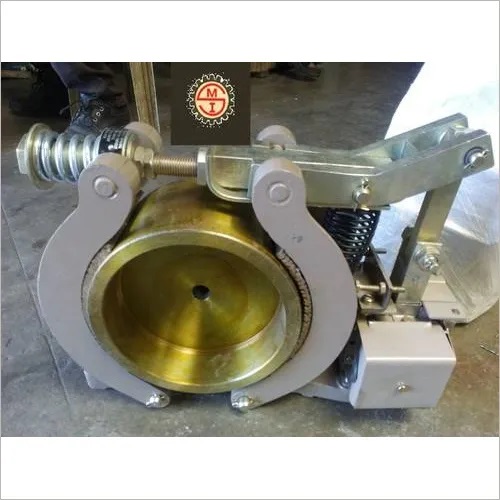

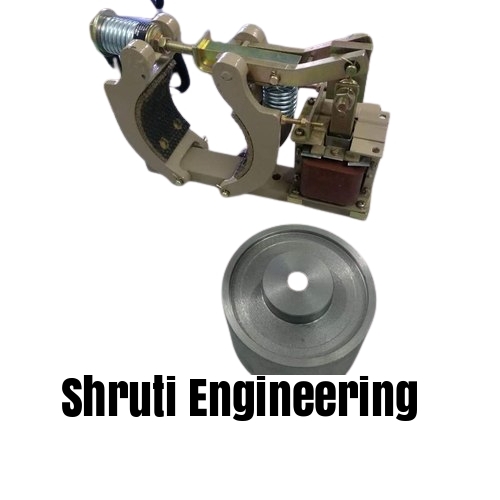

Hoist Solenoid Brake

Hoist Solenoid Brake Specification

Vehicle Type
Not applicable, Industrial Machinery

Thickness
Brake Lining: 8-12 mm

Pressure
Spring Loaded Mechanical Pressure

Shape
Rectangular Frame, Drum Type

Material
High-grade Cast Iron and Steel Components

Loading Capacity
Up to 24 Tonnes

Diameter
100 mm to 400 mm

Power
Electromagnetic

Voltage
220V/415V AC

Application
Overhead Hoists, Cranes, Material Handling Equipment

Control
Manual or Electric Release

Response Time
Instantaneous (Milliseconds)

Duty Cycle
Continuous/Intermittent

Noise Level
Low Noise Operation

Frequency
50 Hz/60 Hz

Operating Temperature
-10C to 70C

Insulation Class
Class F or H

Mounting Type
Foot Mounted

Finish
Painted/Coated for Corrosion Resistance

About Hoist Solenoid Brake

The Solenoid Brake is a high-performance electromagnetic brake designed for industrial machinery, cranes, hoists, conveyors, and material handling systems. It uses an AC solenoid mechanism to release the brake when energized, and automatically applies the brake when power is OFF, ensuring fail-safe and secure braking in all operating conditions.

Built with a rugged cast iron body, precision steel linkages, and long-lasting friction liners, the Solenoid Brake delivers powerful braking torque, smooth operation, and excellent durability even in continuous-duty environments.

Reliable Corrosion Resistance

Protected by a durable painted or coated surface, the solenoid brake resists corrosion, ensuring consistent operation and long-term performance even in challenging industrial environments. This prolongs equipment life and reduces maintenance costs.

Instantaneous Braking Response

Benefit from near-instant stopping power, as the advanced solenoid mechanism responds within milliseconds. This makes the brake ideal for applications where safety and precise control are paramount, such as overhead cranes and hoists.

Flexible Control & Duty Cycles

Choose between manual or electric release to suit varied operational preferences. Designed for both continuous and intermittent use, the brake offers reliable performance under heavy workloads, maximizing uptime in demanding settings.

FAQ's of Hoist Solenoid Brake:

Q: How is the Hoist Solenoid Brake mounted in industrial setups?

A: The brake is foot-mounted, allowing secure fixing on machinery frames or platforms, which is ideal for overhead hoists, cranes, and material handling equipment.

Q: What are the benefits of the painted/coated finish on the solenoid brake?

A: The painted or coated finish provides excellent resistance to corrosion, extending the brake's lifespan and ensuring reliable operation in harsh industrial environments.

Q: When should you consider using this brake for your applications?

A: This brake is suitable for use in conditions requiring rapid response times and high load capacities, particularly in material handling, overhead cranes, and industrial machinery operating in variable temperatures from -10C to 70C.

Q: Where can the Hoist Solenoid Brake be applied?

A: It's ideal for overhead hoists, cranes, and various types of industrial and material handling equipment in manufacturing plants or warehouses, but not for vehicles.

Q: What is the process for releasing the brake during operation?

A: The brake can be released either manually or electrically, providing flexibility in control according to your system's requirements.

Q: How does the brake ensure safety with high load capacities?

A: Through a spring-loaded mechanical pressure system and high-grade construction, the brake can reliably hold and release loads up to 24 tonnes, minimizing risk during operation.
