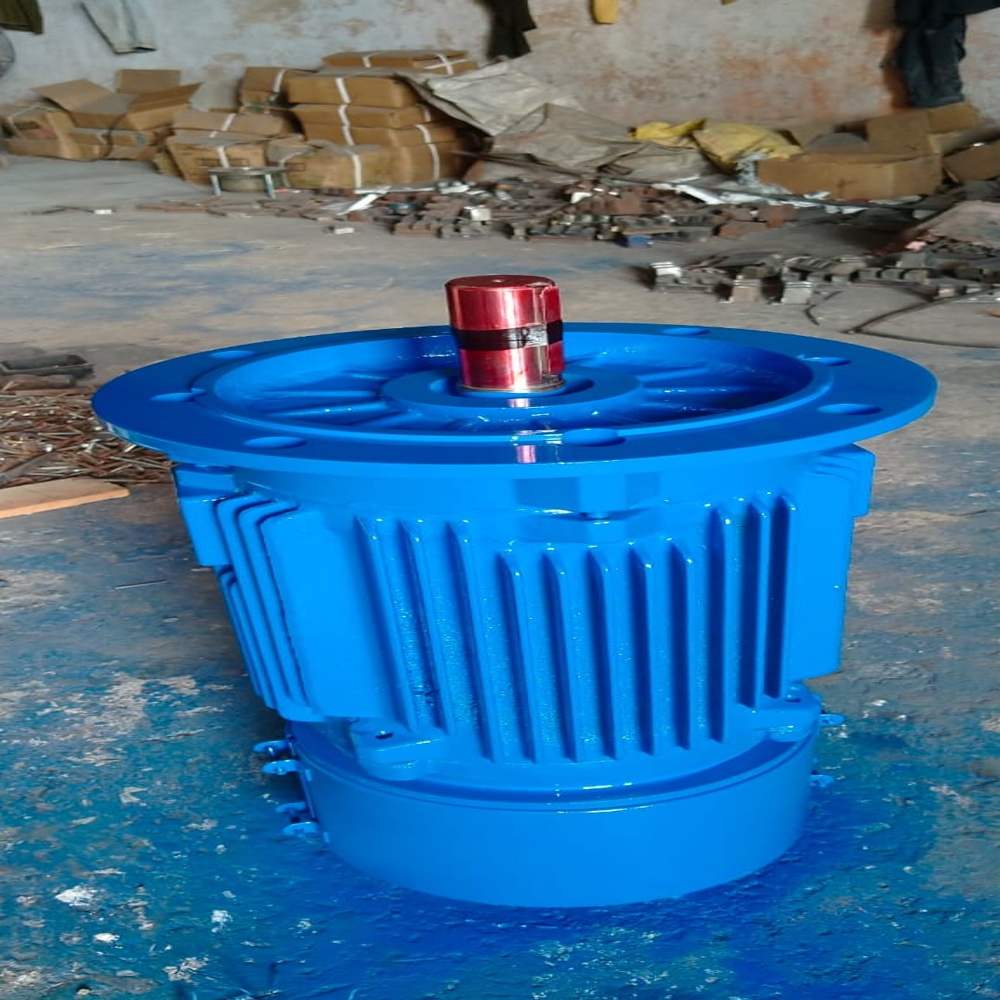

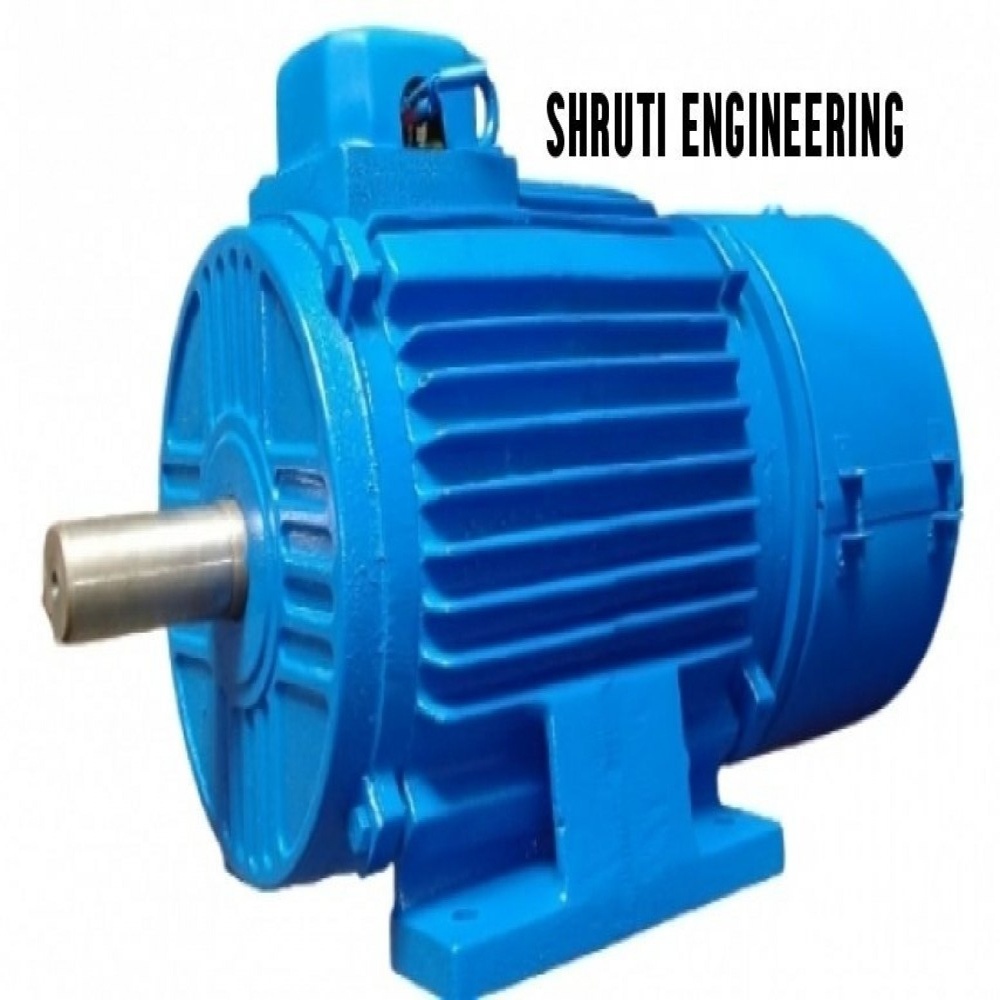

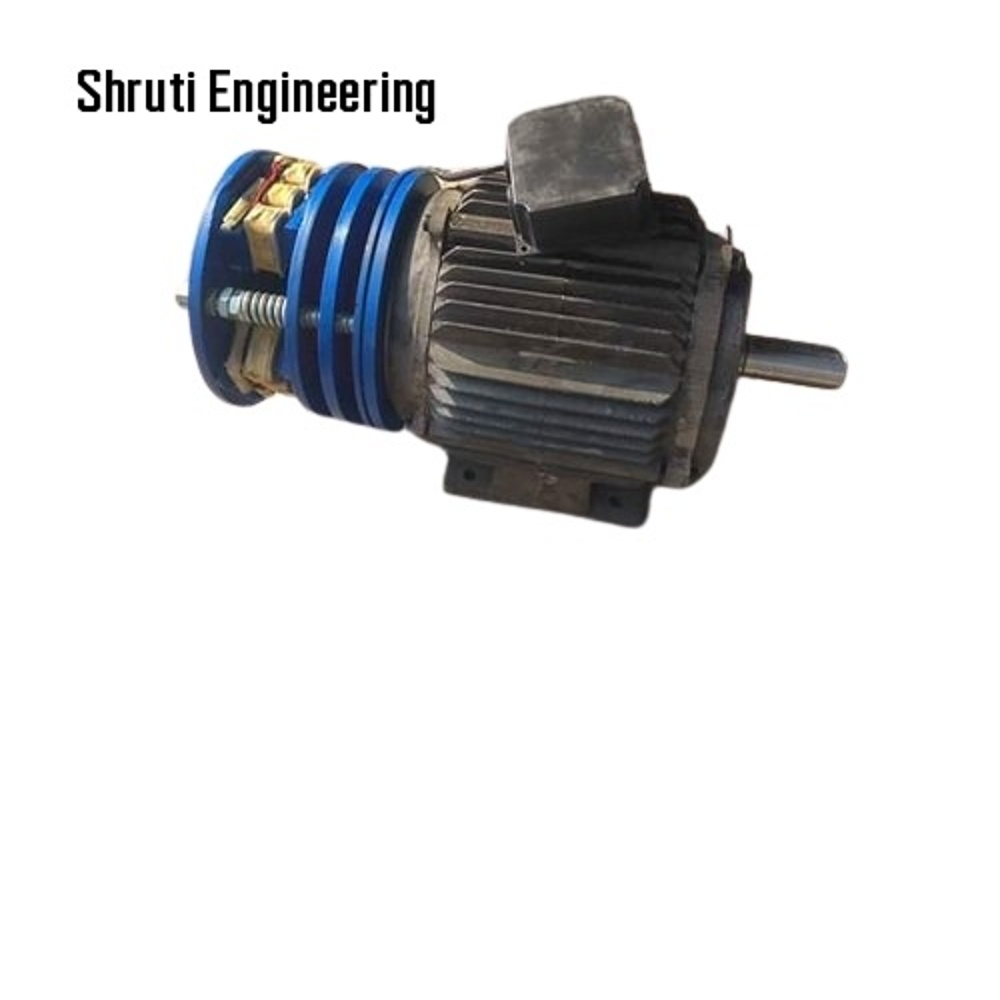

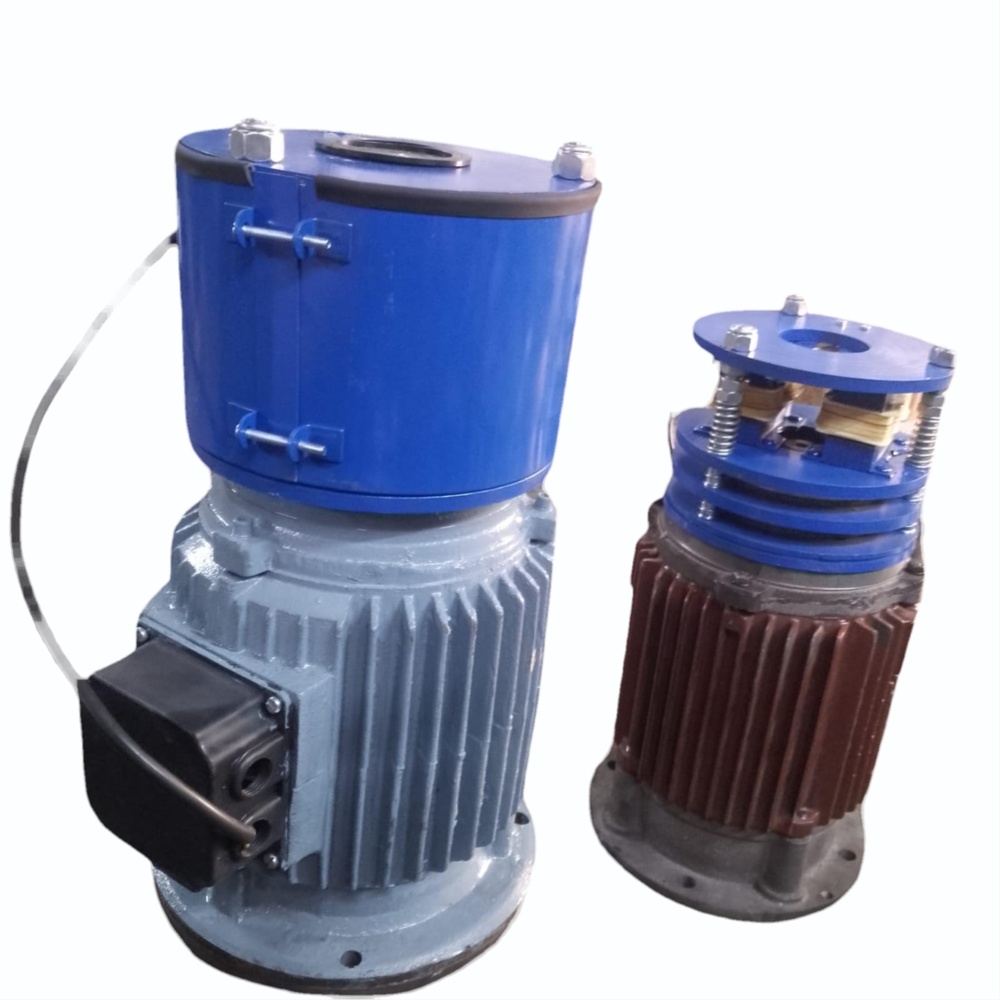

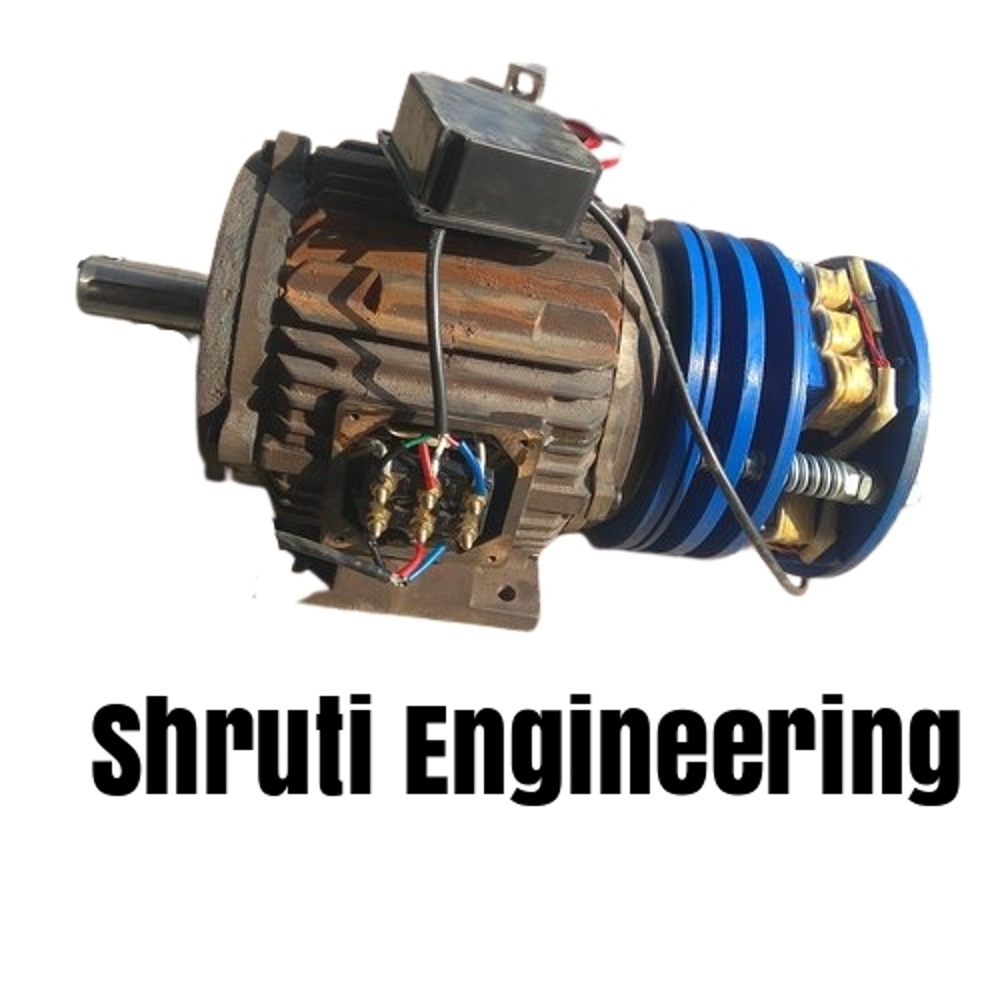

Industrial AC Brake Motor

Industrial AC Brake Motor Specification

Ambient Temperature
-15C to +50C

Rated Frequency
50 Hz

Power Rating
Up to 22 kW

Horse Power
0.5 HP to 30 HP

Sealed Type
Totally Enclosed Fan Cooled (TEFC)

Starting Type
Direct On Line (Repeated)

Efficacy
IE2/IE3 (Repeated)

Voltage
415V AC

Noise Level
Low

Standard
IS 325/IEC

Bearing Type
Deep Groove Ball Bearing

Rated Voltage
415 V

Cooling Method
Fan Cooled

Motor Type
AC Brake Motor

Poles Number
2/4 Pole (as specified)

Torque
High Starting Torque

Features
Robust design, low maintenance, high efficiency, rapid braking

Pressure
Atmospheric

Current Type
AC

Product Type
Industrial AC Brake Motor

Output Power
0.37 kW to 22 kW (varies with model)

Frequency (MHz)
50 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Three Phase

Speed
1440 RPM / 2880 RPM

Power
0.5 HP to 30 HP (varies with model)

Color
Blue

Dimension (L*W*H)
Depends on Model (Standard Frame Sizes)

Weight
Depends on Model

Shaft Diameter
Depends on Motor Frame

Mounting Type
Foot/Flange Mounted (B3/B5)

IP Rating
IP55

Application
Cranes, Hoists, Conveyors, Material Handling Equipment

Thermal Protection
Thermistor/Temperature Sensor provided on request

Overload Capacity
150% of Rated Load for 60 seconds

Insulation Class
F / H Class

Brake Voltage
415V AC or customized

Direction of Rotation
Reversible

Brake Type
Electromagnetic AC Brake

Ambient Humidity
Up to 95% RH (Non-condensing)

Enclosure Type
TEFC (Totally Enclosed Fan Cooled)

Frame Material
Cast Iron

Duty Cycle
S1 (Continuous Duty)

Rotor Type
Squirrel Cage Induction

About Industrial AC Brake Motor

Clients can avail from us high quality Passenger Lifts. Our experts manufacture these lifts under the close supervision of our highly experienced professionals using high quality material. Furthermore, we offer customization facility of the offered range at reasonable rates.

Features:

Rust-proof body
Tough construction
Highly efficient

Price range starts from 2016 to 10752 for .25hp to 15hp

Specifications:

Output Power: 200-2240 kw
Frequency: 50/60 hz
AC Voltage: 380 V

High-Performance Electromagnetic Braking

The built-in electromagnetic AC brake mechanism provides rapid and reliable stopping power, essential for safety and positioning accuracy. The braking voltage can be customized to meet specific operational requirements, while the robust design delivers consistent performance even under continuous load.

Engineered for Challenging Environments

Constructed with a cast iron frame and Totally Enclosed Fan Cooled (TEFC) enclosure, this motor withstands harsh industrial conditions, including 95% RH ambient humidity and dust exposure. The motor meets IP55 standards, ensuring optimal protection and dependable operation across a variety of climates.

Flexible Usage and Easy Integration

Offered in a broad power range and various frame sizes, this AC Brake Motor is suitable for diverse equipment such as cranes, hoists, and conveyors. With options for foot or flange mounting (B3/B5) and reversible rotation, the motor easily adapts within different systems, facilitating straightforward installation and seamless integration.

FAQ's of Industrial AC Brake Motor:

Q: How does the electromagnetic AC brake in this motor function?

A: The electromagnetic AC brake is engaged by applying a 415V AC supply (or customized voltage). When the power supply is cut, the brake activates instantly, providing rapid and controlled stopping of the motor shaft for enhanced safety and precise load handling.

Q: What are the main benefits of using this AC brake motor in material handling equipment?

A: This motor delivers robust performance, rapid braking, and high efficiency, minimizing downtime and maximizing operational safety. Its continuous duty cycle (S1) and high starting torque make it particularly suitable for applications like cranes, hoists, and conveyors.

Q: When should I request a thermistor or temperature sensor for this motor?

A: A thermistor or temperature sensor is recommended if your application involves frequent starts, high ambient temperatures, or critical safety requirements. It offers real-time monitoring to prevent overheating and extends motor lifespan.

Q: Where is the best environment to install this AC brake motor?

A: This motor is ideal for use in industrial settings with ambient temperatures ranging from -15C to +50C and non-condensing humidity levels up to 95%. The TEFC enclosure and IP55 rating also protect it from dust and water exposure.

Q: What process should I follow for mounting the motor?

A: Depending on the application, the motor can be mounted either by foot (B3) or flange (B5). Mounting should adhere to standard frame sizes, secure alignment, and manufacturer's installation guidelines to ensure proper function and longevity.

Q: How does the Totally Enclosed Fan Cooled (TEFC) enclosure enhance motor performance?

A: The TEFC enclosure prevents dust, moisture, and contaminants from entering the motor, which prolongs service life and ensures consistent cooling. This reduces maintenance requirements and enhances reliability in demanding industrial applications.

Q: What applications are ideal for this AC brake motor model?

A: Primarily designed for material handling equipment, it excels in cranes, hoists, conveyors, and similar machinery requiring reliable braking and high starting torque in continuous duty operations.
