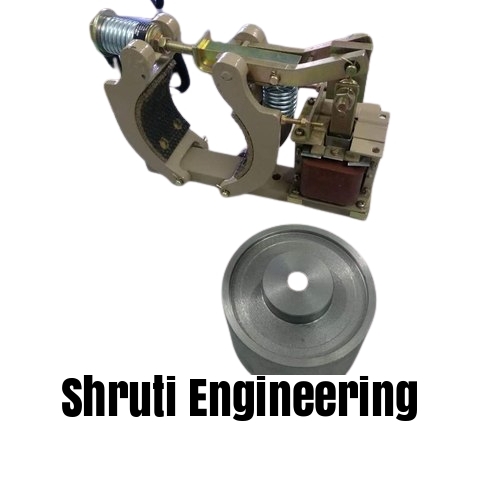

Industrial Ac solenoid brake 7

Industrial Ac solenoid brake 7 Specification

Pressure
Electromagnetic force-induced clamping

Thickness
Brake lining thickness: 10 mm (approx.)

Shape
Round (Drum type brake)

Vehicle Type
Industrial machinery (Not for on-road vehicles)

Material
Cast Iron/Steel

Loading Capacity
Upto 2000 kg (varies by model)

Diameter
100 mm to 600 mm

Power
AC operated (typically 415V/230V, 50Hz)

Voltage
AC 220V / 415V

Application
Hoists, Cranes, Elevators, Conveyors, Material Handling Equipment

Braking Torque
Adjusted as per requirement (varies with size/model)

Insulation Class
Class F or H

Finish
Rustproof, powder coated/painted

Mounting
Foot mounted

Operating Temperature
-10C to +60C

Brake Drum Material
High-grade cast iron

Control
Electromagnetic AC Solenoid

Response Time
Fast, suitable for repeated operations

Release Type
Spring loaded, electromagnetic release

About Industrial Ac solenoid brake 7

Type	Solenoid
Phase	3
Operating Voltage	440
Frequency	50
Brand	Shruti
Usage/Application	Industrial

Minimum order quantity: 1 Number

AC brakes:
4 Dia
5.5 Dia
7 Dia
Drums
Features
Class F insulation of the coil
Continuous & intermittent duty
Long life & ease of maintenance
Ideally suited for applications such as :
Cranes

Hoists
Machines
Valves
Conveyers

Robust Design for Industrial Applications

Constructed from cast iron and steel, and finished with rustproof powder coating, this solenoid brake is purpose-built for heavy-duty use across a spectrum of material handling equipment. Its foot mounting facilitates easy installation, while the round, drum-type configuration ensures compatibility with various industrial machines.

Electromagnetic and Spring-Loaded Release

This brake system features an electromagnetic solenoid for swift actuation and a spring-loaded mechanism for secure holding force. This dual-action design enables fast and consistent response, ideal for machinery requiring quick and reliable braking, with easy adjustment of torque to match specific operational needs.

Enhanced Safety and Longevity

With insulation class F or H, high-grade brake linings, and a robust finish, this brake is engineered for longevity in harsh environments. The product provides stable operation in temperatures from -10C to +60C, protecting your equipment and workforce while reducing maintenance requirements.

FAQ's of Industrial Ac solenoid brake 7:

Q: How does the AC solenoid brake function in industrial machinery?

A: The AC solenoid brake operates by using electromagnetic force to clamp the brake drum, stopping or holding the motion of industrial equipment. When electrical power is supplied, the solenoid actuates the brake, providing a fast and reliable response. Once the power is cut, a spring-loaded release mechanism disengages, enabling smooth equipment operation.

Q: What types of applications are suitable for this solenoid brake?

A: This solenoid brake is ideal for hoists, cranes, elevators, conveyors, and other material handling equipment in industrial settings. Its high load capacity (up to 2000 kg) and rapid response time make it suitable for repeated operations and environments requiring stringent stopping and holding requirements.

Q: When should the braking torque be adjusted, and how is it determined?

A: Braking torque should be adjusted to match the weight, speed, and operational requirements of your specific machinery. The proper setting is generally based on the size and model of the brake and the application's unique demands. Consult the supplied manual or contact the manufacturer for precise adjustment guidelines.

Q: Where can this brake be installed, and what mounting does it require?

A: This brake is specifically designed for foot-mounted installation and is compatible with various industrial machines that utilize drum-type braking systems. The mounting setup ensures stability and ease of integration into new or existing equipment.

Q: What are the benefits of a spring-loaded, electromagnetic release in this brake?

A: The combination of spring-loaded and electromagnetic release guarantees quick engagement and disengagement, enhancing operational safety and machine responsiveness. This dual-action mechanism helps maintain secure holding, especially in emergency or power-failure situations.

Q: How does the rustproof, powder-coated finish enhance brake longevity?

A: The rustproof, powder-coated or painted surface protects the brake from corrosion and environmental wear, providing enhanced durability and reducing the need for frequent maintenance, even in challenging industrial environments.
