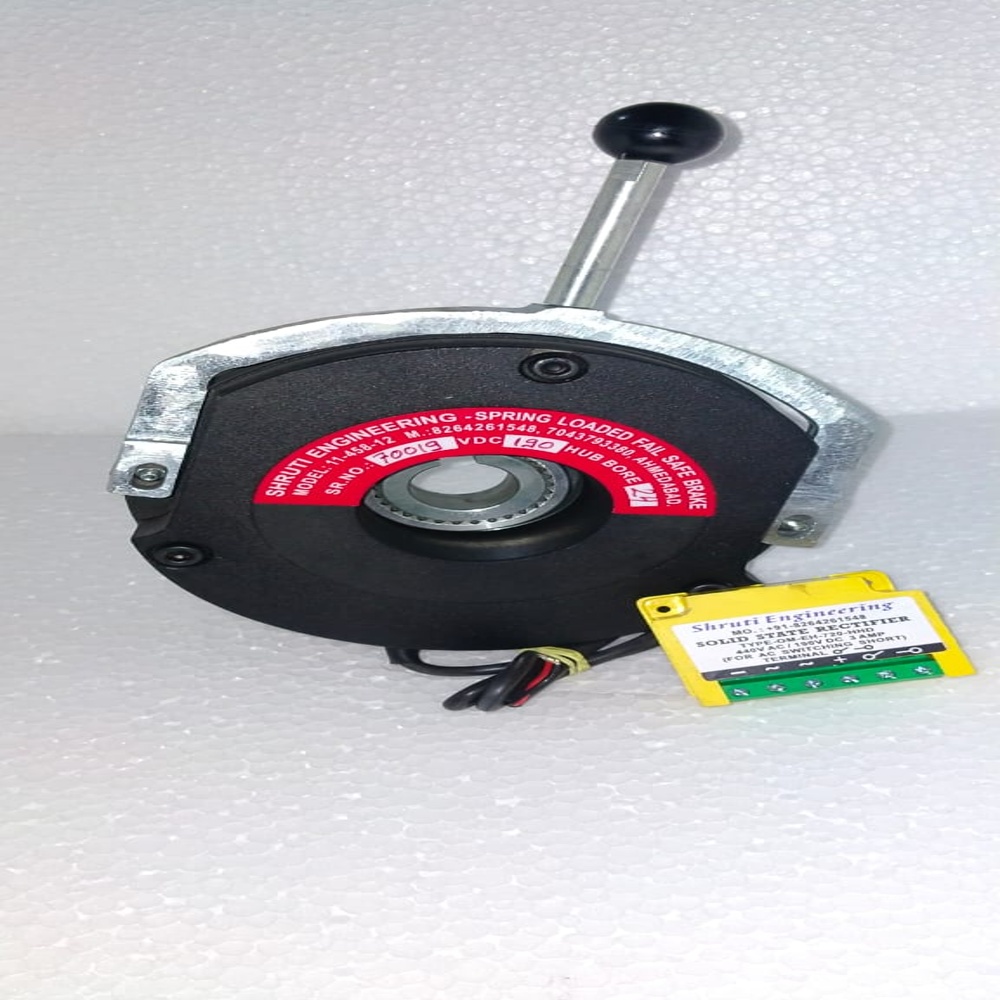

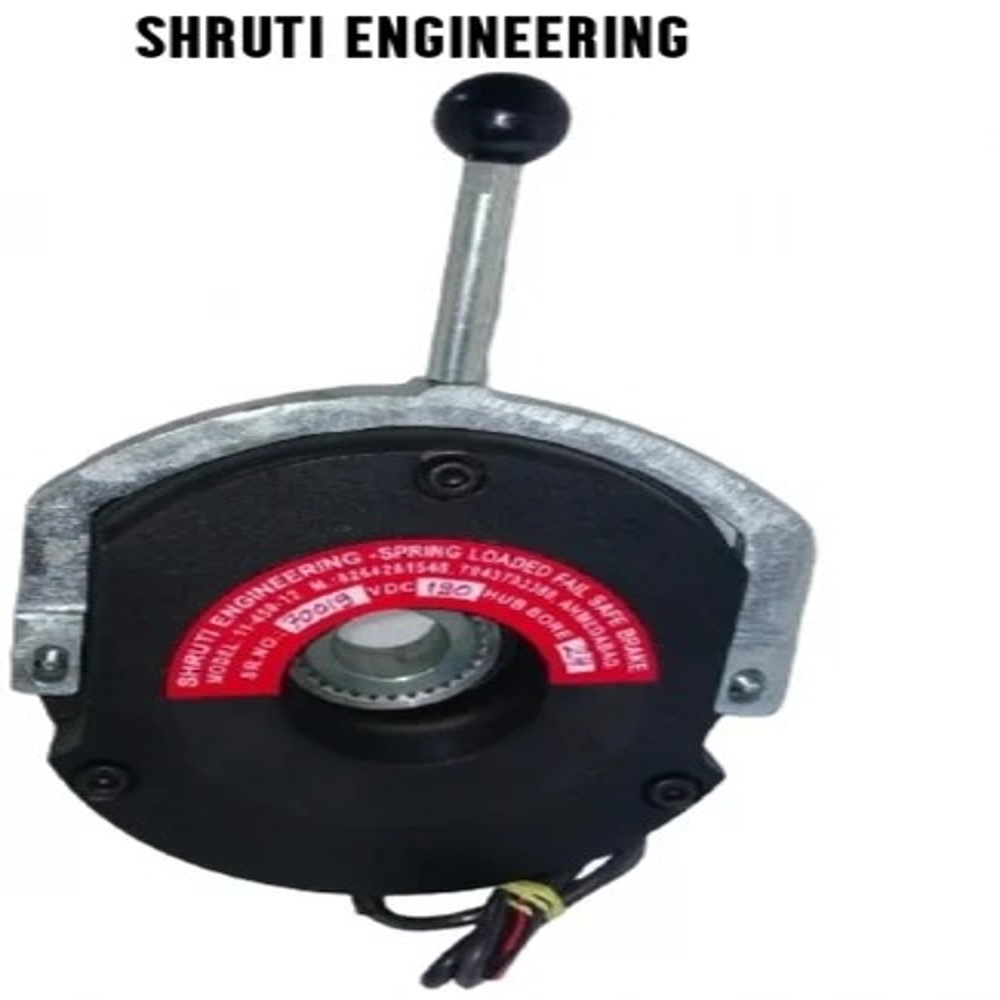

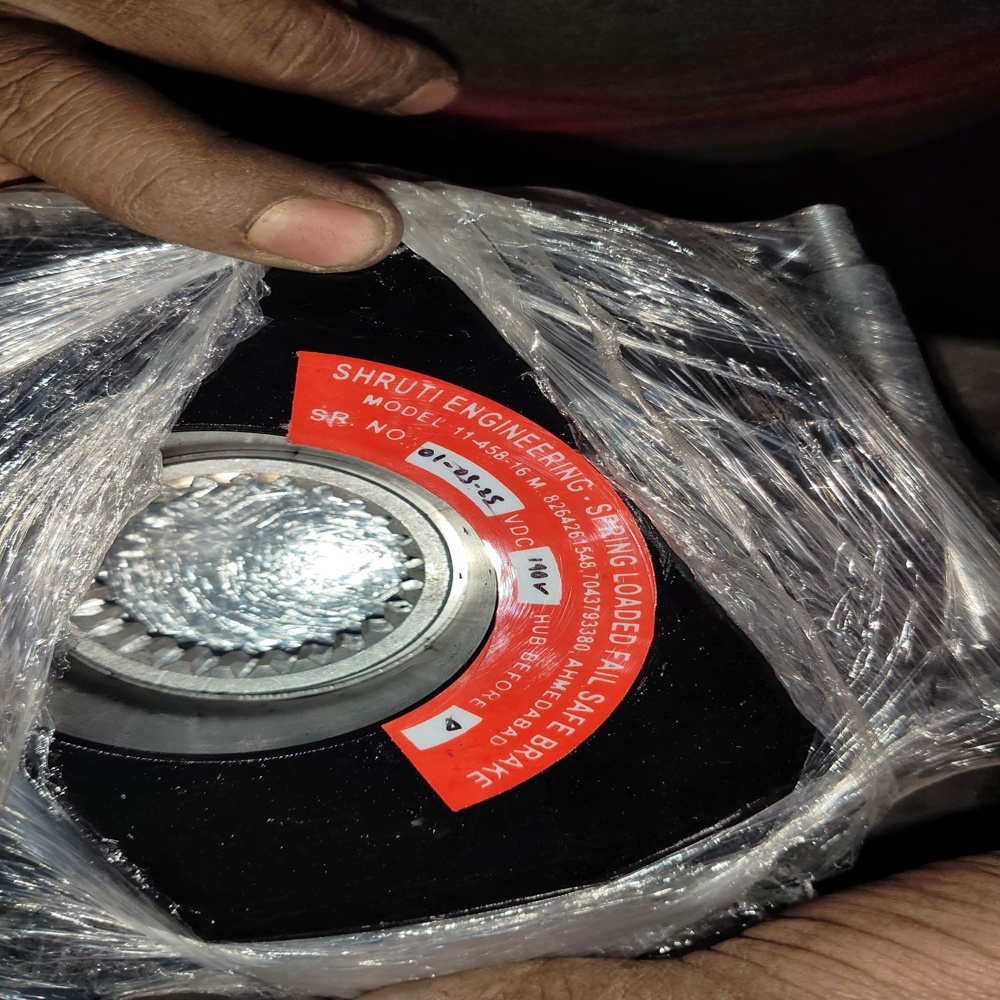

Industrial DC Brake

Industrial DC Brake Specification

Shape
Round (Disc-shaped brake)

Thickness
20 mm to 50 mm (Varies depending on brake plate type and size)

Pressure
Spring-Loaded (Uses mechanical spring pressure for braking force)

Vehicle Type
Industrial Equipment (Not for road vehicles)

Material
Cast Iron / Steel (Enclosed construction as commonly used for heavy-duty brakes)

Loading Capacity
Up to 10,000 kg (Varies by model and application)

Diameter
150 mm to 300 mm (Typical sizes for such industrial DC brakes)

Power
15 W to 100 W (Typical power input for coil operation)

Voltage
24V / 110V / 190V DC (Multiple DC voltage options available for electromagnetic brake coils)

Application
Cranes, Hoists, Elevators, Heavy Machinery, Conveyors, Industrial Automation

Protection
IP54 to IP65 (Dust and water resistant enclosure possible)

Insulation Class
Class F or H (Heat resistant for industrial use)

Ambient Temperature
-10C to +50C

Braking Method
Fail-Safe (Spring Loaded, Electromagnet Released)

Mounting Type
Flange Mounted

Finish
Powder Coated for Corrosion Resistance

Response Time
20-50 ms (Fast acting for critical machinery)

Noise Level
<70 dB

Duty Cycle
S1/S2 Continuous & Intermittent (Industrial Standards)

Industrial DC Brake Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5-7 Days

About Industrial DC Brake

The Spring Loaded Fail Safe Brake is a high-performance safety braking system designed for cranes, hoists, elevators, conveyors, and industrial machinery. This brake works on a fail-safe principle, where power ON releases the brake and power OFF automatically applies it, ensuring maximum safety, secure load holding, and reliable stopping in all operating conditions.

The braking force is generated by compressed springs, while the release mechanism is powered by an electromagnetic coil. Built with heavy-duty cast iron/steel components, precision friction discs, and long-life springs, this brake provides smooth operation, high torque, and long service lifeeven in continuous-duty industrial environments.

Advanced Fail-Safe Braking for Industrial Safety

Our flange-mounted DC brakes use a mechanical spring-loaded system that automatically engages during power failures. This fail-safe design ensures rapid halting of critical machinery, significantly improving operational safety in cranes, hoists, elevators, and other heavy-duty industrial automation systems.

Engineered for Harsh Industrial Conditions

Manufactured from cast iron or steel with powder-coated finishes, these brakes are built to resist corrosion and endure tough environments. Class F or H insulation allows them to operate in ambient temperatures ranging from -10C to +50C, and enclosures rated IP54 to IP65 offer reliable protection against dust and water.

Flexible Applications and Quick Response

Available in various sizes and loading capacities, these brakes cater to diverse industrial needs. Their fast 20-50 ms response time makes them suitable for equipment demanding immediate stopping power-keeping both equipment and personnel safe. Multiple DC input voltages enhance compatibility with different systems.

FAQ's of Industrial DC Brake:

Q: How is the industrial DC brake mounted in heavy machinery?

A: This brake is flange-mounted, allowing secure attachment to various types of heavy machinery such as cranes, hoists, and conveyors. The flange mounting ensures stability and ease of maintenance in industrial settings.

Q: What braking method does the fail-safe system use, and how does it enhance safety?

A: The brake employs a spring-loaded, electromagnet-released fail-safe mechanism. When power fails, the spring engages the brake instantly, preventing machinery from moving unexpectedly and thereby enhancing operational safety.

Q: When should I consider using a brake with Class F or H insulation?

A: Use Class F or H insulated brakes when your application operates in high-temperature or heavy-duty environments, as these insulation classes provide heat resistance suitable for continuous or intermittent duty cycles.

Q: Where can this type of brake be used effectively?

A: These brakes are ideal for industrial equipment such as cranes, hoists, elevators, conveyors, and automation systems-anywhere heavy loads require reliable stopping and holding power.

Q: What is the typical process of activating and releasing the brake?

A: During normal operation, an electromagnetic coil releases the brake. In the event of power loss or when stopping is required, spring pressure quickly engages the brake, ensuring rapid and secure stopping.

Q: How does the IP54-IP65 protection rating benefit users?

A: IP54 to IP65 ratings protect the internal components from dust and water ingress, which is crucial in harsh industrial environments, prolonging brake life and reducing maintenance demands.

Q: What are the main benefits of powder-coated cast iron/steel construction?

A: Powder coating provides excellent corrosion resistance, while the enclosed cast iron or steel construction delivers high durability, making the brake suitable for continuous exposure to demanding and corrosive industrial environments.
