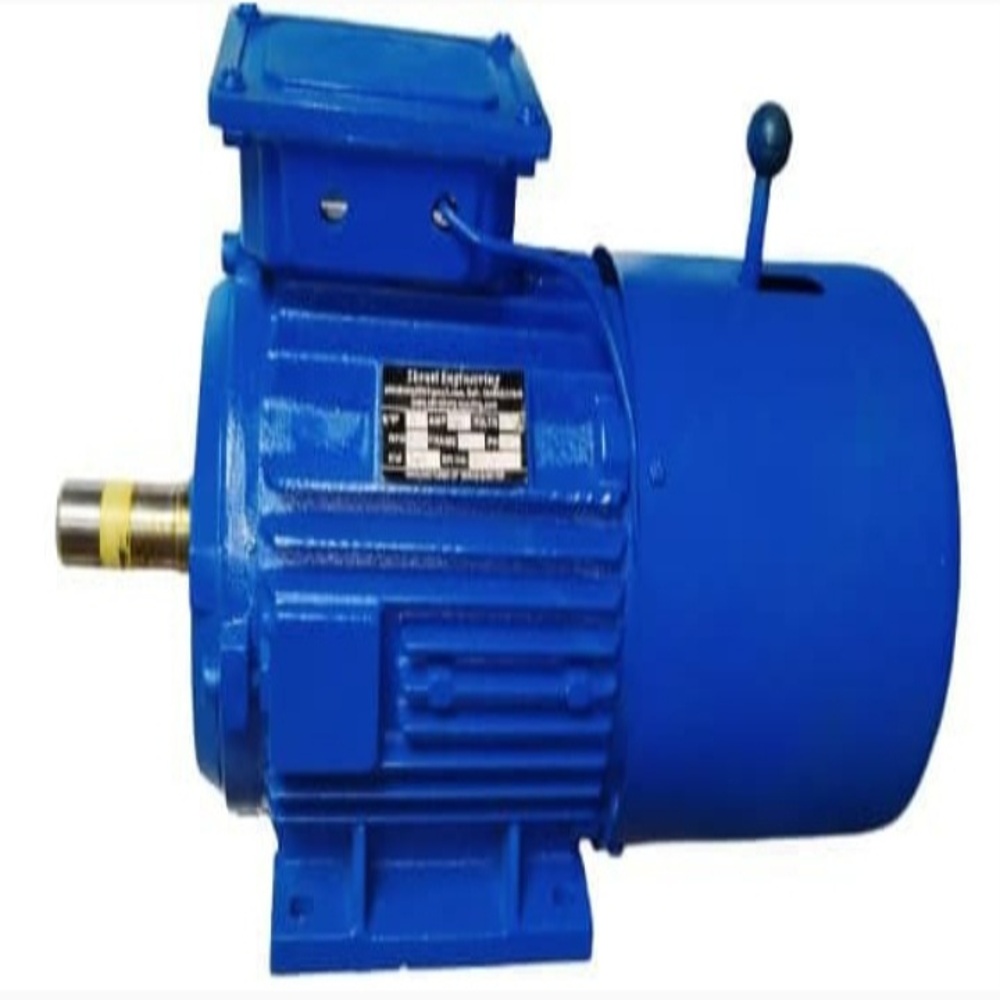

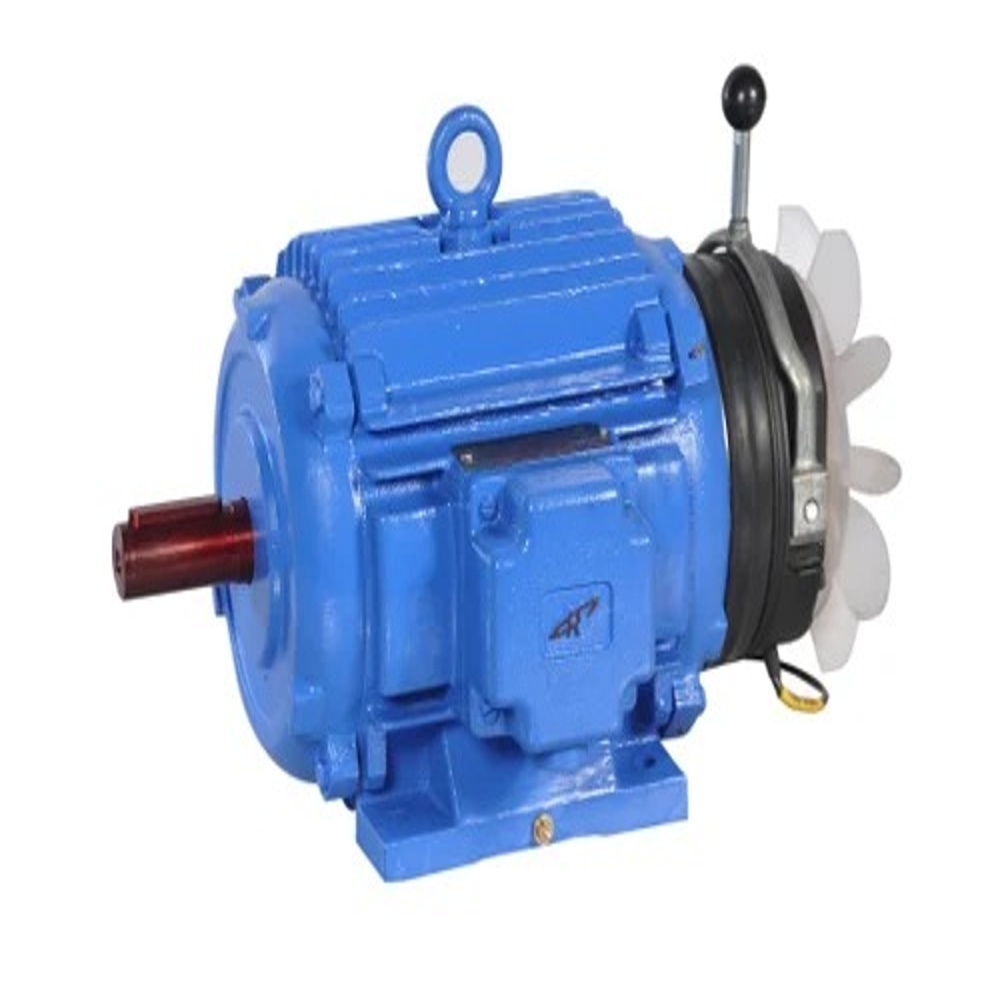

Industrial DC Brake Motor

Industrial DC Brake Motor Specification

Noise Level
Low

Starting Type
Direct On Line (DOL)

Pressure
Standard Atmospheric

Standard
IS: 325, IS: 4722

Ambient Temperature
Up to 45C

Rated Voltage
415 V

Current Type
AC Supply, DC Brake

Rated Frequency
50 Hz

Torque
High Starting Torque

Features
Quick Braking, High Reliability, Rugged Construction

Bearing Type
Deep Groove Ball Bearing

Power Rating
0.18 kW to 15 kW

Horse Power
0.25 HP to 20 HP

Voltage
415 V AC

Sealed Type
TEFC (Totally Enclosed Fan Cooled)

Cooling Method
Fan Cooled

Efficacy
IE2/IE3 Efficiency Class

Poles Number
2, 4

Motor Type
Industrial DC Brake Motor

Product Type
DC Brake Motor

Output Power
0.25 HP to 20 HP

Frequency (MHz)
50 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Three Phase

Speed
1440 RPM / 2880 RPM

Power
0.18 kW - 15 kW

Color
Blue

Dimension (L*W*H)
Varies by HP and Frame Size

Weight
Depends on Frame Size and Power

Shaft Diameter
Varies by Model

Mounting Type
Foot/Flange

IP Rating
IP55

Insulation Class
Class F/H

Brake Type
Electro-Magnetic DC Brake

Enclosure Type
TEFC/Screen Protected

Mounting Options
Foot, Flange, Face

Applications
Elevators, Cranes, Conveyors, Hoists, Machine Tools, Material Handling Systems

Brake Voltage
190V DC / 24V DC (as required)

Connection
Terminal Box type

Frame Size
80 to 160

Brake Torque
Adjustable as per Requirement

Rotation
Bi-directional

Protection,
Thermally Protected

Duty Cycle
S1 (Continuous)

Brake Release Time
Instantaneous

Service Factor
1.0 to 1.15

About Industrial DC Brake Motor

With rich industrial experience we are involved in offering an extensive range of Flange Mounted Brake Motor. We offer these motors in both single phase and three phase finish as per the requirements of our clients. Moreover, these have long life and are reliable, thus highly appreciated among our clients. These can be availed at industry leading prices.

Features:

Various sizes
Cost effective
Durable

Unmatched Braking Precision and Safety

This industrial DC brake motor is equipped with an electro-magnetic brake system engineered for instant and secure stopping in heavy-duty applications. The adjustable brake torque ensures optimal performance tailored to your operational needs, while quick brake release enhances safety and process continuity.

Engineered for Versatility and Durability

With its rugged construction and multiple mounting options-including foot, flange, and face-the motor is suitable for a wide range of industrial setups. The TEFC enclosure, high-efficiency design (IE2/IE3), and advanced insulation contribute to long-term reliability even in challenging environments.

Optimal Performance Across Applications

Operating at either 1440 or 2880 RPM with output power ranging from 0.25 HP to 20 HP, the motor supports a broad spectrum of applications from elevators and cranes to material handling and machine tools. Its bi-directional rotation, low noise, thermal protection, and compliance with IS: 325/4722 standards ensure consistent, safe, and efficient operation.

FAQ's of Industrial DC Brake Motor:

Q: How does the electro-magnetic DC brake improve operational safety in industrial applications?

A: The DC brake instantly engages to stop the shaft upon power-off, providing quick and secure braking. This rapid response prevents machinery overrun, minimizes accident risks, and safeguards operators and equipment during emergency stops or routine operations.

Q: What mounting options are available for this brake motor, and where are they typically used?

A: This motor supports foot, flange, and face mounting, making it adaptable for various installation requirements. Foot mounting is common in stationary applications, while flange and face options are ideal for integration into compact or specialized industrial machinery.

Q: When should the brake torque be adjusted, and what is the process?

A: Brake torque should be adjusted to match the load requirements of your specific installation, ensuring effective stopping without excessive wear. Adjustment can be done by following the motor's technical manual, often involving simple mechanical tuning at the brake assembly by a qualified technician.

Q: Where can this DC brake motor be applied for maximum benefit?

A: The motor is ideal for elevators, cranes, conveyors, hoists, machine tools, and material handling systems-anywhere quick, controlled stopping and high operational reliability are essential for safety and process control.

Q: What are the benefits of the Totally Enclosed Fan Cooled (TEFC) enclosure and IP55 rating?

A: The TEFC enclosure protects internal components from dust, moisture, and debris by completely sealing the motor, supplemented by a cooling fan. The IP55 rating provides additional assurance against ingress of water jets and dust, ensuring durability in demanding industrial environments.

Q: How does the motor's IE2/IE3 efficiency class contribute to industrial processes?

A: IE2/IE3 classified motors offer higher energy efficiency, lowering operational costs and reducing energy consumption. This leads to improved process sustainability while meeting international efficiency regulations and standards.
