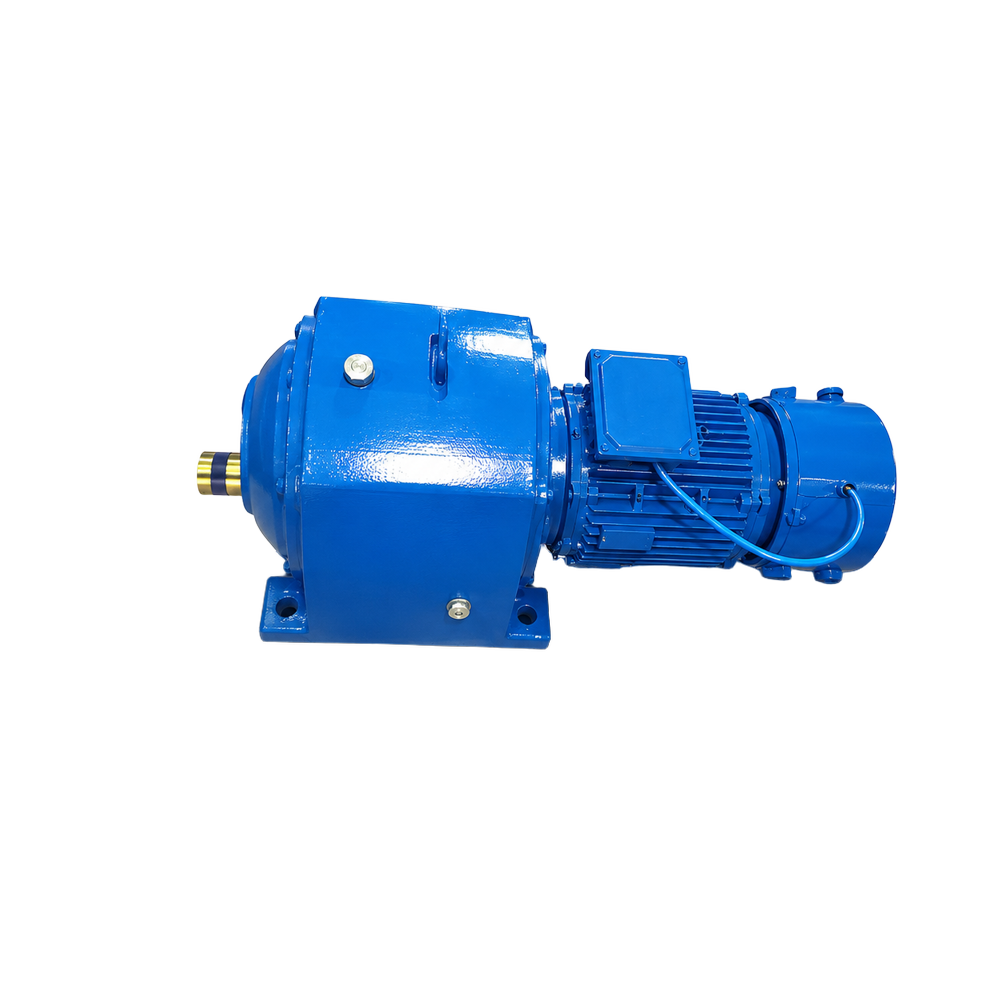

Industrial Helical Gear AC Brake Motor

Industrial Helical Gear AC Brake Motor Specification

Ambient Temperature
-10C to +50C

Motor Type
Induction Motor with Helical Gear and AC Brake

Pressure
Standard Atmospheric

Starting Type
Direct On Line (DOL)

Torque
High Torque Output suitable for industrial loads

Horse Power
0.5 HP to 30 HP

Rated Frequency
50 Hz

Current Type
AC

Voltage
415V

Efficacy
High Efficiency (IE2/IE3 options available)

Noise Level
65 dB

Power Rating
0.37 - 22 kW

Bearing Type
Deep Groove Ball Bearing

Rated Voltage
415V

Features
Heavy Duty, High Efficiency, Rugged Design, Low Maintenance, Helical Gear Integration, Built-in Electromagnetic Brake

Standard
Conforms to IS/IEC Standards

Cooling Method
Fan Cooled

Sealed Type
Sealed

Poles Number
2/4/6 poles

Product Type
Industrial Helical Gear AC Brake Motor

Output Power
0.37 kW to 22 kW

Frequency (MHz)
50 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Three Phase

Speed
Varies (standard: 1440 RPM/2880 RPM)

Power
370W to 22000W

Color
Blue

Dimension (L*W*H)
Varies as per model

Weight
Varies as per model (approx. 15 kg to 300 kg)

Shaft Diameter
Customizable as per requirement

Mounting Type
Foot/Flange Mounting

IP Rating
IP55

Ambient Humidity
< 90% RH

Duty Cycle
S1 Continuous Duty

Direction of Rotation
Bi-Directional

Thermal Protection
PTC thermistor (optional)

Service Factor
1.0-1.15

Lubrication
Grease Filled

Mounting Holes
Standard as per IEC Frame Size

Efficiency Class
IE2/IE3 (as per demand)

Brake Type
Electromagnetic AC Brake

Insulation Class
F/H (as per request)

Material
Body - Cast Iron / Aluminium (As per model)

Output Shaft Position
Horizontal (customizable as requested)

Supply Frequency
50Hz/60Hz (if specified at order)

Gearbox Type
Helical Gear Unit

Vibration
Within IS standards

Surface Finish
Epoxy Powder Coated

Coupling
Flexible coupling available

Gear Ratio Range
5:1 to 70:1

About Industrial Helical Gear AC Brake Motor

Helical Gear AC Brake Motor Supplier Description

We are a leading Helical Gear AC Brake Motor Supplier, offering a wide range of high-quality motors designed for industrial and material handling applications. Our motors combine robust AC motors with precision-engineered helical gearboxes and integrated electromagnetic brakes, delivering high torque, smooth operation, and reliable stopping performance.

Built for durability and efficiency, our motors are suitable for continuous and heavy-duty operations, making them ideal for cranes, hoists, conveyors, and other industrial machinery. We prioritize quality, performance, and timely delivery, ensuring that our clients receive dependable motor solutions tailored to their requirements.

Key Features:

High-quality AC brake motors with precision helical gears
Integrated electromagnetic brake for safe and precise stopping
Robust construction for long service life and reliability
Energy-efficient and low-maintenance design
Available in foot-mounted, flange-mounted, and customized configurations
Suitable for continuous and heavy-duty industrial operations

Rugged Construction for Demanding Applications

Engineered for heavy-duty industrial environments, this AC brake motor features a robust cast iron or aluminium body and helical gear integration. The totally enclosed fan cooled (TEFC) design, IP55 rating, and built-in electromagnetic brake assure protection, reliability, and reduced wear, even in harsh operational conditions.

Flexible, High-Efficiency Performance

Achieve continuous, high-torque operation with options for IE2 or IE3 efficiency classes and continuous duty (S1 rating). Bi-directional rotation, flexible coupling, and customizable shaft design allow seamless adaptation to varied industrial requirements, while the grease-filled gearbox ensures smooth, long-lasting performance.

Customizable and Easy to Install

With mounting holes standardized to IEC frame sizes, selectable output shaft positions, and foot or flange mounting, this motor fits easily into new or existing systems. Optional thermal protection, adjustable speed, and power ratings up to 22 kW further support tailored setups for specific industrial tasks.

FAQ's of Industrial Helical Gear AC Brake Motor:

Q: How is the helical gear AC brake motor installed and mounted?

A: The motor is available with foot or flange mounting, and mounting holes adhere to IEC frame size standards. This ensures simple installation and secure attachment to most industrial machinery setups.

Q: What applications can benefit from the integrated electromagnetic AC brake?

A: The electromagnetic AC brake provides rapid and reliable stopping power, making this motor ideal for conveyors, lifting equipment, and applications demanding precise start-stop control in continuous operations.

Q: When should I choose an IE2 or IE3 efficiency class motor?

A: Select IE2 or IE3 efficiency based on your energy-saving goals and local regulations. IE3 motors provide higher energy efficiency and are preferable for operations seeking to minimize energy costs over time.

Q: Where can the direction of rotation be changed and is it bi-directional?

A: Yes, this motor supports bi-directional rotation. The direction can typically be changed through the electrical control system during installation, making it adaptable to varying process requirements.

Q: What is the process for customizing the shaft diameter or output shaft position?

A: Shaft diameter and output shaft position are customizable upon request at the time of order. Provide your specific requirements so the manufacturer can tailor the motor to your application needs.

Q: How does the IP55 rating benefit industrial operations?

A: An IP55 rating ensures the motor is protected against dust ingress and low-pressure water jets, making it suitable for use in environments subject to moisture or airborne particles.

Q: What is the recommended usage environment for this motor?

A: This motor operates optimally in ambient temperatures from -10C to +50C, ambient humidity below 90% RH, and standard atmospheric pressure, making it suitable for most industrial settings.
