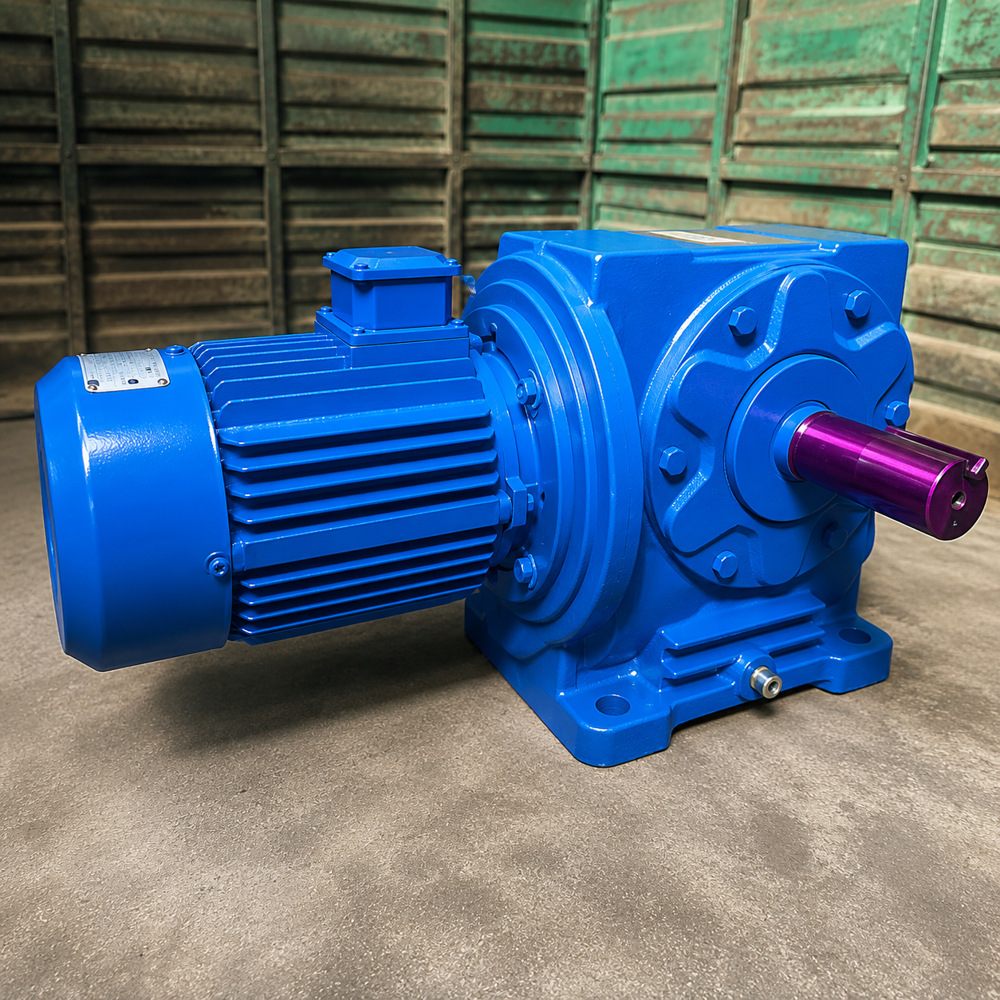

Industrial NXU Gear Box

Industrial NXU Gear Box Specification

Gear Type
Helical Gear / Worm Gear

Material
Cast Iron

Processing Type
Precision Machined

Gear Tooth Profile
Helical / Spur

Gearing Arrangement
Parallel

Direction
Bidirectional

Output Torque
Upto 15000 Nm

Rated Power
Upto 200 kW

Input Speed
1440 rpm

Output Speed
15 - 350 rpm

Voltage
415V AC, 3 Phase

Efficiency
Up to 96%

Mounting Type
Foot Mounted

Housing Protection
IP55

Input Flange
Standardized B5 / B14 Options

Surface Finish
Paint Coated (Epoxy Blue)

Noise Level
Low

Lubrication
Oil Splash Lubricated

Cooling Method
Natural Air Cooled

Weight
Approx. 250 kg

Application
Industrial (Conveyors, Mixers, Crushers)

Shaft Orientation
Horizontal

Sealing
Oil Seals Provided

About Industrial NXU Gear Box

The NXU Gear Motor for Lift is a compact and efficient drive unit specially designed to deliver smooth, safe, and reliable lifting performance. It combines a high-quality helical gear box with a durable electric motor, ensuring superior torque transmission, low noise, and long operational life.

Built with high-strength alloy steel gears and a robust cast iron housing, this gear motor guarantees high load capacity, vibration-free performance, and minimal maintenance, making it ideal for lift and elevator applications.

Advanced Design and Construction

The NXU Gear Box boasts a rugged cast iron construction with an epoxy blue finish, combining durability with corrosion resistance. The horizontal shaft orientation and foot mounting make it versatile for a variety of installation setups, while the precision-machined gears ensure dependable torque delivery in demanding settings.

Superior Operational Performance

Offering up to 96% efficiency, low noise levels, and smooth power transmission, the gearbox is engineered for industrial environments that demand reliability. Oil splash lubrication minimizes wear and maintenance, while the protected housing (IP55) ensures operation in dusty or mildly wet conditions.

Flexible Applications and Easy Integration

Designed for flexibility, the NXU Gear Box accommodates both B5 and B14 standardized input flanges, supporting seamless integration into existing industrial systems. Suitable for conveyors, mixers, and crushers, it operates in the 15-350 rpm output speed range, with rated power up to 200 kW.

FAQ's of Industrial NXU Gear Box:

Q: How is the NXU Gear Box installed within industrial systems?

A: The NXU Gear Box is designed for horizontal, foot-mounted installation. It can be directly bolted to suitable bases or frames in your equipment, using standardized B5 or B14 input flanges for easy integration with various machinery setups.

Q: What lubrication method does the gearbox utilize, and how does it benefit maintenance?

A: This gearbox uses an oil splash lubrication system, which automatically distributes oil to vital moving parts. This ensures consistent lubrication, reduces wear, and lowers maintenance frequency, enhancing overall longevity.

Q: Where can the NXU Gear Box be used most effectively?

A: The gearbox is ideally suited to industrial applications, notably in conveyors, mixers, and crushers. Its robust design and heavy-duty performance make it particularly effective in processes requiring reliable torque and continuous operation.

Q: What protection features are included to safeguard the gearbox in harsh environments?

A: It features an IP55-rated paint-coated housing for effective dust and water resistance, as well as quality oil seals to prevent lubricant leakage and contaminants from entering, ensuring durability and reliable operation.

Q: How does the gear type affect the performance of the NXU Gear Box?

A: With both helical and spur gear options, users can choose the most suitable configuration for their application. Helical gears offer quieter and smoother transmission, while spur gears provide straightforward, efficient power for industrial drives.

Q: What are the main advantages of using this gearbox for industrial machinery?

A: The NXU Gear Box delivers high efficiency (up to 96%), robust torque output, low noise operation, and easy integration with standardized machine interfaces. Its durable, sealed design reduces downtime and extends service life.
